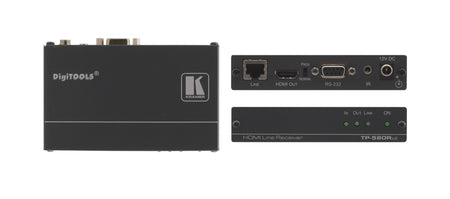

The TP−580RXR is an extended range, HDBaseT twisted pair receiver for HDMI, bidirectional RS−232 and IR signals. The TP−580RXR receives an HDBaseT twisted pair signal from the TP−580TXR and converts it back into HDMI, RS−232 and IR signals.
- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliance.
- HDBaseT™ Technology.
- HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
- 3D Pass-Through.
- EDID PassThru - Passes EDID signals between the source and display.
- 2K & 4K Support.
- Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and remote control of the destination unit.
- System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC−HDKat6a cables
- Cable - For optimum range and performance using HDBaseT™, use Kramer's BC−HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non−Kramer CAT 6 cable may not reach these ranges.
- Indicators - Status LEDs for input, output, link and power.
- Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter.
| Features |
|---|
| Product colour |
Black |
| Bandwidth |
3.4 Gbit/s |
| Maximum transfer distance |
130 m |
| Cable types supported |
Cat6 |
| Type |
AV receiver |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Serial interface type |
RS-232 |
| RS-232 input ports |
1 |
| Number of HDMI outputs |
1 |
| RJ-45 input ports |
1 |
| Power |
|---|
| AC input voltage |
12 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Weight |
600 g |
| Dimensions (WxDxH) |
120 x 76 x 24 mm |
