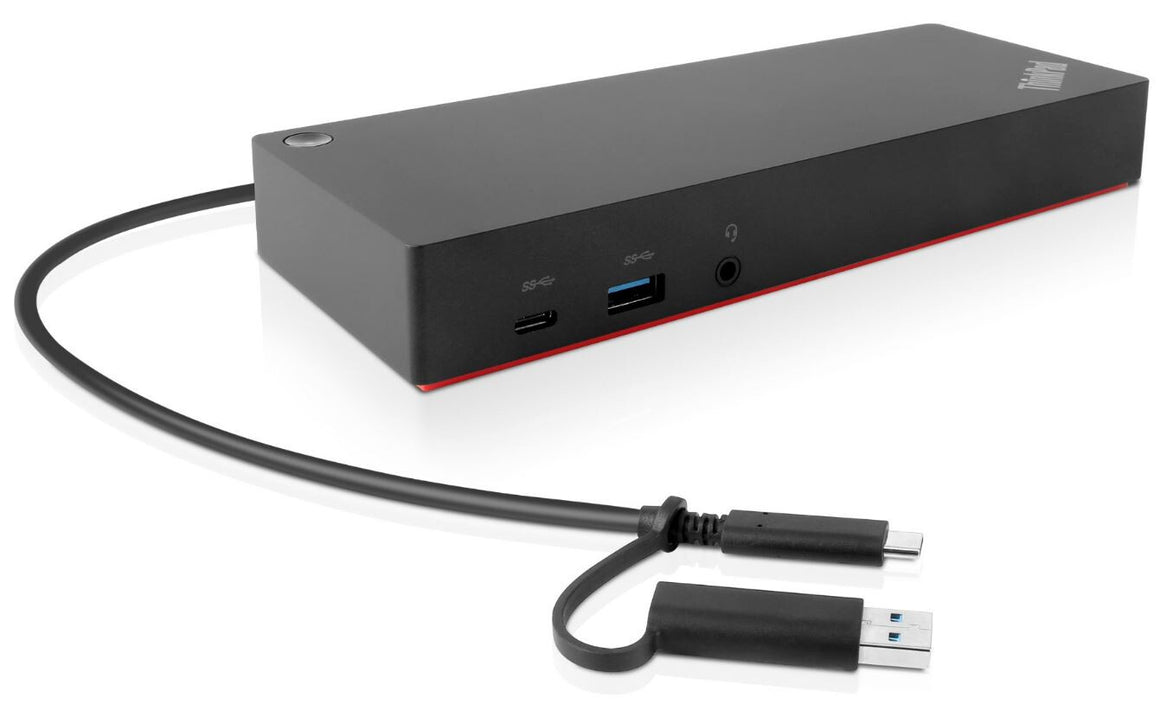

Enterprise-class Universal Docking The ThinkPad Hybrid USB-C with USB-A dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manageability like PXE boot and MAC address Pass-through the ThinkPad Hybrid USB-C with USB-A offers three high-speed USB3.1 ports, up to dual UHD 4K resolution and rapid charging on ThinkPad notebooks. And, with the included USB-C to USB-A adaptor it can also provide port replication to non-Lenovo or USB-C notebooks.
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
2 |
| HDMI ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| Connectivity technology |
Wired |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Certification |
BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Quality, TUV Mark, Ukraine DoC, VCCI |
| Compatibility |
E580, E480, E470, L580, L480, L470, L380, L380 Yoga, Lenovo Tablet 10, Miix 520-12IKB, T580, T570, T480, T480s, T470, T470s, T460, ThinkPad 25, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X1 Tablet Gen 3, X1 Tablet Gen 2, 13 Gen 3 Windows, X280, X270, X260 |
| Brand compatibility |
Lenovo |
| Number of displays supported |
2 |
| Maximum digital resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Card reader integrated |
No |
| Product colour |
Black |
| Power |
|---|
| Power plug type |
Type C |
| Power supply |
135 W |
| Power source type |
AC |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Weight & dimensions |
|---|
| Weight |
480 g |
| Height |
30 mm |
| Depth |
80 mm |
| Width |
210 mm |
| Packaging data |
|---|
| Package weight |
1.35 kg |
| Package height |
88 mm |
| Package depth |
165 mm |
| Package width |
270 mm |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
