Overview
Small Form Big Impact

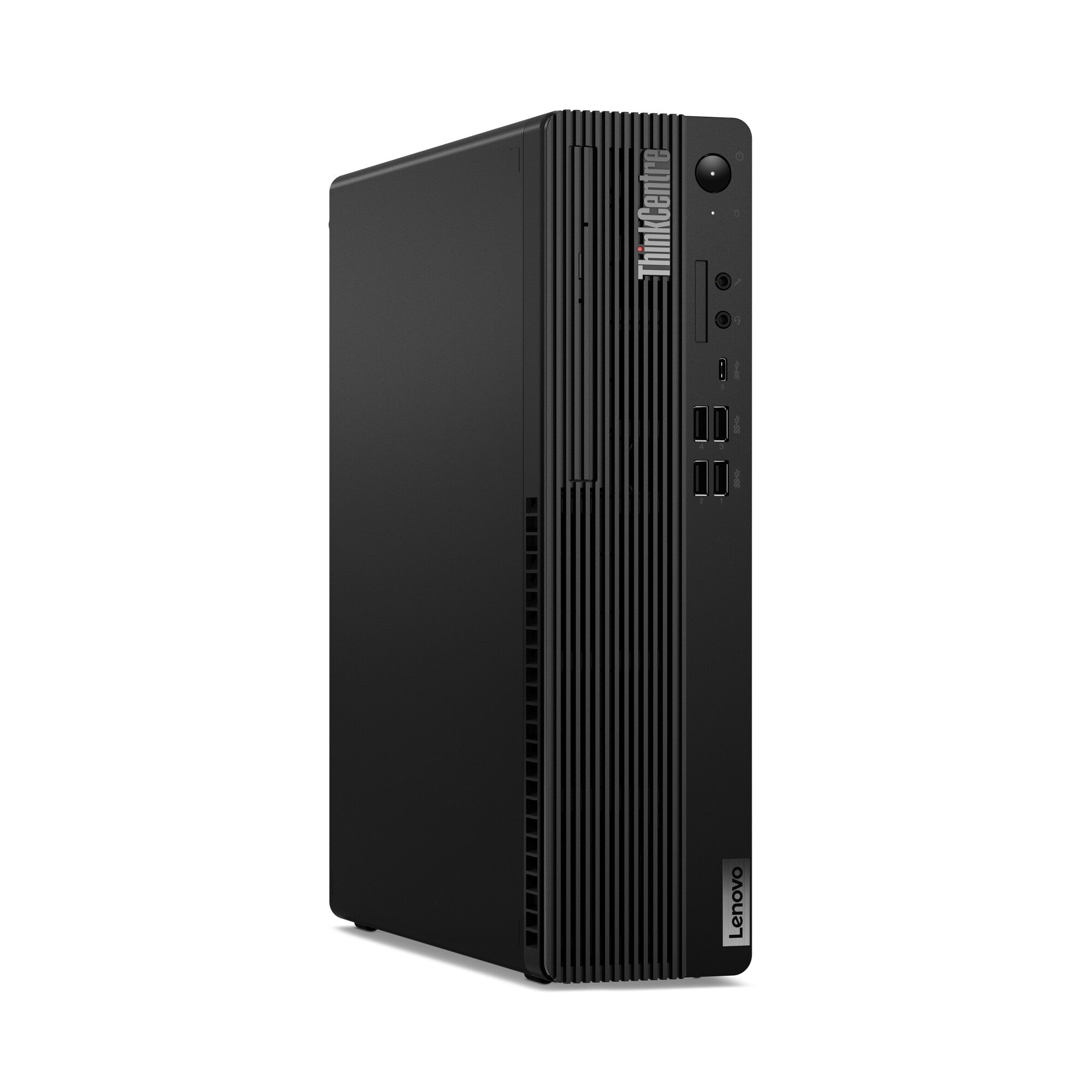

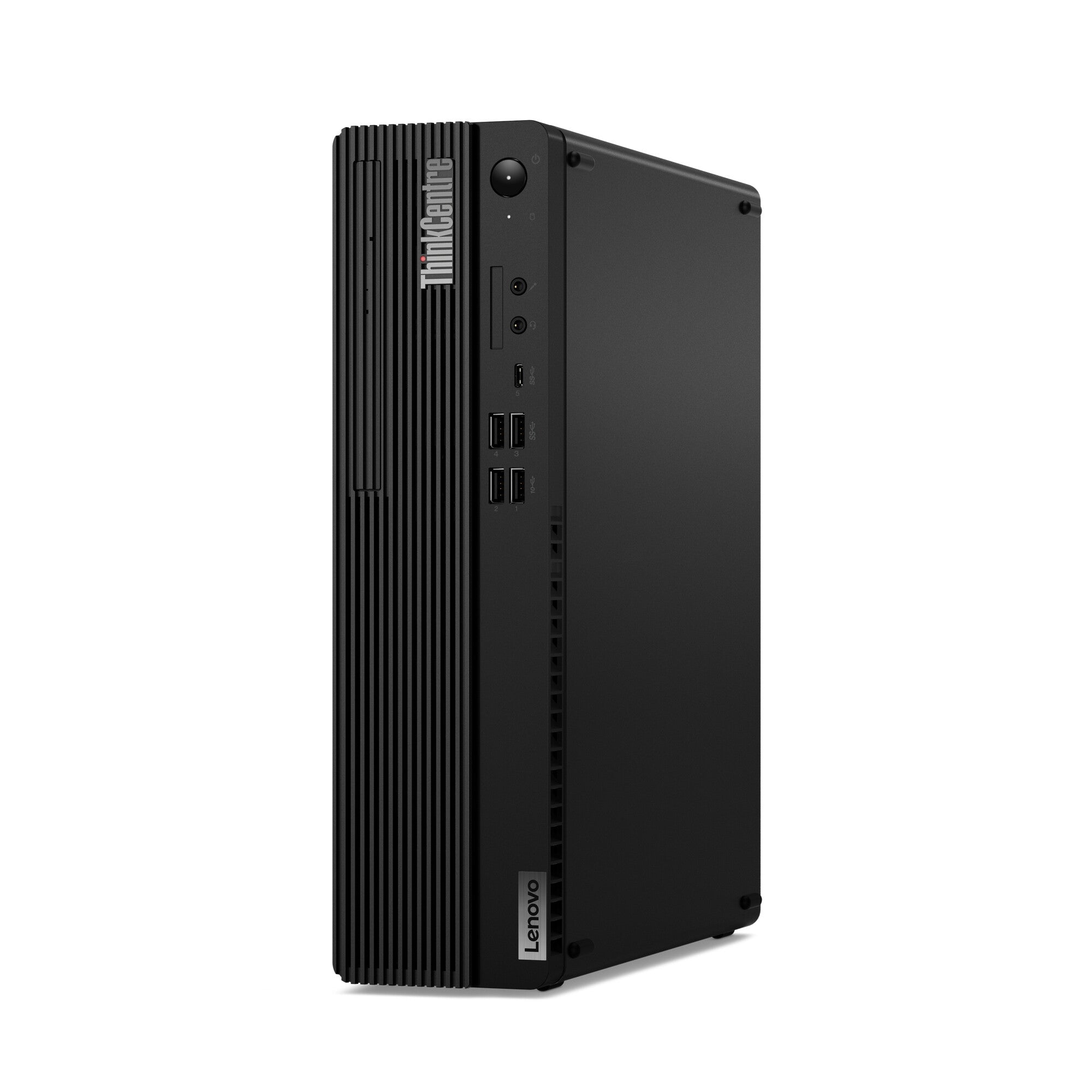

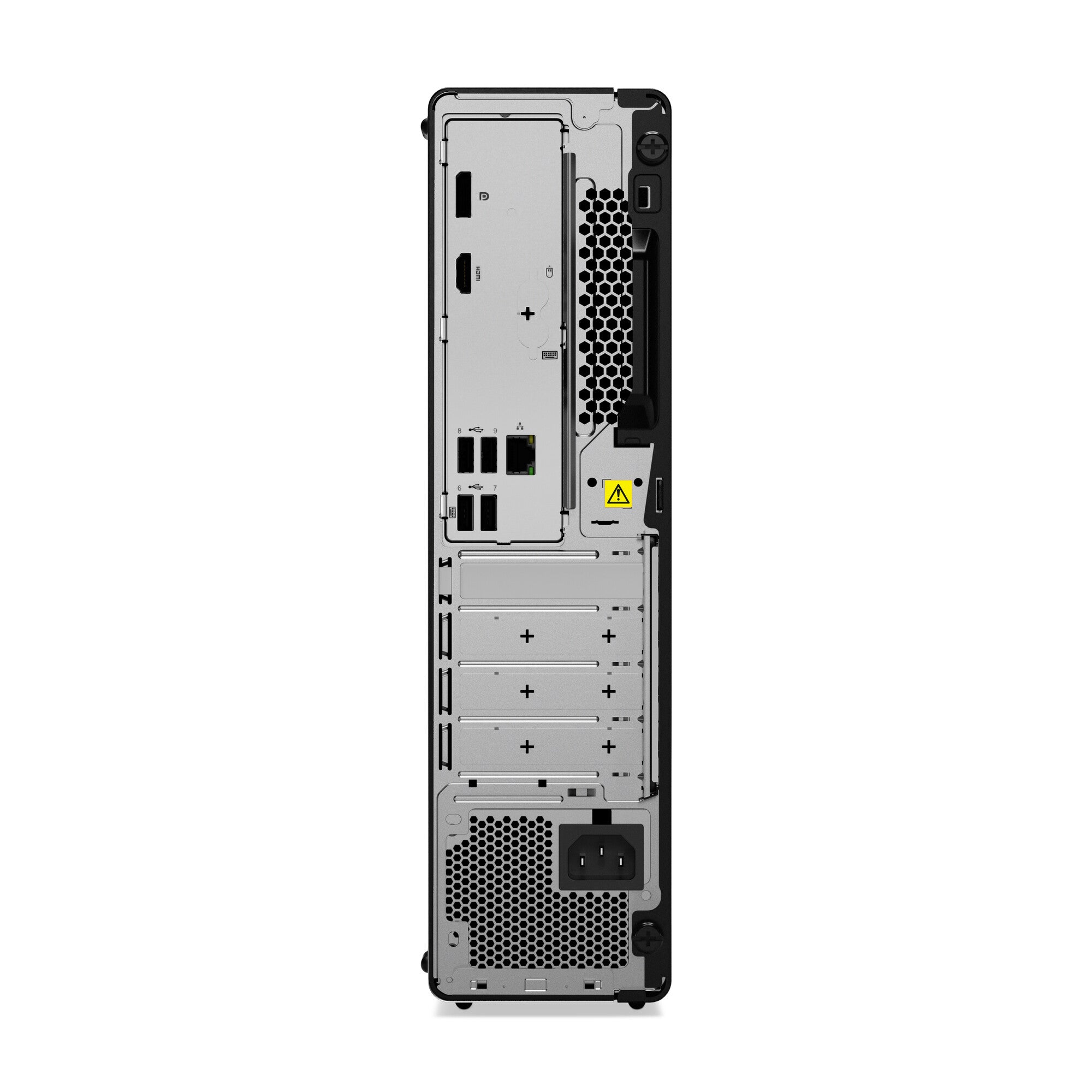

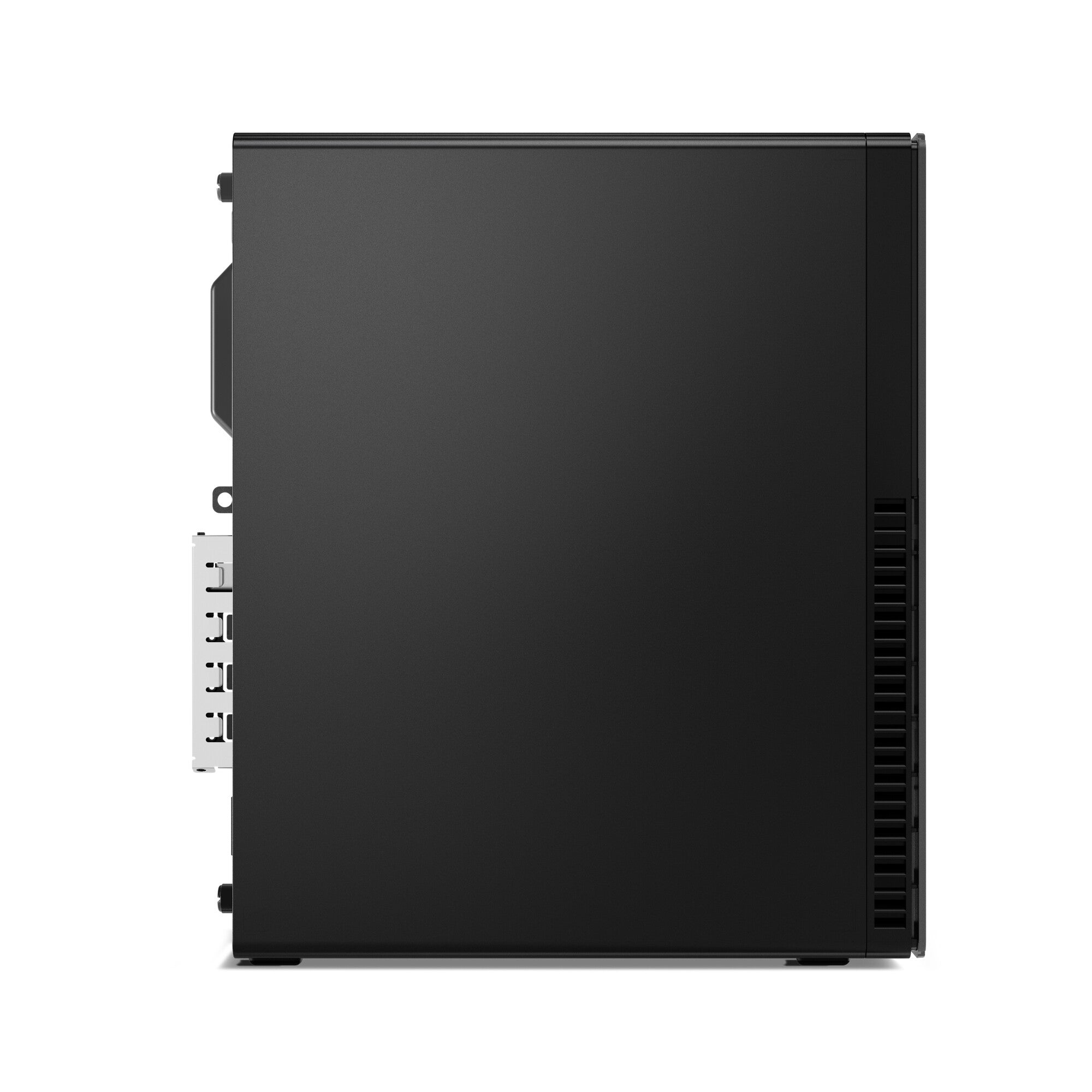

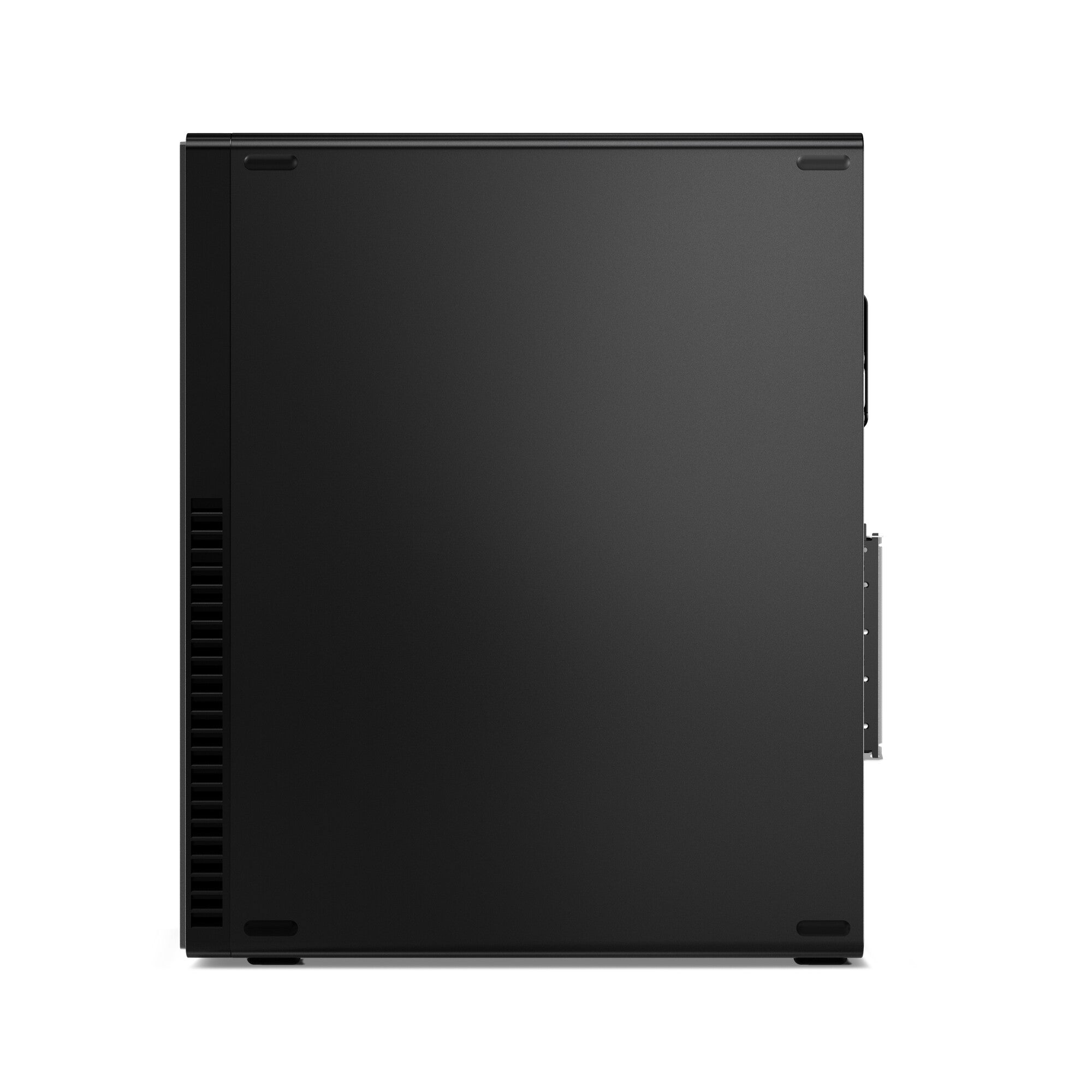

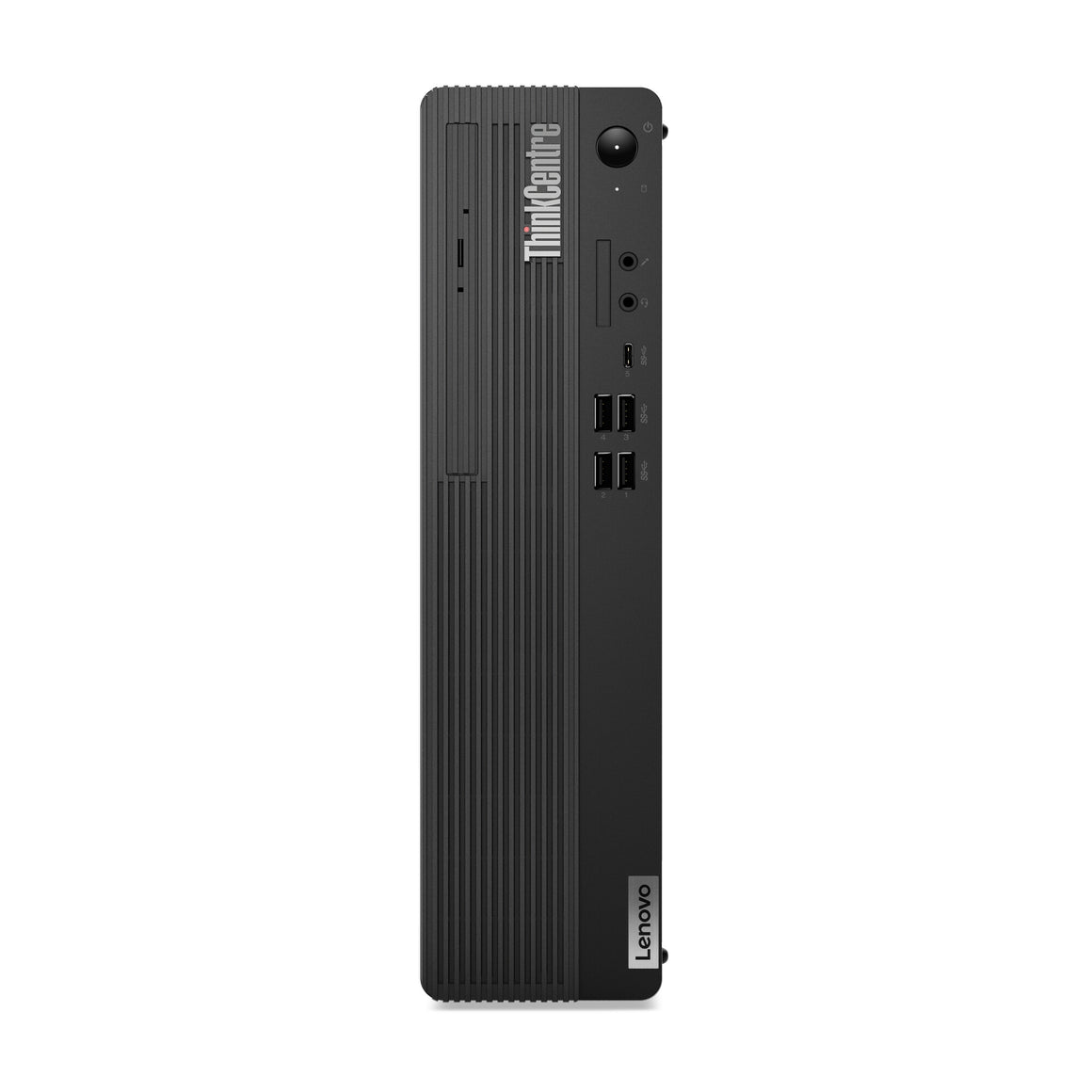

- Fast, powerful small-form factor desktop PC
- AI-accelerated features to enhance performance
- Up to 14th Gen Intel Core™ processors with Intel vPro® Enterprise
- ThinkShield security solutions to protect your data and your business
| Processor | |
|---|---|
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 5.3 GHz |
| Processor threads | 28 |
| Processor cores | 20 |
| Processor model | i7-14700 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory clock speed | 5600 MHz |
| Memory slots | 2x DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 64 GB |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Card reader integrated | Yes |
| SSD form factor | M.2 |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | DVD±RW |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Performance | |
|---|---|
| Product type | PC |
| Software | |
|---|---|
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Power | |
|---|---|
| Power supply input frequency | 50/60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 260 W |
| Certificates | |
|---|---|
| Certification | TCO,RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 5.3 kg |
| Height | 339.5 mm |
| Depth | 297.7 mm |
| Width | 92.5 mm |
| Packaging content | |
|---|---|
| Keyboard included | Yes |
| Keyboard connectivity | Wired |
| Mouse included | Yes |
| Mouse connectivity | Wired |
| General | |
|---|---|
| Product family | ThinkCentre |
| Product series | M |
