Performance-Driven Laptop with AI Efficiency, Smart Power & Robust Build
- 16” Thin, AI-powered high-performance business laptop
- Improved productivity with Intel® Core™ Ultra processors & stunning graphics
- Easily upgradeable as your business grows & modern-day needs evolve
| Design |
|---|
| Market positioning |
Business |
| Housing material |
Aluminium |
| Form factor |
Clamshell |
| Colour name |
Black |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
|---|
| Maximum refresh rate |
60 Hz |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Display brightness |
300 cd/m² |
| Anti-glare screen |
Yes |
| LED backlight |
Yes |
| Native aspect ratio |
16:10 |
| Panel type |
IPS |
| HD type |
WUXGA |
| Touchscreen |
No |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
40.6 cm (16") |
| Processor |
|---|
| Processor base power |
15 W |
| Maximum turbo power |
57 W |
| Processor cache type |
Smart Cache |
| Processor cache |
12 MB |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Efficient-core base frequency |
1.3 GHz |
| Performance-core base frequency |
1.5 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.4 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core Max Turbo Frequency |
4.8 GHz |
| Low Power Efficient-cores |
2 |
| Efficient cores |
8 |
| Performance cores |
2 |
| Processor boost frequency |
4.8 GHz |
| Processor threads |
14 |
| Processor cores |
12 |
| Processor model |
225U |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 5 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
|---|
| NPU performance up to |
12 TOPs |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| AI datatype support on NPU |
FP16, FP32, Int8 |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
|---|
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Memory clock speed |
5600 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
16 GB |
| Storage |
|---|
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| M.2 SSD size |
2242 (22 x 42 mm) |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
|---|
| On-board graphics card model |
Intel Graphics |
| On-board graphics card family |
Intel Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
|---|
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Speakers manufacturer |
Harman Kardon |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Atmos |
| Camera |
|---|
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Front camera resolution |
1920 x 1080 pixels |
| Front camera HD type |
Full HD |
| Front camera |
Yes |
| Network |
|---|
| WWAN |
Not installed |
| Near Field Communication (NFC) |
No |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2x2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |

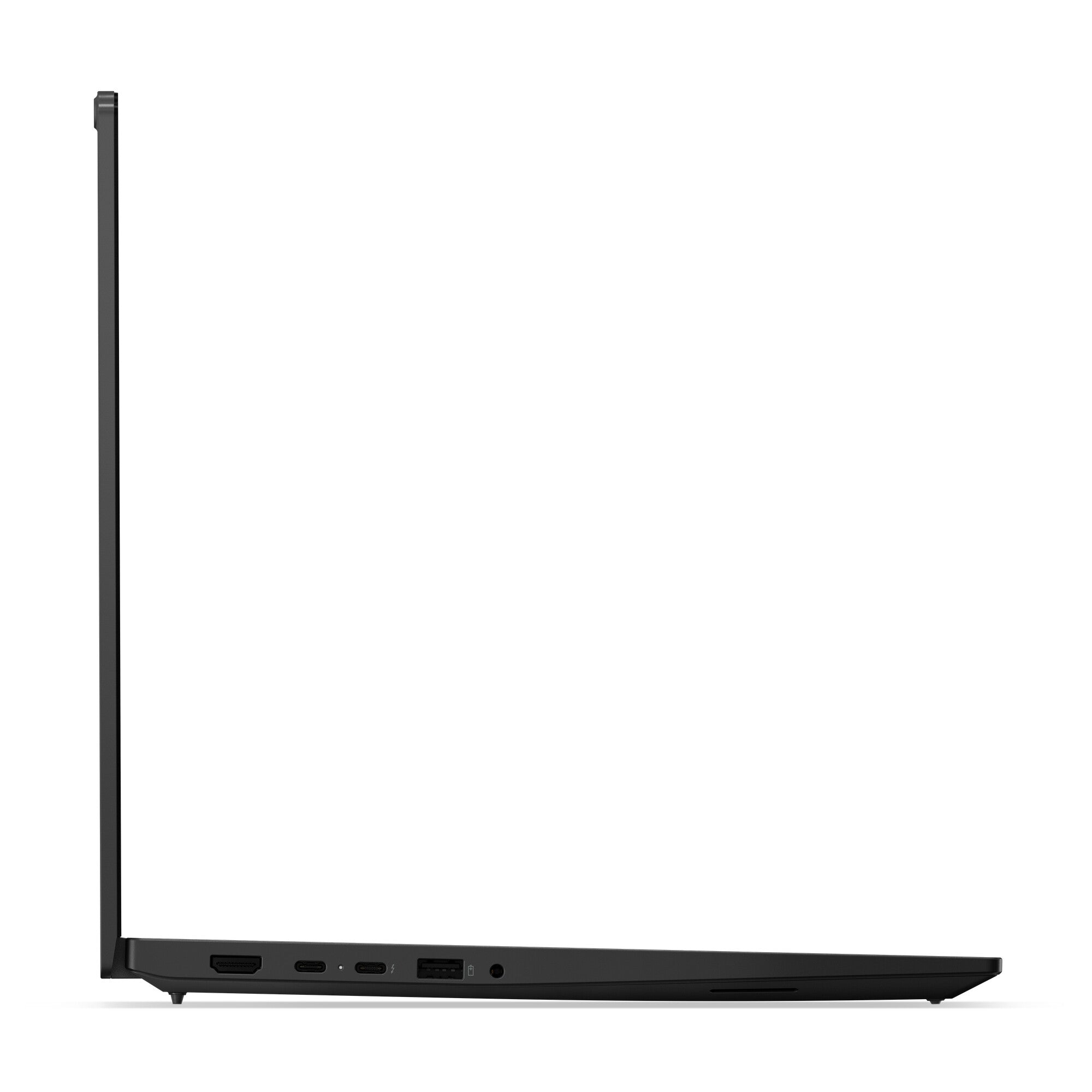

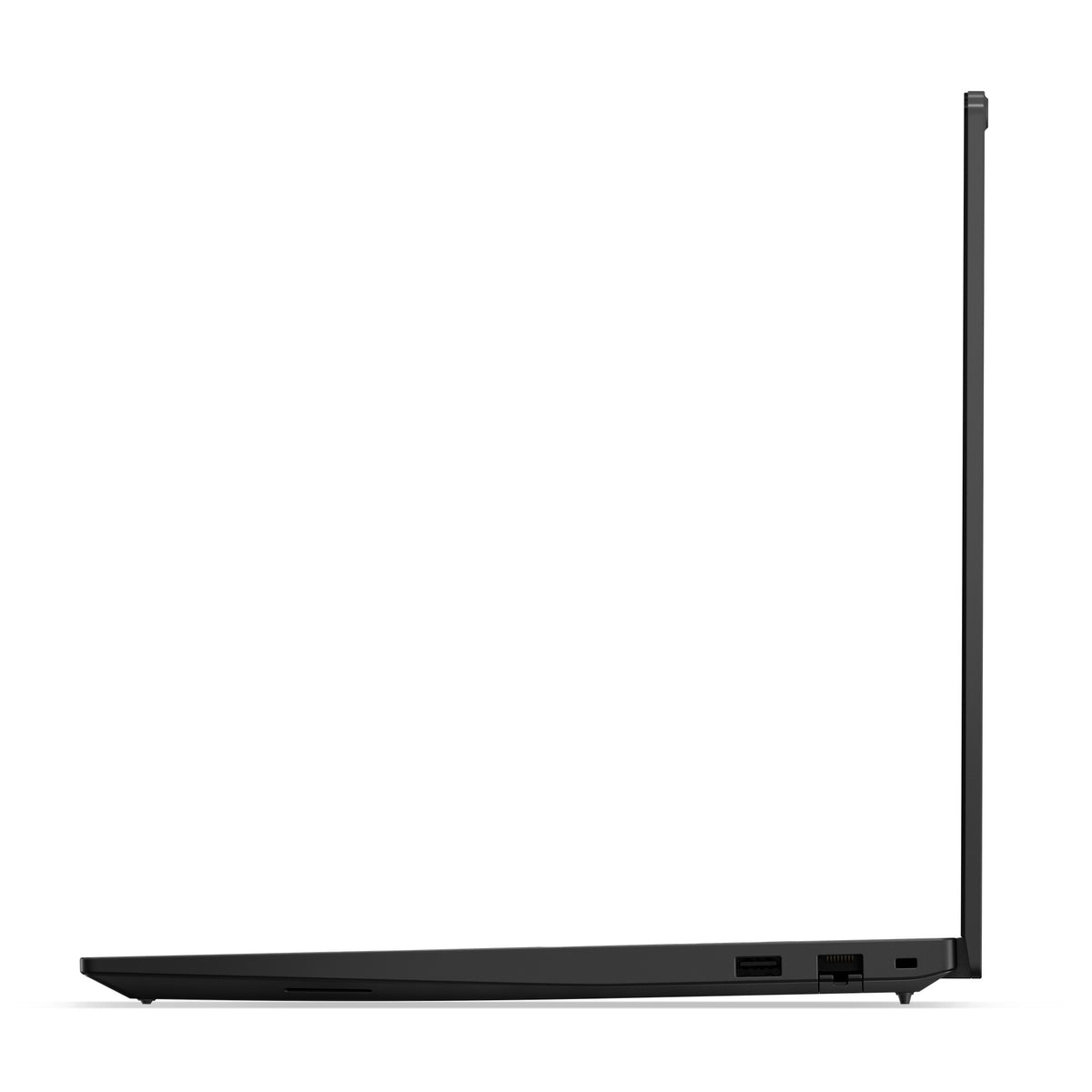

| Ports & interfaces |
|---|
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Performance |
|---|
| Motherboard chipset |
Intel SoC |
| Keyboard |
|---|
| Full-size keyboard |
Yes |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Keyboard layout |
QWERTY |
| Pointing device |
ThinkPad UltraNav |
| Software |
|---|
| Operating system architecture |
64-bit |
| Battery |
|---|
| Battery capacity |
64 Wh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
|---|
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
65 W |
| Security |
|---|
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Windows Hello |
Yes |
| Smart card reader |
No |
| Fingerprint reader |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Operational conditions |
|---|
| Maximum shipping altitude |
3048 m |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
8 - 95% |
| Storage temperature (T-T) |
5 - 43 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Certificates |
|---|
| Certification |
ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT Gold, ErP |
| Weight & dimensions |
|---|
| Height (rear) |
1.71 cm |
| Height (front) |
1.01 cm |
| Depth |
249 mm |
| Width |
356 mm |
| Weight |
1.63 kg |
| General |
|---|
| Product family |
ThinkPad |
| Product series |
E |
| Packaging content |
|---|
| AC adapter included |
Yes |
