POWERHOUSE OF PRODUCTIVITY
Mobility Without Compromise

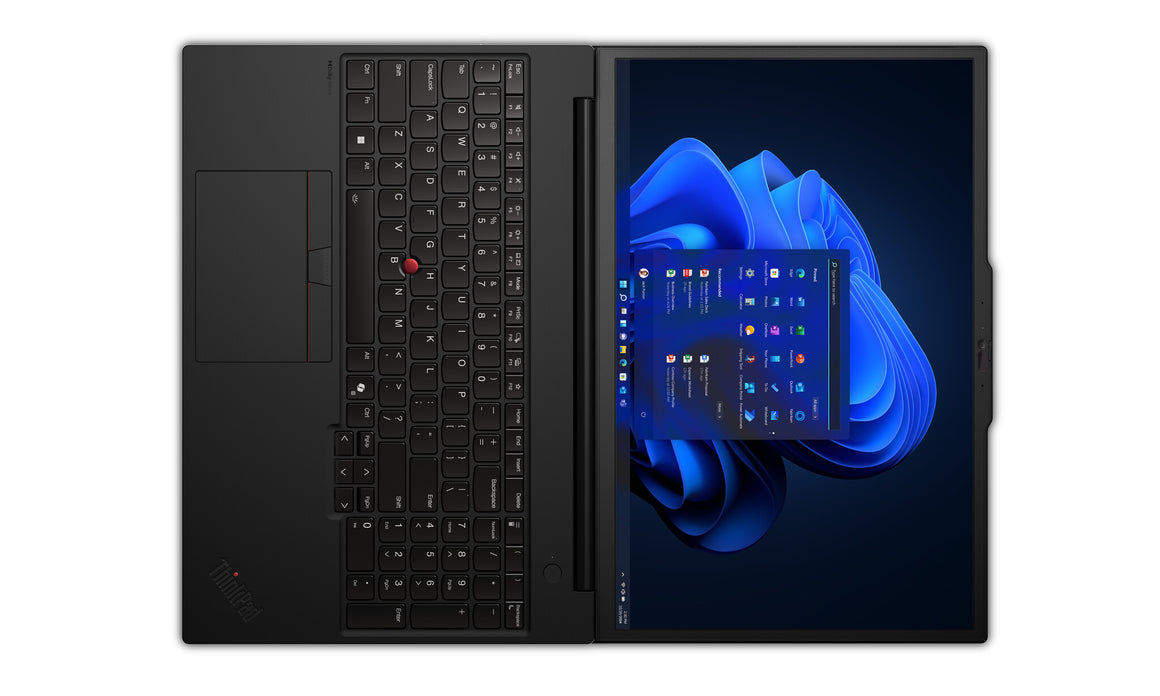

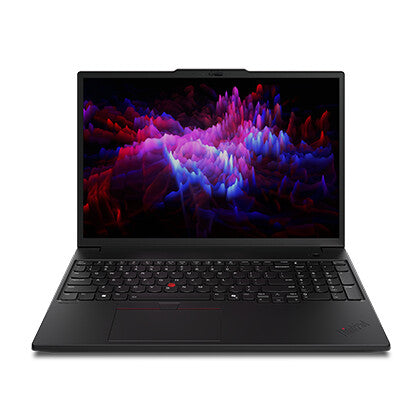

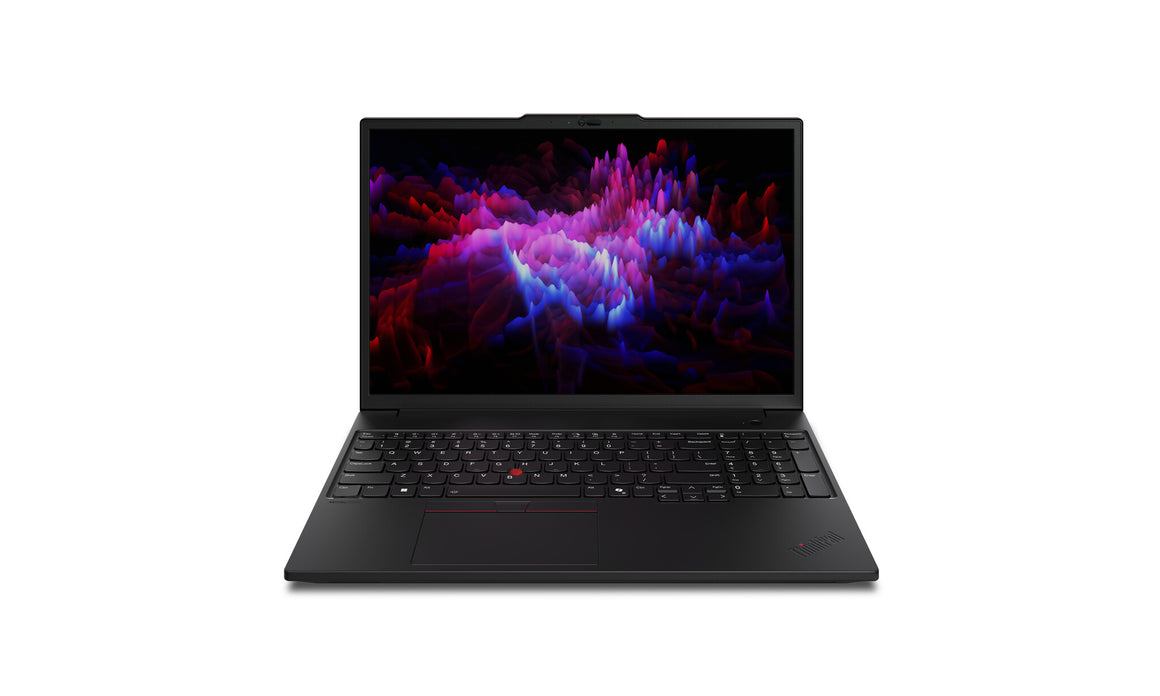

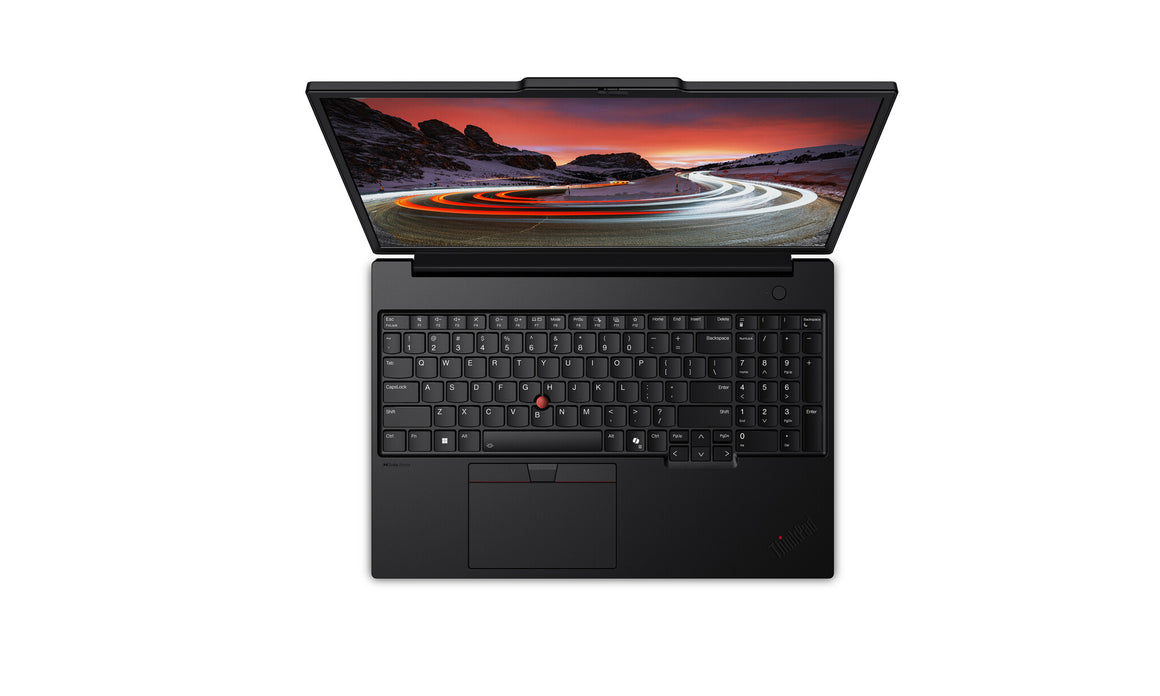

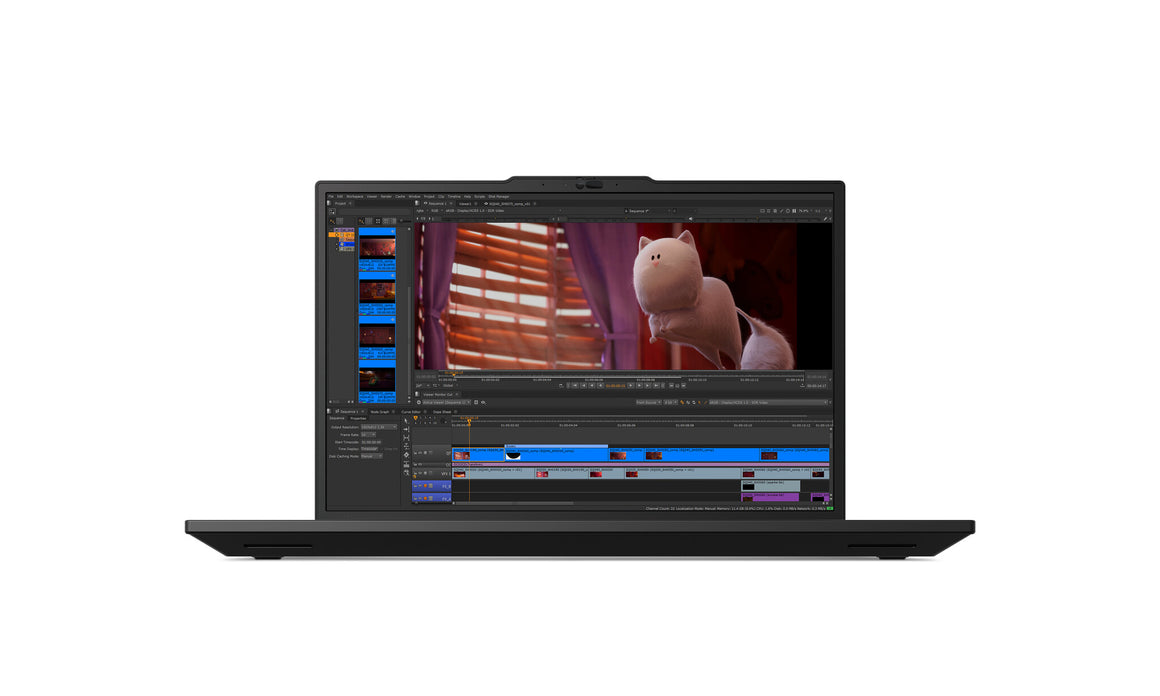

Inspiring creativity in professionals, the 16″ ThinkPad P16s Gen 4 mobile workstation is powered by Intel® Core™ Ultra (Series 2) processors. With optional Intel vPro® technology, it boosts security and manageability. It enhances productivity with a long battery life, a numeric keypad, a wide TouchPad, and a high-resolution camera.
AUTOMATE SIMPLE TASKS
Elevate Your Workday With an AI-Ready Workstation
The ThinkPad P16s Gen 4 mobile workstation enables a range of productivity-rich tasks with advanced AI technology. Enjoy enhanced video conferencing and collaboration tools, robust security, document automation including scanning and summarizing, and email management and scheduling. Plus, with speedy response times, it’s ideal for multitasking.
STAY CONNECTED ON THE GO
Seamless Sharing, Collaboration & Versatile Ports

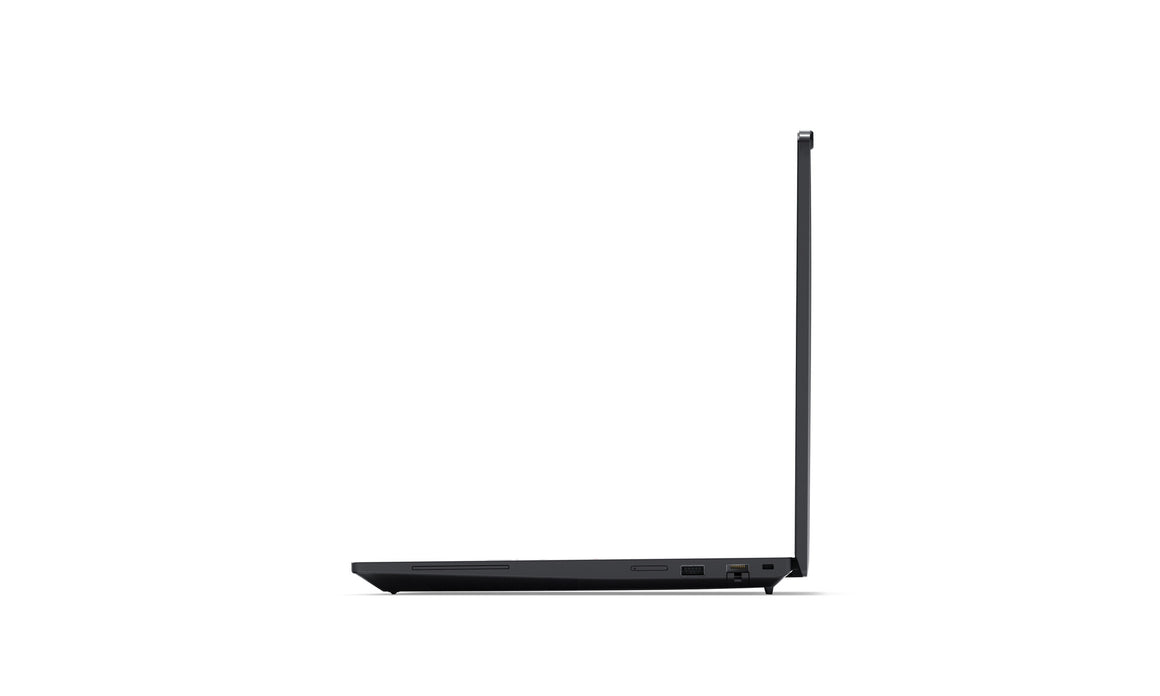

This mobile workstation is built for professionals who demand speed, flexibility, and seamless collaboration. With WiFi 7 and optional 4G connectivity, enjoy ultra-fast connections for smooth calls and instant downloads. Plus, a plethora of ports lets you connect to all your devices.
ISV-CERTIFIED FOR MISSION-CRITICAL SOFTWARE
Smooth App Performance

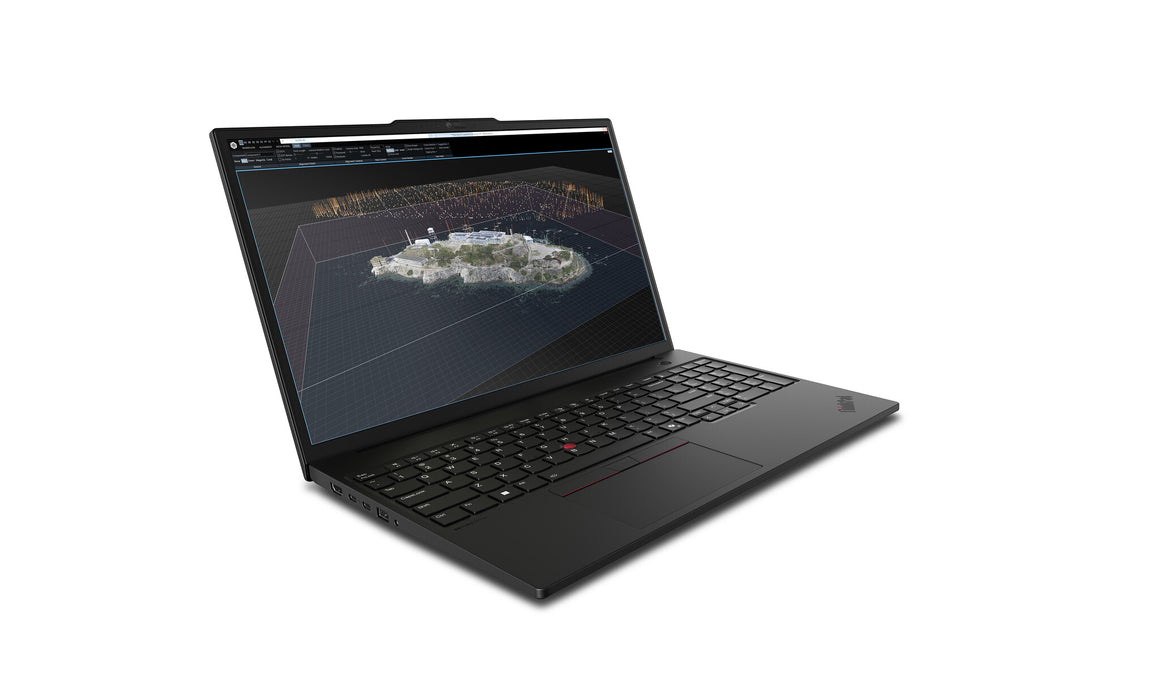

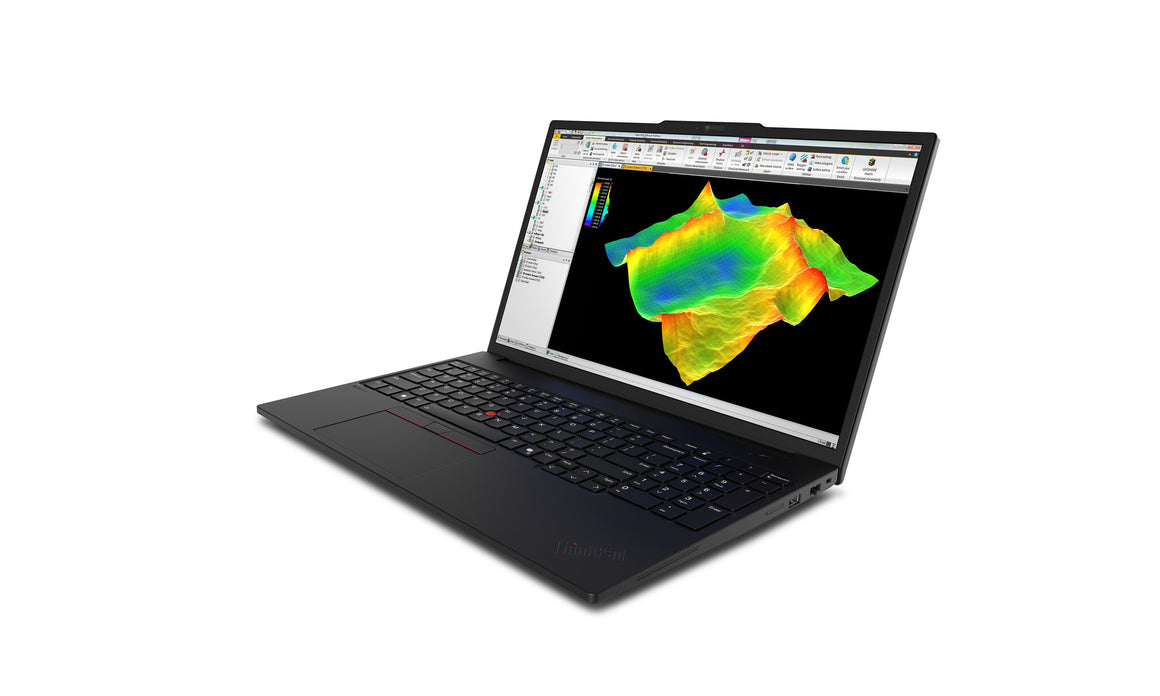

Run your CAD, BIM, and creative apps with confidence, backed by independent software vendor (ISV)* certifications from ANSYS®, SOLIDWORKS®, AutoCAD®, and more. Delivering pro-level performance, the ThinkPad P16s Gen 4 mobile workstation amplifies work efficiency for smarter, more intuitive workflows.
*See the complete list of ISV certifications.
CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry-leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.
Specifications may vary depending upon region / model.
| Design |
|---|
| Intel® vPro™ Platform Eligibility |
Yes |
| Housing material |
Aluminium |
| Form factor |
Clamshell |
| Product colour |
Black |
| Product type |
Mobile workstation |
| Display |
|---|
| Contrast ratio (typical) |
1200:1 |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
sRGB |
| Colour gamut |
100% |
| Display brightness |
500 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:10 |
| Panel type |
IPS |
| HD type |
WUXGA |
| Touchscreen |
No |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
40.6 cm (16") |
| Processor |
|---|
| Processor base power |
28 W |
| Maximum turbo power |
115 W |
| Processor cache |
24 MB |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Efficient-core base frequency |
1.7 GHz |
| Performance-core base frequency |
2.2 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Efficient-core Max Turbo Frequency |
4.5 GHz |
| Performance-core Max Turbo Frequency |
5.3 GHz |
| Low Power Efficient-cores |
2 |
| Efficient cores |
8 |
| Performance cores |
6 |
| Processor boost frequency |
5.3 GHz |
| Processor threads |
16 |
| Processor cores |
16 |
| Processor model |
265H |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
|---|
| GPU performance up to |
75 TOPs |
| NPU performance up to |
13 TOPs |
| Total processor performance up to |
97 TOPs |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
|---|
| Non-ECC |
Yes |
| Memory channels |
Dual-channel |
| Maximum internal memory |
96 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 32 GB |
| Memory clock speed |
5600 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
64 GB |
| Storage |
|---|
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD interface |
PCI Express 5.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
|---|
| On-board graphics card model |
Intel Arc 140T |
| On-board graphics card family |
Intel Arc Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR7 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA RTX PRO 1000 Blackwell |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
|---|
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Audio |
| Audio chip |
Realtek ALC3287 |
| Camera |
|---|
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Front camera resolution (numeric) |
5 MP |
| Front camera |
Yes |
| Network |
|---|
| WWAN |
Upgradable |
| Near Field Communication (NFC) |
No |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller model |
Intel Wi-Fi 7 BE201 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2x2 |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Mobile network connection |
No |
| Ports & interfaces |
|---|
| USB Sleep-and-Charge ports |
1 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Performance |
|---|
| Motherboard chipset |
Intel SoC |
| Keyboard |
|---|
| Copilot key |
Yes |
| Spill-resistant keyboard |
Yes |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Pointing device |
ThinkPad UltraNav |
| Battery |
|---|
| Fast charging |
Yes |
| Battery capacity |
75 Wh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
|---|
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
100 W |
| Security |
|---|
| Password protection type |
BIOS, Power on, Supervisor |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Windows Hello |
Yes |
| Smart card reader |
Yes |
| Fingerprint reader |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Operational conditions |
|---|
| Maximum shipping altitude |
3048 m |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
8 - 95% |
| Storage temperature (T-T) |
5 - 43 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Certificates |
|---|
| Certification |
TCO Certified, generation 10MIL-STD-810HEyesafe Certified 2.0TÜV Rheinland Low Blue Light |
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT Gold |
| Weight & dimensions |
|---|
| Height (rear) |
1.82 cm |
| Height (front) |
1.26 cm |
| Depth |
248.6 mm |
| Width |
361.5 mm |
| Weight |
1.82 kg |
| General |
|---|
| Product family |
ThinkPad |
| Product series |
P |
| Packaging content |
|---|
| AC adapter included |
Yes |
