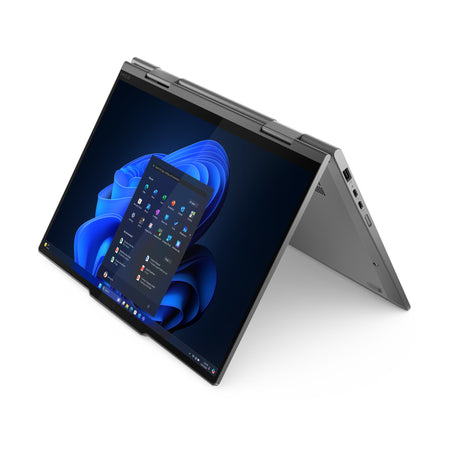

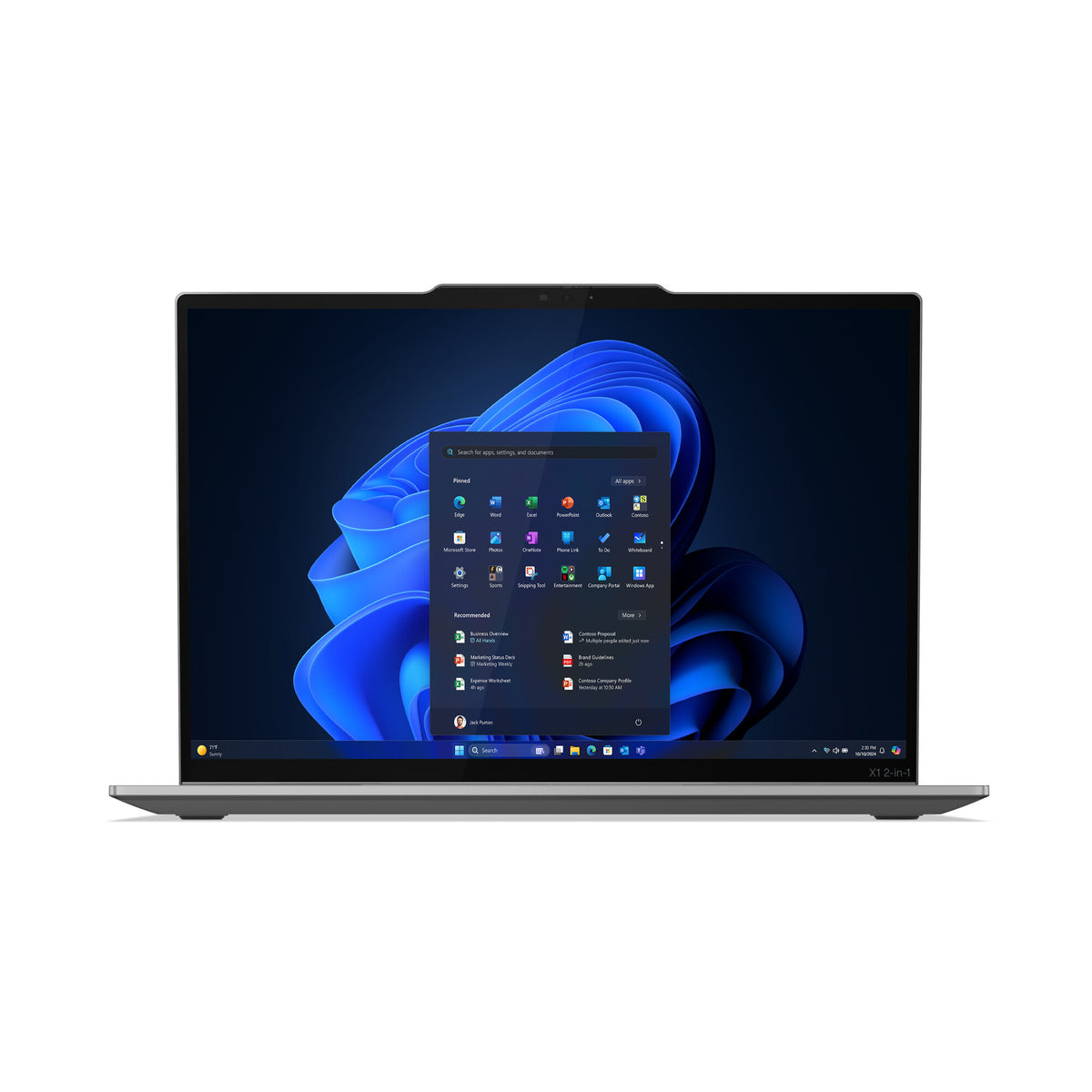

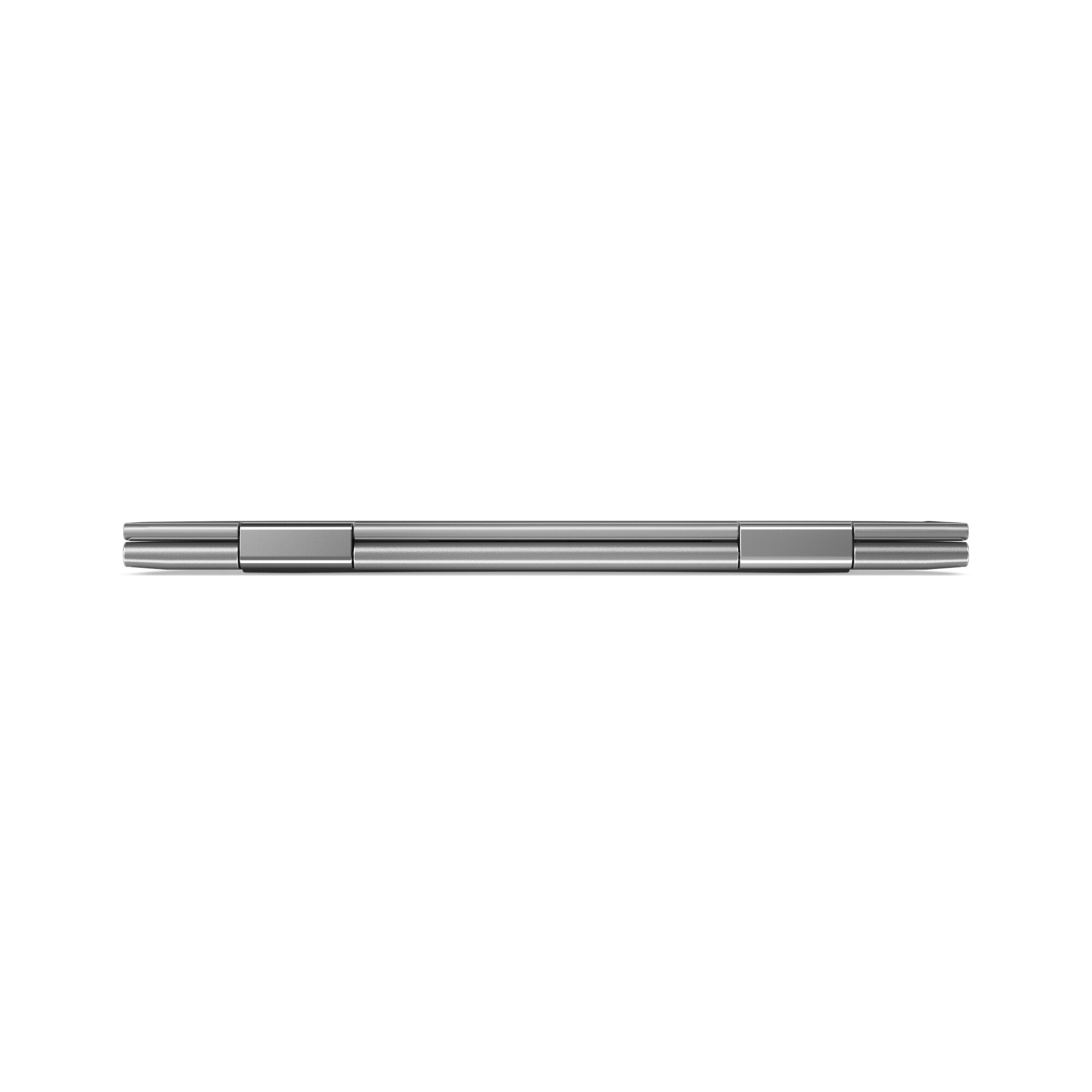

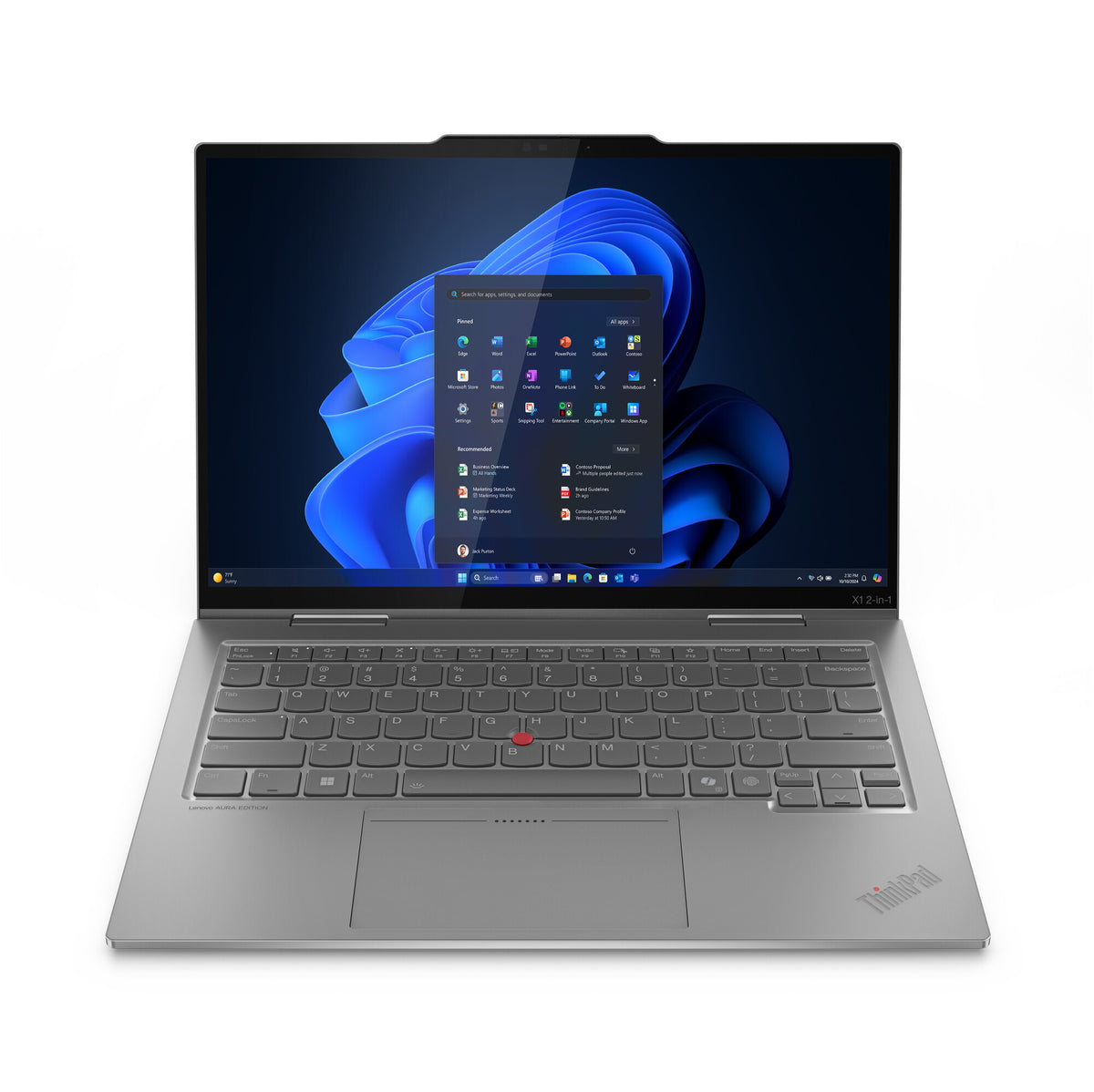

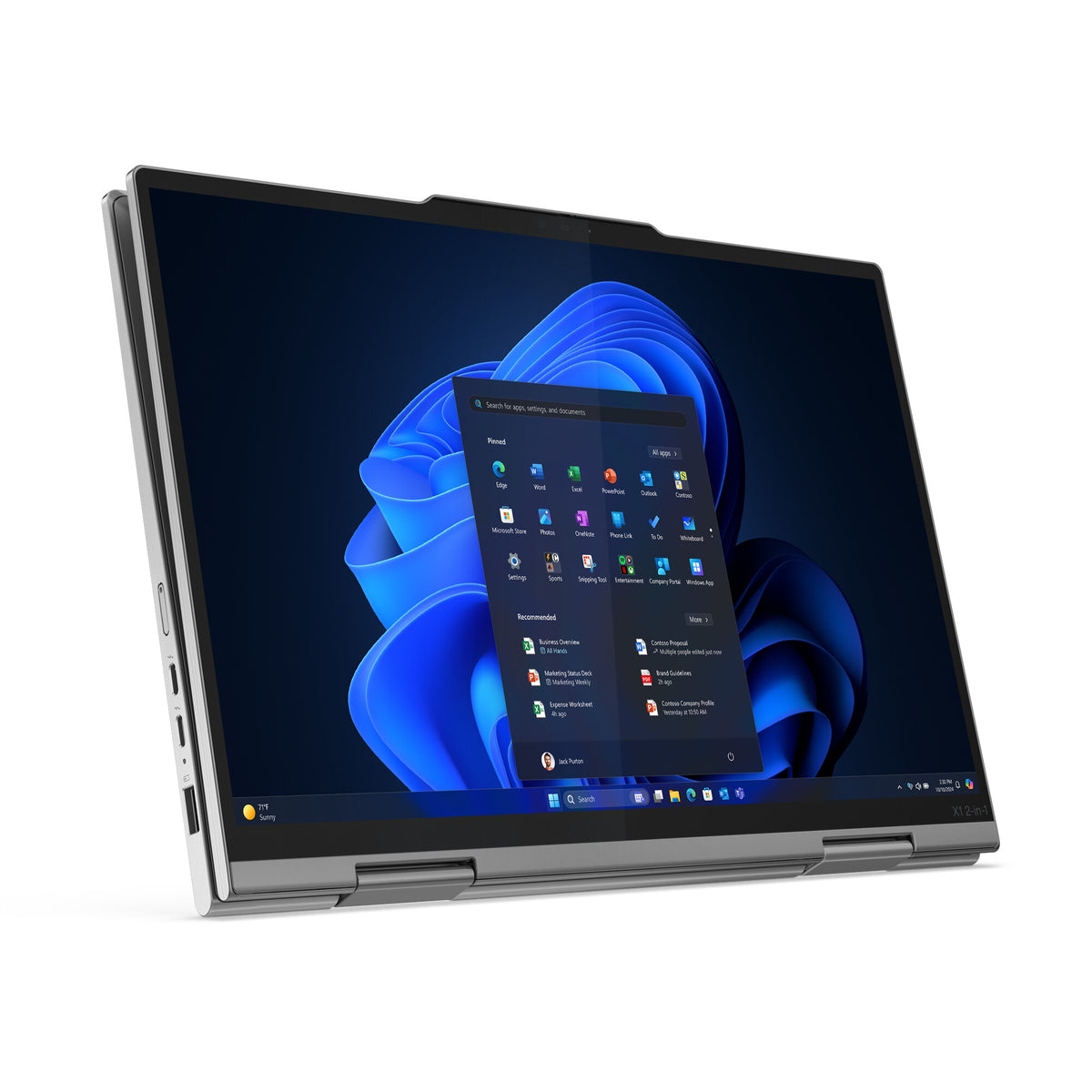

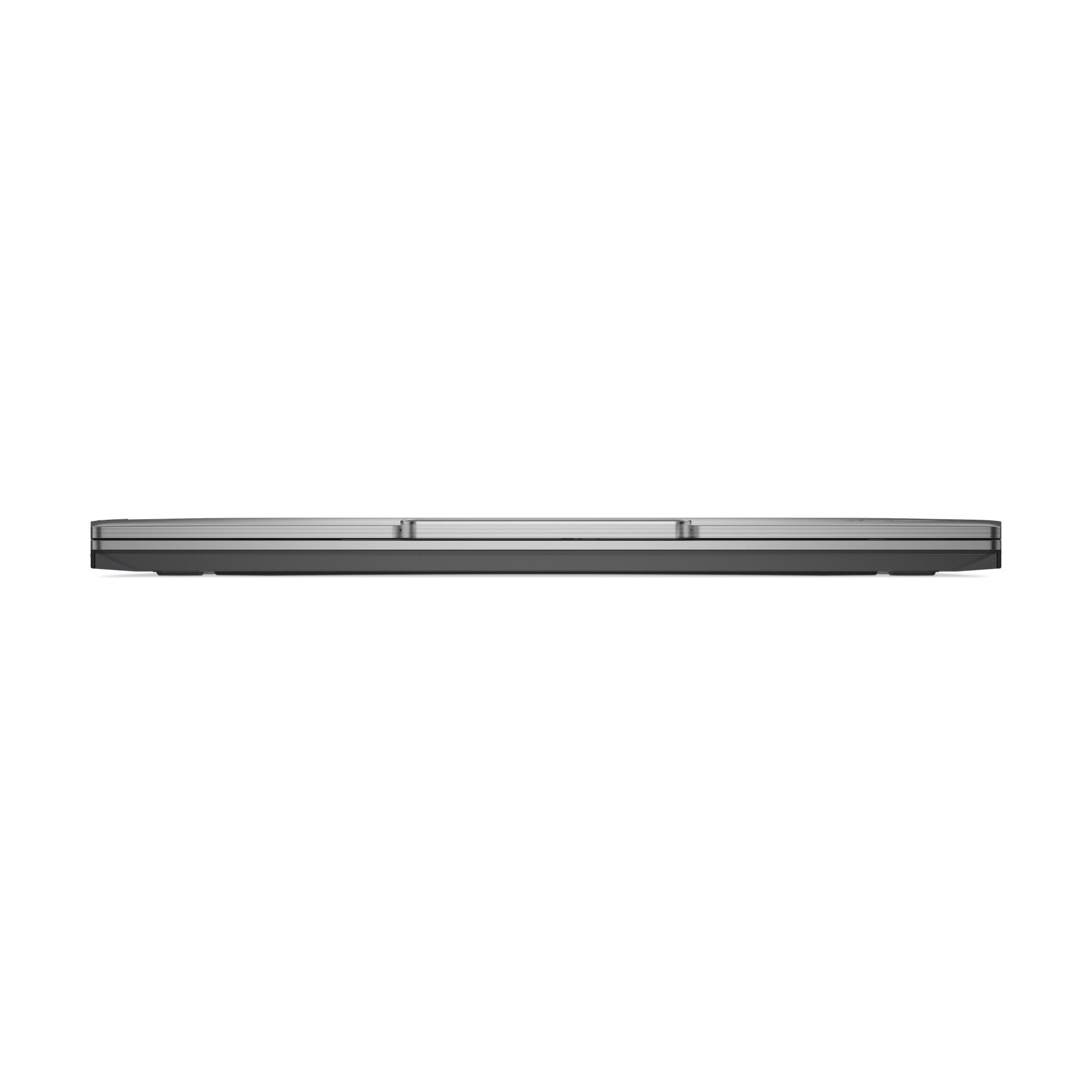

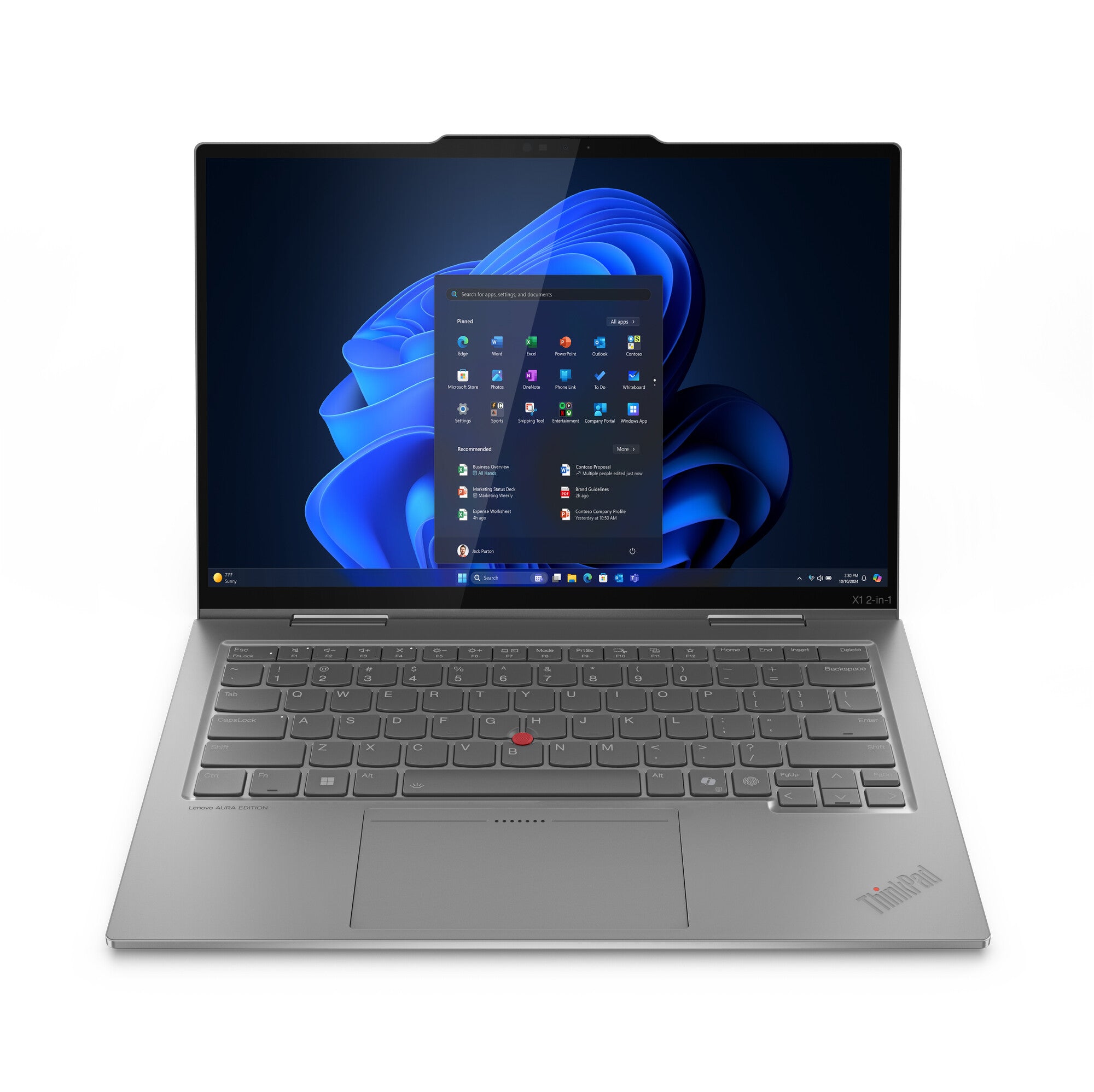

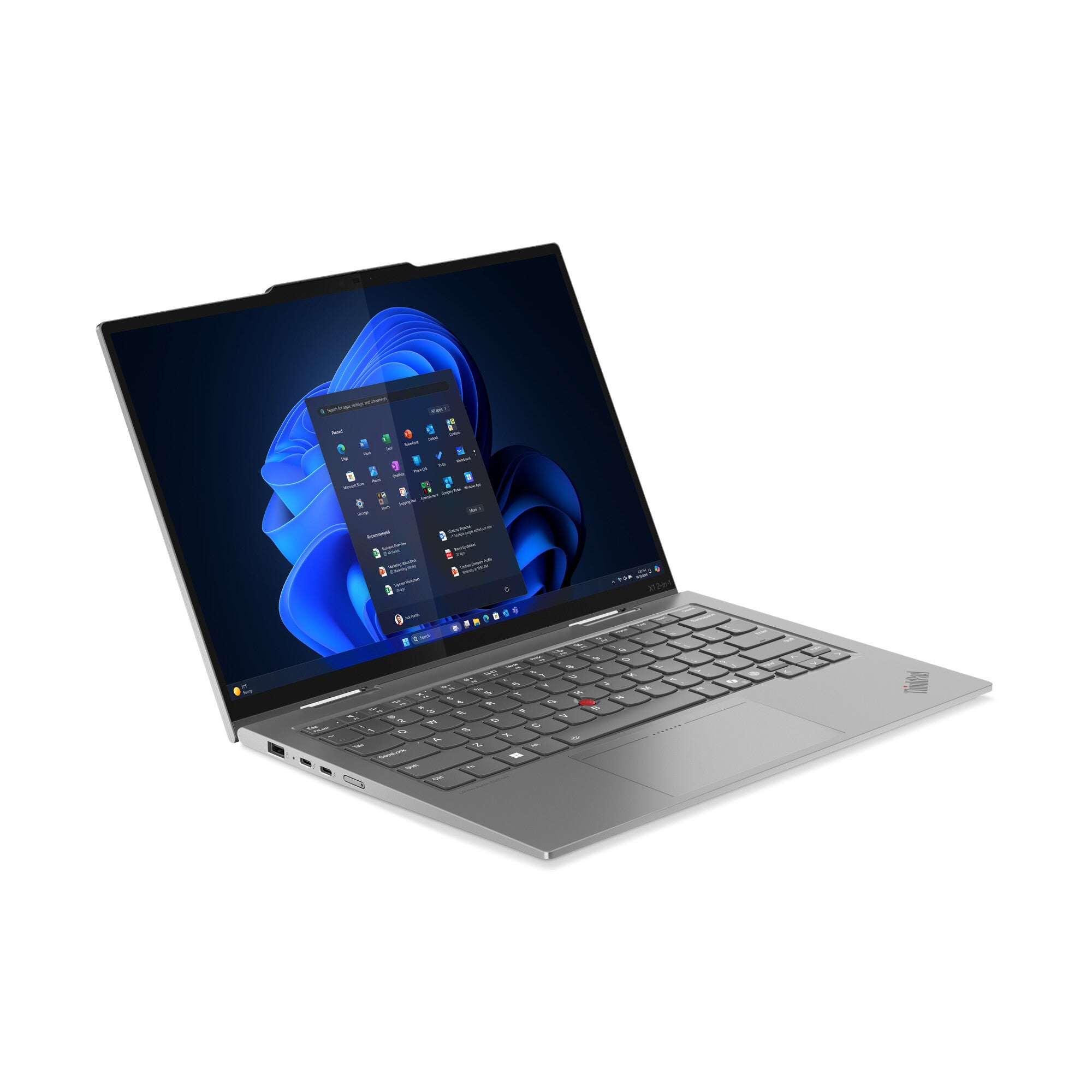

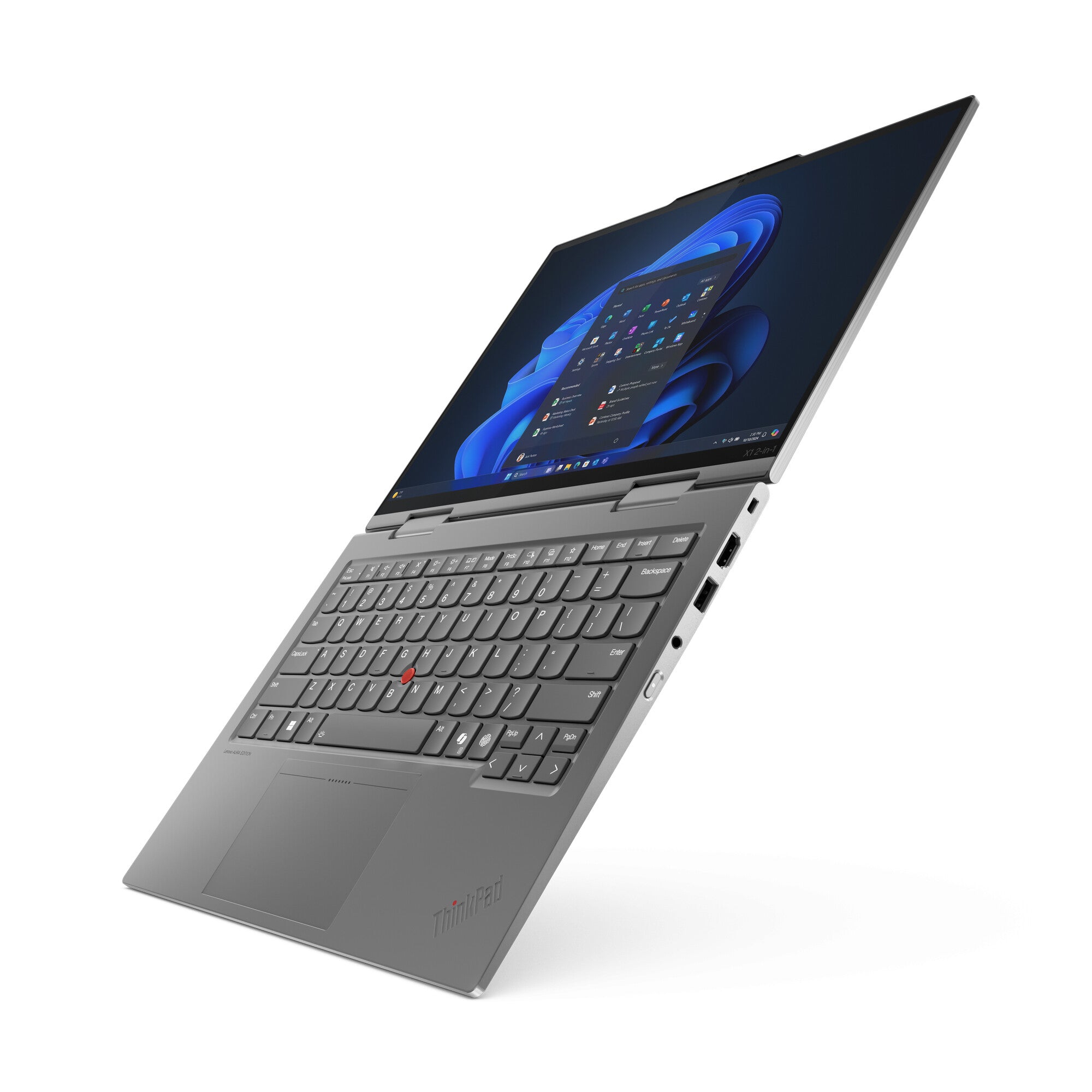

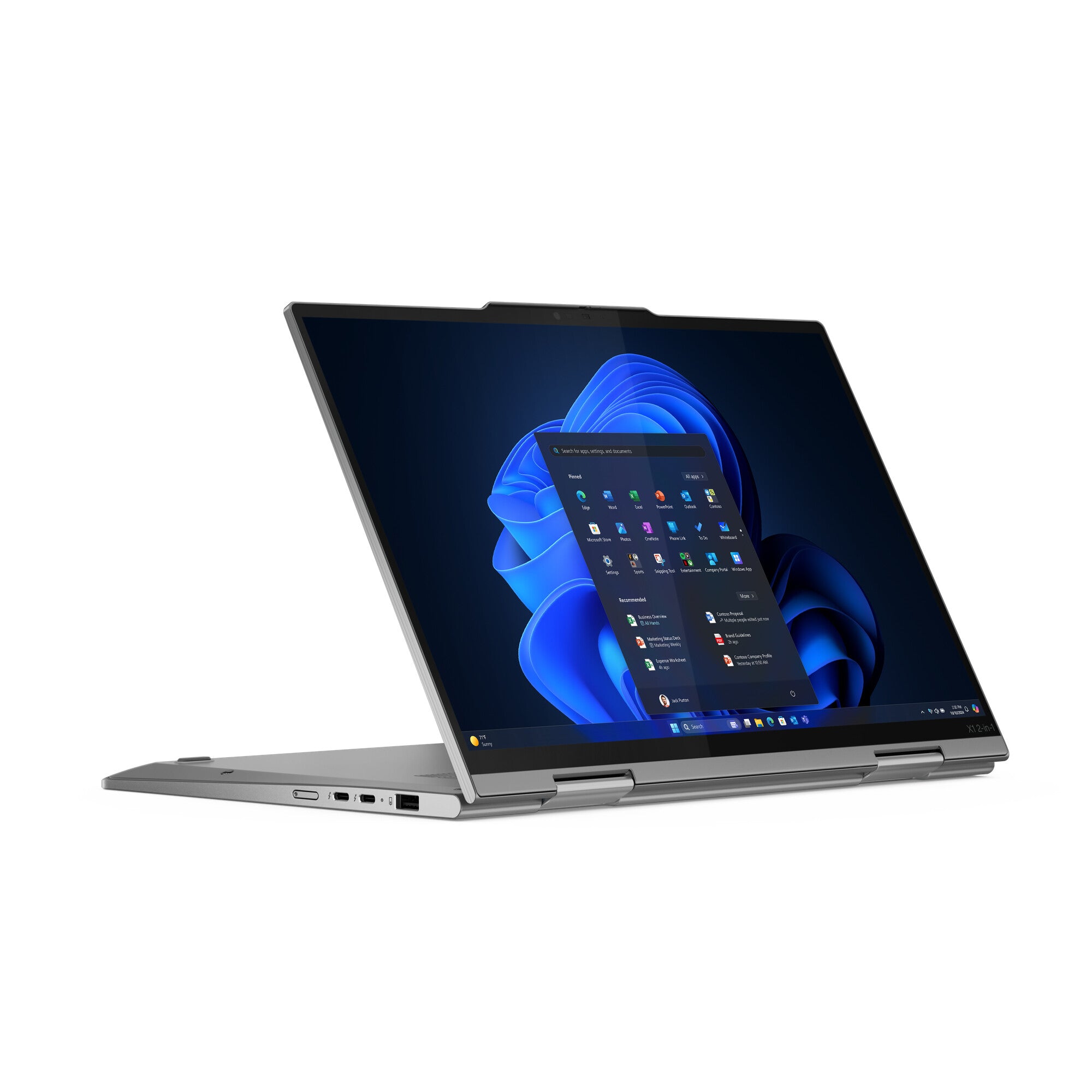

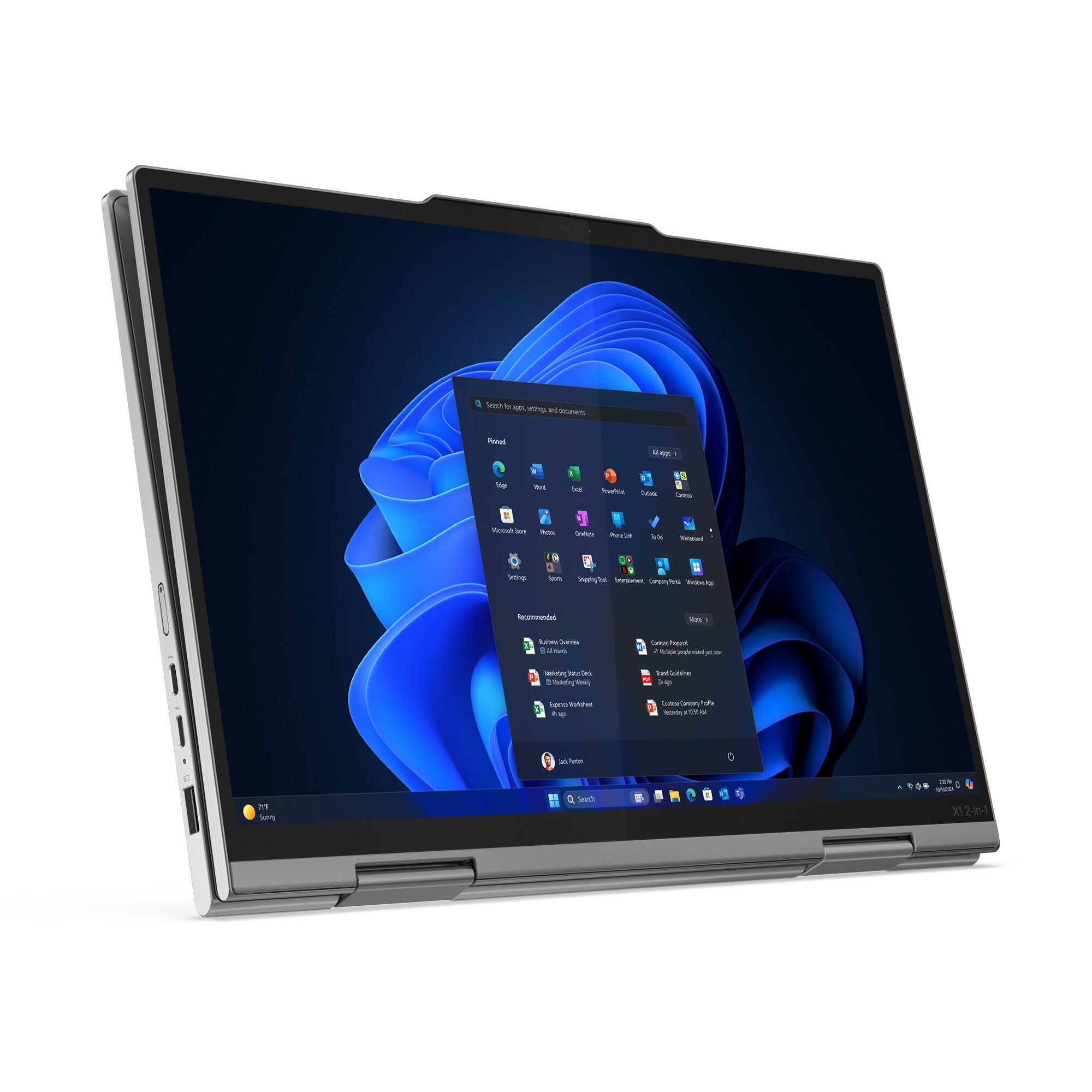

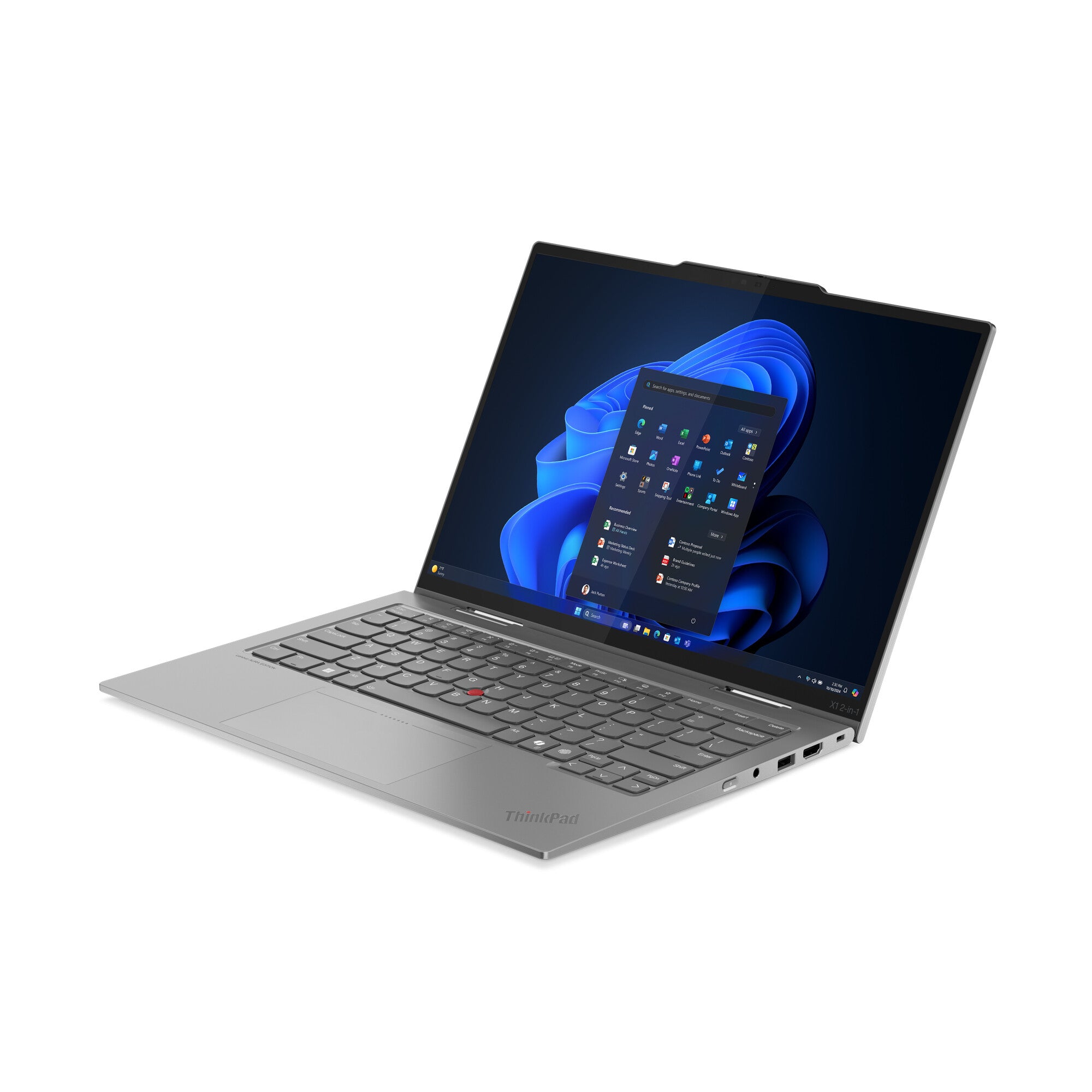

ThinkPad X1 2-in-1 Gen 10
Unlock AI-accelerated experiences with the new-gen ThinkPad, powered by Intel® V Series Core Ultra 7 Processor and an integrated AI engine (NPU). Whether you're managing large datasets or running AI-driven applications, this processor ensures seamless multitasking. With up to 118 TOPS of performance, business professionals can run simulations, process massive volumes of data, and leverage AI applications without lag. Store all your business documents, media, and critical files effortlessly with up to 2TB of SSD storage. Paired with up to 32GB of LPDDR5x memory, you’ll experience ultra-fast data access and the ability to handle demanding applications simultaneously.
| Design |
|---|
| Stylus pen support |
Yes |
| Housing material |
Aluminium |
| Form factor |

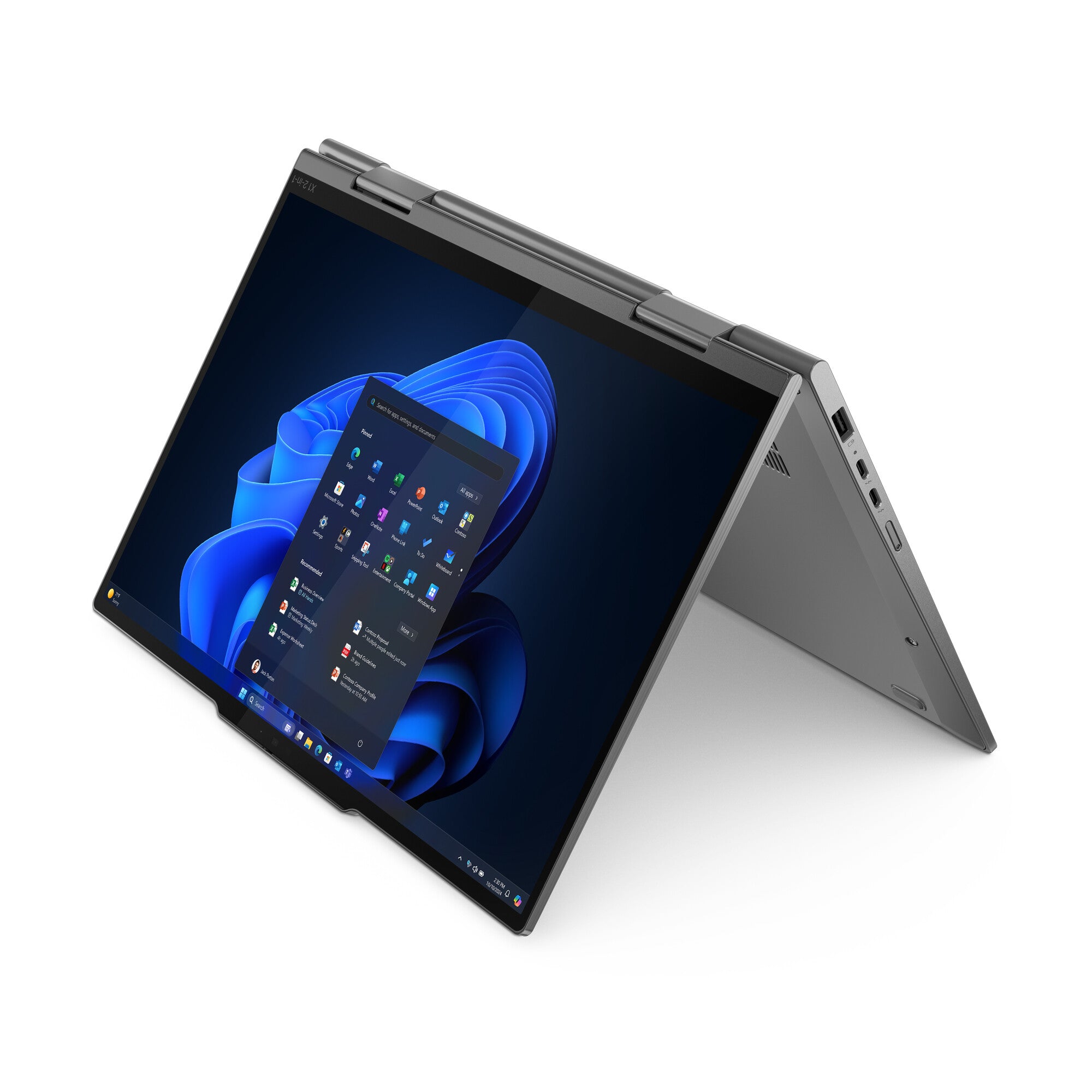

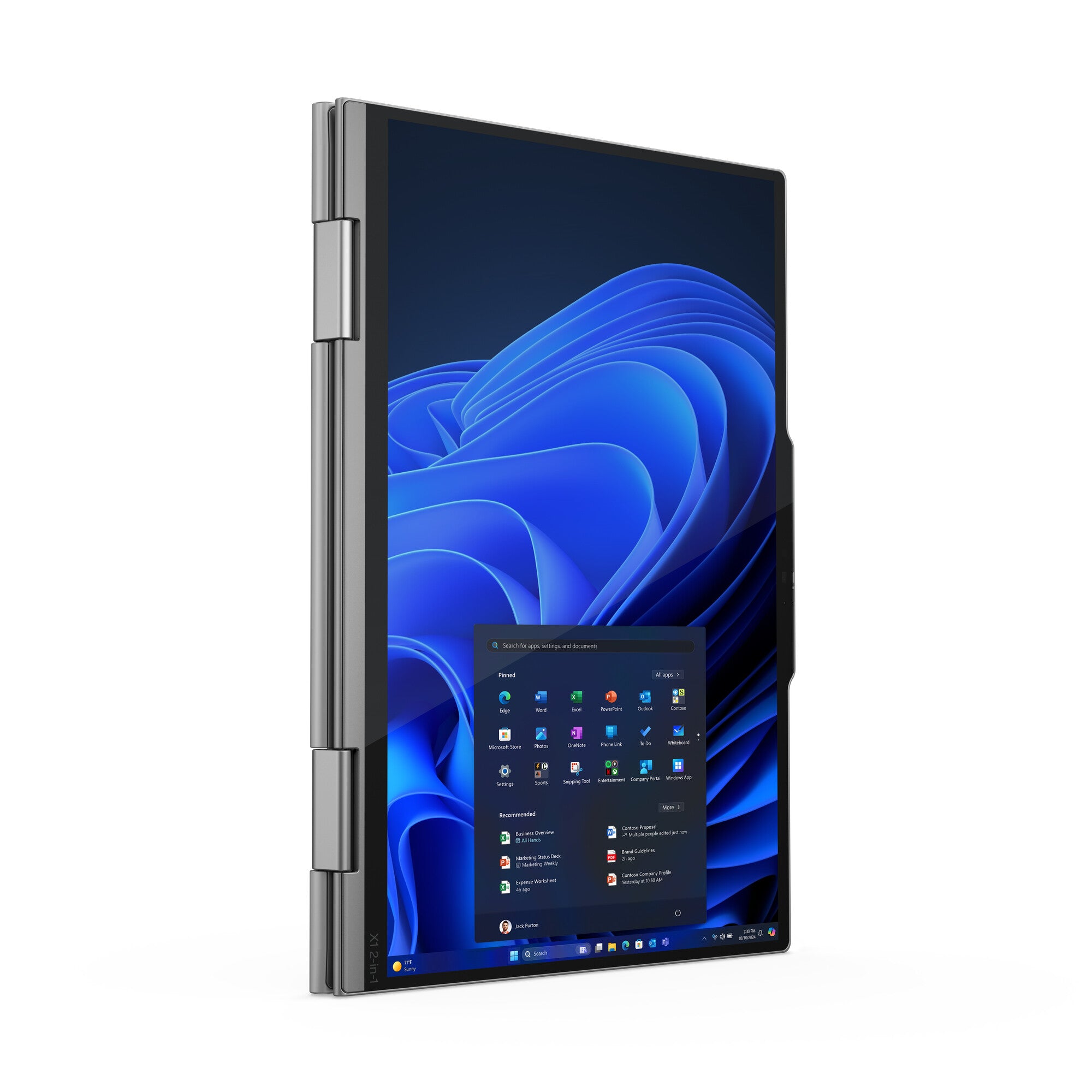

Convertible (Folder) |
| Colour name |
Grey |
| Product colour |
Grey |
| Product type |
Hybrid (2-in-1) |
| Display |
|---|
| High Dynamic Range (HDR) technology |
DisplayHDR True Black 500 |
| High Dynamic Range (HDR) supported |
Yes |
| Maximum refresh rate |
120 Hz |
| RGB colour space |
DCI-P3 |
| Colour gamut |
100% |
| Display brightness |
500 cd/m² |
| Anti-smudge coating |
Yes |
| Anti-reflective coating |
Yes |
| LED backlight |
Yes |
| Native aspect ratio |
16:10 |
| Panel type |
OLED |
| HD type |
2.8K |
| Touchscreen |
Yes |
| Display resolution |
2880 x 1800 pixels |
| Display diagonal |
35.6 cm (14") |
| Processor |
|---|
| Processor base power |
15 W |
| Maximum turbo power |
57 W |
| Processor cache |
12 MB |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Efficient-core base frequency |
1.7 GHz |
| Performance-core base frequency |
2 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.4 GHz |
| Efficient-core Max Turbo Frequency |
4.2 GHz |
| Performance-core Max Turbo Frequency |
5.2 GHz |
| Low Power Efficient-cores |
2 |
| Efficient cores |
8 |
| Performance cores |
2 |
| Processor boost frequency |
5.2 GHz |
| Processor threads |
14 |
| Processor cores |
12 |
| Processor model |
255U |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
|---|
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
|---|
| Maximum internal memory |
32 GB |
| Memory clock speed |
8400 MHz |
| Memory form factor |
On-board |
| Internal memory type |
LPDDR5x-SDRAM |
| Internal memory |
32 GB |
| Storage |
|---|
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD interface |
PCI Express |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
|---|
| On-board graphics card model |
Intel Graphics |
| On-board graphics card family |
Intel Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
|---|
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Atmos |
| Audio chip |
Realtek ALC3306 |
| Camera |
|---|
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Front camera HD type |
Ultra HD |
| Front camera |
Yes |
| Network |
|---|
| WWAN controller |
Quectel RM520N-GL, 5G Sub-6 GHz, with Embedded eSIM |
| WWAN |
Installed |
| Near Field Communication (NFC) |
No |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2x2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network generation |
5G |
| Mobile network connection |
Yes |

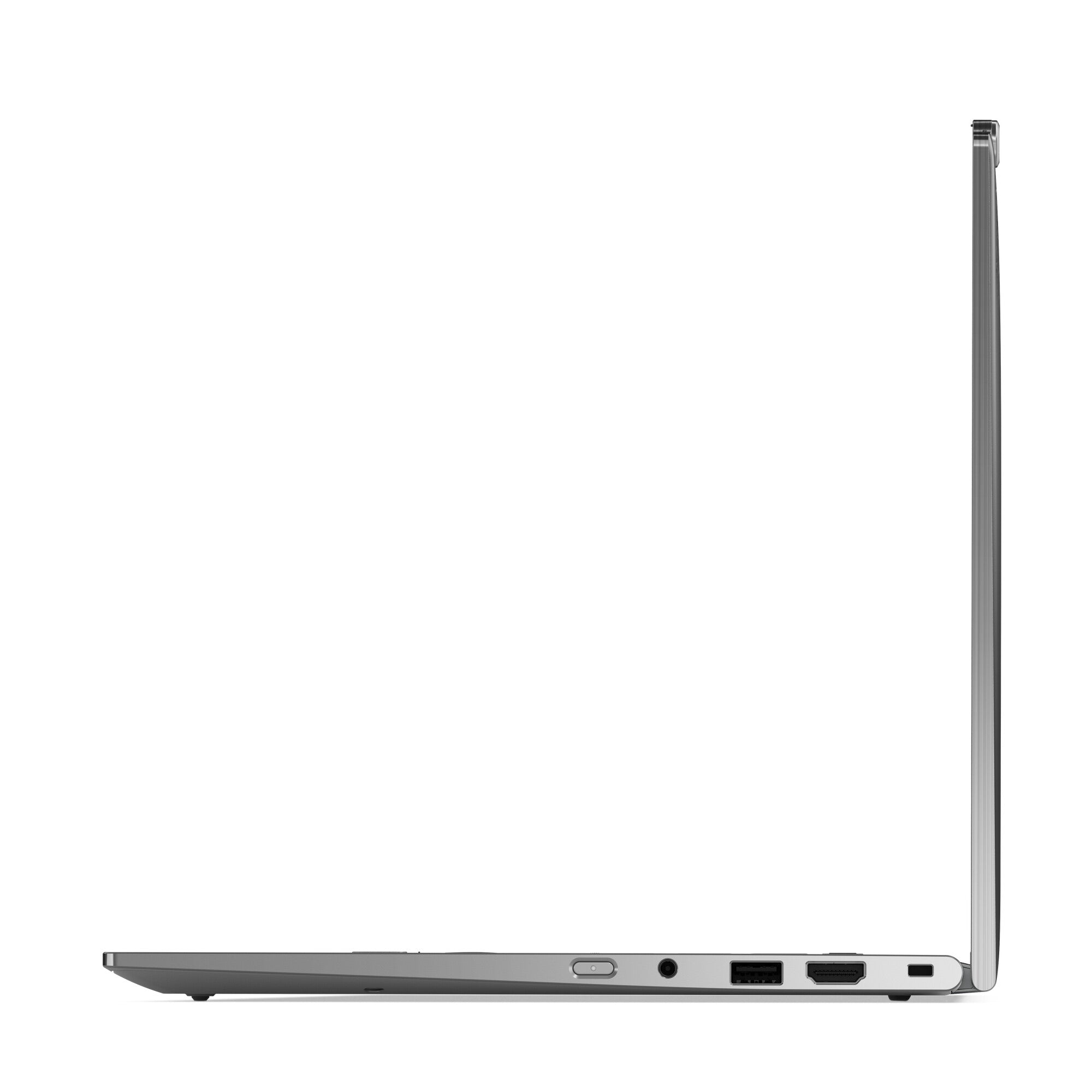

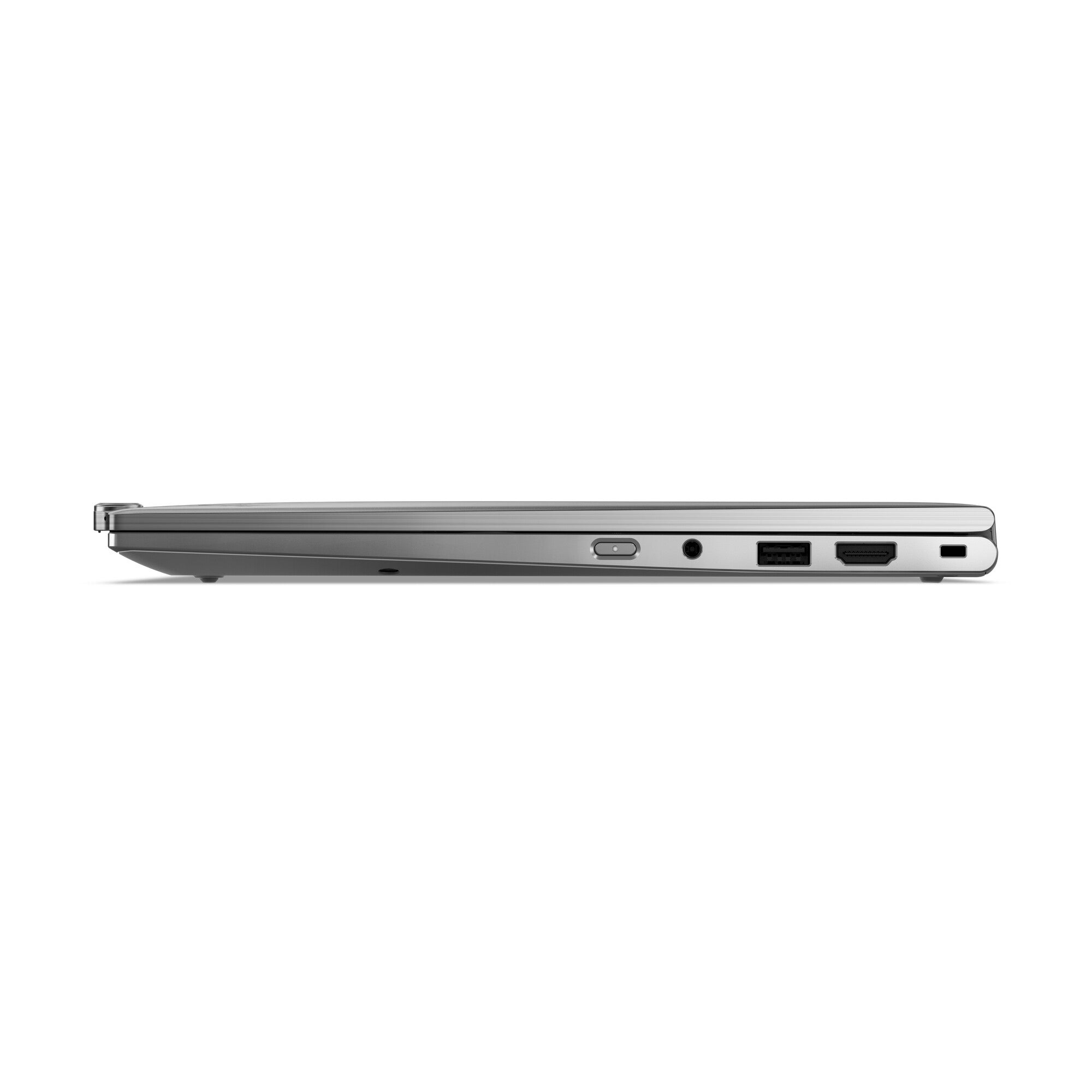

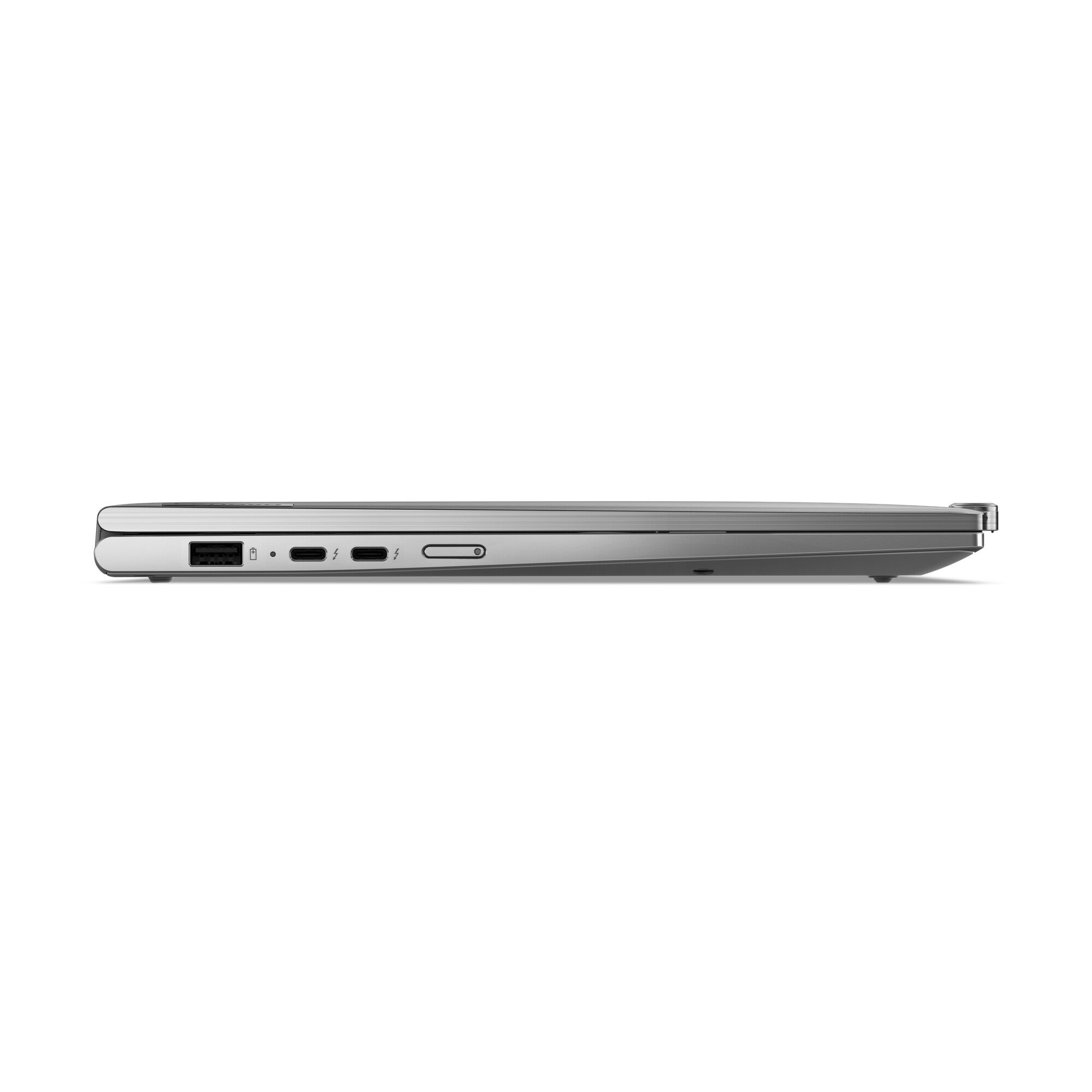

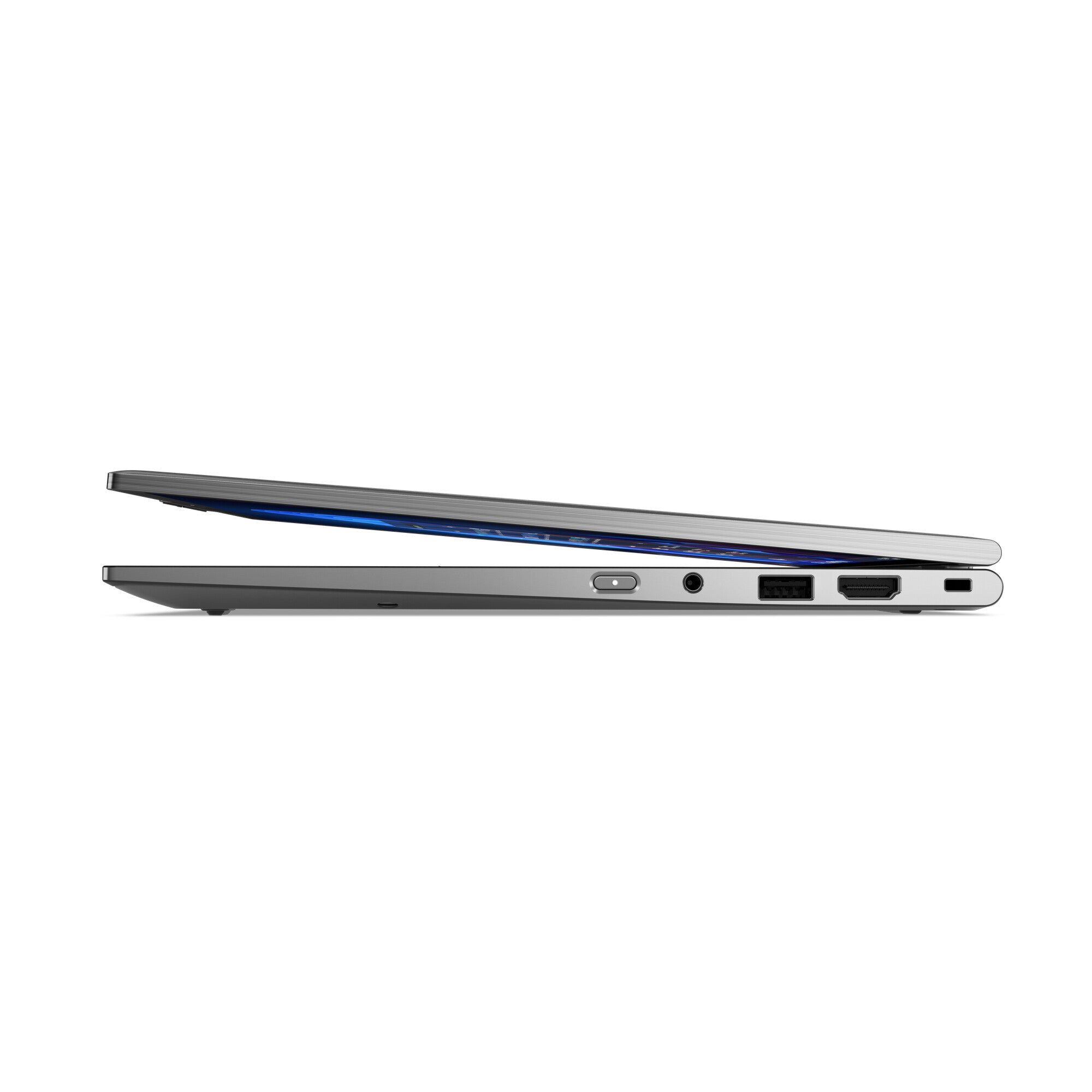

| Ports & interfaces |
|---|
| USB Sleep-and-Charge ports |
1 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Performance |
|---|
| Motherboard chipset |
Intel SoC |
| Keyboard |
|---|
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Keyboard layout |
QWERTY |
| Pointing device |
ThinkPad UltraNav |
| Software |
|---|
| Operating system architecture |
64-bit |
| Battery |
|---|
| Battery capacity |
57 Wh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
|---|
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
65 W |
| Security |
|---|
| Password protection type |
Power on, SSD, Supervisor |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Windows Hello |
Yes |
| Smart card reader |
No |
| Fingerprint reader |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Operational conditions |
|---|
| Operating altitude |
0 - 3048 m |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
8 - 95% |
| Storage temperature (T-T) |
5 - 43 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Certificates |
|---|
| Certification |
ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT Gold, TCO |
| Weight & dimensions |
|---|
| Height (rear) |
1.83 cm |
| Height (front) |
1.62 cm |
| Depth |
217.7 mm |
| Width |
312.8 mm |
| Weight |
1.22 kg |
| General |
|---|
| Product family |
ThinkPad |
| Product series |
X |
| Packaging content |
|---|
| AC adapter included |
Yes |
