Overview
A Revolutionary Laptop With Evolutionary Features
Expect Excellence- 14'' AI PC for business — imagined with Intel®
- Lenovo Aura Edition features for optimized productivity & day-to-day experience
- Our thinnest & lightest 14'' ThinkPad X1 yet — less than 1kg
- Super-long battery life & customer-replaceable battery for extended lifecycle
- Lowest carbon footprint X1 yet
Copilot+ PC experiences are coming. Requires free updates available starting later this year. Timing varies by device and region. See aka.ms/copilotpluspcs.
Key features
- Intel Core Ultra 7 255U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 5.2GHz, 12MB
- 14" WUXGA (1920x1200) IPS 500nits 100% sRGB 60Hz Low Power
- 16GB LPDDR5x-8400
- 512GB SSD M.2 2280 PCIe 5.0x4 NVMe Opal 2.0
- Intel Graphics
- Windows 11 Pro
| Design | |
|---|---|
| Colour name | Black, Paint |
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
| Housing material | Aluminium |

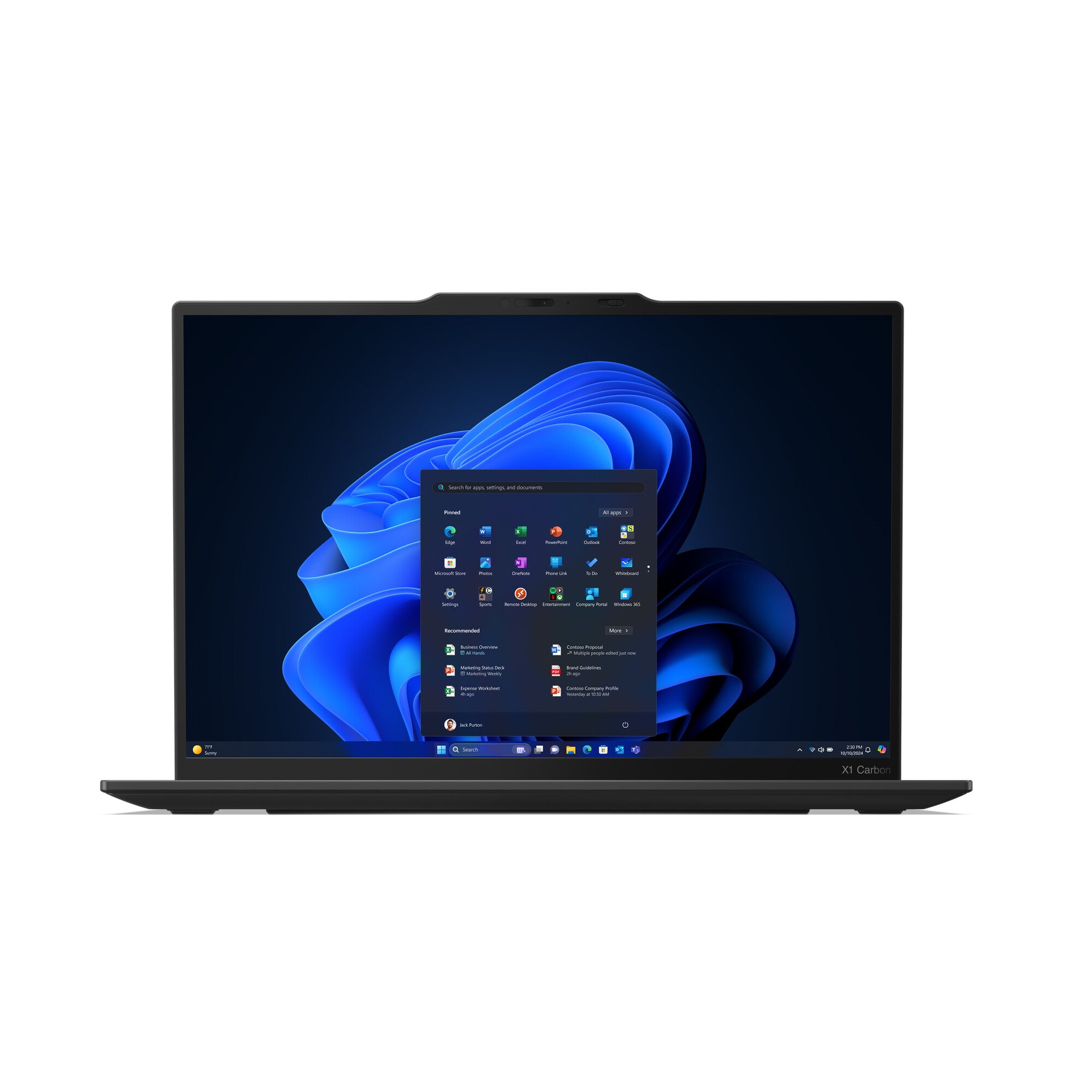

| Display | |
|---|---|
| Display diagonal | 35.6 cm (14") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 500 cd/m² |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Maximum refresh rate | 60 Hz |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 255U |
| Processor cores | 12 |
| Processor threads | 14 |
| Processor boost frequency | 5.2 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.4 GHz |
| Performance-core base frequency | 2 GHz |
| Efficient-core base frequency | 1.7 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 12 MB |
| Processor base power | 15 W |
| Maximum turbo power | 57 W |
| Neural processor unit (NPU) | |
|---|---|
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Memory | |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory clock speed | 8400 MHz |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
| Storage | |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
| Graphics | |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | No |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Audio | |
|---|---|
| Audio chip | Realtek ALC3306 |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Camera | |
|---|---|
| Front camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Network | |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Near Field Communication (NFC) | No |
| WWAN | Upgradable |

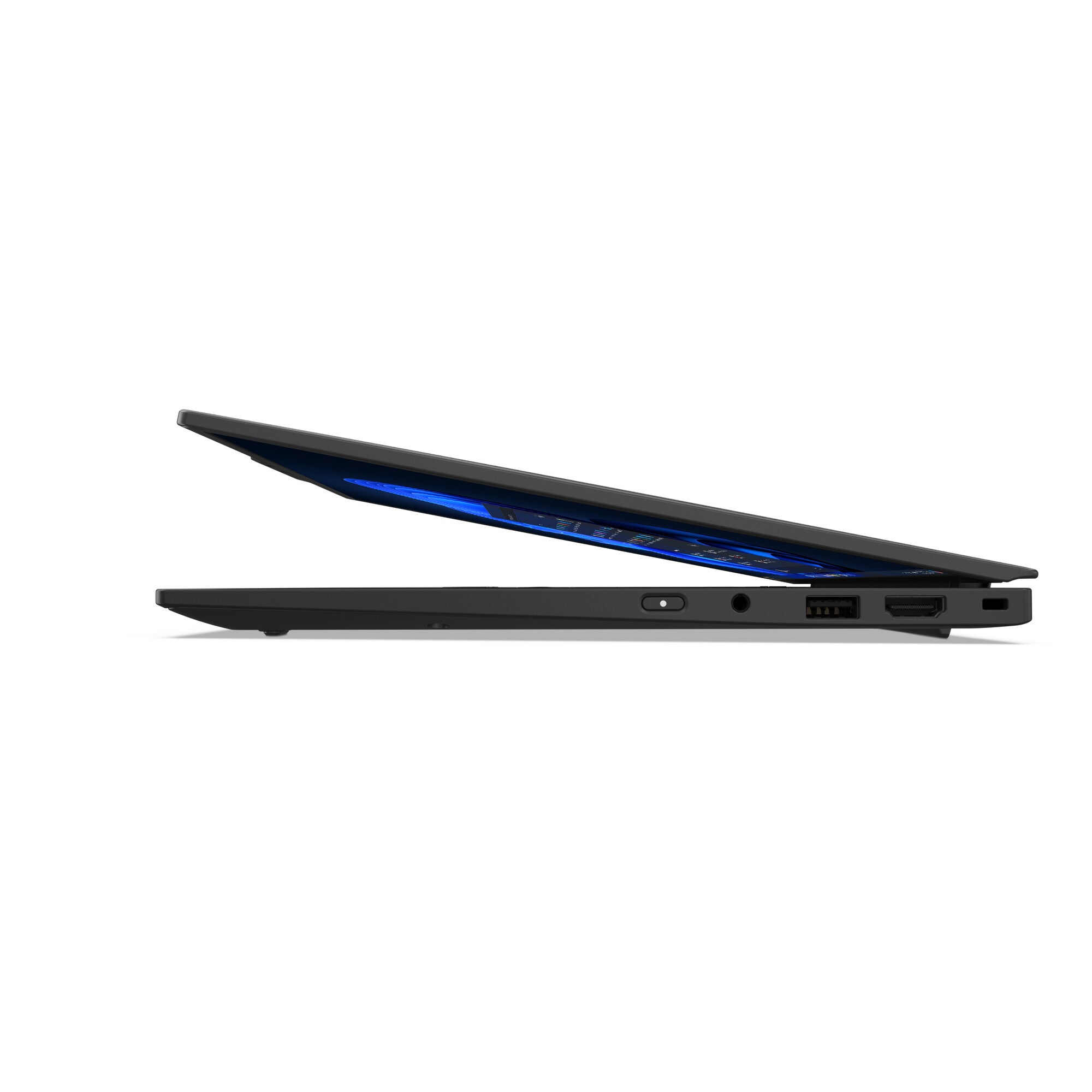

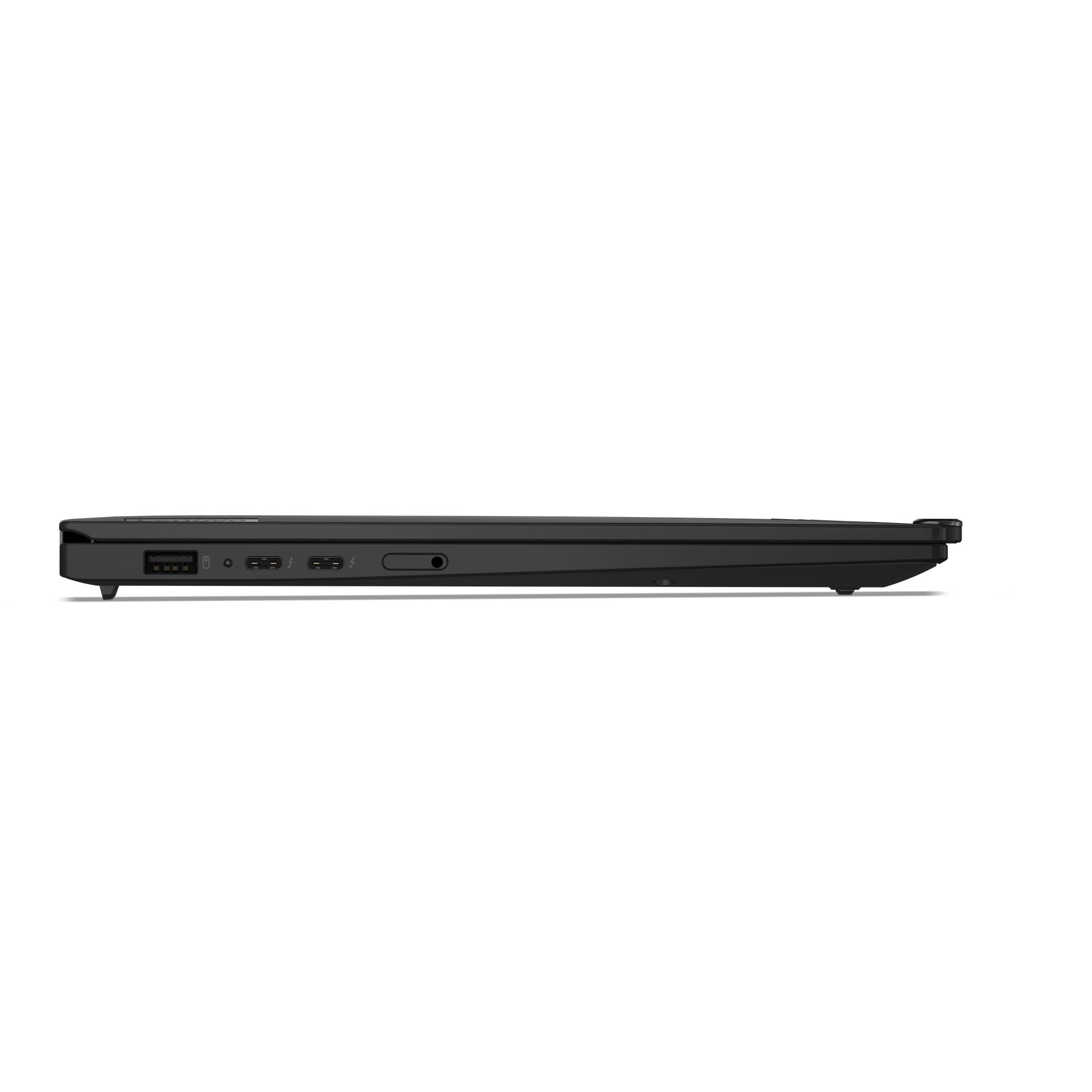

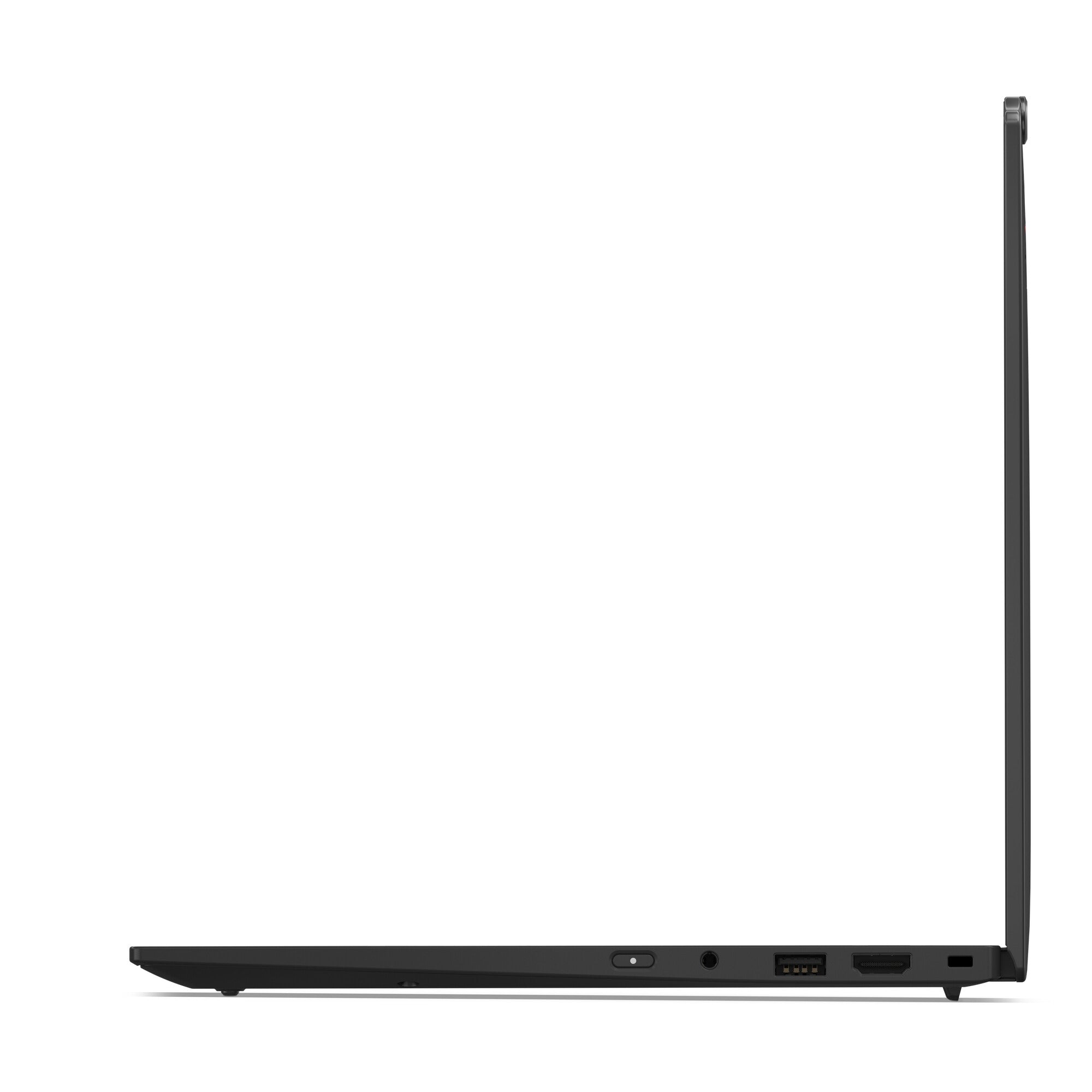

| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| Performance | |
|---|---|
| Motherboard chipset | Intel SoC |
| Keyboard | |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Keyboard language | English |
| Software | |
|---|---|
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Bundled software | Intel Connectivity Performance Suite |
| Battery | |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 57 Wh |
| Power | |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Security | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Smart card reader | No |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
|---|---|
| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Weight & dimensions | |
|---|---|
| Width | 312.8 mm |
| Depth | 214.8 mm |
| Height (front) | 8.38 mm |
| Height (rear) | 1.48 cm |
| Weight | 1.01 kg |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
