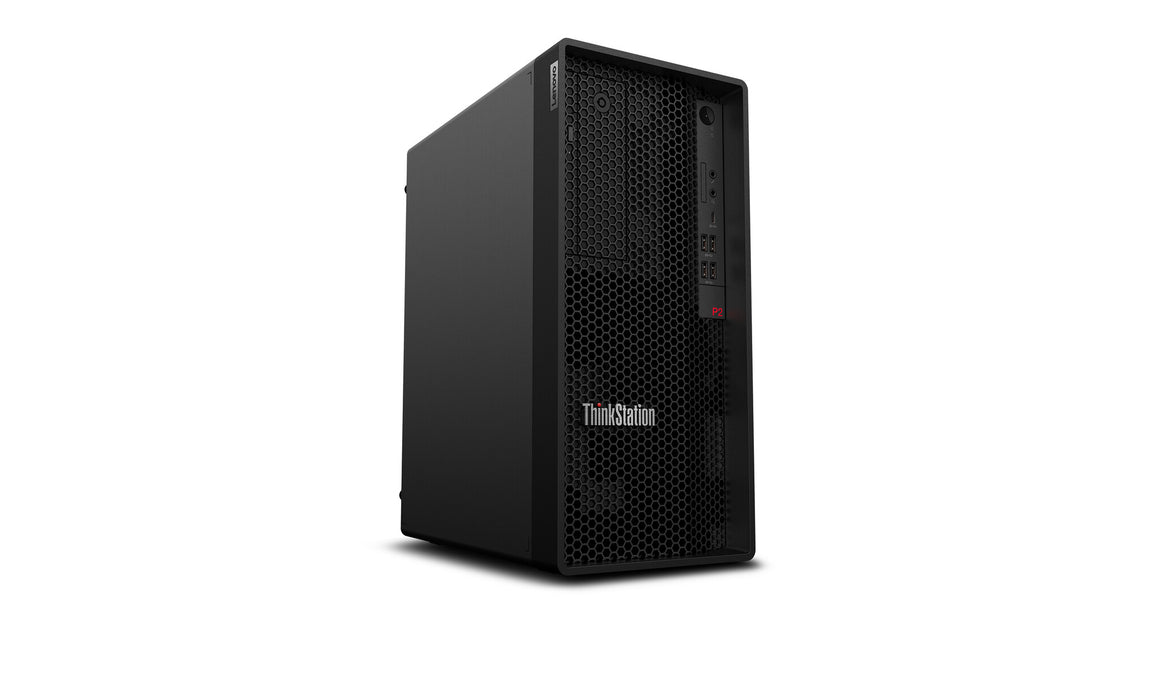

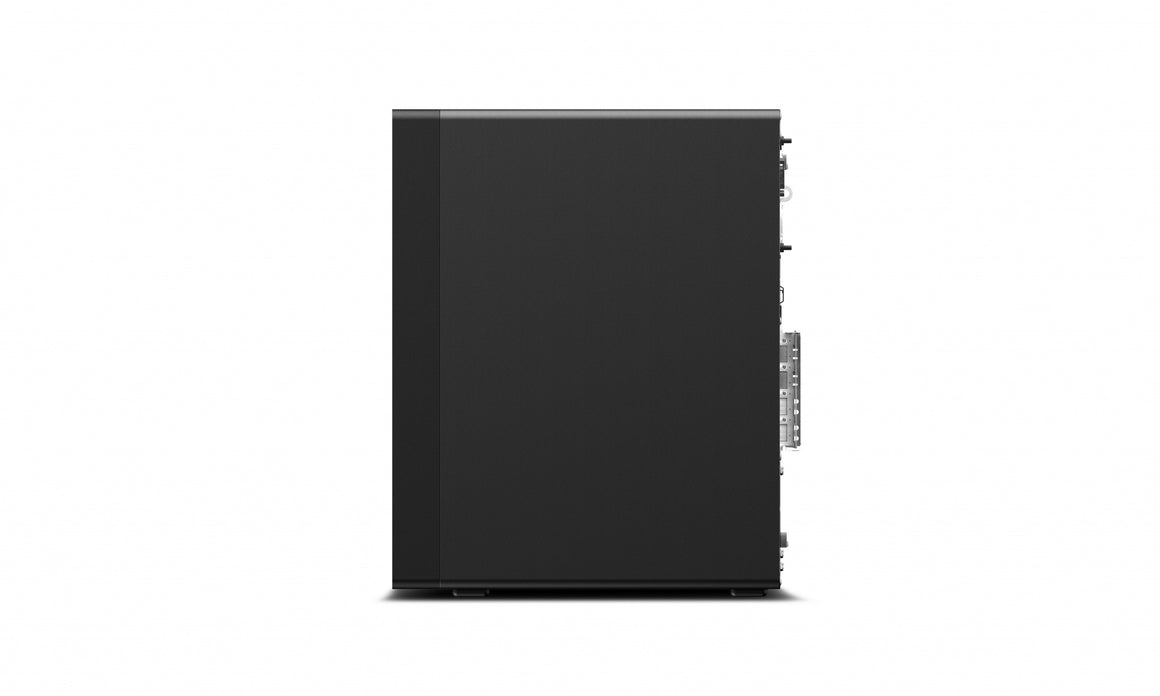

Setting the Standard for Entry-Level Workstations
- AI-optimized performance for demanding workflows
- Multiple ISV certifications
- Secure, durable & reliable
| Processor |
|---|
| Processor base power |
65 W |
| Maximum turbo power |
182 W |
| Number of processors installed |
1 |
| Processor cache type |
Smart Cache |
| Processor cache |
30 MB |
| Efficient-core base frequency |
1.8 GHz |
| Performance-core base frequency |
2.4 GHz |
| Efficient-core Max Turbo Frequency |
4.6 GHz |
| Performance-core Max Turbo Frequency |
5.2 GHz |
| Efficient cores |
12 |
| Performance cores |
8 |
| Processor boost frequency |
5.3 GHz |
| Processor threads |
20 |
| Processor cores |
20 |
| Processor model |
265 |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
|---|
| GPU performance up to |
8 TOPs |
| NPU performance up to |
13 TOPs |
| Total processor performance up to |
33 TOPs |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
|---|
| Non-ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory clock speed |
5600 MHz |
| Memory slots |
4x DIMM |
| Memory layout (slots x size) |
1 x 32 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
128 GB |
| Internal memory |
32 GB |
| Storage |
|---|
| Compatible memory cards |
SD |
| Card reader integrated |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
|---|
| Graphics card Mini DisplayPort ports quantity |
4 |
| On-board graphics card model |
Intel Graphics |
| On-board graphics card family |
Intel Graphics |
| On-board GPU manufacturer |
Intel |
| Number of discrete graphics cards |
1 |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
NVIDIA RTX A400 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
Yes |
| Discrete graphics card |
Yes |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Performance |
|---|
| Built-in speaker(s) |
Yes |
| Product type |
Workstation |
| Software |
|---|
| Operating system language |
English, US English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
|---|
| Power supply input frequency |
50/60 Hz |
| Power supply input voltage |
100 - 240 V |
| Power supply |
500 W |
| Operational conditions |
|---|
| Operating altitude |
0 - 3048 m |
| Storage relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 60 °C |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Sustainability certificates |
TCO |
| Weight & dimensions |
|---|
| Weight |
9.67 kg |
| Height |
376 mm |
| Depth |
315.4 mm |
| Width |
170 mm |
| Packaging content |
|---|
| Keyboard included |
Yes |
| Keyboard connectivity |
Wired |
| Mouse included |
Yes |
| Mouse connectivity |
Wired |
| Display included |
No |
| General |
|---|
| Product family |
ThinkStation |
| Product series |
P |
