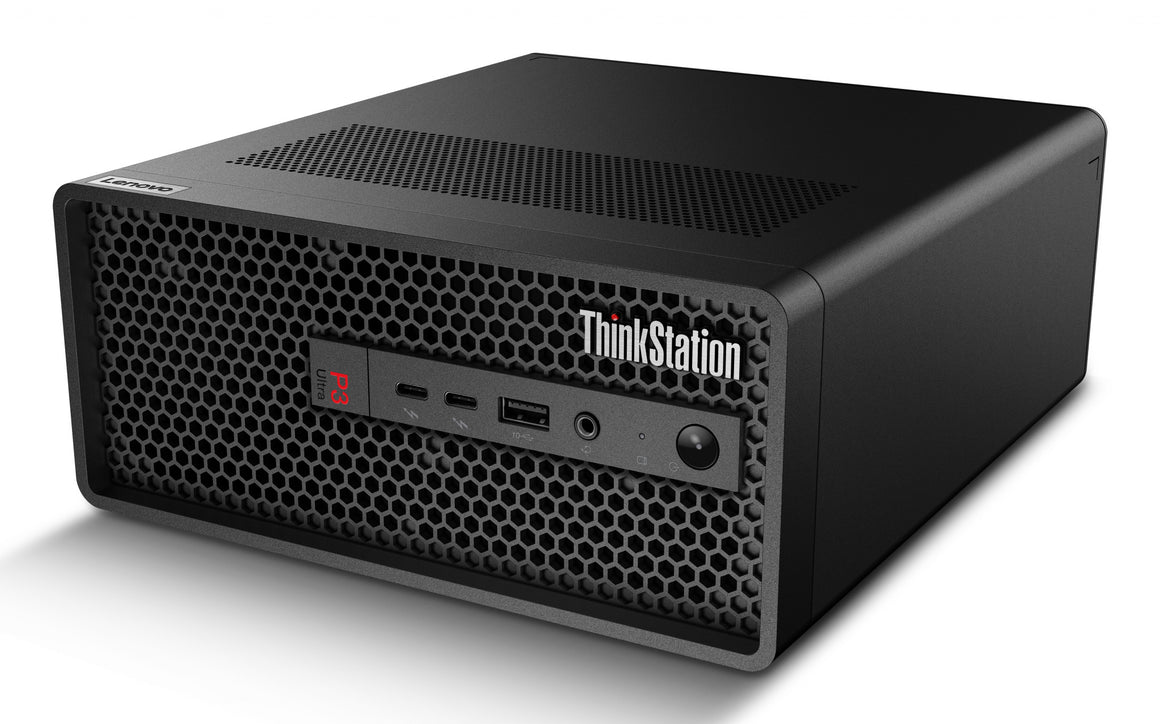

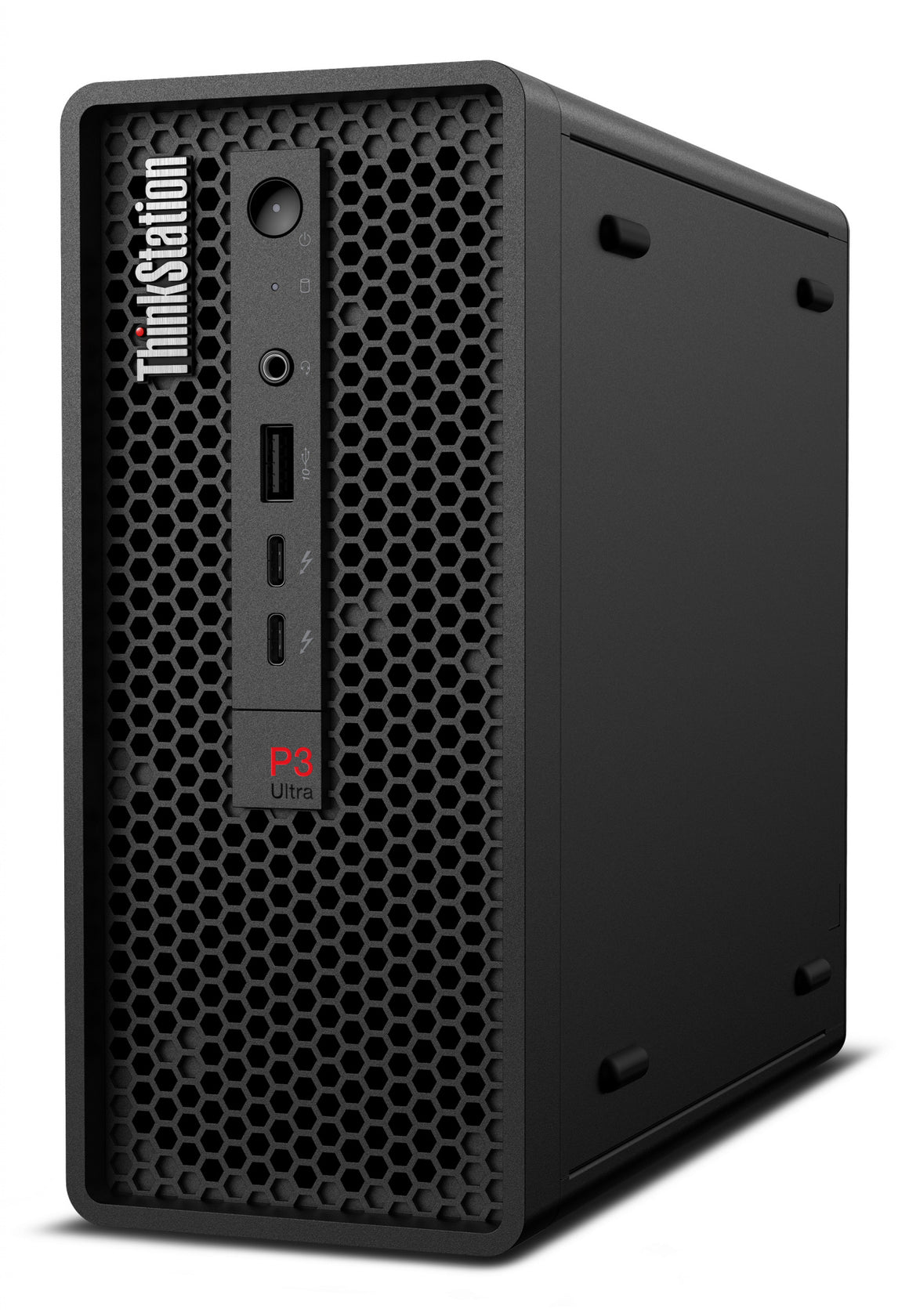

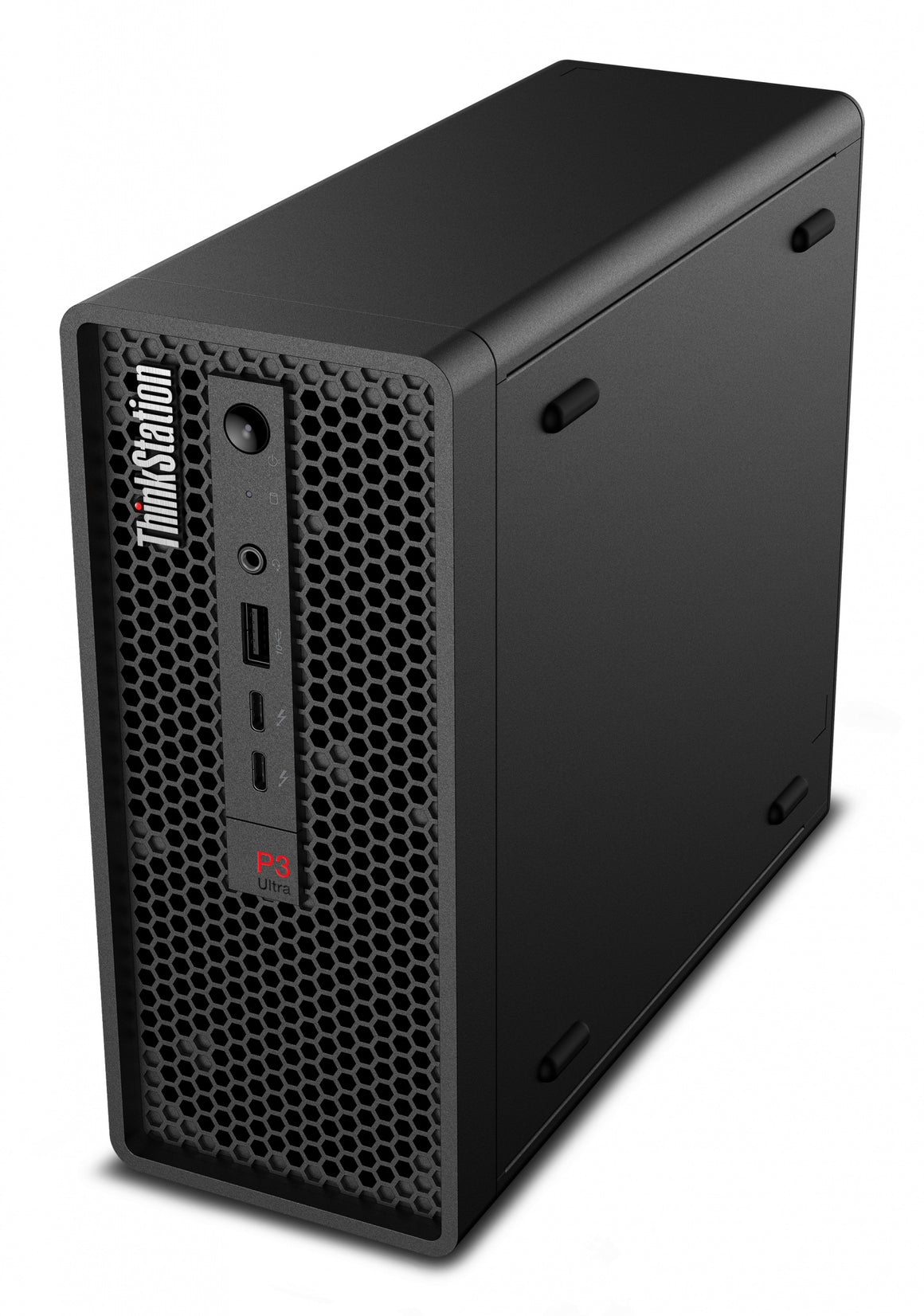

Redefining the power of small

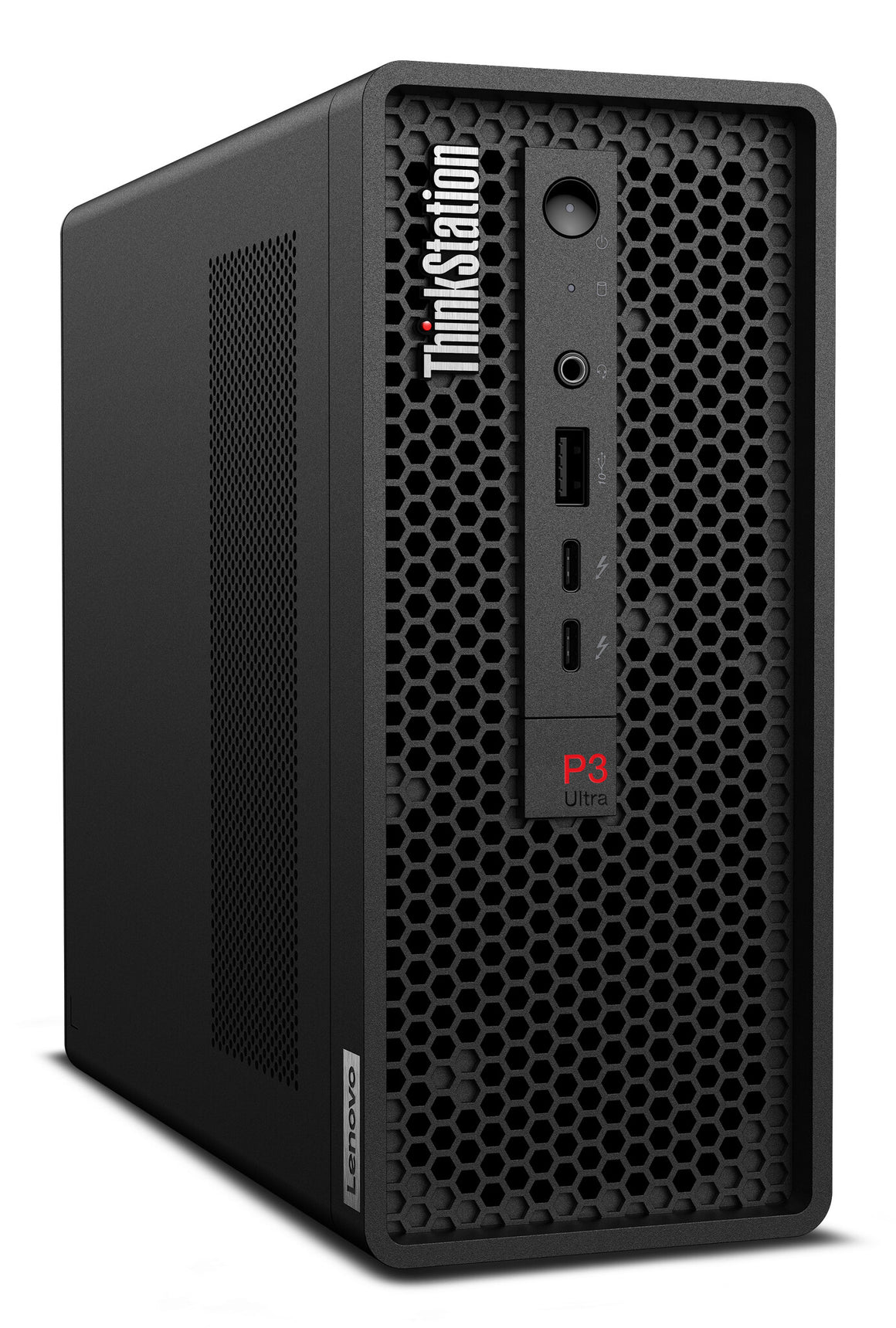

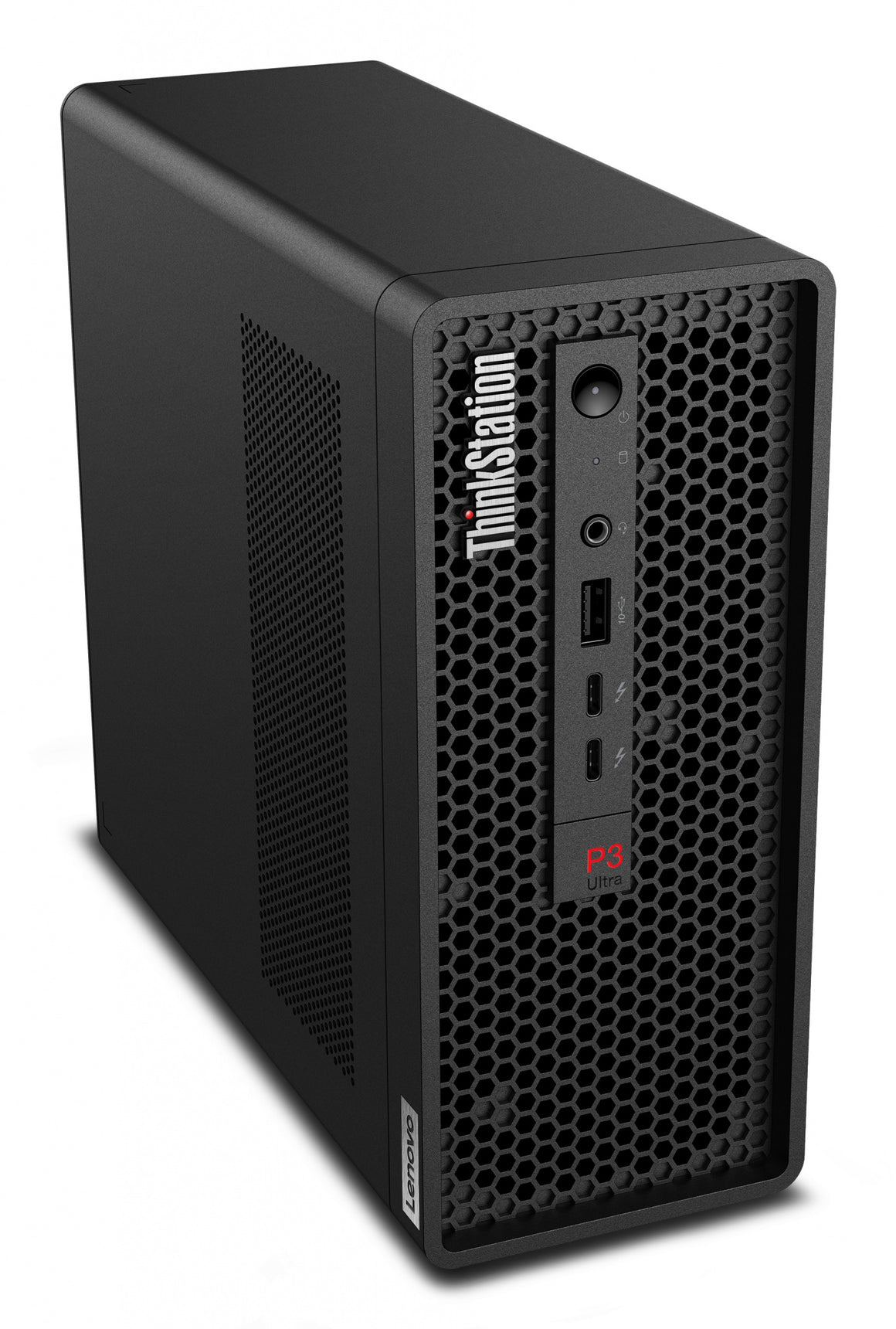

- Packs amazing power into an industry-first 3.9L chassis small form factor
- Blazingly-fast Intel vPro® with Intel® Core™ processors, vast memory
- Choice of optional professional discrete graphics
- ISV-certified, handles complex workflows with ease
- Supports remote monitoring & system management
- Designed for compact spaces, suitable for any industry
| Processor |
|---|
| Processor base power |
65 W |
| Maximum turbo power |
219 W |
| Number of processors installed |
1 |
| Processor cache type |
Smart Cache |
| Processor cache |
33 MB |
| Efficient-core base frequency |
1.5 GHz |
| Performance-core base frequency |
2.1 GHz |
| Efficient-core Max Turbo Frequency |
4.2 GHz |
| Performance-core Max Turbo Frequency |
5.3 GHz |
| Efficient cores |
12 |
| Performance cores |
8 |
| Processor boost frequency |
5.4 GHz |
| Processor threads |
28 |
| Processor cores |
20 |
| Processor model |
i7-14700 |
| Processor generation |
Intel® Core™ i7 (14th gen) |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Memory clock speed |
4800 MHz |
| Memory slots |
4x SO-DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
128 GB |
| Internal memory |
16 GB |
| Storage |
|---|
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
|---|
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board graphics card family |
Intel® UHD Graphics |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |

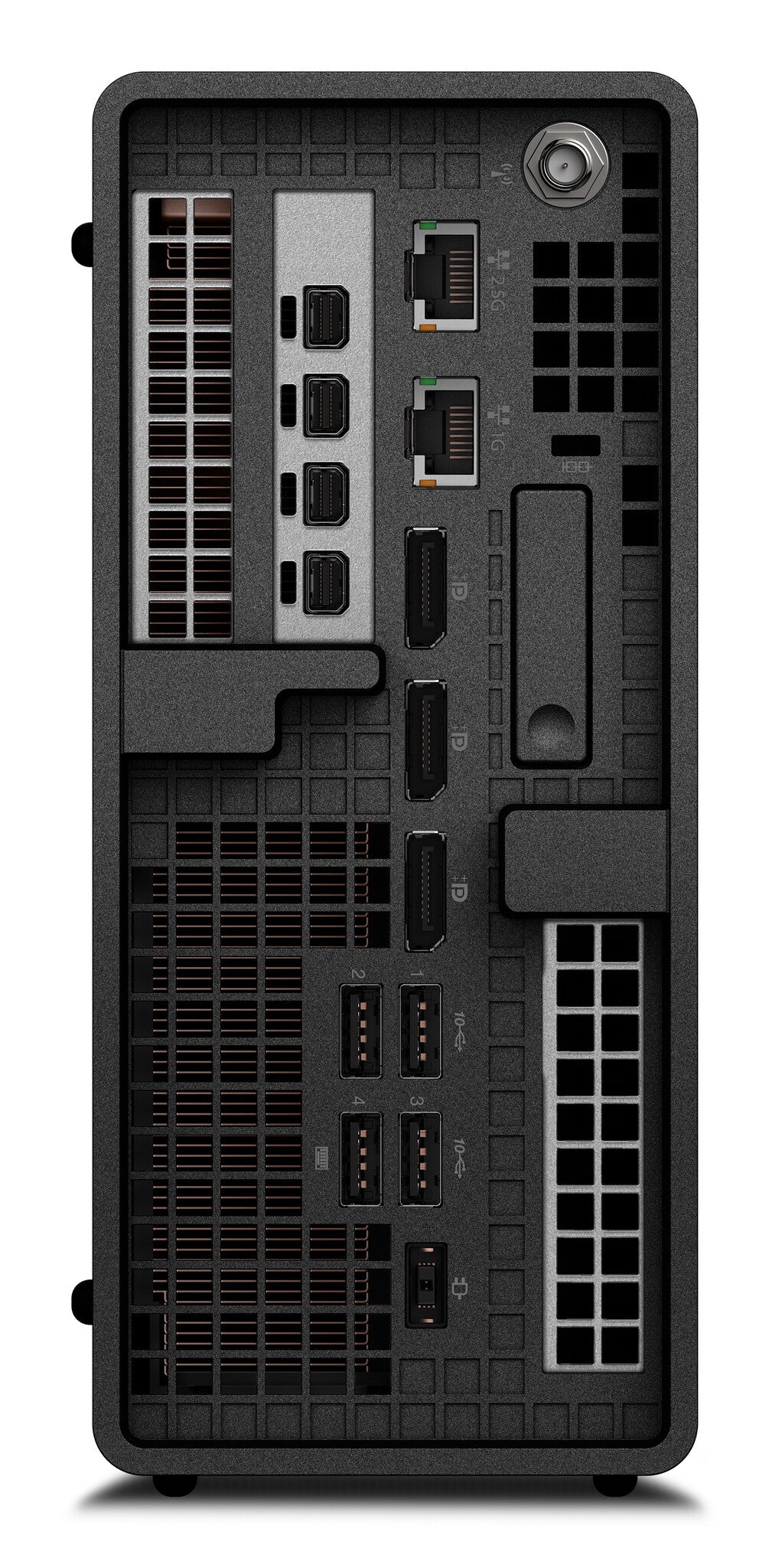

| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Product type |
Workstation |
| Software |
|---|
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
|---|
| Power supply input frequency |
50 - 60 Hz |
| Power supply input voltage |
100 - 240 V |
| Power supply |
230 W |
| Operational conditions |
|---|
| Operating altitude |
0 - 3048 m |
| Storage relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 60 °C |
| Weight & dimensions |
|---|
| Weight |
3.6 kg |
| Height |
202 mm |
| Depth |
223 mm |
| Width |
87 mm |
| Packaging content |
|---|
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Display included |
No |
| General |
|---|
| Product family |
ThinkStation |
| Product series |
P |
