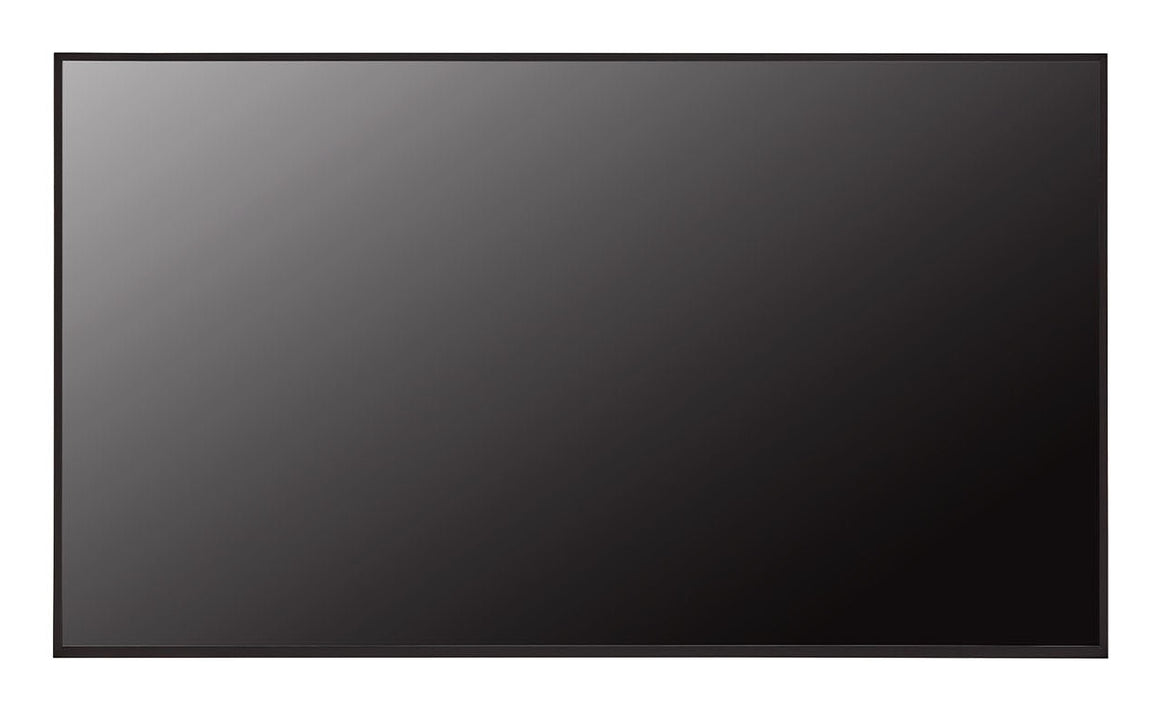

UHD Signage Display with
LG webOS Platform and Advanced Security

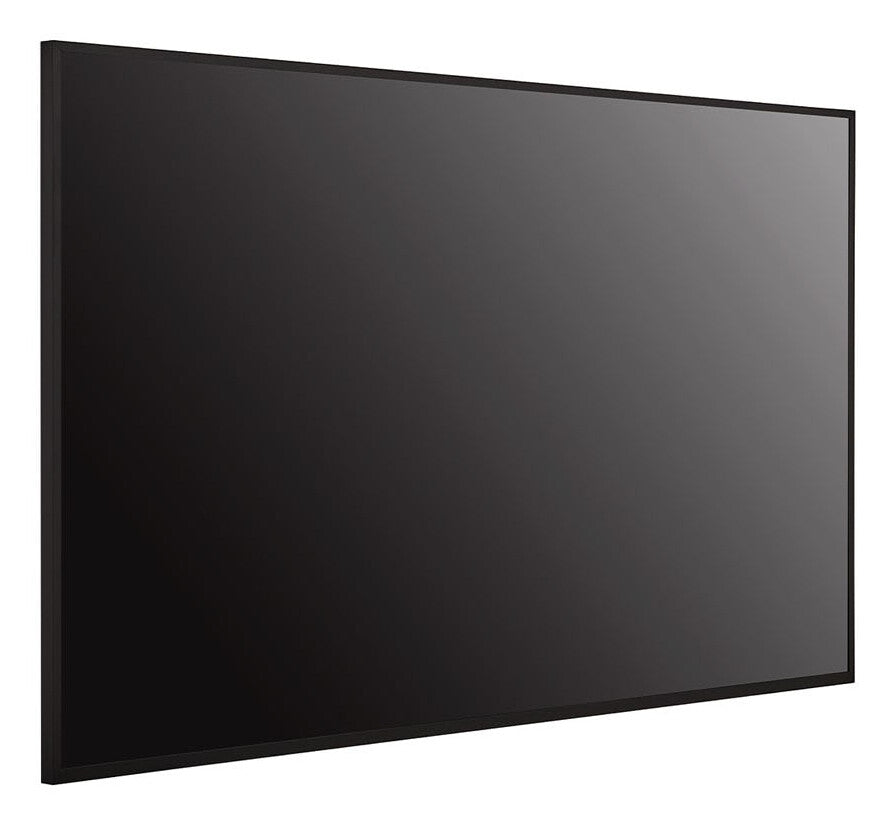

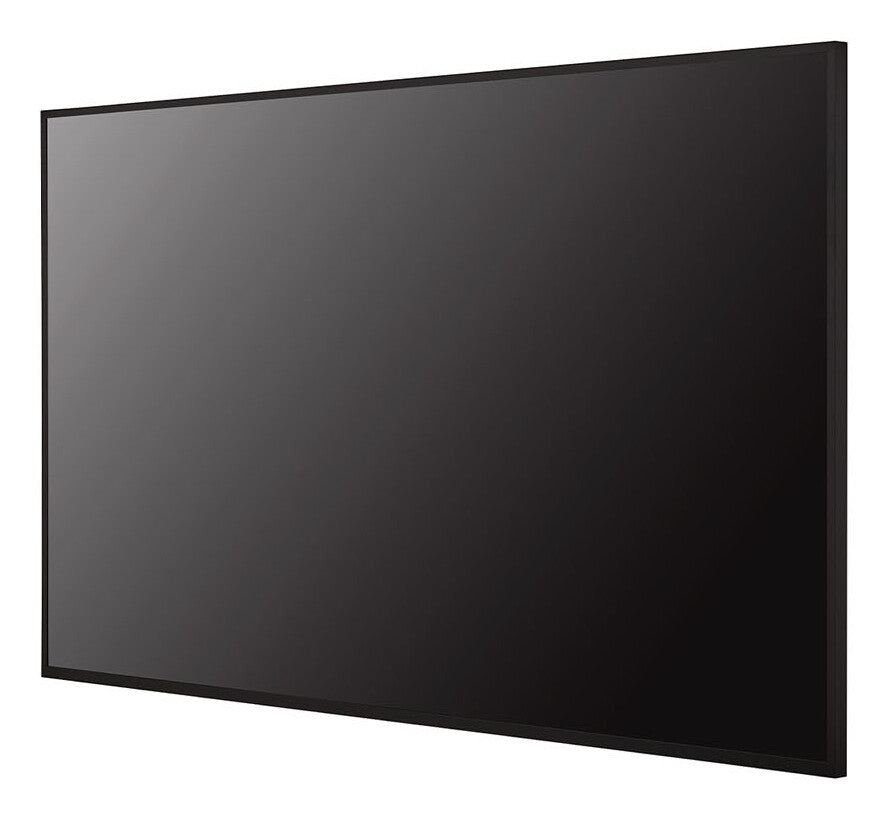

High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Design for Space Utilization

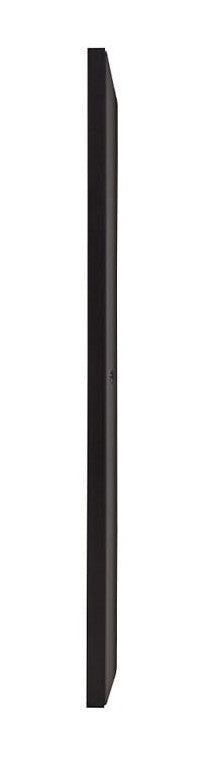

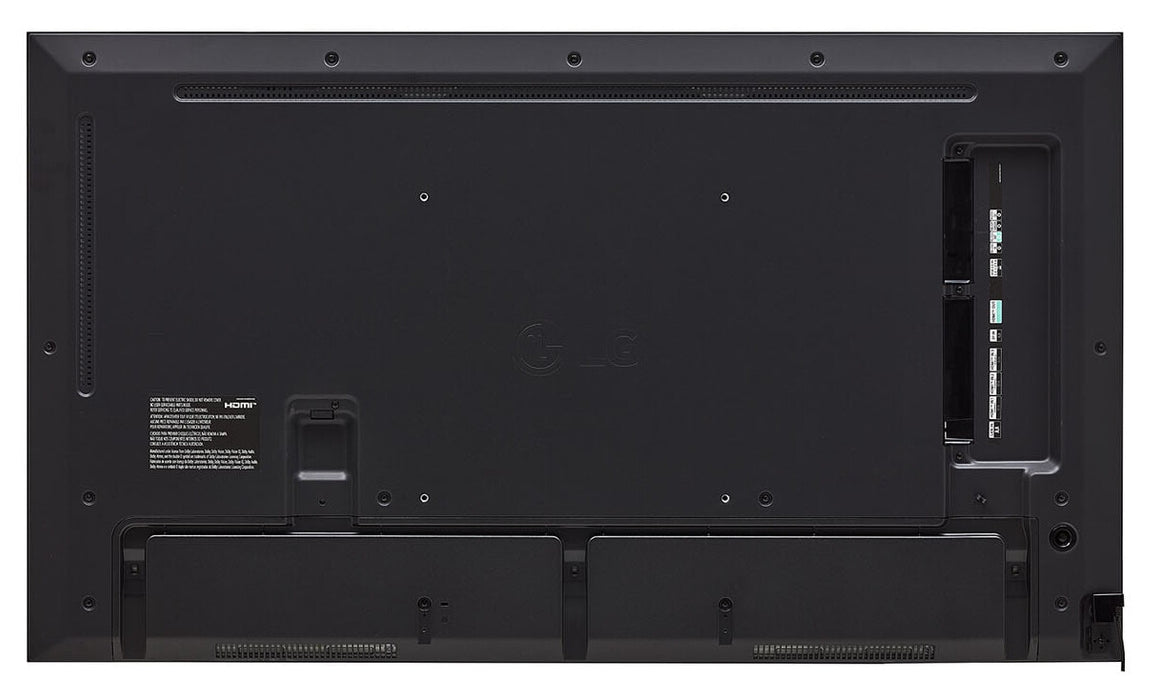

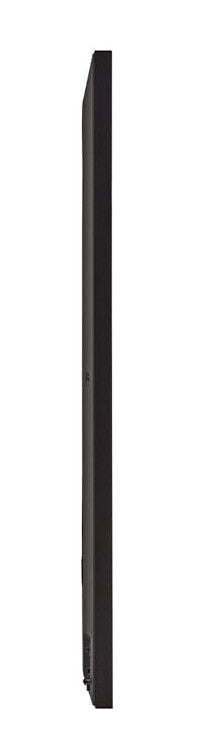

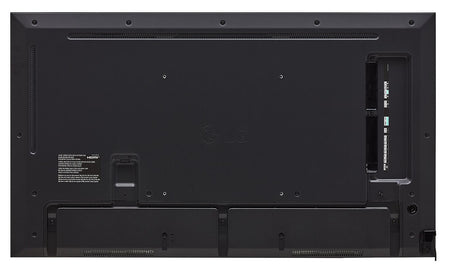

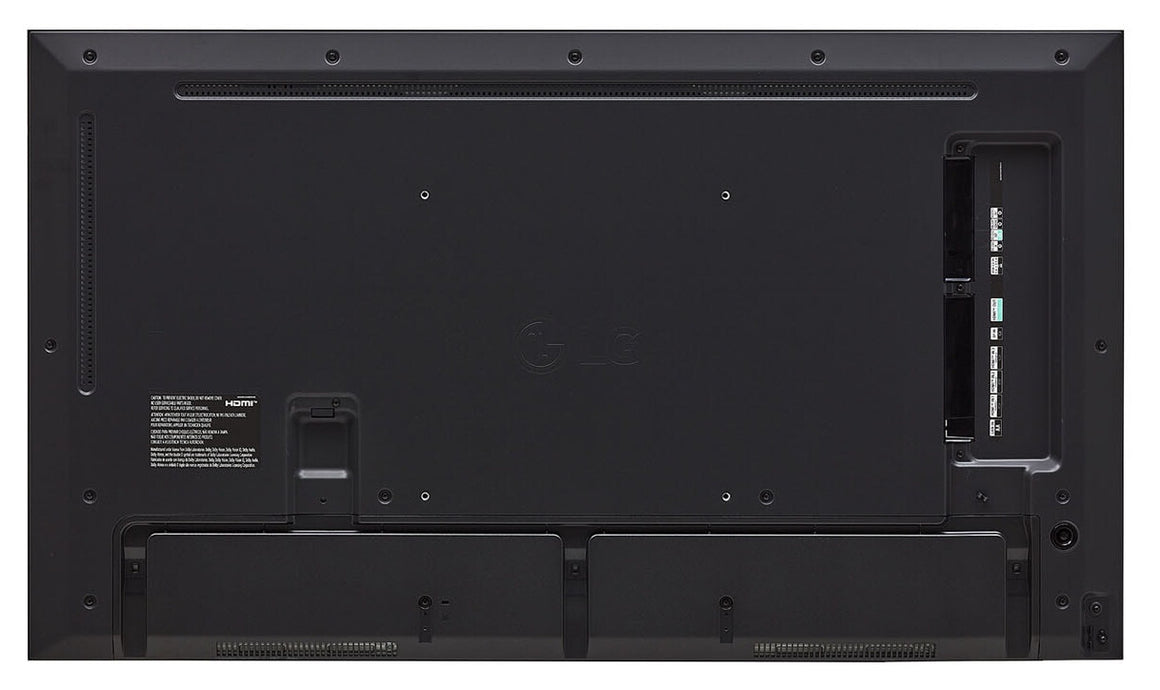

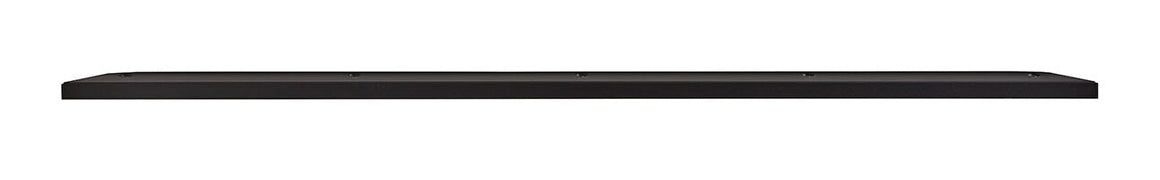

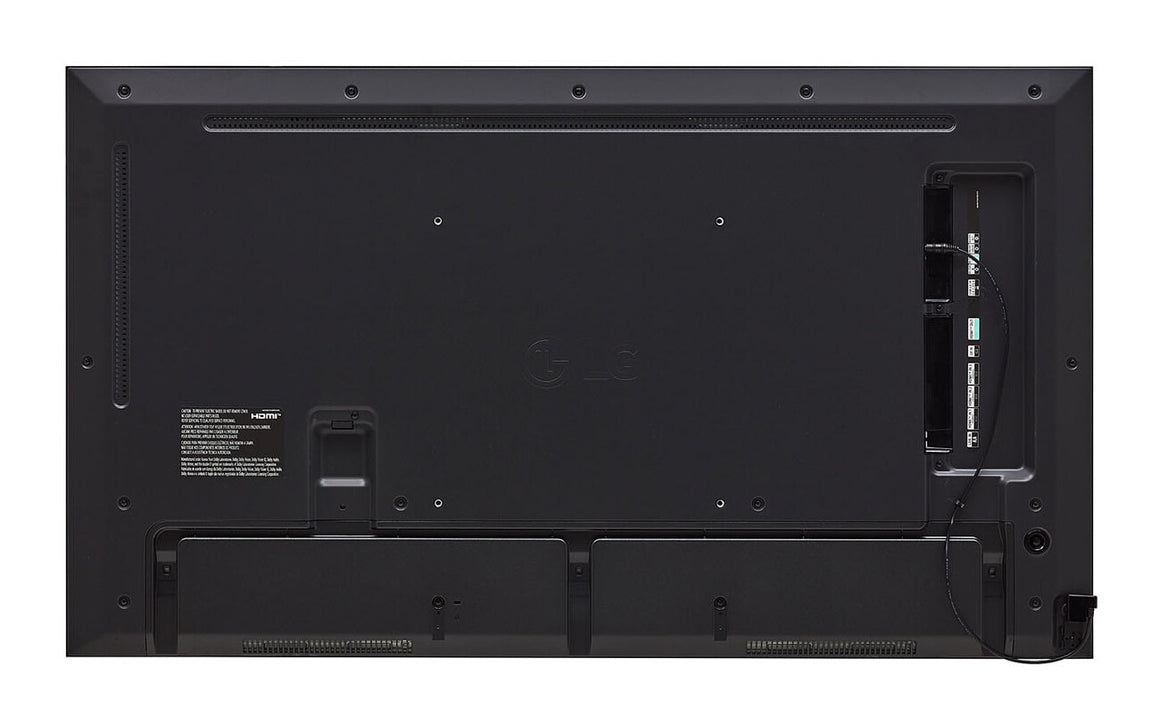

Designed with thin bezels and simple cable management, the UH5N-M saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.
Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring, provide both reliability and satisfaction.
Enhanced Security Features
The UH5N-M provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Display |
Colour gamut |
95% |
Native refresh rate |
60 Hz |
Colour depth |
10 bit |
Haze rate |
28% |
Panel life |
50000 h |
Display number of colours |
1.07 billion colours |
Viewing angle, vertical |
178° |
Viewing angle, horizontal |
178° |
Contrast ratio (dynamic) |
1000000:1 |
Contrast ratio (typical) |
1100:1 |
Response time |
8 ms |
Native aspect ratio |
16:9 |
Touchscreen |
No |
HD type |
4K Ultra HD |
Display brightness |
500 cd/m² |
Display resolution |
3840 x 2160 pixels |
LED backlighting type |
Edge-LED |
LED backlight |
Yes |
Panel type |
IPS |
Display technology |
LED |
Display diagonal |
124.5 cm (49") |
Ports & interfaces |
Remote (IR) input |
1 |
RS-232C |
Yes |
Wi-Fi |
Yes |
Ethernet LAN (RJ-45) ports |
1 |
Ethernet LAN |
Yes |
USB connector type |
USB Type-A |
USB version |
2.0 |
USB ports quantity |
2 |
USB port |
Yes |
DisplayPorts quantity |
1 |
DVI port |
No |
HDMI input ports quantity |
3 |
HDMI ports quantity |
3 |
Audio |
RMS rated power |
20 W |
Built-in speaker(s) |
Yes |
Design |
Bezel width (top) |
8.9 mm |
Bezel width (side) |
8.9 mm |
Bezel width (bottom) |
1.29 cm |
Panel mounting interface |
300 x 300 mm |
VESA mounting |
Yes |
Screen shape |
Flat |
Orientation |
Horizontal/Vertical |
Placement supported |
Indoor |
Product colour |
Black |
Product design |
Digital signage flat panel |
Performance |
International Protection (IP) code |
IP5X |
Automatic brightness control |
Yes |
HDCP |
Yes |
HDCP version |
1.4/2.2/2.3 |
Operating hours (hours/days) |
24/7 |
On Screen Display (OSD) |
Yes |
Purpose |
Universal |
Power |
Energy efficiency scale |
A to G |
Heat dissipation |
297 BTU/h |
AC input frequency |
50/60 Hz |
AC input voltage |
100 - 240 V |
Energy consumption (SDR) per 1000 hours |
87 kWh |
Energy efficiency class (SDR) |
G |
Power consumption (max) |
140 W |
Power consumption (standby) |
0.5 W |
Power consumption (typical) |
87 W |
Computer system |
Operating system version |
6.0 |
Operating system installed |
WebOS |
Internal memory |
16 GB |
Computer system type |
System on Chip (SoC) |
Computer system |
Yes |
Weight & dimensions |
Display weight |
13.6 kg |
Display height |
630.8 mm |
Display depth |
29.7 mm |
Display width |
1095.6 mm |
Packaging data |
Package weight |
1.61 kg |
Package height |
736 mm |
Package depth |
152 mm |
Package width |
1215 mm |
Packaging content |
Remote control included |
Yes |
Operational conditions |
Operating relative humidity (H-H) |
10 - 80% |
Operating temperature (T-T) |
0 - 40 °C |
Features |
Heat dissipation (max) |
478 BTU/h |
Technical details |
Real Time Clock (RTC) |
Yes |
Other features |
Plug and Play |
Yes |
Power consumption (PowerSave) |
61 W |
Audio output |
1 |
