Attract Passing Customers with a Bright Display Presented Through a Window
World’s First UL Verification for Display Anti-Discoloration Characteristics
By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.
Window-facing Display
LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.
Brightness Beyond the Window
A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.
High-performance with webOS 6.0
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.
Remotely Managed, Real-time Mastery (Content Manager)
A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG’s web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.
Wide Range of Operating Temperature
The XS4P can be used under a wide range of operating temperature from 0℃ to 40℃.
Conformal Coating
The conformal coating with dust protection shields the circuit and power boards from dust, metal particles, moisture, and other contaminants, providing solid durability and long-term reliability.
Upgraded Quite Mode
The XS4P addresses concerns about display noise. It features an Upgraded Quiet Mode that operates at 2,500 nits with minimal fan noise.
Professional Content Partners
Pairing the XS4P Series with LG SW solutions would enhance its utilization.
Convenient Installation with Calculated Precision
The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.
| Display |
|---|
| Native refresh rate |
60 Hz |
| Haze rate |
3% |
| Panel life |
50000 h |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
500000:1 |
| Contrast ratio (typical) |
1300:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Touchscreen |
No |
| HD type |
Full HD |
| Display brightness |
4000 cd/m² |
| Display resolution |
1920 x 1080 pixels |
| LED backlighting type |
Direct-LED |
| LED backlight |
Yes |
| Panel type |
IPS |
| Display technology |
LED |
| Display diagonal |
124.5 cm (49") |

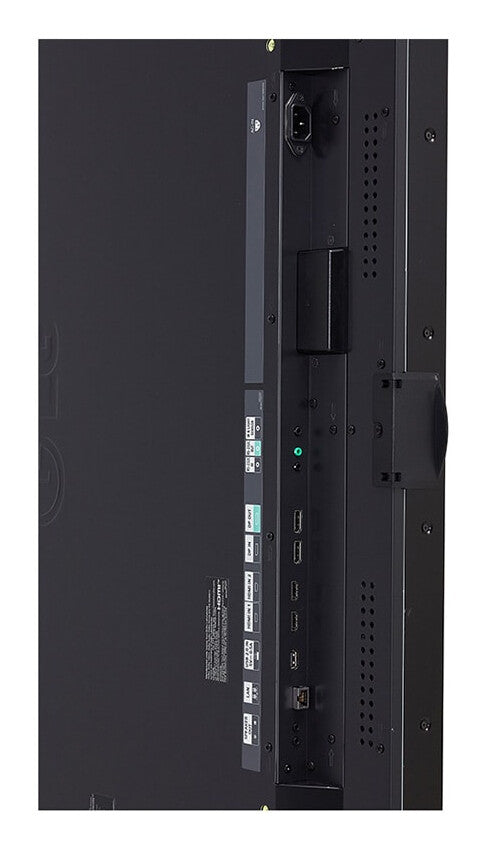

| Ports & interfaces |
|---|
| Remote (IR) output |
1 |
| Remote (IR) input |
1 |
| Infrared data port |
Yes |
| RS-232C |
Yes |
| Audio (L/R) out |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB connector type |
USB Type-A |
| USB version |
2.0 |
| USB ports quantity |
1 |
| USB port |
Yes |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| DisplayPorts quantity |
2 |
| DVI-D ports quantity |
1 |
| HDMI input ports quantity |
2 |
| HDMI ports quantity |
2 |
| Audio |
|---|
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Bezel colour |
Black |
| Bezel width (top) |
9 mm |
| Bezel width (side) |
6.5 mm |
| Bezel width (bottom) |
9 mm |
| Panel mounting interface |
600 x 400 mm |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Orientation |
Horizontal/Vertical |
| Placement supported |
Outdoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| HDCP |
Yes |
| HDCP version |
1.4 |
| Operating hours (hours/days) |
24/7 |
| Number of OSD languages |
22 |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish |
| Purpose |
Retail |
| Power |
|---|
| Heat dissipation |
1177 BTU/h |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (max) |
375 W |
| Power consumption (off) |
0.5 W |
| Power consumption (typical) |
345 W |
| Computer system |
|---|
| Operating system version |
6.0 |
| Operating system installed |
WebOS |
| Internal memory |
16 GB |
| Computer system type |
System on Chip (SoC) |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
20.8 kg |
| Display height |
626.4 mm |
| Display depth |
83.5 mm |
| Display width |
1092.7 mm |
| Packaging data |
|---|
| Package weight |
25.3 kg |
| Package height |
212 mm |
| Package depth |
725 mm |
| Package width |
1181 mm |
| Packaging content |
|---|
| Cables included |
AC, HDMI |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Operating temperature (T-T) |
0 - 40 °C |
| Features |
|---|
| Heat dissipation (max) |
1279 BTU/h |
| Suitable for outdoor use |
Yes |
| Technical details |
|---|
| Introduction year |
24 |
| Other features |
|---|
| Manual |
Yes |
