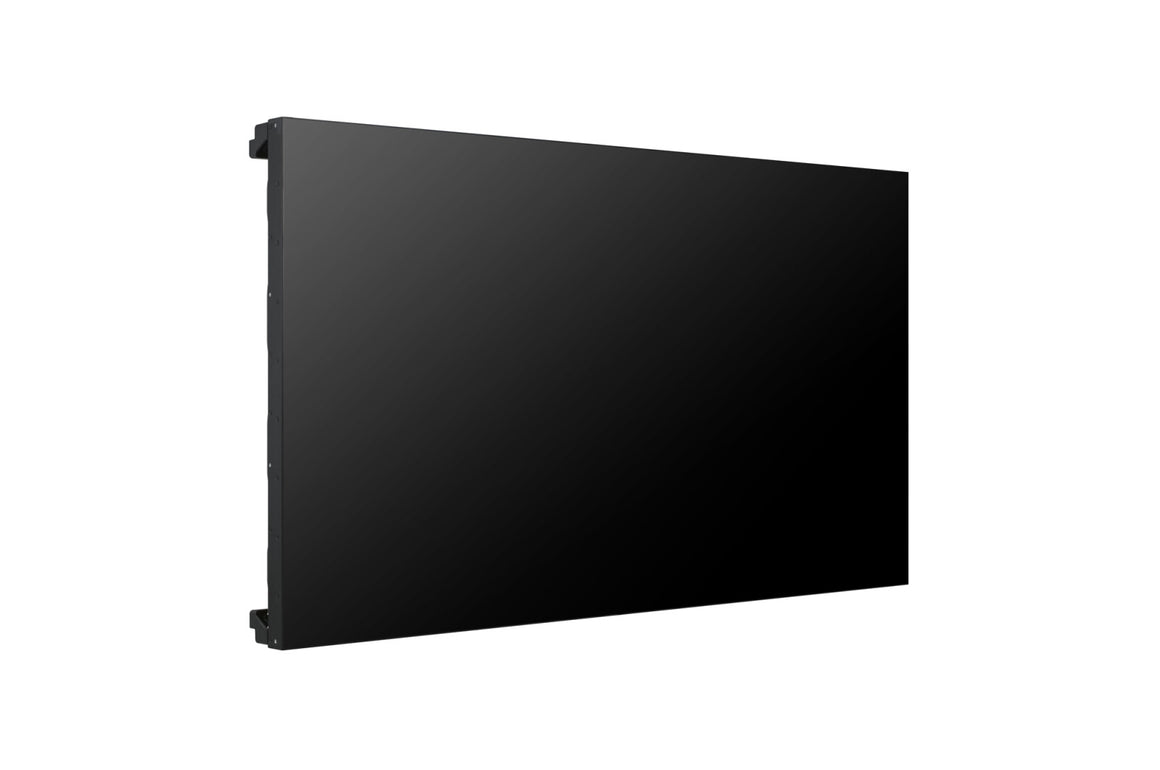

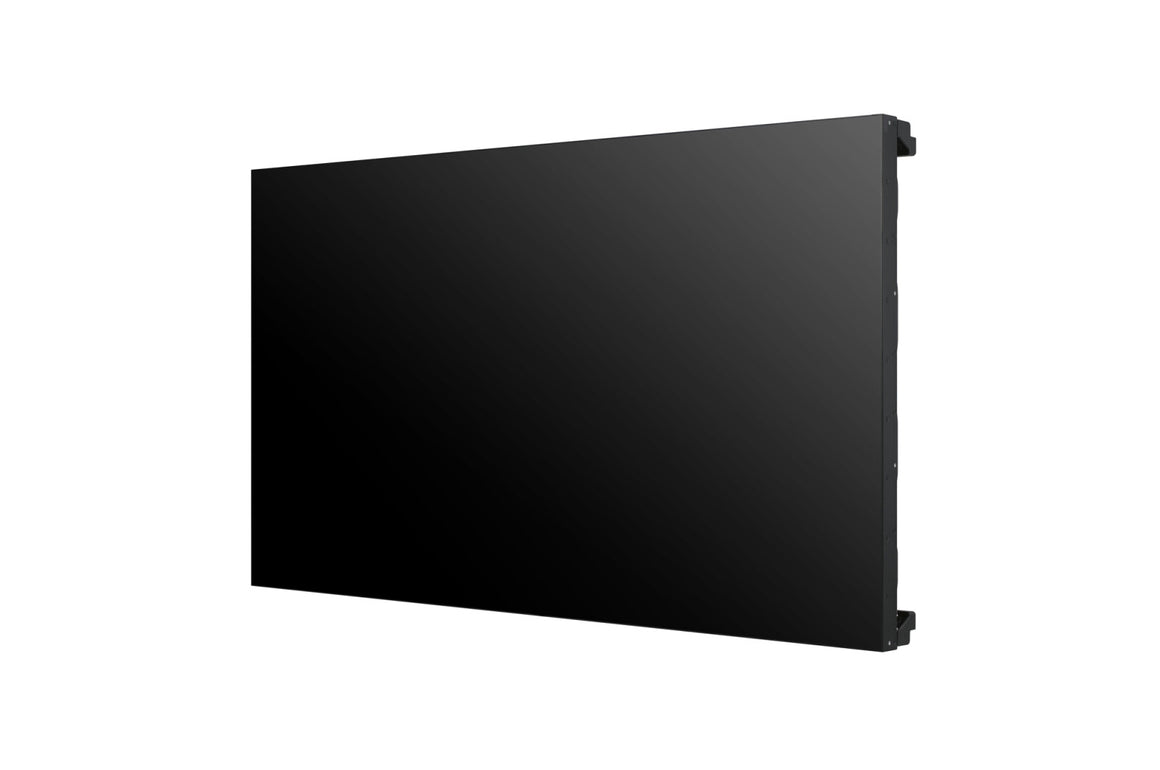

Incredible Immersion with Ultra-Narrow Bezel
The VL5F series provides all-encompassing screen immersion thanks to its ultra-narrow 3.5 mm bezel-to-bezel, while its outstanding IPS panel delivers a clear image from any angle. With its extremely attractive and highly functional design, it can be used to deliver advertising and information in a variety of business environments.
| Display |
|---|
| Panel life |
50000 h |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
500000:1 |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Touchscreen |
No |
| HD type |
Full HD |
| Display brightness |
500 cd/m² |
| Display resolution |
1920 x 1080 pixels |
| Display technology |
LED |
| Display diagonal |
139.7 cm (55") |
| Ports & interfaces |
|---|
| RS-232C |
Yes |
| Audio (L/R) out |
1 |
| Audio (L/R) in |
1 |
| Wi-Fi |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB ports quantity |
1 |
| USB port |
Yes |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| DisplayPorts quantity |
2 |
| DVI-D ports quantity |
1 |
| DVI port |
Yes |
| HDMI ports quantity |
2 |
| Design |
|---|
| Bezel width (top) |
2.25 mm |
| Bezel width (bottom) |
1.25 mm |
| Panel mounting interface |
600 x 400 mm |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Placement supported |
Indoor/outdoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| Purpose |
Commercial |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (SDR) per 1000 hours |
135 kWh |
| Energy efficiency class (SDR) |
G |
| Power consumption (typical) |
130 W |
| Computer system |
|---|
| Computer system |
No |
| Weight & dimensions |
|---|
| Weight |
23.2 kg |
| Height |
684.2 mm |
| Depth |
93.1 mm |
| Width |
1213.4 mm |
| Packaging data |
|---|
| Package weight |
30.5 kg |
| Package height |
239 mm |
| Package depth |
828 mm |
| Package width |
1337 mm |
| Packaging content |
|---|
| Remote control included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Operating temperature (T-T) |
0 - 40 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Country of origin |
South Korea |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
