SKU: 47611

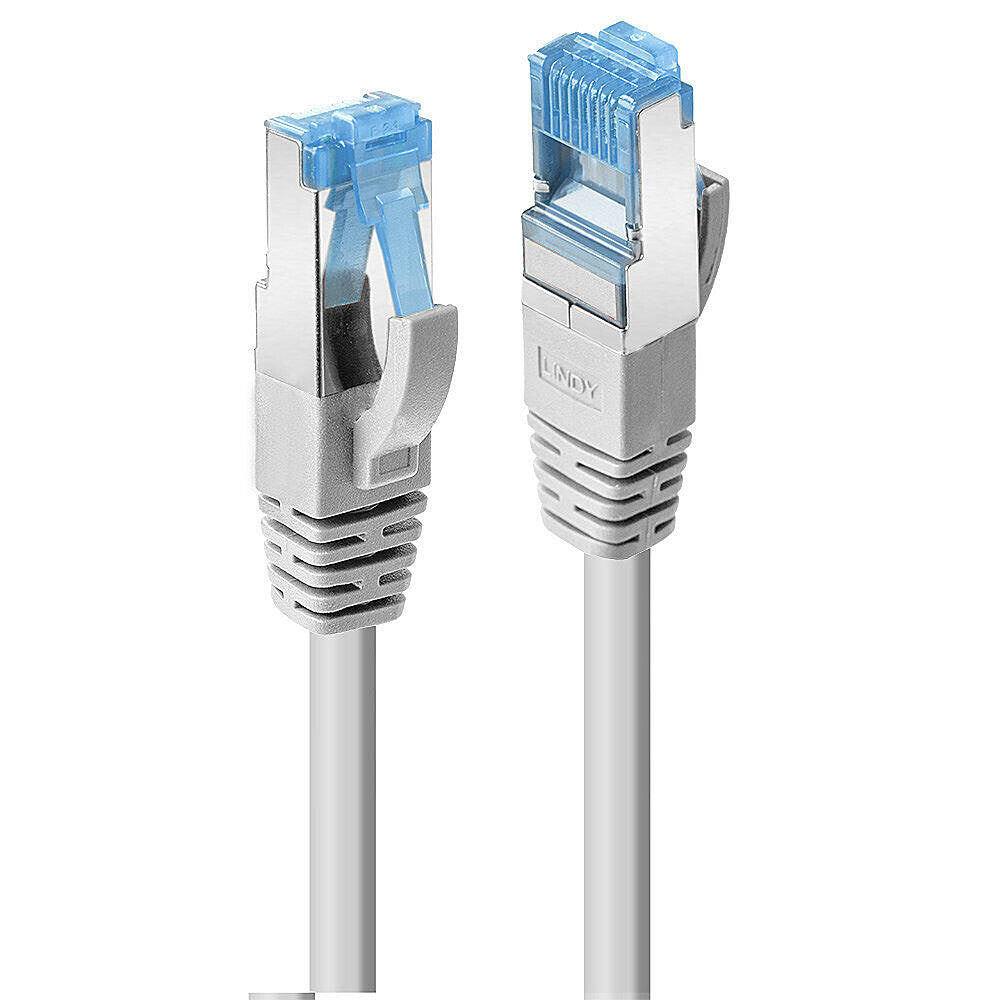

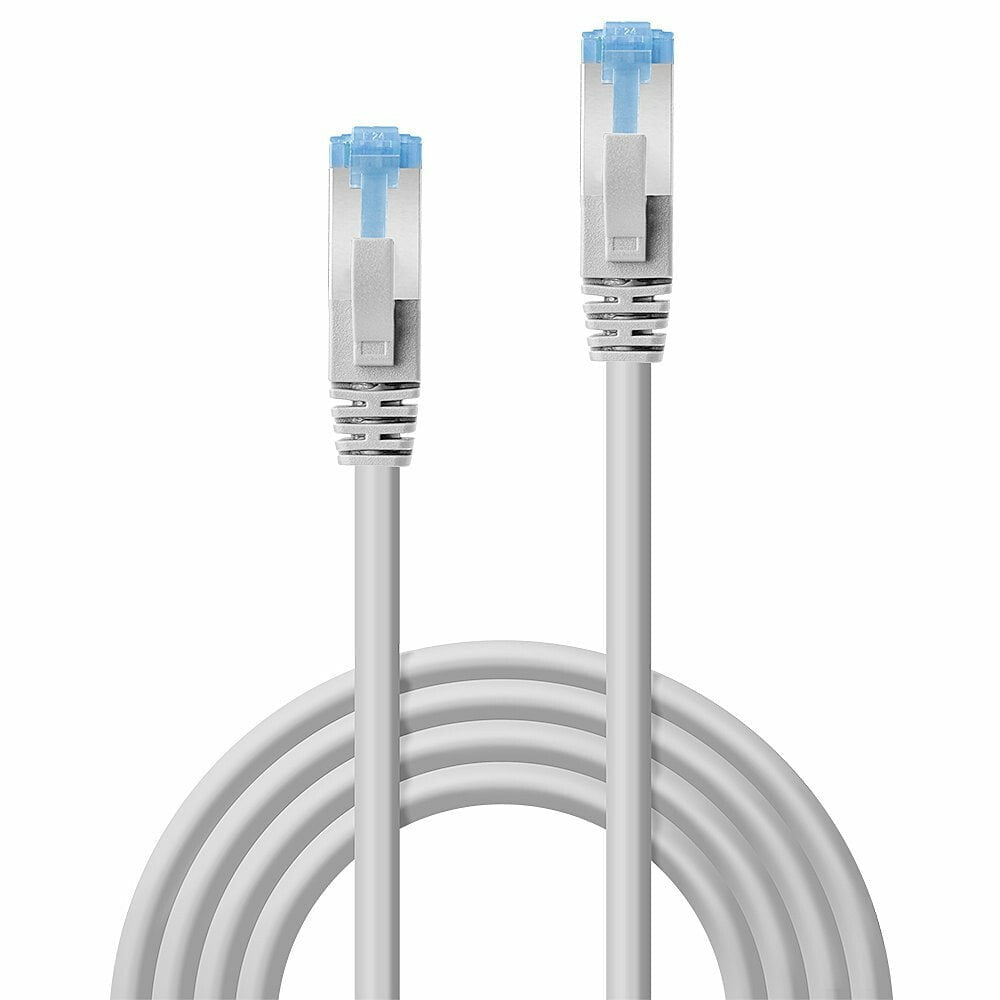

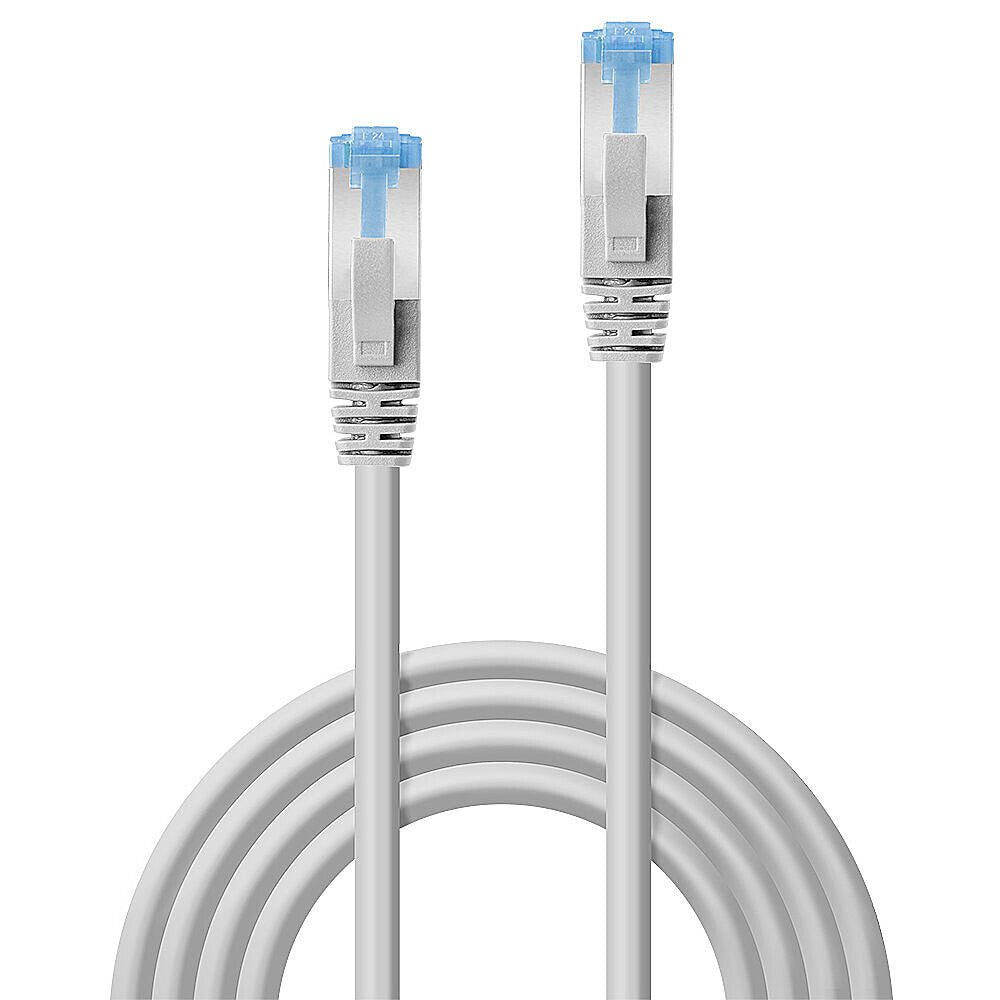

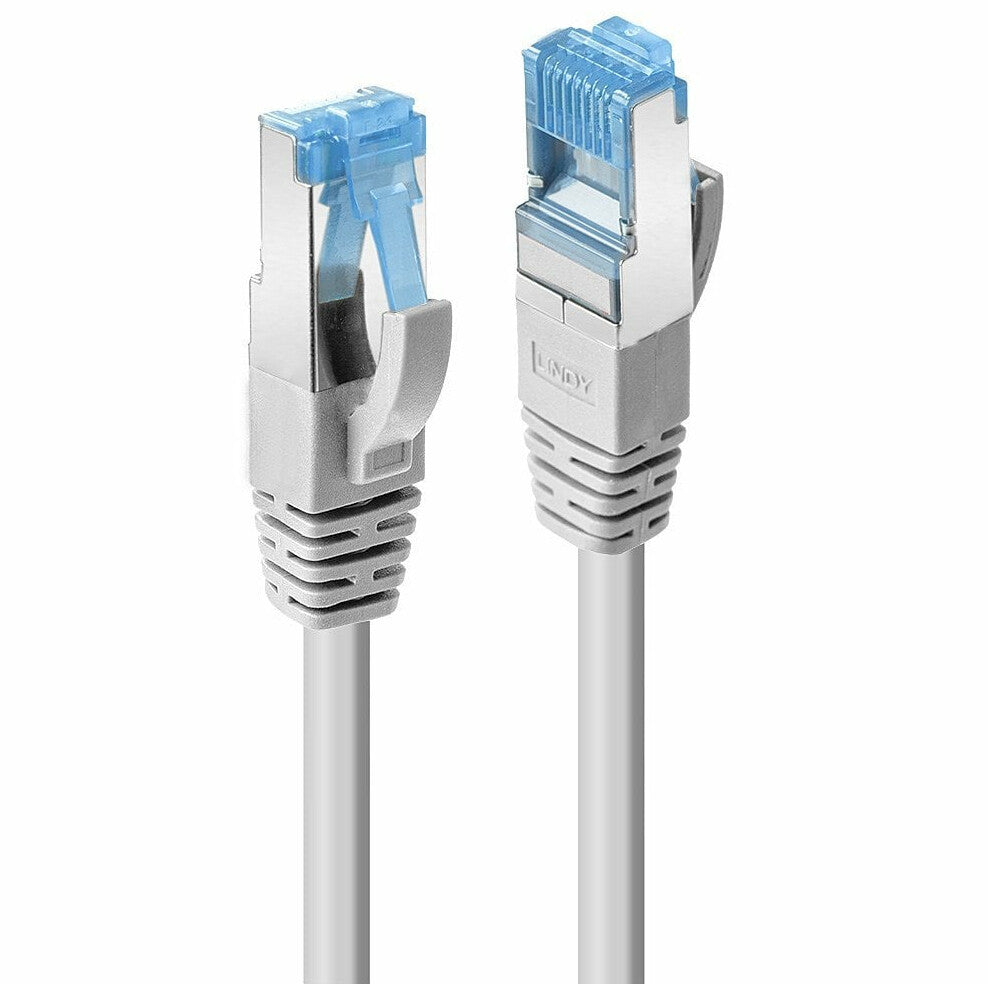

Lindy 0.3m Cat.6A U/UTP LSZH Cable, Grey

Lindy
£10.56
iFrame
  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6A U/UTP, LSZH
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss

Cat.6A U/UTP LSZH network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

Cat.6A cable for operating frequencies up to 500MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

Features
Bend radius (min) 6.9 cm
Frequency 500 MHz
AWG wire size 26
Cabling technology 10GBase-T
Connector housing material Polycarbonate (PC)
Conductor material Copper
Cable shape Round
Jacket material Low smoke zero halogen (LSZH)
Connector shield material Aluminium
Connector shielding Yes
Connector contacts plating Nickel/Gold
Connector 1 form factor Straight
Connector 2 form factor Straight
Connector 1 gender Male
Connector 2 gender Male
Connector 2 RJ-45
Connector 1 RJ-45
Product colour Grey
Cable shielding S/FTP (S-STP)
Cable standard Cat6a
Cable length 0.3 m
Operational conditions
Storage temperature (T-T) -20 - 75 °C
Operating temperature (T-T) -10 - 60 °C
Sustainability
Doesn't contain Halogen
Certificates
Certification RoHS, REACH, UL, California Proposition 65
Compliance certificates REACH, RoHS, UL
Weight & dimensions
Outer diameter 5.8 mm
Height 8.3 mm
Depth 22.8 mm
Width 11.6 mm
Packaging content
Manual Yes
Quantity per pack 1 pc(s)
Packaging data

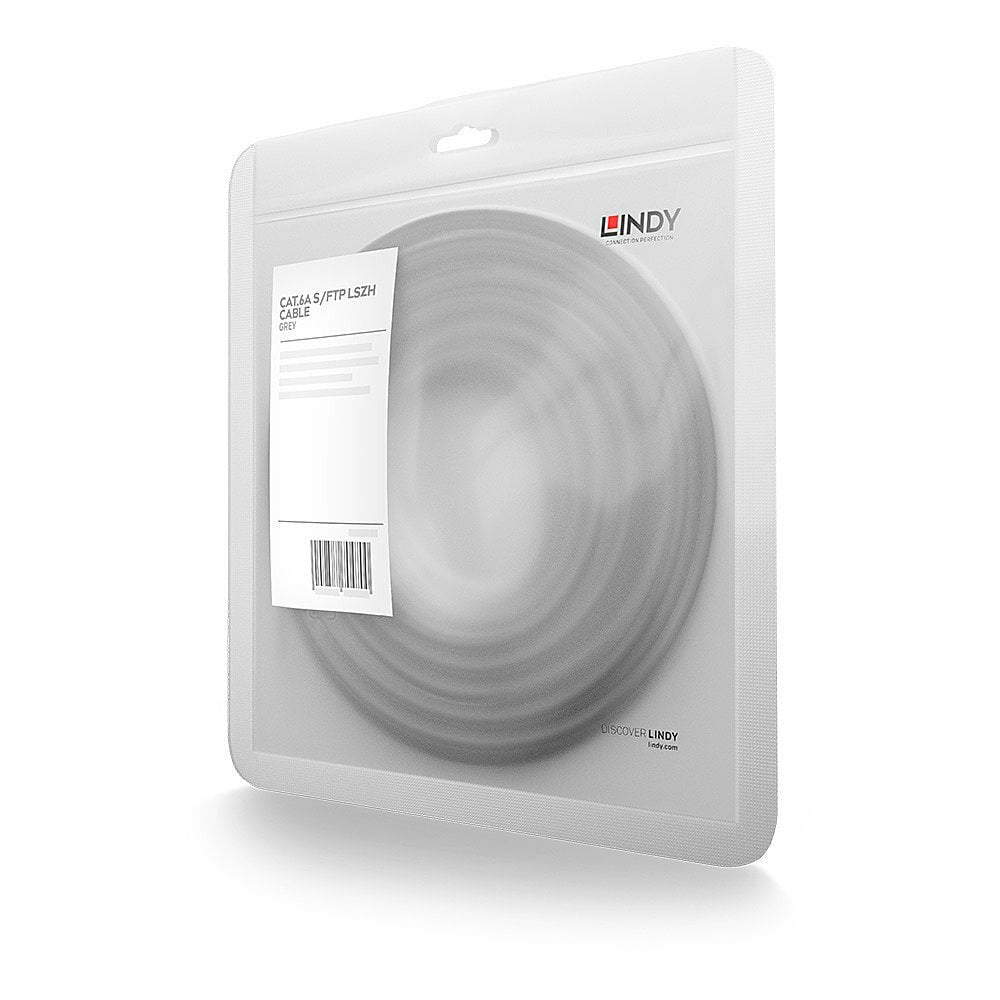

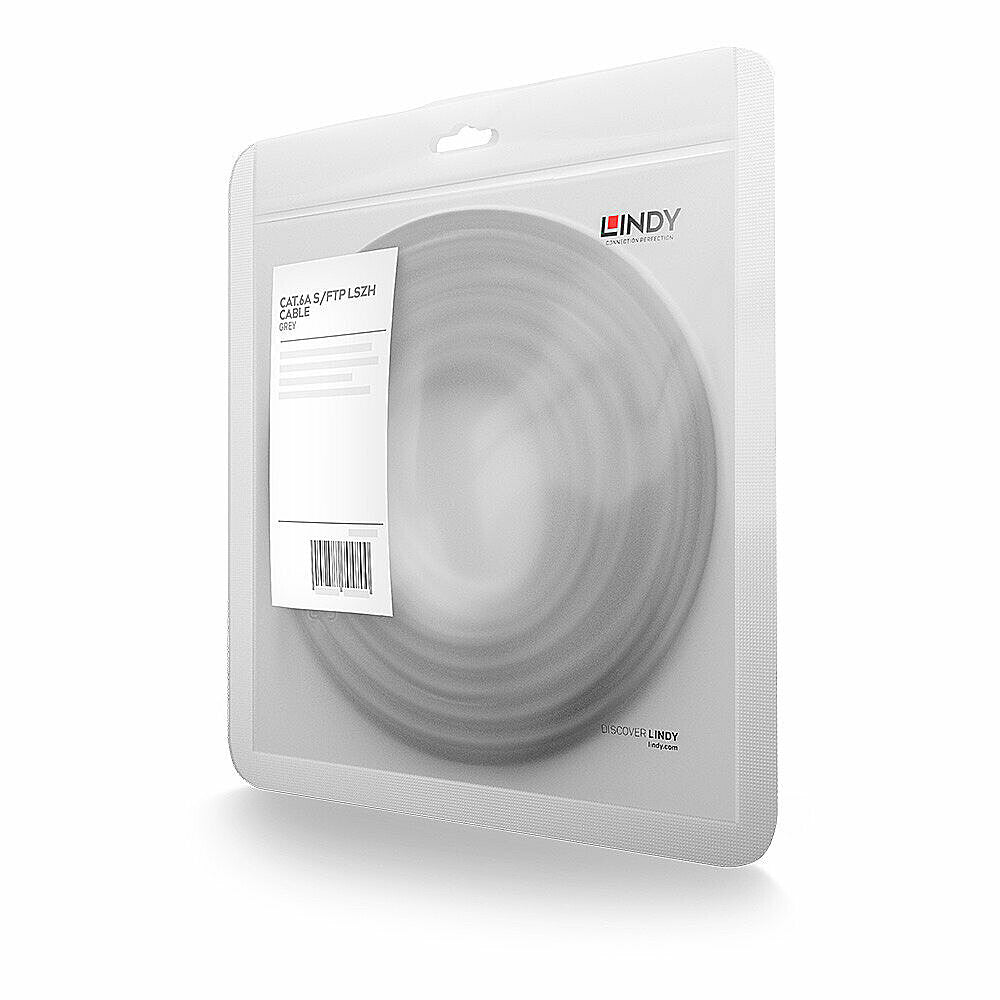

Package type Polybag
Logistics data
Warranty period 10 year(s)
Technical details
Sustainability compliance Yes
