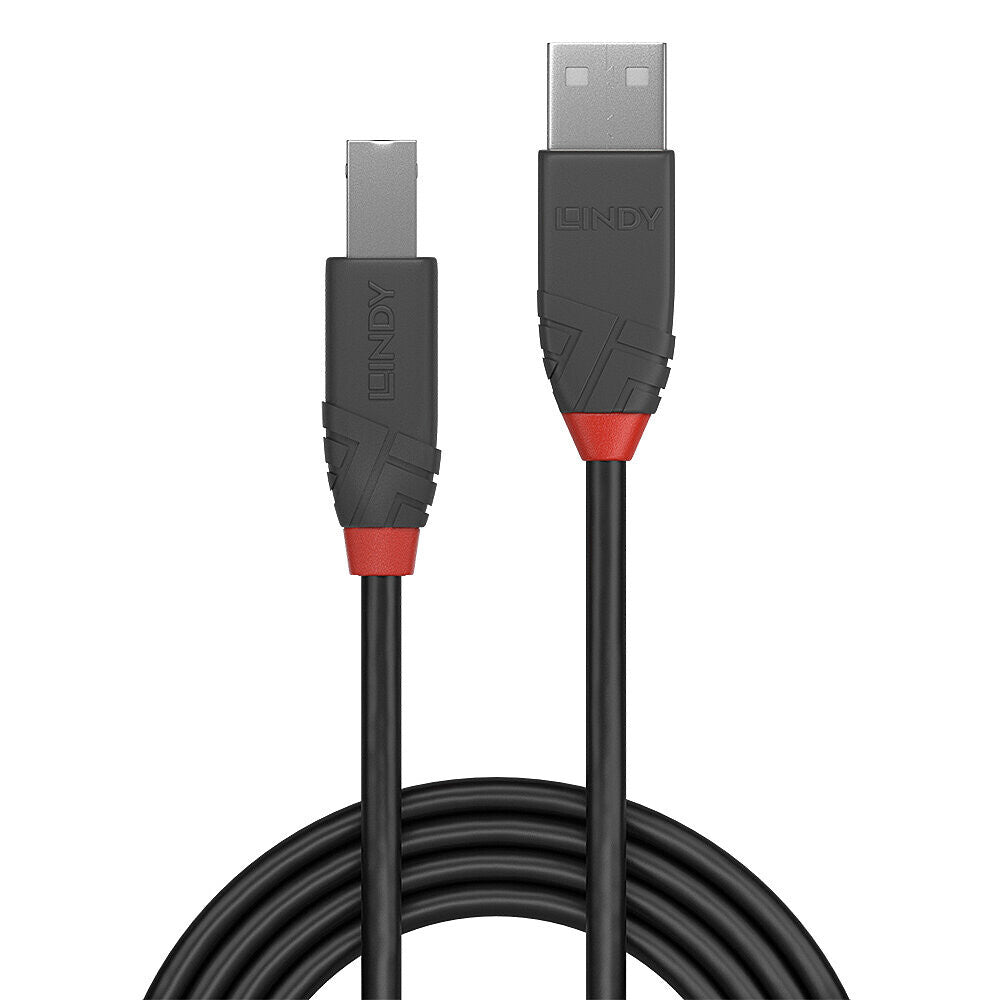

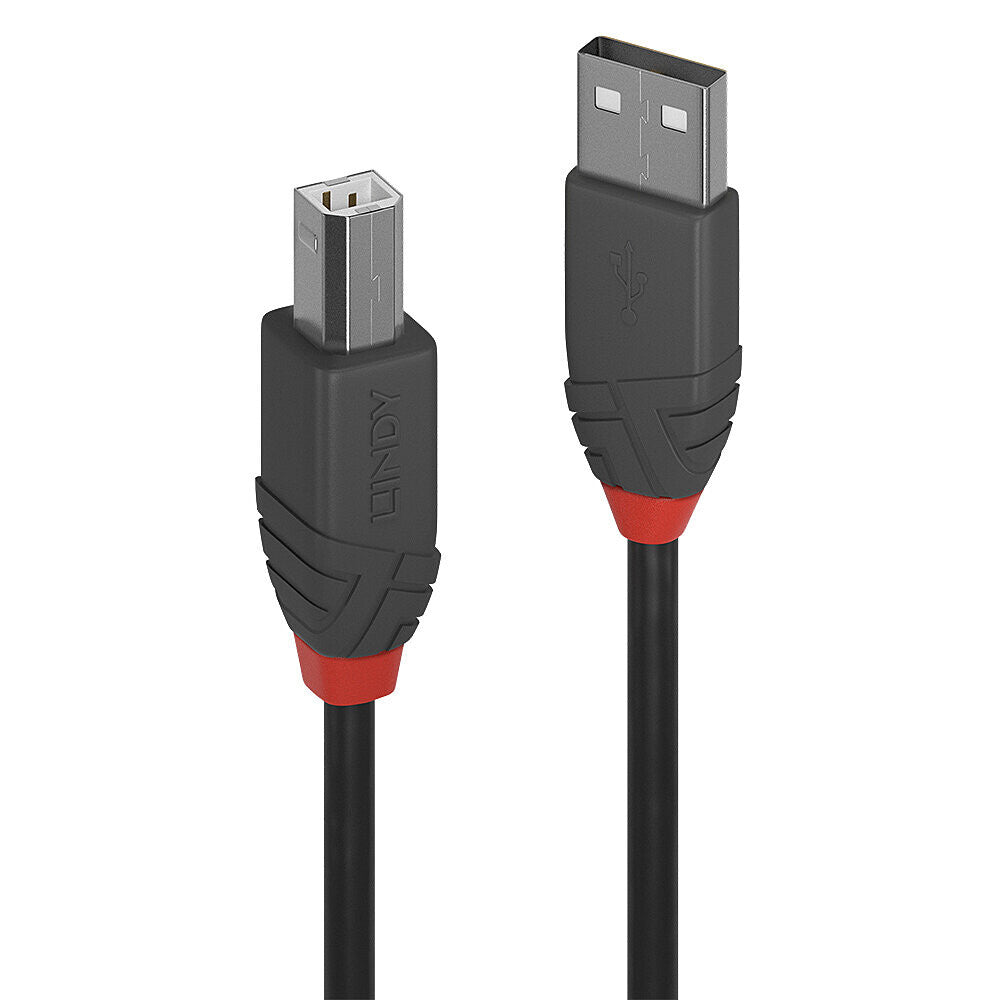

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to B cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 10m.
| Features |
|---|
| Nominal attenuation |
5.8db/km |
| Plug and Play |
Yes |
| Cable type |
Round cable |
| Product colour |
Black, Grey |
| Maximum data transfer rate |
0.48 Gbit/s |
| Connector housing material |
Polyvinyl chloride (PVC) |
| Connector shielding |
Yes |
| Conductor material |
Tinned copper |
| Connector shield material |
Aluminium |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Connector contacts plating |
Gold |
| Contact material |
Copper |
| Connector material |
Nickel |
| AWG wire size |
26/28 |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
USB B |
| Connector 1 |
USB A |
| USB version |
USB 2.0 |
| Weight & dimensions |
|---|
| Connector 2 dimensions (WxDxH) |
11.8 x 35 x 10.2 mm |
| Connector 1 dimensions (WxDxH) |
15.5 x 35 x 7.8 mm |
| Bend radius (min) |
1.6 cm |
| Cable diameter |
4.4 mm |
| Cable length |
0.5 m |
| Packaging data |
|---|
| Package type |
Polybag |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Storage temperature (T-T) |
0 - 60 °C |
| Operating temperature (T-T) |
0 - 60 °C |
| Certificates |
|---|
| Certification |
RoHS, REACH, UL |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
