SKU: 43390

Lindy 100m USB 2.0 Type C Cat.6 Extender

Lindy
£133.72
iFrame
  • Extends a single USB Type C port up to 100m using Cat.5e/6 network cable (not included)
  • Plug and Play installation, OS independent
  • Perfect for use with USB 2.0 devices such as storage devices, printers, scanners, mice and keyboards*
  • Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
  • 2 year warranty

The Lindy 100m USB 2.0 Type C Cat.6 Extender can be used to extend the distance between a USB peripheral device and a Type C equipped host computer by up to 100m.

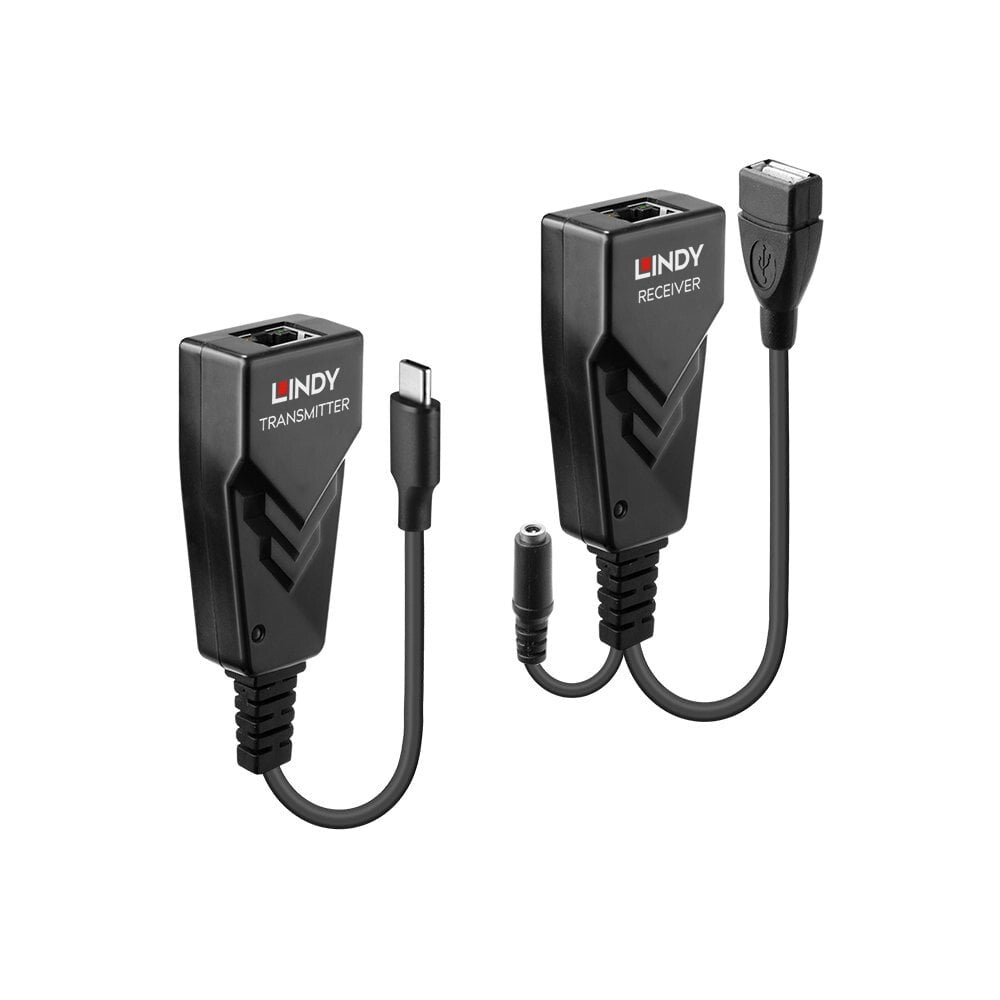

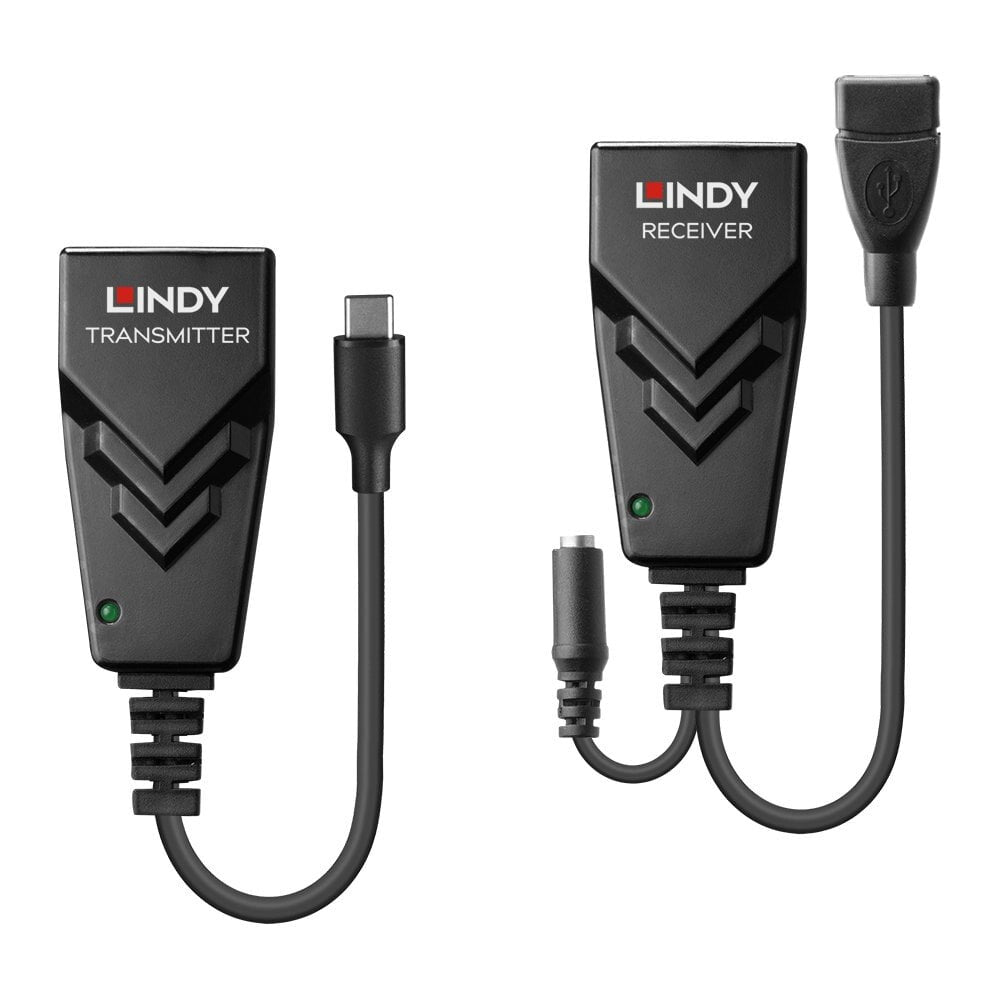

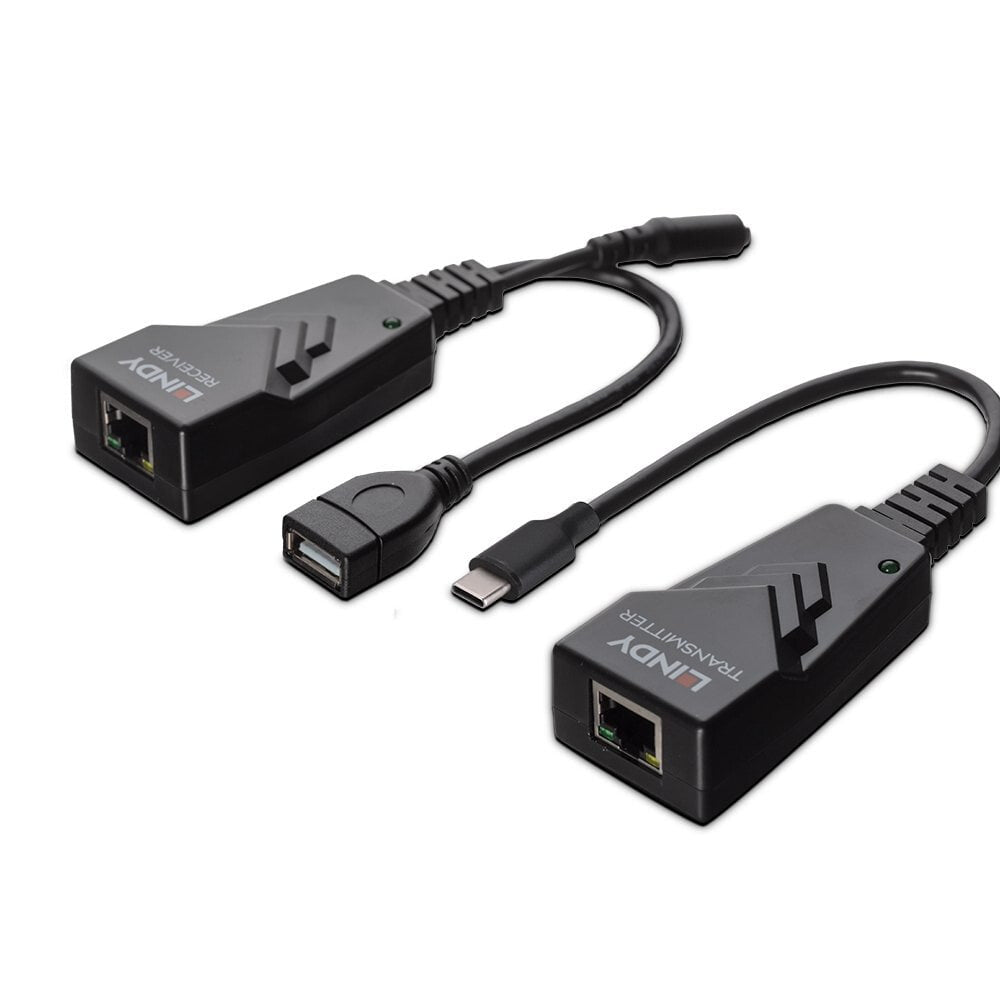

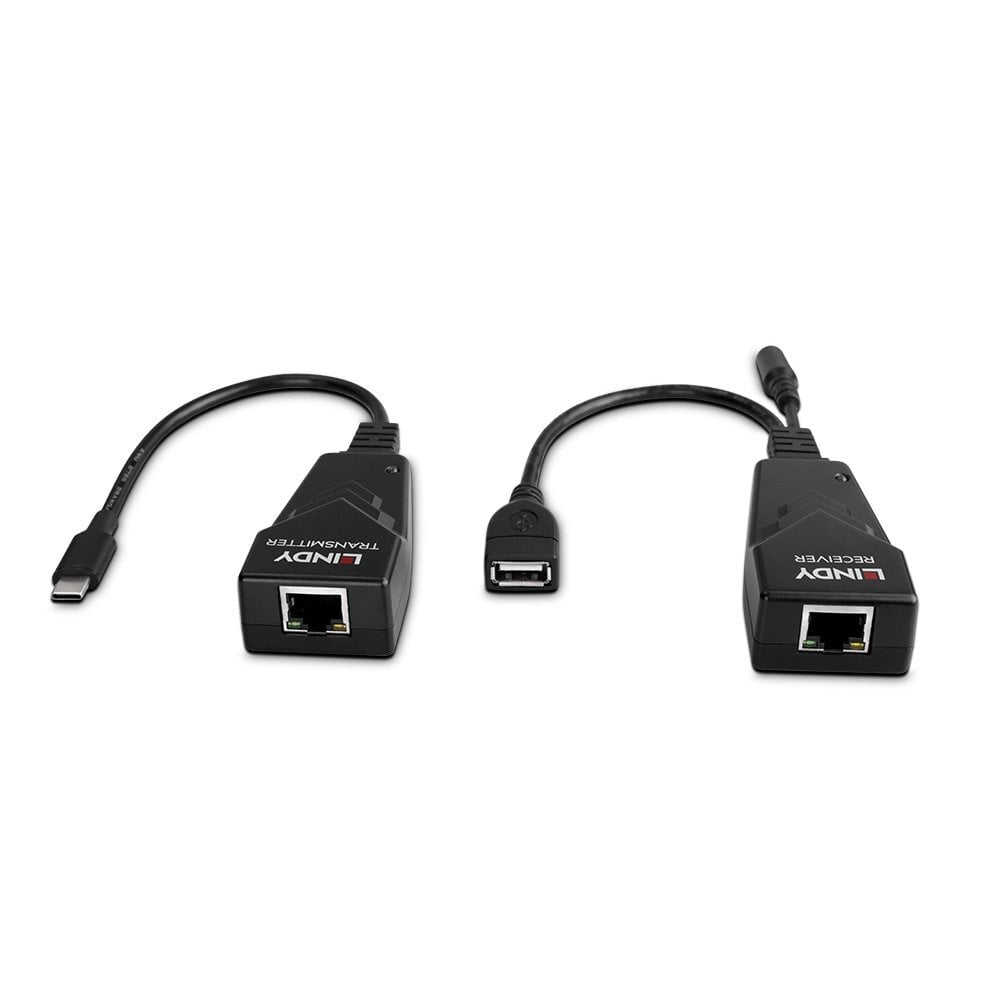

It consists of a transmitter unit which connects to the computer via USB Type C and a receiver unit that connects to a USB Type A device. Standard Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables.

For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.

*Please note: This extender might not support USB devices that require high bandwidths such as FullHD webcams.

Performance
Chipset CH317Q, CH9317, RTL8211E
Cable types supported Cat5e, Cat6
Data transfer rate 480 Mbit/s
Maximum transfer distance 100 m
Type Network transmitter & receiver
Ports & interfaces
DC-in jack Yes
USB Type-C ports quantity (receiver) 1
USB Type-C ports quantity (transmitter) 1
RJ-45 ports quantity (receiver) 1
RJ-45 ports quantity (transmitter) 1
Ethernet LAN (RJ-45) ports 2
Design
Quantity per pack 1 pc(s)
Housing material Plastic
Product colour Black
Operational conditions
Storage relative humidity (H-H) 0 - 80%
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -10 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 50 g
Height 22 mm
Depth 36 mm
Width 69 mm
Packaging content
AC adapter included Yes
Manual Yes
Packaging data
Package height 48 mm
Package volume 380 cm³
Package depth 200 mm
Package width 200 mm
Package type Box
Sustainability
Sustainability compliance Yes
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS
