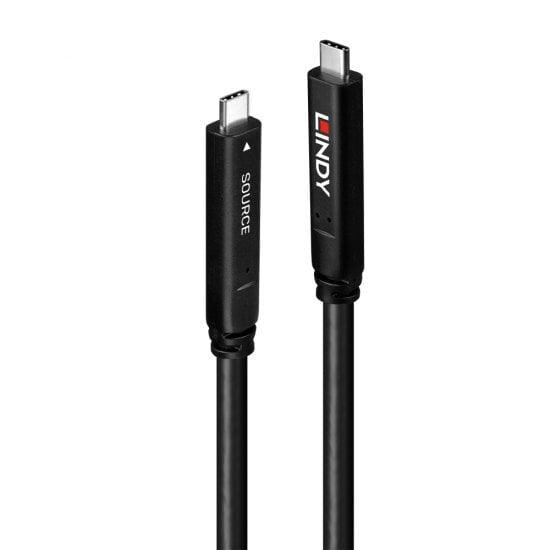

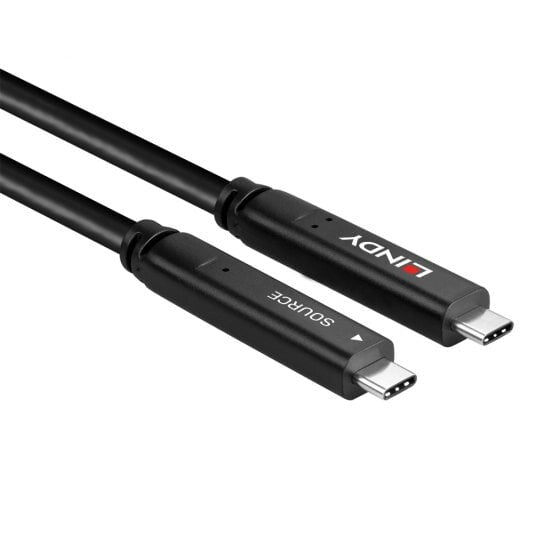

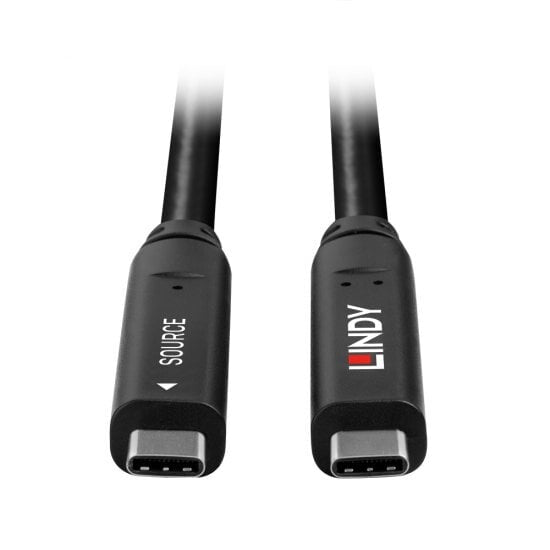

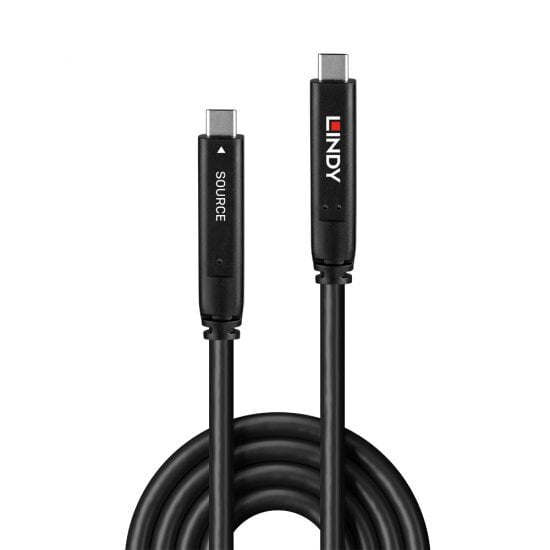

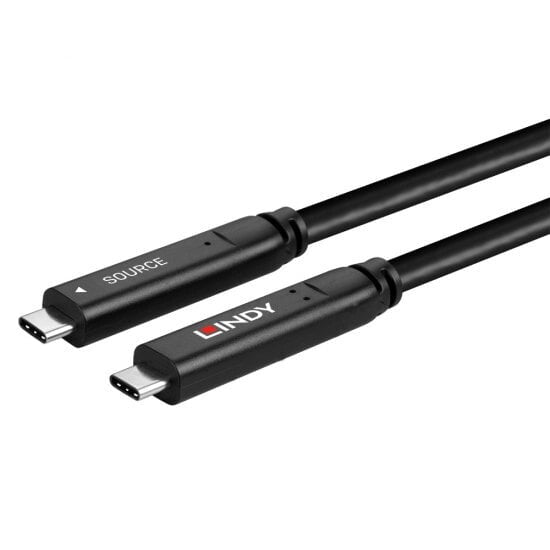

The Lindy USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable is a unique solution, which uses optical fiber as high-speed transmission medium to perfectly transmit USB 3.2 as well as DP 1.4 data over a distance of 10m. It combines data, video and USB Power Delivery into a single, high performance cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels. A more flexible construction makes this cable simple to install, with increased resistance to RFI/EMI ensures that the cable can be installed in sensitive environments.
The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
Please Note:
When using resolutions above 3840x2160@30Hz, USB data transfer rates reduce to 5Gbps, and resolutions above 3840x2160@60Hz transfer rates reduce further to 480Mbps.
USB devices which only support DP signals over 4 lanes might not be compatible.
Displays must have set USB settings to USB 3.0 in order to receive video via Type C.
| Features |
|---|
| Plug and Play |
Yes |
| Cable type |
Round cable |
| Product colour |
Black |
| Connector housing material |
Plastic |
| Connector shielding |
Yes |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
21 |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
USB C |
| Connector 1 |
USB C |
| USB version |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Weight & dimensions |
|---|
| Weight |
760 g |
| Cable diameter |
6.5 mm |
| Cable length |
10 m |
| Packaging data |
|---|
| Package weight |
900 g |
| Package height |
65 mm |
| Package depth |
240 mm |
| Package width |
240 mm |
| Package type |
Box |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-10 - 70 °C |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS & REACH, CP65 |
