Lindy USB 3.2 Type C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
USB cables with angled plugs protect the USB ports of your devices by reducing pressure and preventing cable breakage, making them ideal for confined spaces and hard-to-reach ports.
Data transfer speeds up to 10Gbps are supported for the quick and effortless transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

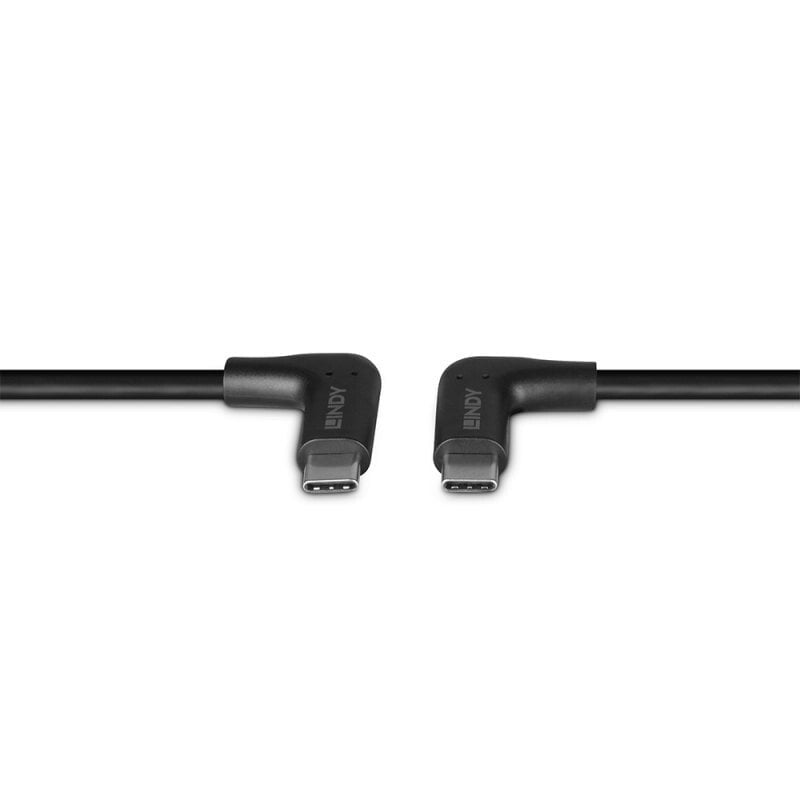

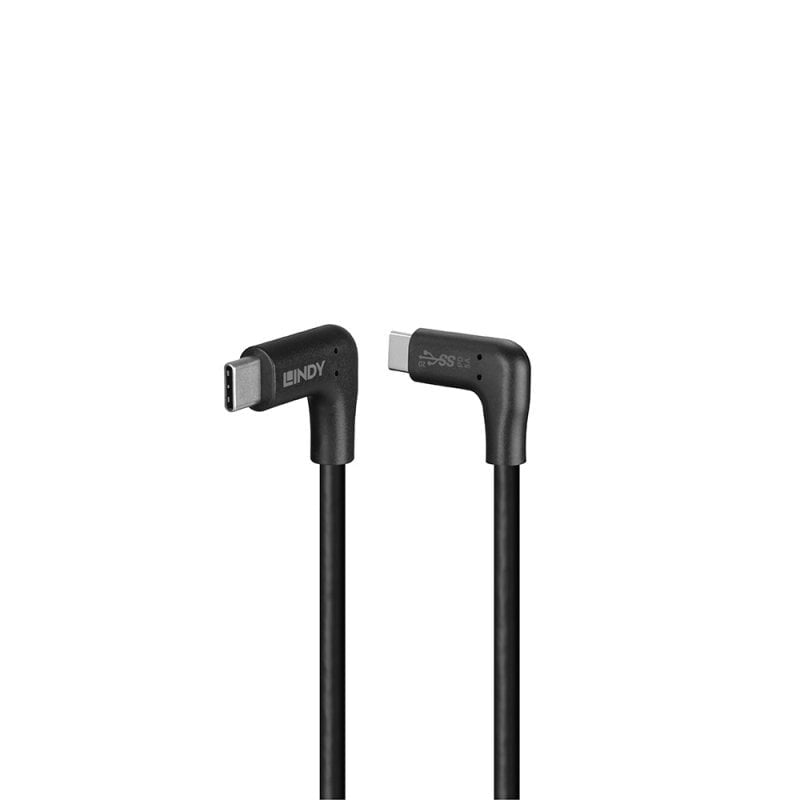

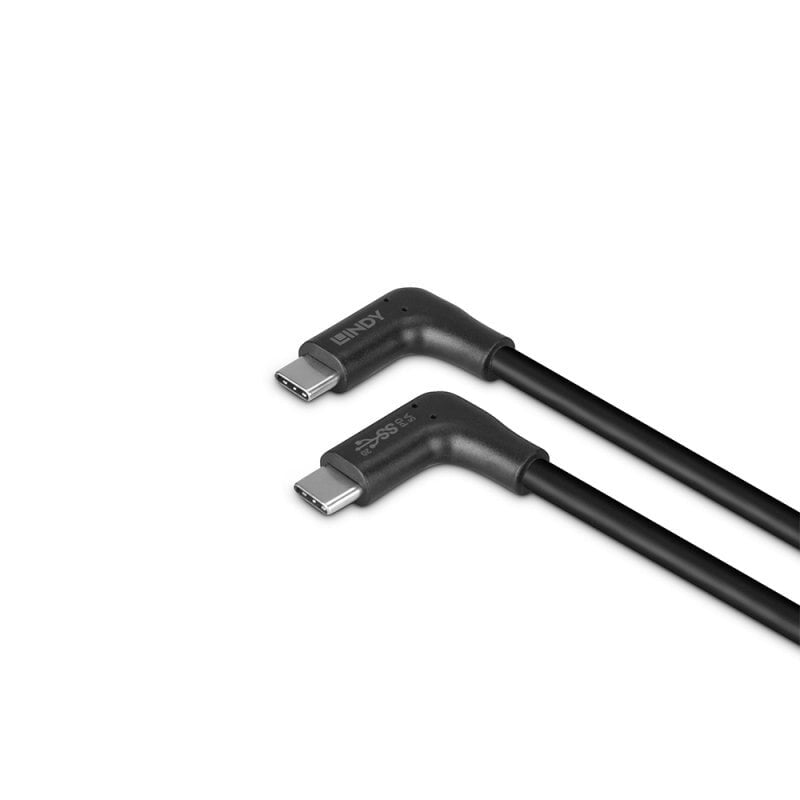

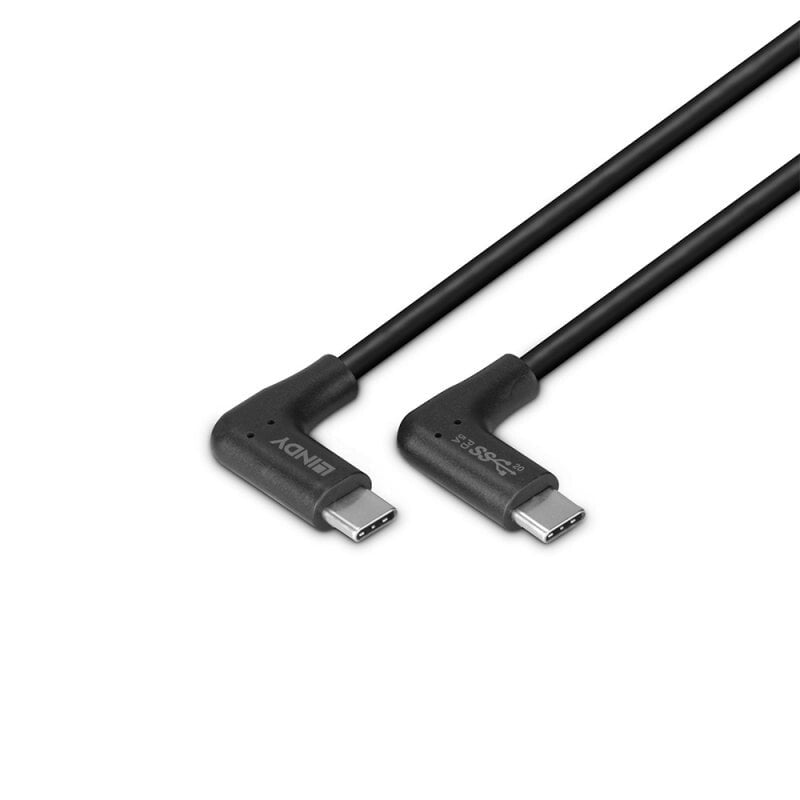

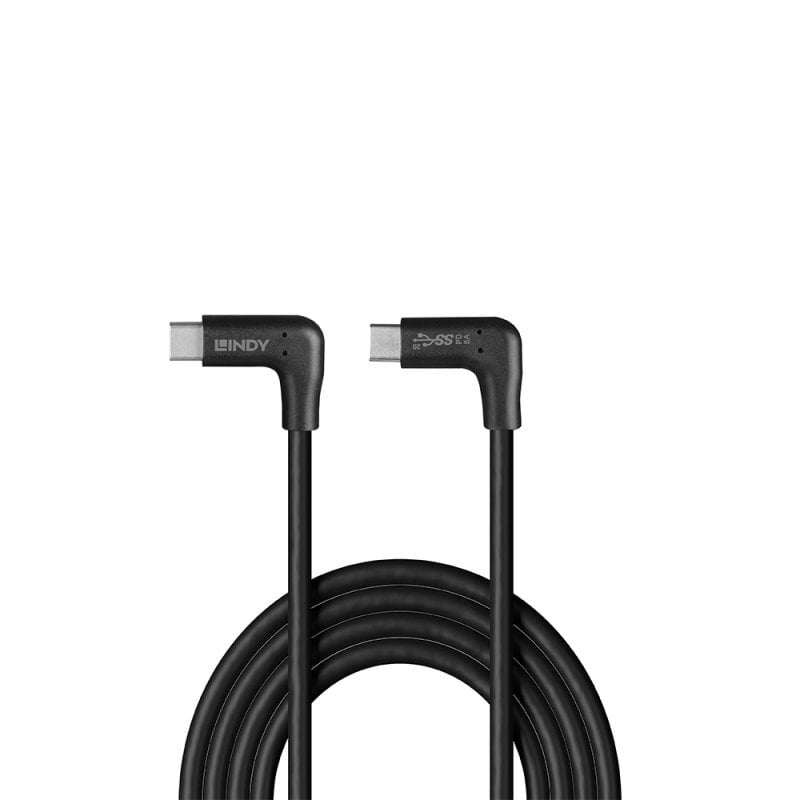

USB 3.2 Type C, 2 x 90° Right Angle cables are available in the following lengths: 0.5m, 1m, 1.5m.
| Features |
|---|
| Nominal attenuation |
0.5Mhz- 400Mhz < 5.8db |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
2.0 |
| USB Power Delivery up to |
60 W |
| Cable type |
Round cable |
| Product colour |
Black |
| Maximum data transfer rate |
10 Gbit/s |
| Connector shielding |
Yes |
| Conductor material |
Copper |
| Connector shield material |
Aluminium |
| Cable jacket material |
Nylon/Polyvinyl Chloride (PVC) |
| Connector contacts plating |
Nickel |
| Connector material |
Gold |
| AWG wire size |
22/28 |
| Connector 2 form factor |
Angled |
| Connector 1 form factor |
Angled |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
USB C |
| Connector 1 |
USB C |
| USB version |
USB 3.2 Gen 2 (3.1 Gen 2) |
| Weight & dimensions |
|---|
| Connector 2 dimensions (WxDxH) |
11.1 x 25.8 x 24.2 mm |
| Connector 1 dimensions (WxDxH) |
11.1 x 25.8 x 24.2 mm |
| Bend radius (min) |
5 cm |
| Cable diameter |
5 mm |
| Cable length |
1.5 m |
| Packaging data |
|---|
| Package type |
Polybag |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Storage temperature (T-T) |
0 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
RoHS, REACH, California Proposition 65 |
| Compliance certificates |
REACH, RoHS |
| Logistics data |
|---|
| Warranty period |
10 year(s) |
