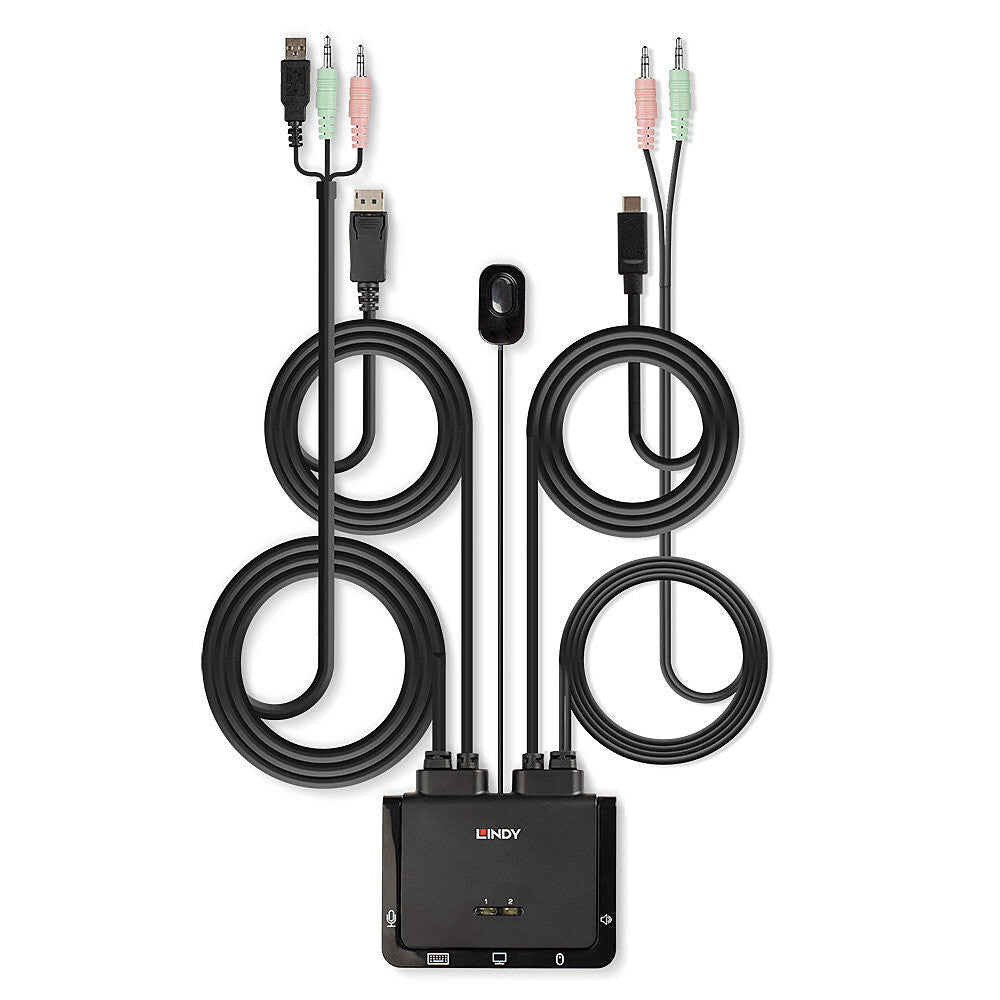

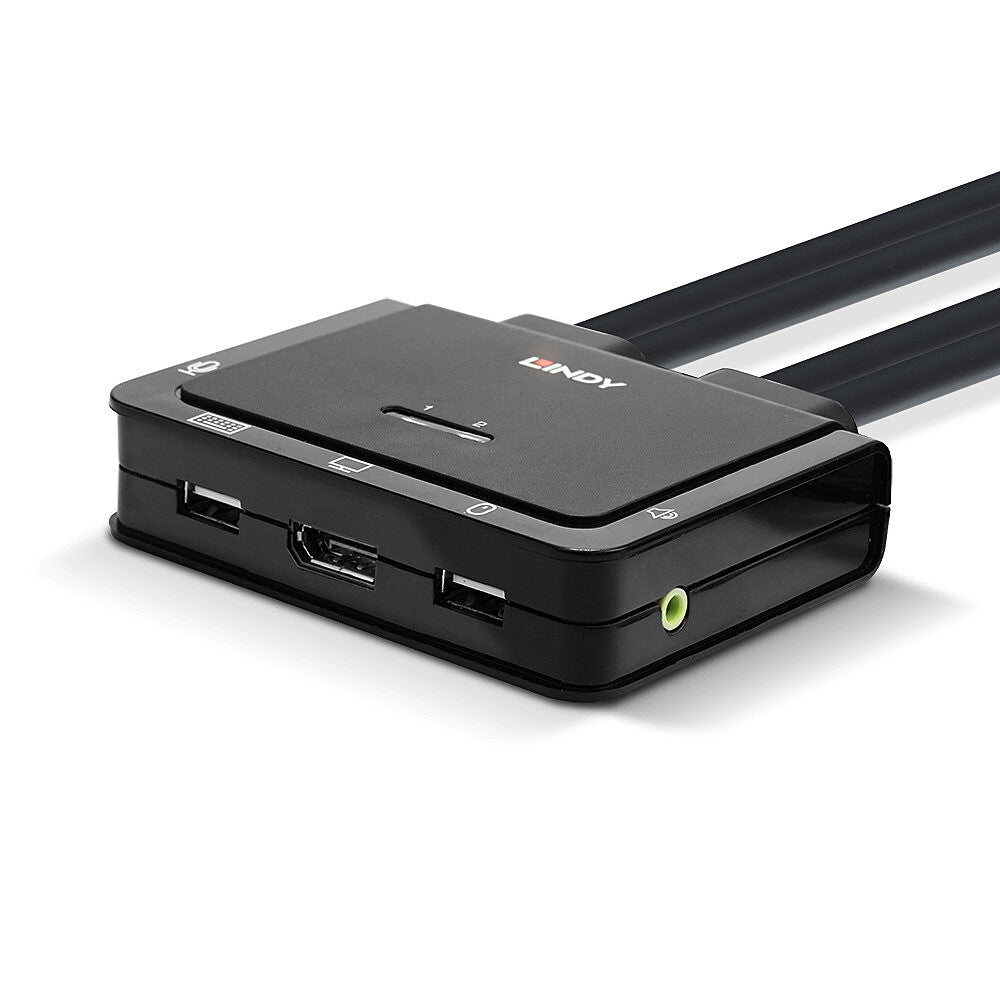

The Lindy 2 Port DisplayPort 1.2, USB Type C, USB 2.0 and Audio KVM Switch is a compact solution for providing access and control over a DP equipped PC and Type C laptop or Desktop OS tablets from a single keyboard, mouse and monitor. With integrated cables, this switch can be easily connected directly to the system, with no need to purchase additional cables and saving time during installation.
Support for resolutions up to 3840x2160@60Hz ensures the optimum image quality, perfect for demanding graphical content in gaming setups, video editing or dual system control workstations. The integrated USB Type C cable allows for control of a variety of laptops and tablets alongside a PC, great for maximising workspaces in universities or residential offices. The audio output port on the main unit also allows users to connect headphones or speakers to add immersive 2-channel audio and a microphone, while additional USB peripherals can be integrated with a USB hub.
The KVM switch features multiple switching options including a push button control (with 1.5m cable), hotkey and software switching to provide simple, reliable control for the user, great for both professional and first-time users.
| Ports & interfaces |
|---|
| Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Video port type |
DisplayPort |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Performance |
|---|
| HDCP |
Yes |
| Maximum resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Design |
|---|
| Housing material |
Plastic |
| Product colour |
Black |
| Display |
|---|
| Built-in display |
No |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 55 °C |
| Weight & dimensions |
|---|
| Weight |
433 g |
| Height |
82.2 mm |
| Depth |
25 mm |
| Width |
97 mm |
| Packaging data |
|---|
| Package weight |
514 g |
| Package height |
250 mm |
| Package depth |
60 mm |
| Package width |
160 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
