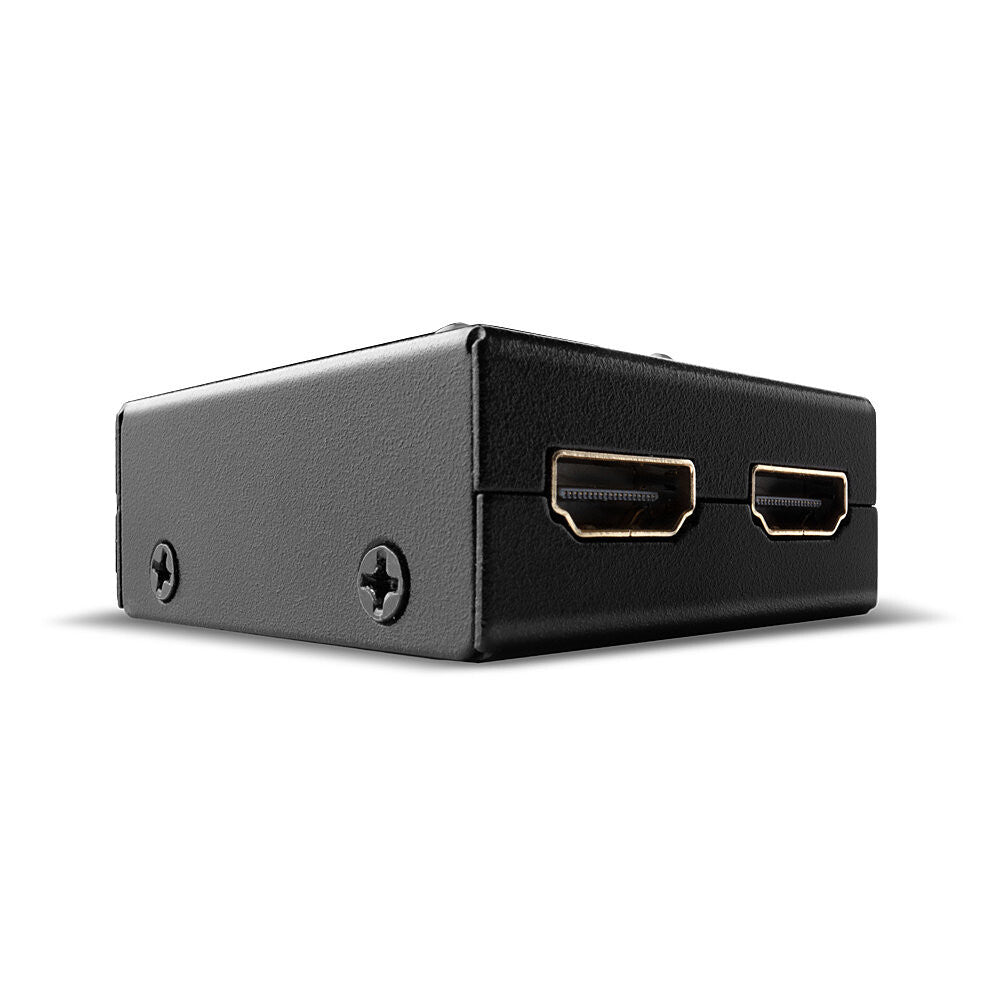

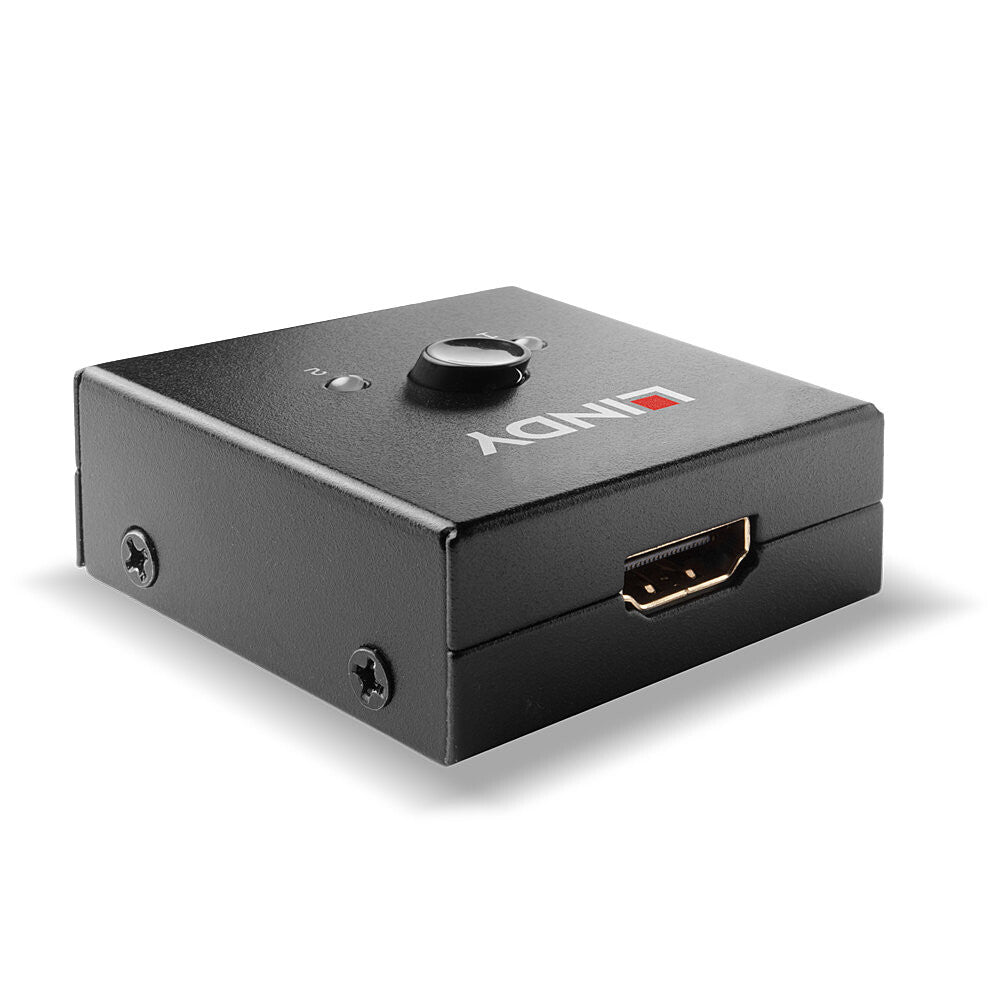

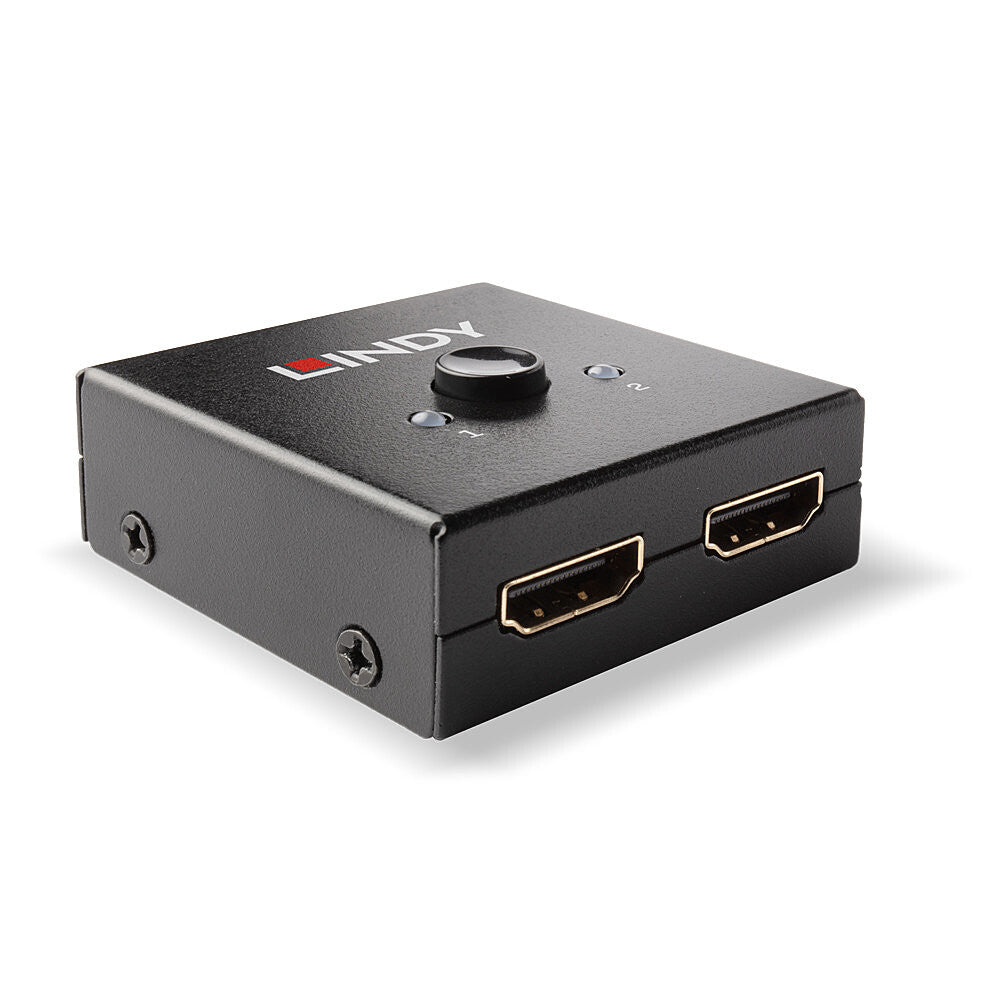

The Lindy HDMI 18G Bi-directional Switch allows the user to connect two 4K Ultra High Definition source devices such as Blu-Ray players or games consoles to a single 4K Ultra HD display or projector and easily switch between them at the push of a button. Alternatively, connect one 4K Ultra HD source can be connected to two 4K Ultra HD displays or projectors and switch between displays at the touch of a button.
With support for resolutions up to 4K 3840x2160 @60Hz, this switch ensures a superior visual experience within residential, education or conferencing installations.
The switch's minimalistic design, with no external power requirement, allows for a clean, discreet installation.
| Ports & interfaces |
|---|
| Number of HDMI outputs |
1 |
| HDMI in |
2 |
| HDMI version |
2.0 |
| HDMI ports quantity |
3 |
| Video port type |
HDMI |
| Features |
|---|
| HD type |
4K Ultra HD |
| Maximum refresh rate |
60 Hz |
| HDCP |
Yes |
| LED indicators |
Yes |
| Maximum resolution |
3840 x 2160 pixels |
| Bandwidth |
18 Gbit/s |
| Consumer Electronics Control (CEC) support |
Yes |
| Material |
Metal |
| Product colour |
Black |
| Certificates |
|---|
| Certification |
CE, FCC, REACH, California Proposition 65 |
| Weight & dimensions |
|---|
| Weight |
700 g |
| Height |
20 mm |
| Depth |
52 mm |
| Width |
49 mm |
| Packaging data |
|---|
| Package weight |
840 g |
| Package height |
28 mm |
| Package depth |
80 mm |
| Package width |
63.5 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
