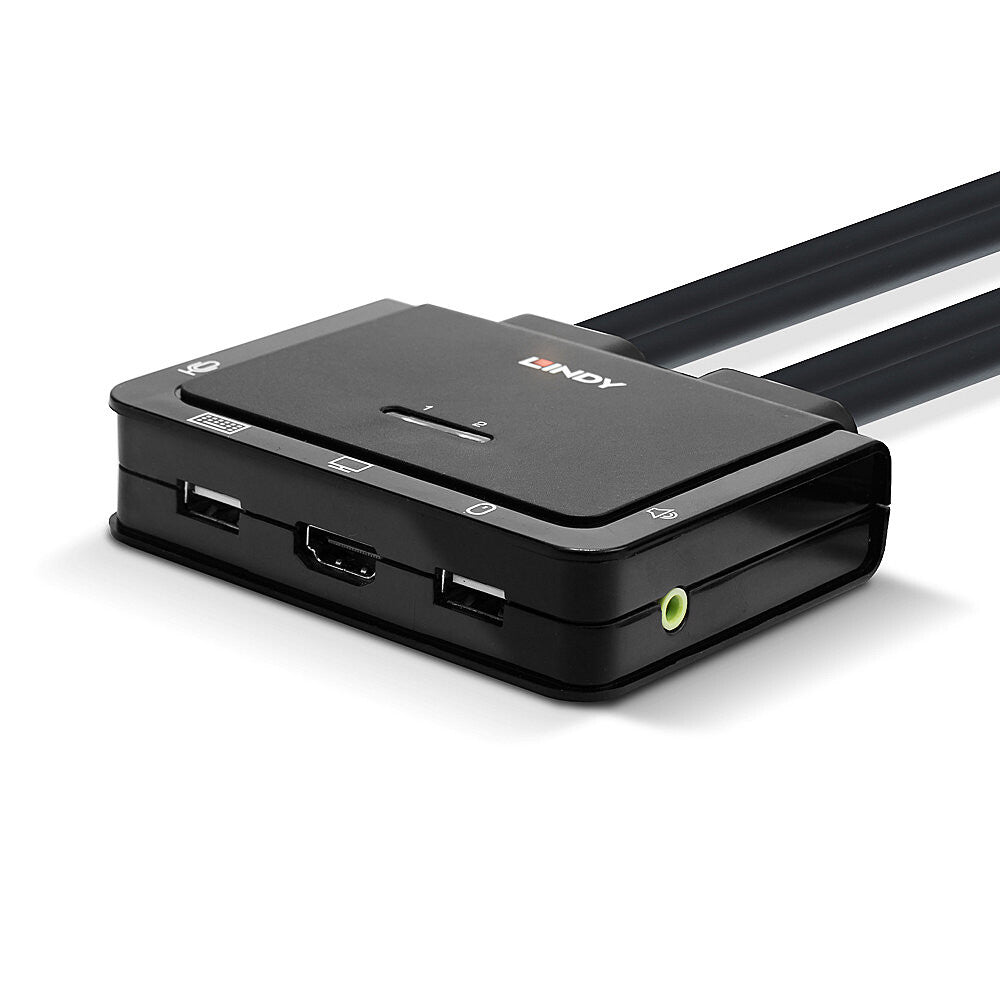

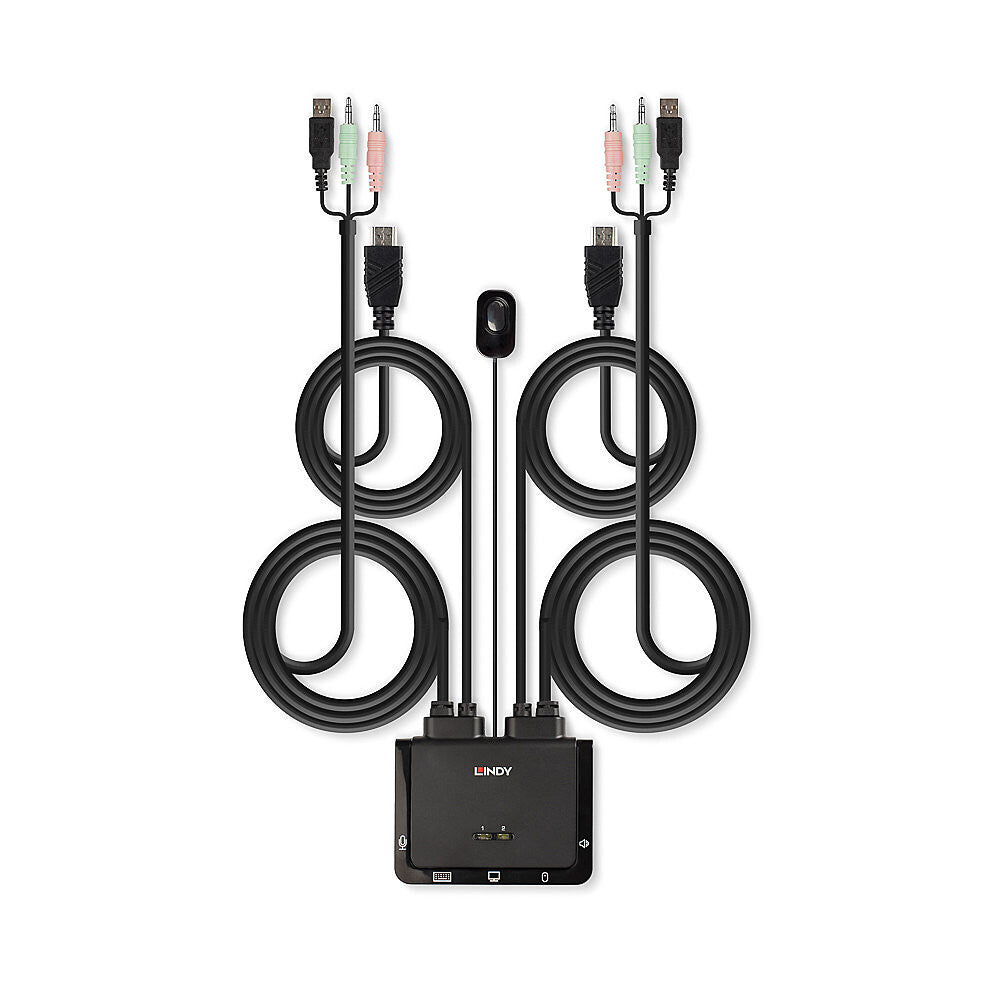

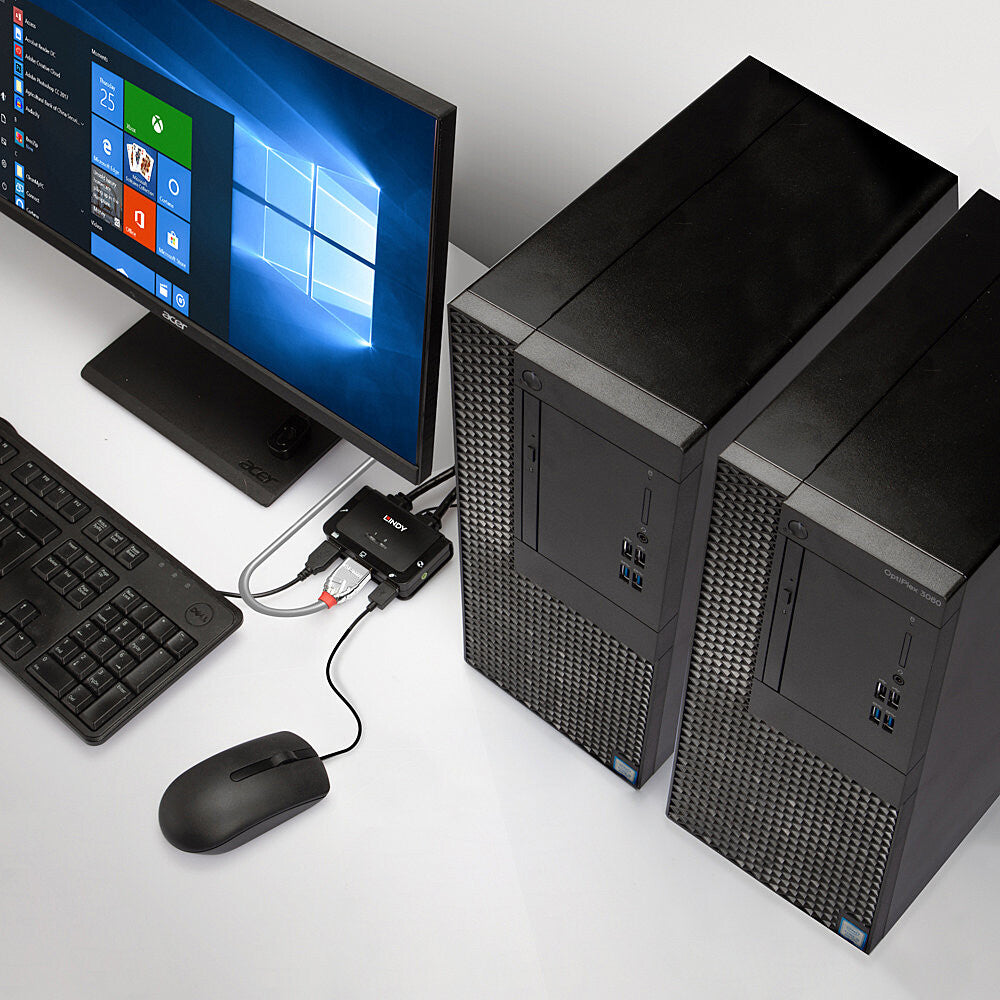

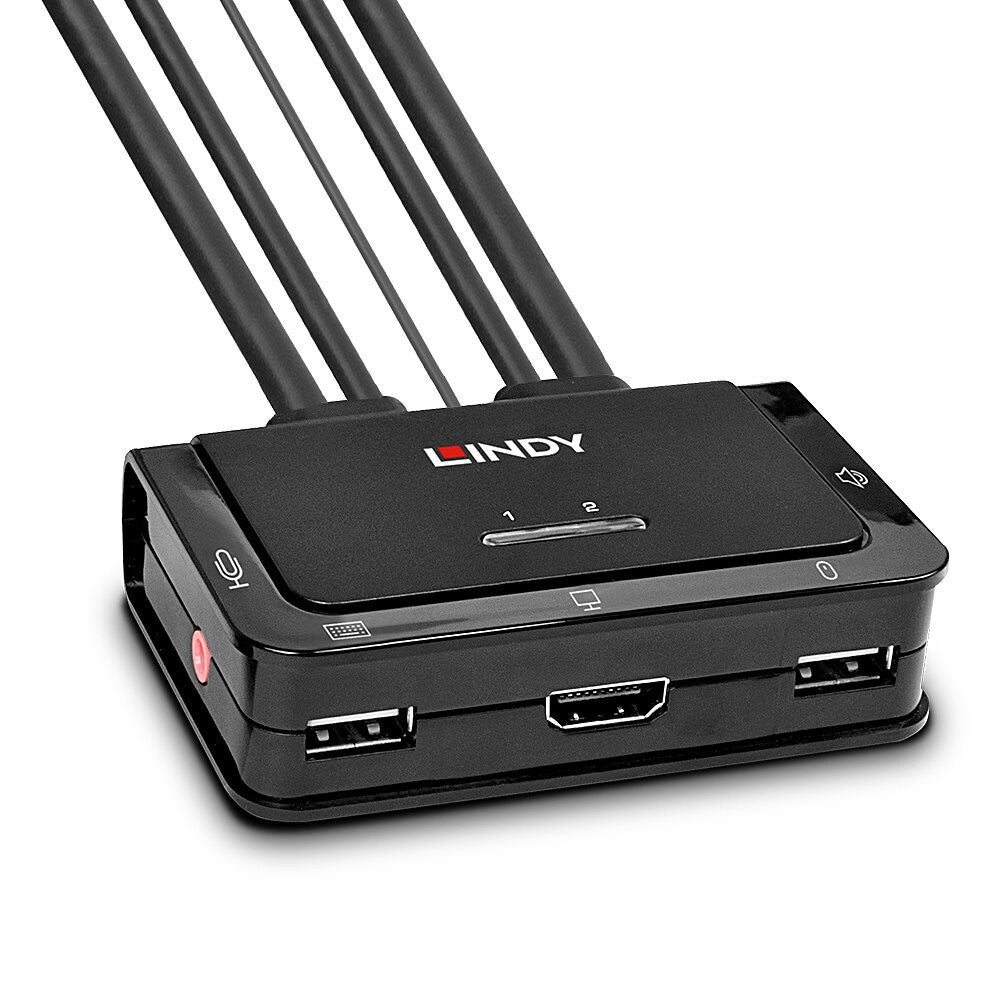

The Lindy 2 Port HDMI 2.0, USB 2.0 and Audio KVM Switch is a compact solution for providing access and control over two HDMI equipped PCs from a single keyboard, mouse and monitor. With integrated cables, this switch can be easily connected directly to the system, with no need for purchasing additional cables and saving time on the installation.
Support for resolutions up to 4K Ultra HD 60Hz ensures the optimum image quality, perfect for high graphical content in gaming setups, video editing or dual system control workstations. The audio output port on the main unit also allow users to connect headphones or speakers to add immersive 2CH audio and a microphone, while additional USB peripherals can be integrated with a USB hub.

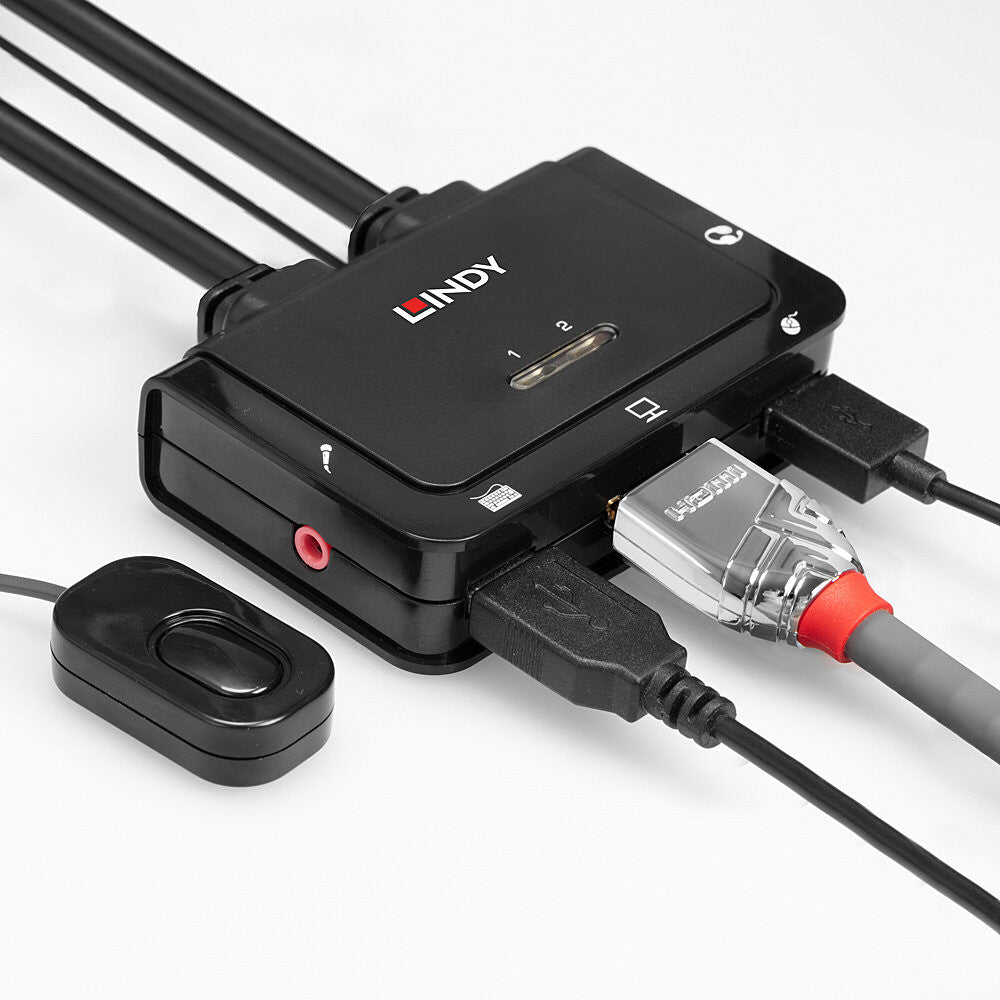

The KVM switch features multiple switching options including a push button control (with 1.5m cable), hotkey and software switching to provide simple, reliable control for the user, great for both professional and first time users.
Please note: this KVM switch can be used with DisplayPort or Mini-DisplayPort equipped computers using a DisplayPort to HDMI or Mini-DisplayPort to HDMI converter
Please note: Software control and hotkey switching are not currently compatible with devices supporting macOS 10.15. This is due to an incompatibility between macOS 10.15 and 32-bit software.
| Ports & interfaces |
|---|
| Number of microphone inputs |
1 |
| Headphone outputs |
1 |
| Console ports |
3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity |
2 |
| HDMI ports quantity |
1 |
| HDMI version |
2.0 |
| Video port type |
HDMI |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Performance |
|---|
| HDCP |
Yes |
| Video bandwidth |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| HD type |
4K Ultra HD |
| Design |
|---|
| Certification |
CE, FCC, REACH |
| LED indicators |
Yes |
| Cable length |
1.2 m |
| Housing material |
Plastic |
| Product colour |
Black |
| Rack mounting |
Yes |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Input voltage |
5 V |
| Power source |
DC |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
436 g |
| Height |
25 mm |
| Depth |
82.2 mm |
| Width |
97 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
517 g |
| Package height |
250 mm |
| Package depth |
60 mm |
| Package width |
160 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
