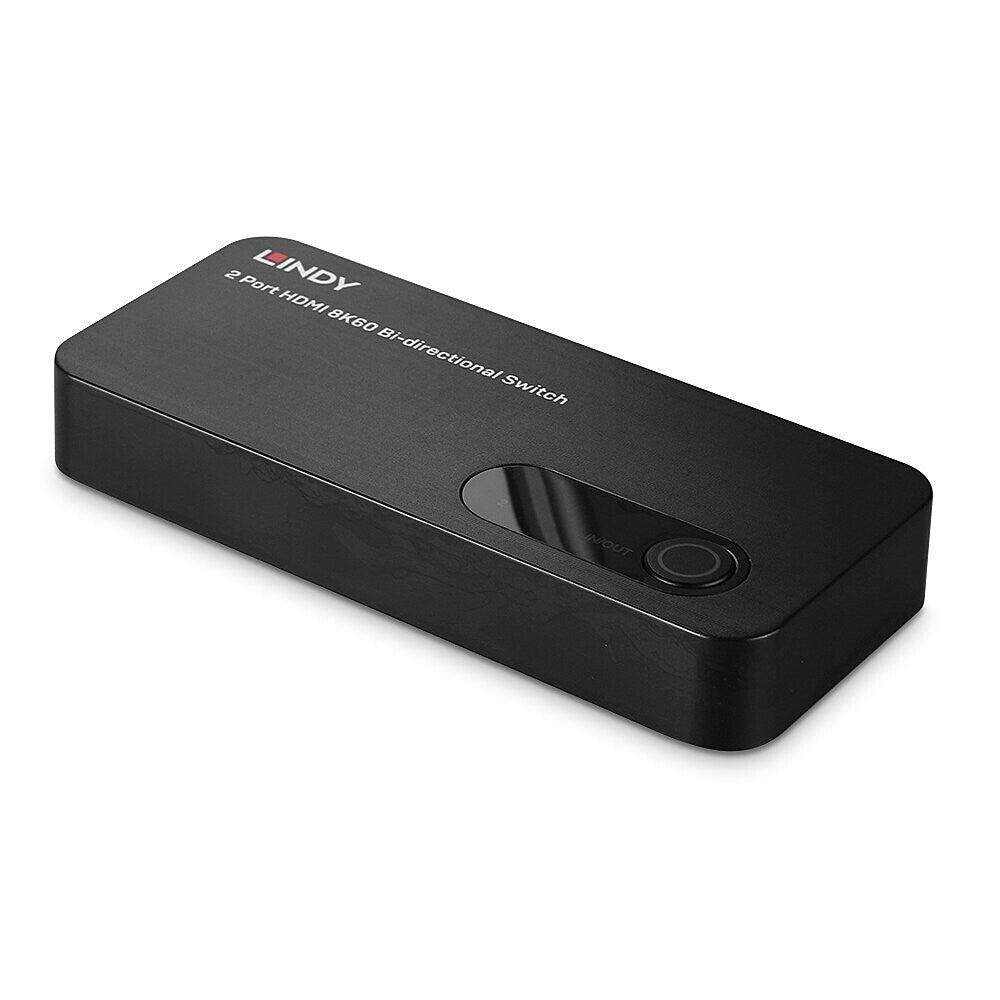

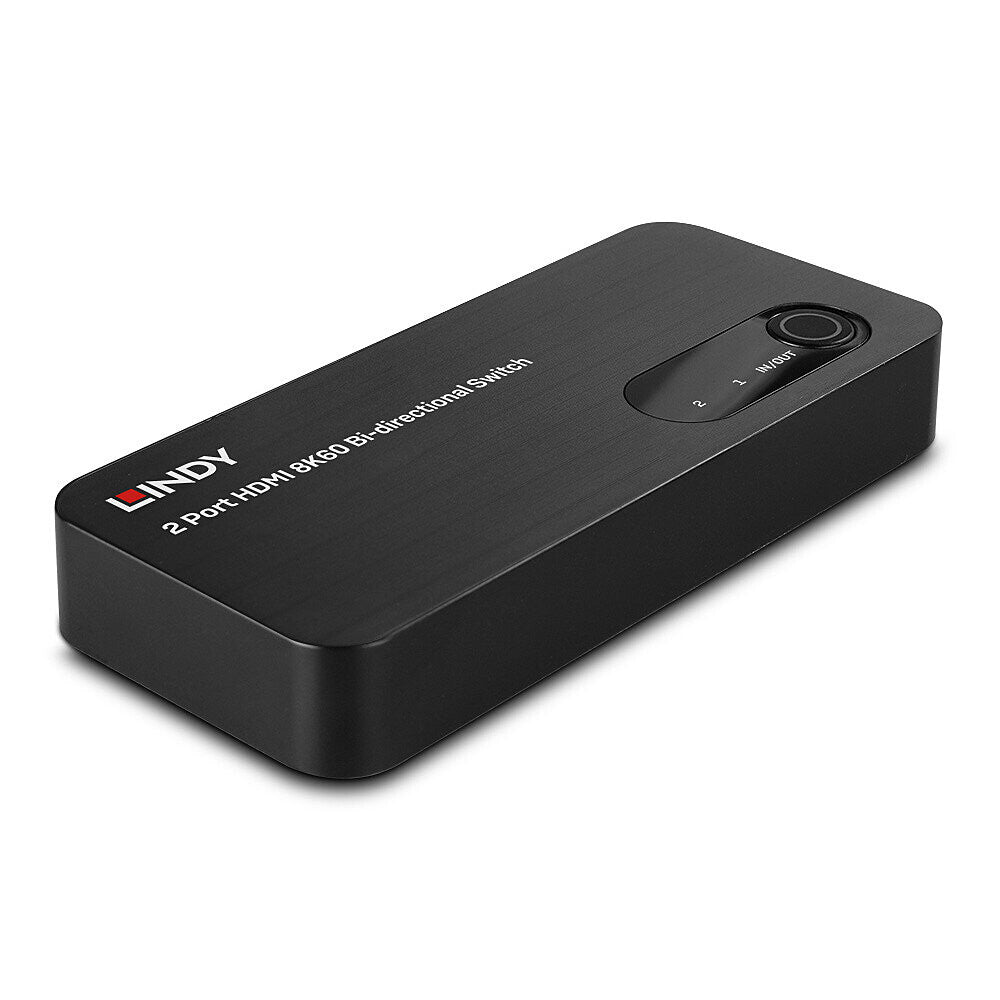

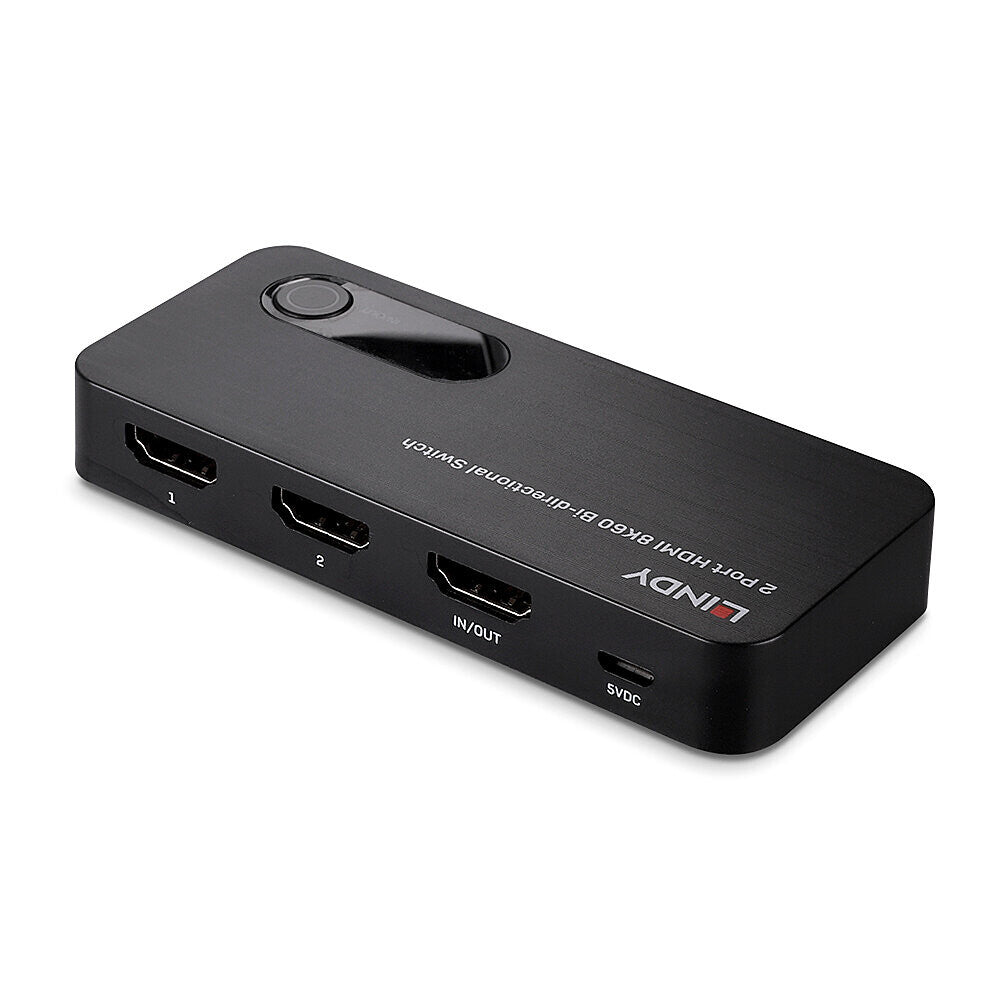

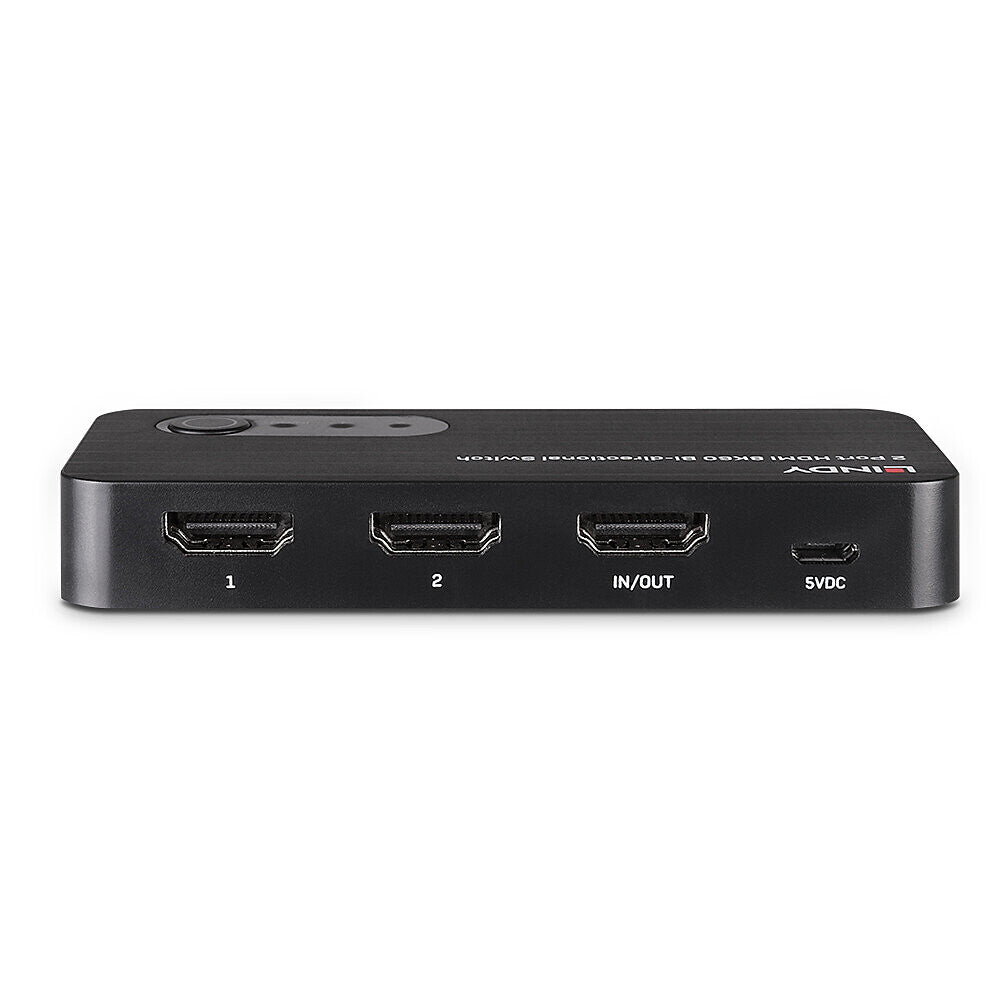

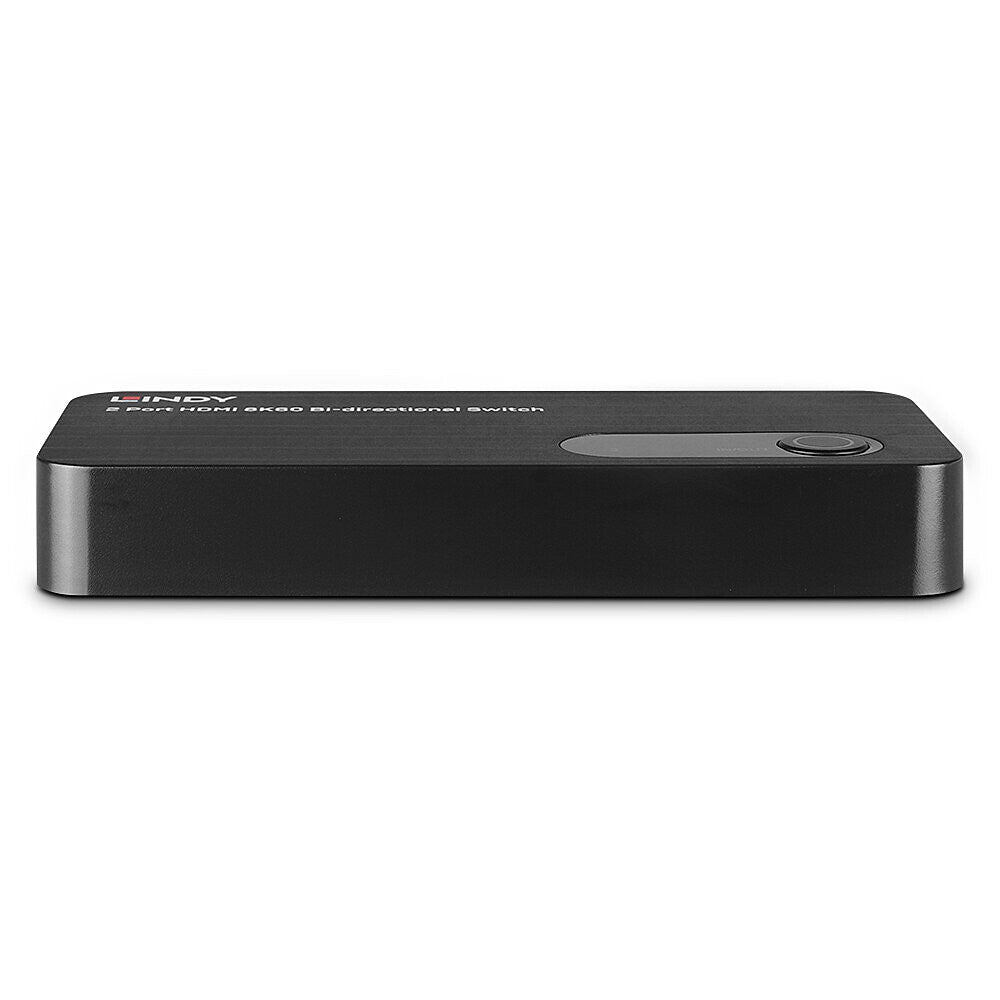

The Lindy HDMI 8K60 Bi-Directional Switch allows the user to connect two 8K source devices such as Blu-Ray players or games consoles to a single 8K display or projector and easily switch between them at the push of a button. Alternatively, connect one 8K source can be connected to two 8K displays or projectors and switch between displays at the touch of a button.
With support for resolutions up to 8K 7680x4320 @ 60Hz or 3840x2160 @ 120Hz, this switch ensures a superior visual experience within residential, education or conferencing installations.
| Ports & interfaces |
|---|
| HDMI version |
2.1 |
| HDMI ports quantity |
2 |
| Video port type |
HDMI |
| Features |
|---|
| HD type |
8K Ultra HD |
| Maximum refresh rate |
120 Hz |
| HDCP |
Yes |
| Rack mounting |
No |
| Supported graphics resolutions |
3840 x 2160, 7680 x 4320 |
| LED indicators |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Bandwidth |
48 Gbit/s |
| Colour depth |
10 bit |
| HDCP version |
2.3 |
| High Dynamic Range (HDR) supported |
Yes |
| Consumer Electronics Control (CEC) support |
No |
| Material |
ABS |
| Product colour |
Black |
| Power |
|---|
| AC adapter output current |
1 A |
| AC adapter output voltage |
5 V |
| Weight & dimensions |
|---|
| Weight |
47 g |
| Height |
14 mm |
| Depth |
45 mm |
| Width |
102 mm |
| Packaging data |
|---|
| Package weight |
88 g |
| Package height |
17 mm |
| Package depth |
93 mm |
| Package width |
127 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
