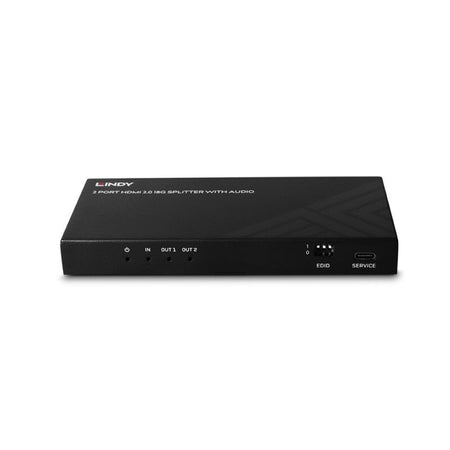

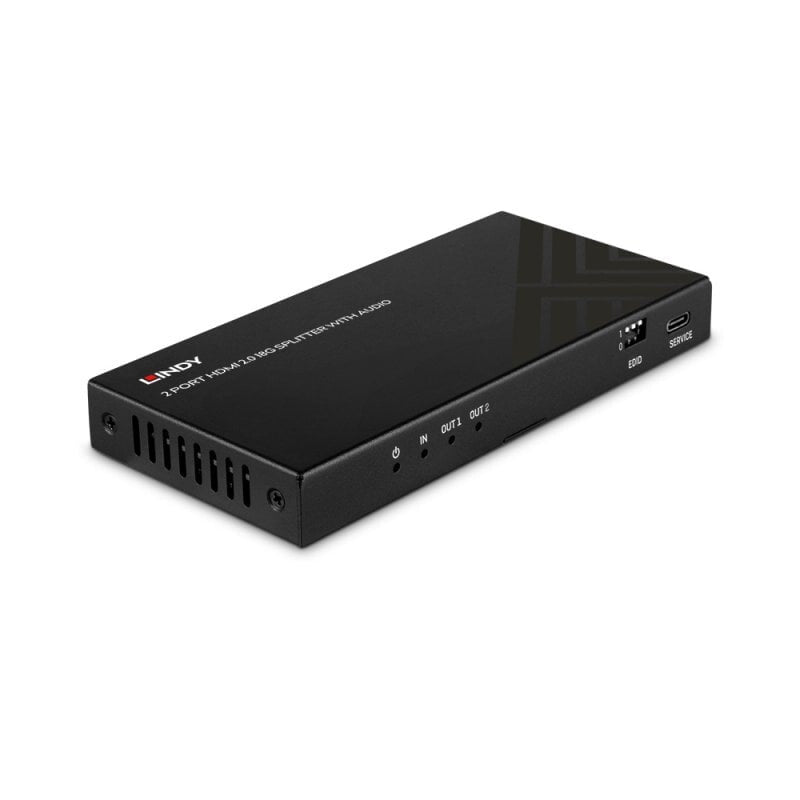

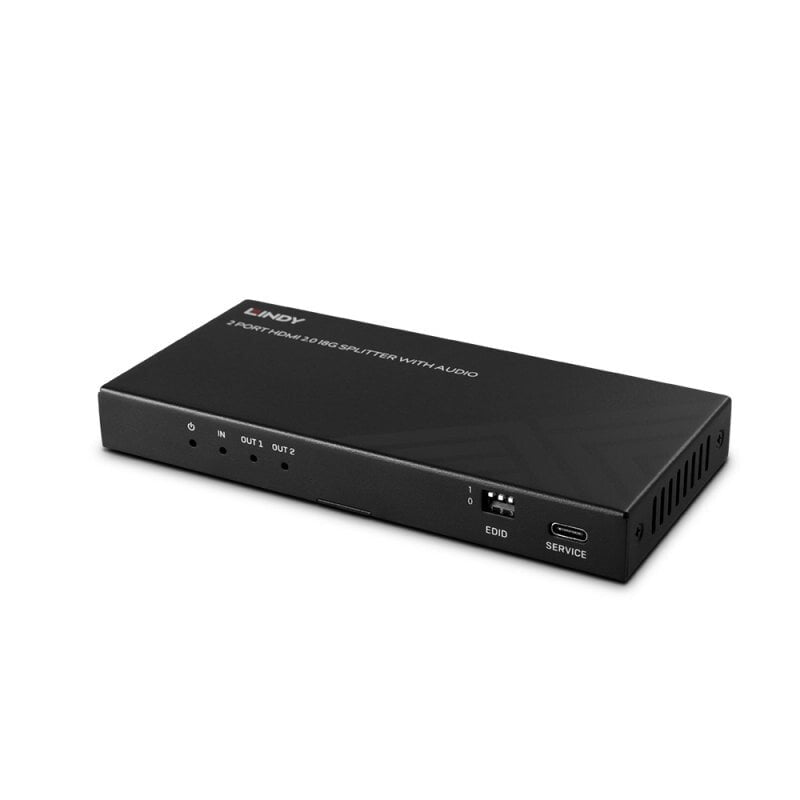

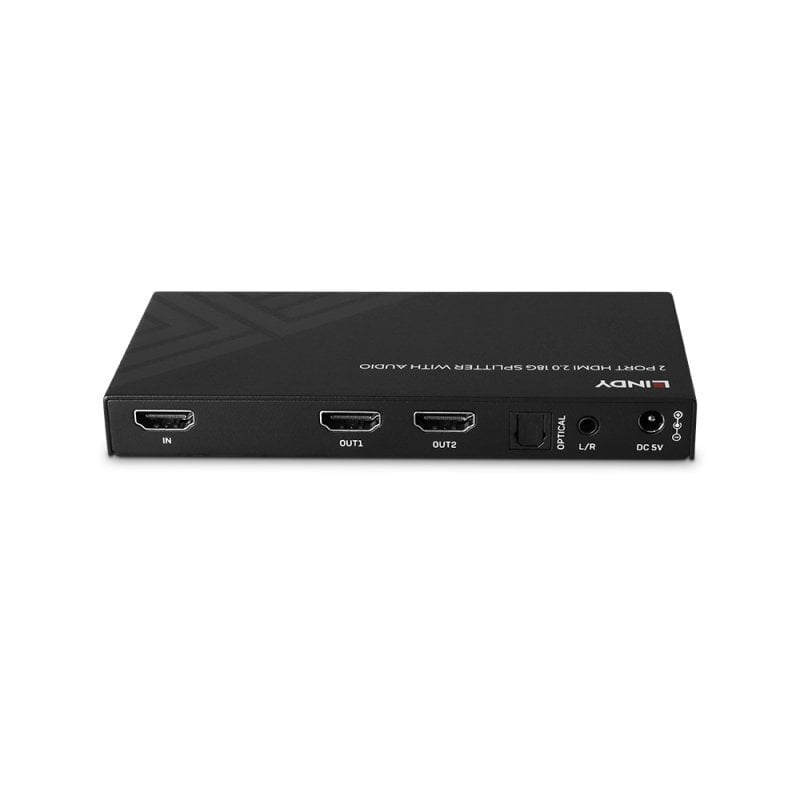

The Lindy 2 Port HDMI® 8K60 Splitter with Audio is a multi-function solution for distributing high quality HDMI® signals across 2 displays simultaneously from one source device, while extracting digital or analogue audio separately.
With support for resolutions up to 8K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching dual display digital signage in retail scenarios, displaying live video across two screens at event venues or distributing engaging multiscreen educational presentations at tradeshows.
The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI® to connect non-HDMI® amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.
The splitters also features an integrated switch to downscale the input signal to 4K or Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Digital audio optical out |
1 |
| Headphone out |
Yes |
| Headphone connectivity |
3.5 mm |
| HDMI version |
2.1 |
| Video out |
2x HDMI |
| Video port type |
HDMI |
| Video ports quantity |
2 |
| Features |
|---|
| Certification |
CE, FCC, RoHS, REACH & California Proposition 65 |
| LED indicators |
Yes |
| Easy to install |
Yes |
| HDCP |
Yes |
| Data transfer rate |
48 Gbit/s |
| HDCP version |
2.3 |
| Maximum refresh rate |
60 Hz |
| Colour depth |
8 bit |
| HD type |
8K Ultra HD |
| Maximum resolution |
7680 x 4320 pixels |
| Housing material |
Metal |
| Product colour |
Black |
| Power |
|---|
| Input current |
2 A |
| AC input voltage |
5 V |
| Weight & dimensions |
|---|
| Weight |
325 g |
| Height |
68 mm |
| Depth |
17 mm |
| Width |
145 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
458 g |
| Package height |
115 mm |
| Package depth |
70 mm |
| Package width |
200 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Included power plug types |
AU, EU, UK |
| Cables included |
Power |
| Manual |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
20 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Technical details |
|---|
| Warranty period |
2 year(s) |
| Connector 1 |
2 x HDMI Type A |
| Connector 2 |
HDMI Type A |
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS |
