HDMI switches are reliable solutions for controlling and switching multiple HDMI source devices and outputting to a single display.

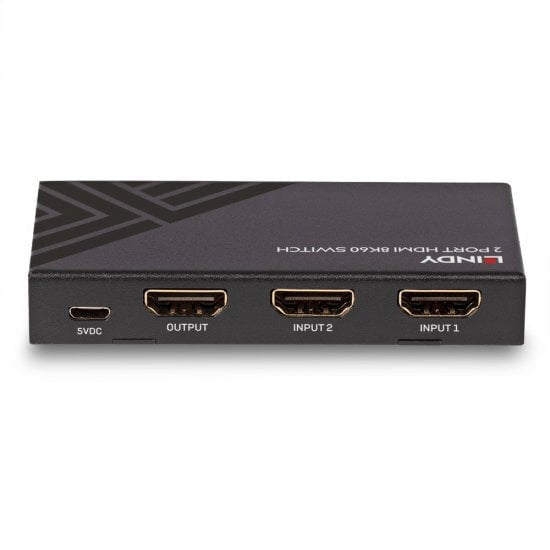

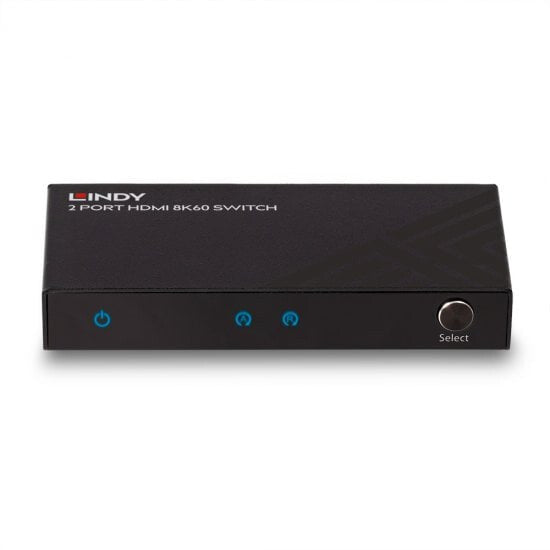

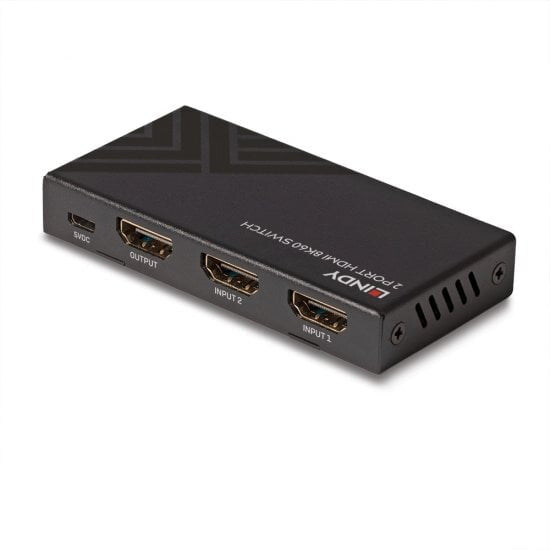

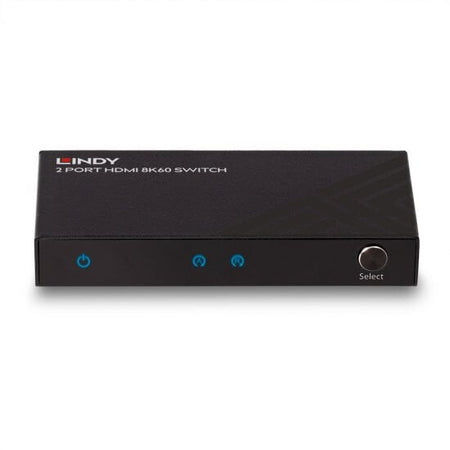

The Lindy 2 Port HDMI 48G switch is a compact, high quality solution for effortlessly switching between 2 HDMI source devices when connected to a single display.
Supporting HDMI 48G signals, this switch allows for the transmission of detailed 8K Ultra High Speed resolutions, while additional support for HDR ensures video content features greater contrasts and a much wider colour gamut. This switch is perfect for a premium residential setup, eye-catching digital signage in retail settings or engaging presentations.

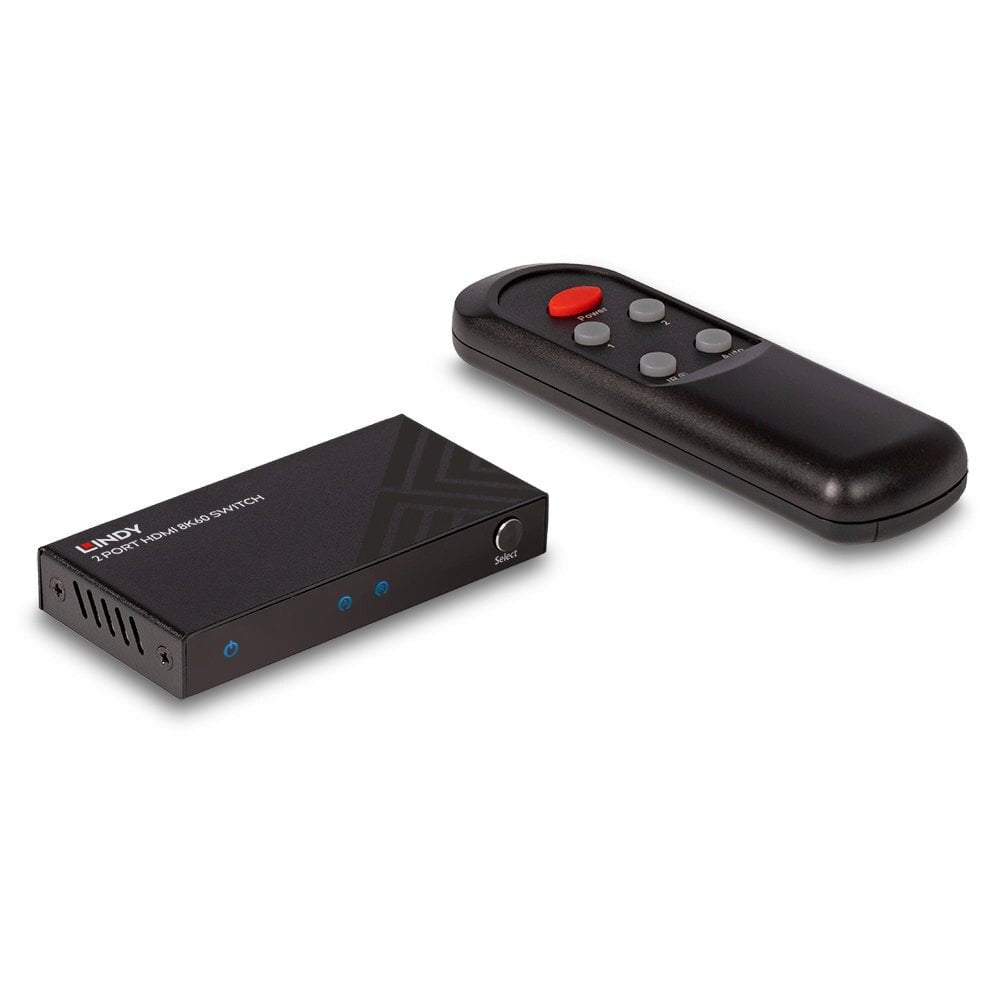

This switch also provides efficient, simple switching options for the user, via an included IR remote or push buttons on the main unit. The switch can also identify the active HDMI source device and automatically switch to this option, providing a useful solution for when the unit is required to be out of sight. HDCP 2.3 ensures the compatibility with a variety of 8K content from source devices including set top boxes, Graphics cards, Blu-Ray players and 8K HDR Media players.
| Ports & interfaces |
|---|
| USB port type |
Micro-USB |
| Number of HDMI outputs |
1 |
| HDMI in |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
3 |
| Video port type |
HDMI |
| Features |
|---|
| Maximum refresh rate |
60 Hz |
| HDCP |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Bandwidth |
48 Gbit/s |
| HDCP version |
2.3 |
| Material |
Metal |
| Product colour |
Black |
| Power |
|---|
| AC adapter output current |
1 A |
| AC adapter output voltage |
5 V |
| Certificates |
|---|
| Certification |
FCC, California Proposition 65 |
| Weight & dimensions |
|---|
| Weight |
887 g |
| Height |
14 mm |
| Depth |
44 mm |
| Width |
90 mm |
| Packaging data |
|---|
| Package weight |
250 g |
| Package height |
14 mm |
| Package depth |
44 mm |
| Package width |
90 mm |
| Packaging content |
|---|
| Cables included |
USB Type-A to Micro USB-B |
| Manual |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, REACH, RoHS |
