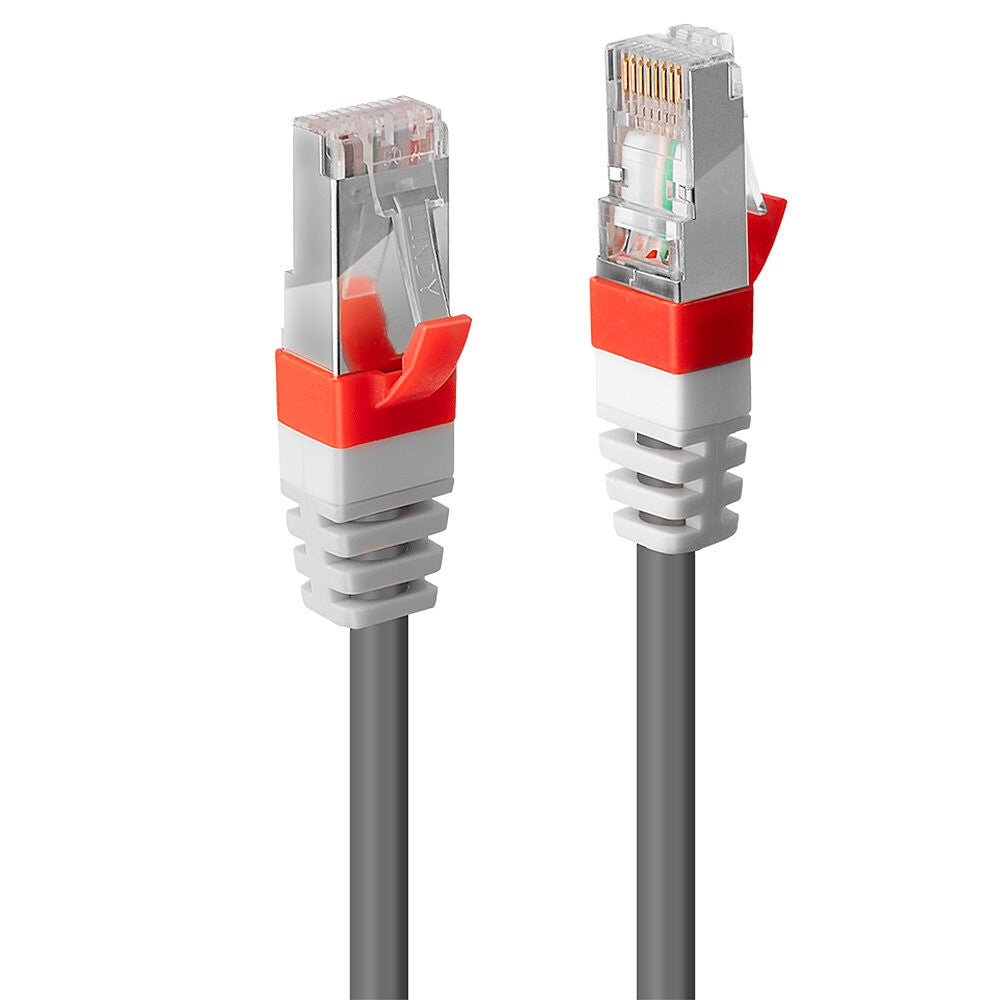

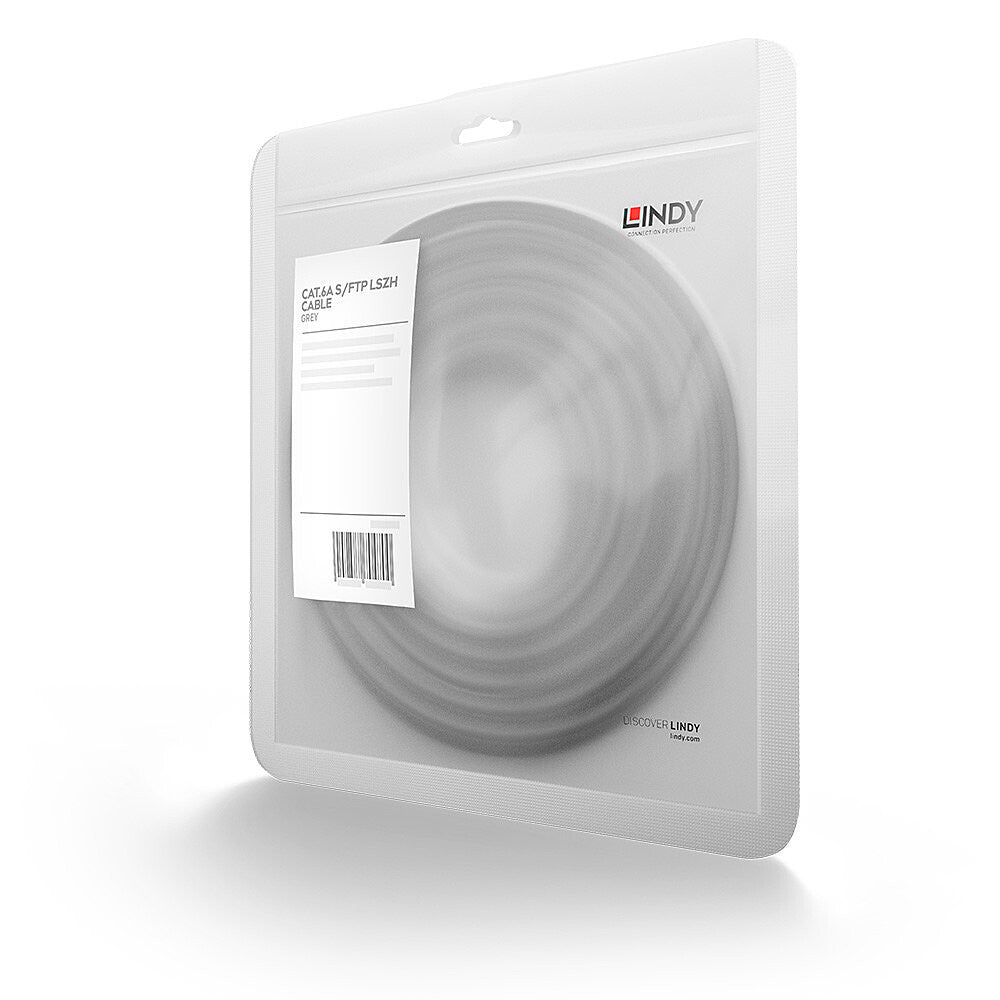

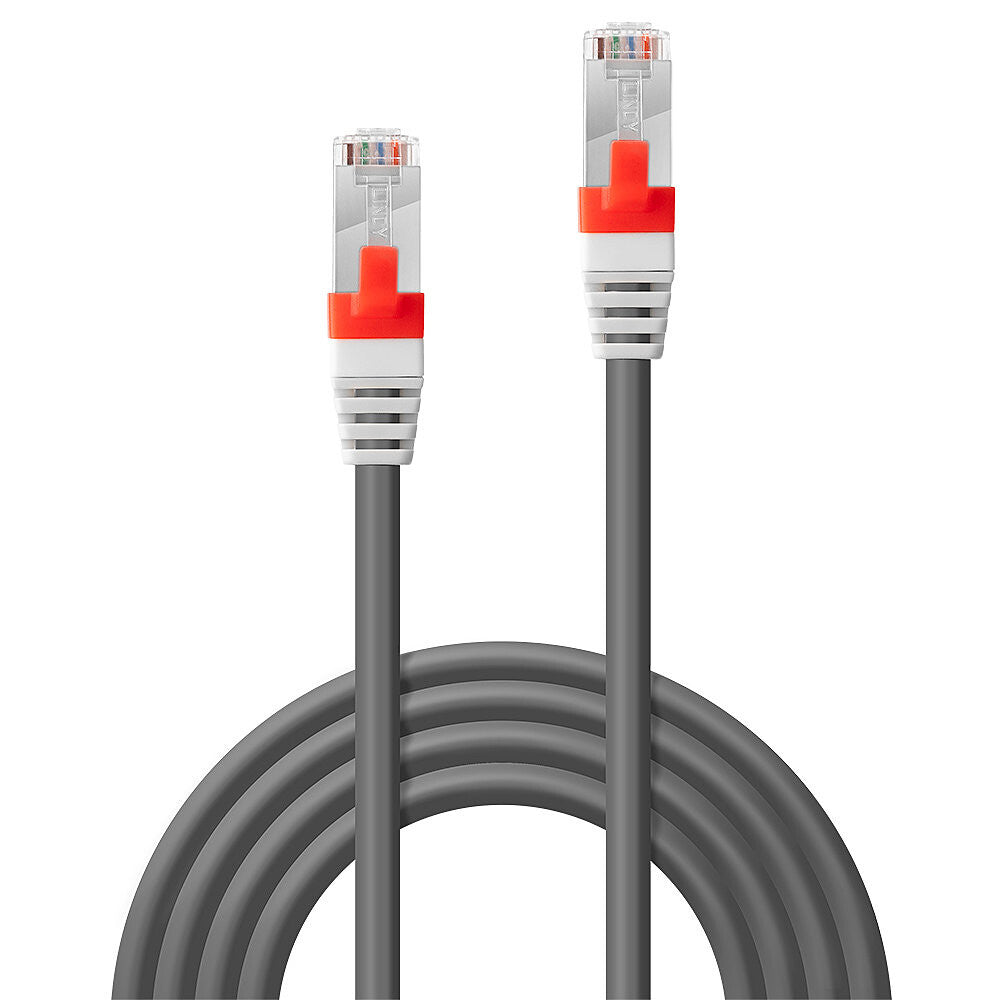

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Features |
Nominal attenuation |
49.3dB/100m @ 500MHz |
Plug and Play |
Yes |
Bend radius (min) |
7.2 cm |
Frequency |
500 MHz |
Data transfer rate |
1000 Mbit/s |
AWG wire size |
27 |
Cabling technology |
10/100/1000Base-T(X) |
Cable class |
Ea |
Conductor material |
Copper |
Cable shape |
Round |
Jacket material |
Low smoke zero halogen (LSZH) |
Connector shield material |
Aluminium |
Connector shielding |
Yes |
Connector contacts plating |
Gold |
Connector 1 gender |
Male |
Connector 2 gender |
Male |
Connector 2 |
RJ-45 |
Connector 1 |
RJ-45 |
Product colour |
Grey |
Cable shielding |
S/FTP (S-STP) |
Cable standard |
Cat6a |
Cable length |
2 m |
Operational conditions |
Storage temperature (T-T) |
-20 - 75 °C |
Operating temperature (T-T) |
-10 - 60 °C |
Certificates |
Certification |
RoHS, REACH, UL, California Proposition 65 |
Weight & dimensions |
Outer diameter |
6 mm |
Packaging content |
Quantity per pack |
1 pc(s) |
Packaging data |
Package type |
Polybag |
Logistics data |
Harmonized System (HS) code |
84733080 |
