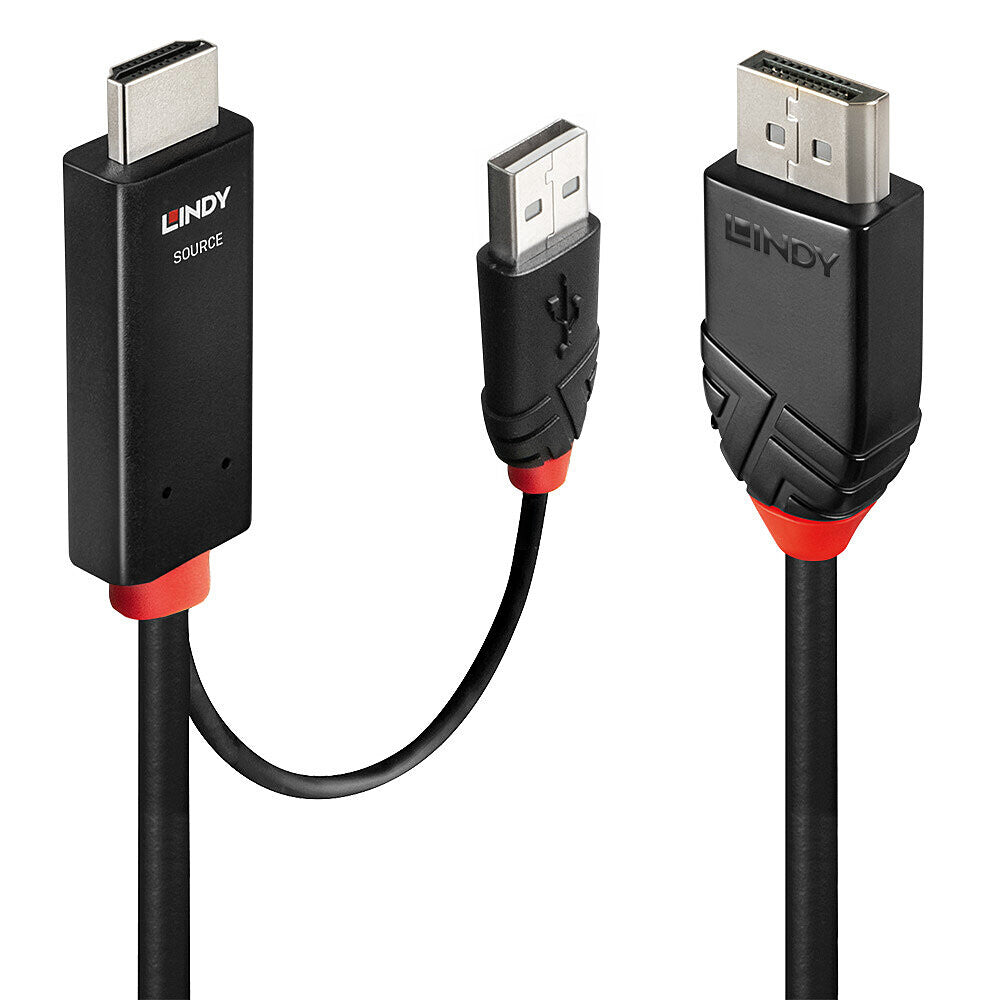

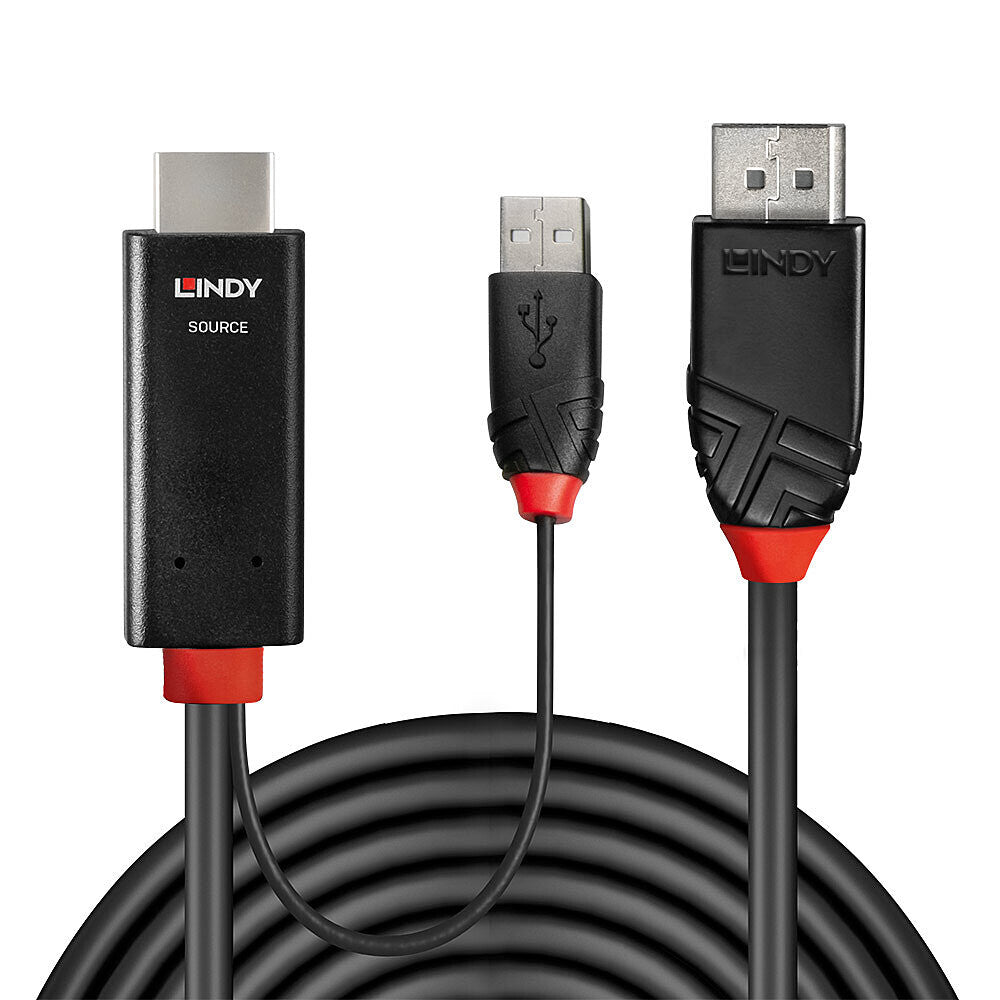

Lindy's HDMI to DisplayPort cables combine sleek, modern design with superior performance to provide a high quality conversion of HDMI signals to output to a DisplayPort display. This range of active cables come with a chipset housed neatly inside the HDMI connector to ensure a consistently reliable connection between HDMI media players, games consoles and PCs to DisplayPort monitors.
With support for resolutions up to 4096x2160@60Hz, these cables are great for creating innovative working environments, engaging educational workstations or immersive gaming experiences, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video. The additional USB Type A connector can optionally be used to amplify the power to ensure a reliable connection in all situations.
| Features |
|---|
| Colour sampling |
4:2:2, 4:4:4 |
| AWG wire size |
30 |
| Connector housing material |
Acrylonitrile butadiene styrene (ABS) |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable type |
Round cable |
| Conductor material |
Tinned copper |
| Product colour |
Black |
| Bend radius (min) |
3.6 cm |
| Maximum refresh rate |
60 Hz |
| Data transfer rate |
21.6 Gbit/s |
| Supported graphics resolutions |
4096 x 2160 |
| Supported video modes |
2160p |
| Maximum resolution |
4096 x 2160 pixels |
| High Dynamic Range (HDR) supported |
Yes |
| DisplayPort version |
1.2 |
| HDMI version |
2.0 |
| Connector contacts plating |
Nickel |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
DisplayPort |
| Connector 1 |
HDMI + USB Type-A |
| Cable length |
2 m |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating temperature (T-T) |
-20 - 40 °C |
| Certificates |
|---|
| Compliance certificates |
CE, REACH, RoHS |
| Weight & dimensions |
|---|
| Connector 3 dimensions (WxDxH) |
38.9 x 19.7 x 12 mm |
| Connector 2 dimensions (WxDxH) |
35 x 15.5 x 7.8 mm |
| Connector 1 dimensions (WxDxH) |
50 x 20.9 x 12.7 mm |
| Cable diameter |
6 mm |
| Packaging data |
|---|
| Package type |
Polybag |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
