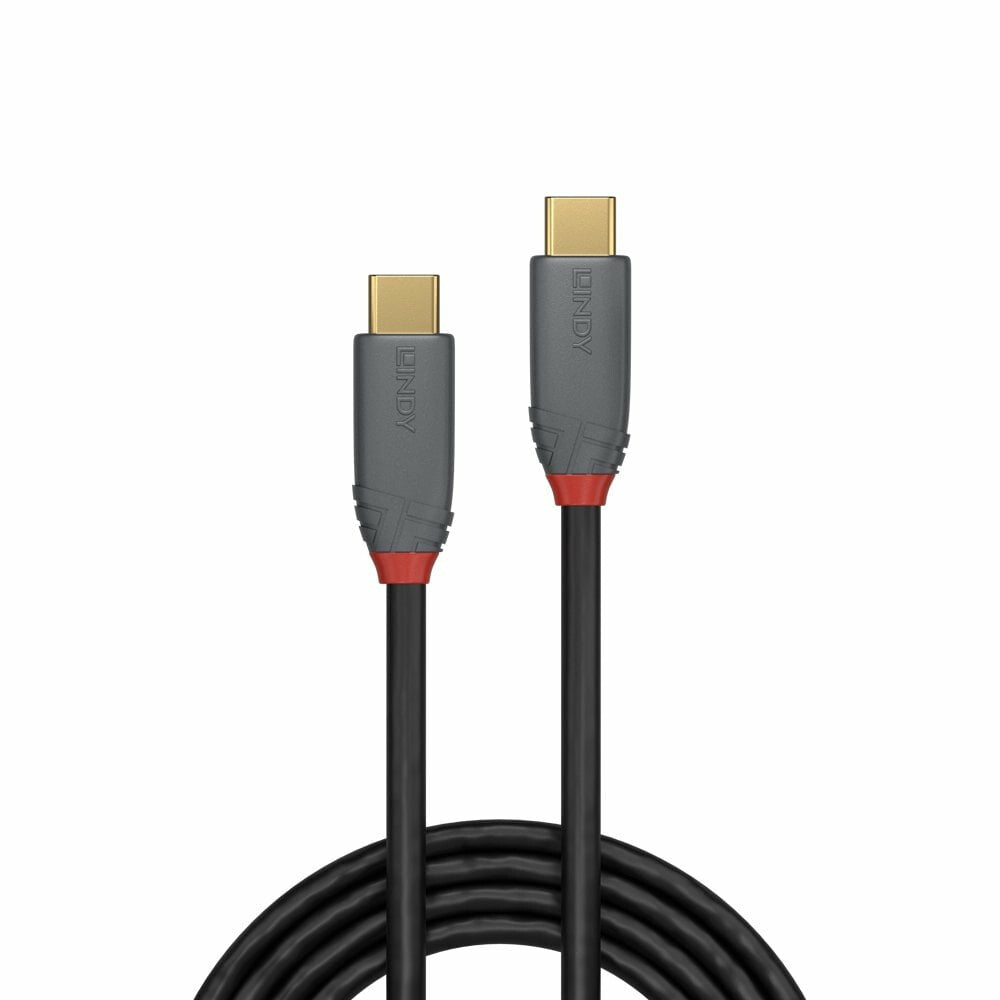

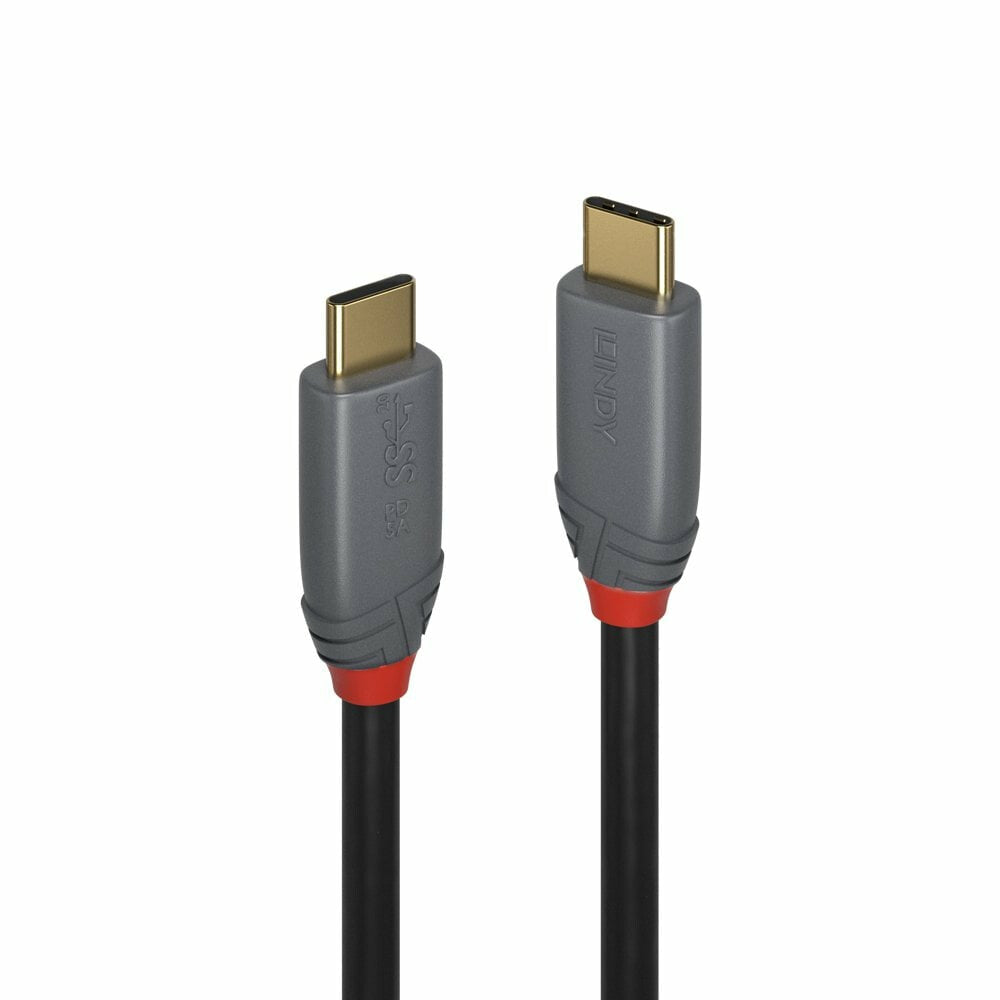

The full-featured Anthra Line USB 3.2 Type C to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 20Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (20V 5A) of power to devices using the most efficient power delivery profiles. The cable supports DisplayPort Alternate mode at max. 4K 60Hz.
USB Type C features a new reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type C to C, 5A cables are available in the following lengths: 0.5m, 1m, 1.5m and 2m.
We have adapted the naming of our USB 3 cables to follow the updated USB specification.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
| Features |
|---|
| USB Power Delivery up to |
100 W |
| Cable colour |
Black |
| Plug and Play |
Yes |
| Product colour |
Black |
| Maximum data transfer rate |
20 Gbit/s |
| Conductor material |
Copper |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Connector contacts plating |
Gold |
| AWG wire size |
32/30/22 |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
USB C |
| Connector 1 |
USB C |
| USB version |
USB 3.2 Gen 2 (3.1 Gen 2) |
| Power |
|---|
| Output voltage |
20 V |
| Input current (max) |
5 A |
| Weight & dimensions |
|---|
| Height |
7.75 mm |
| Depth |
41 mm |
| Width |
13 mm |
| Cable diameter |
5.4 mm |
| Cable length |
2 m |
| Packaging data |
|---|
| Package type |
Polybag |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Certificates |
|---|
| Certification |
RoHS, REACH, California Proposition 65 & UL |
| Compliance certificates |
REACH, RoHS, UL |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Warranty period |
2 year(s) |
