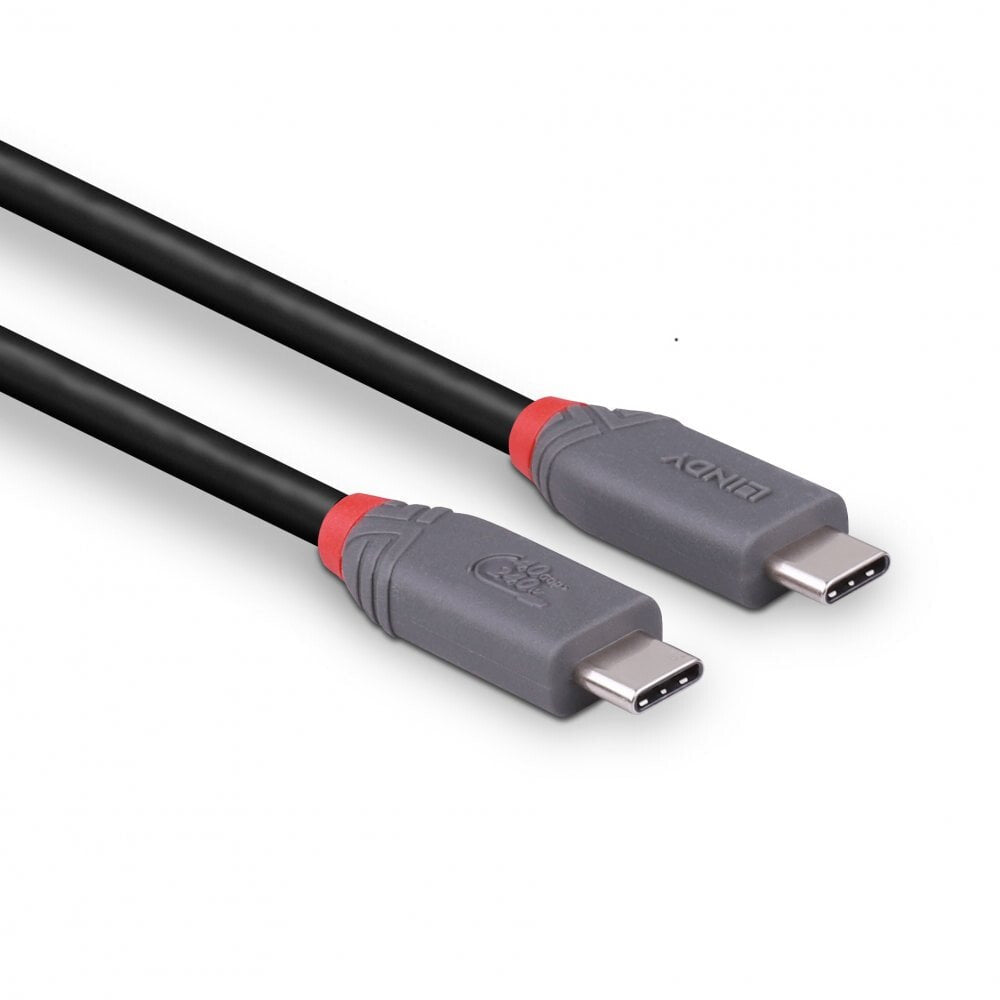

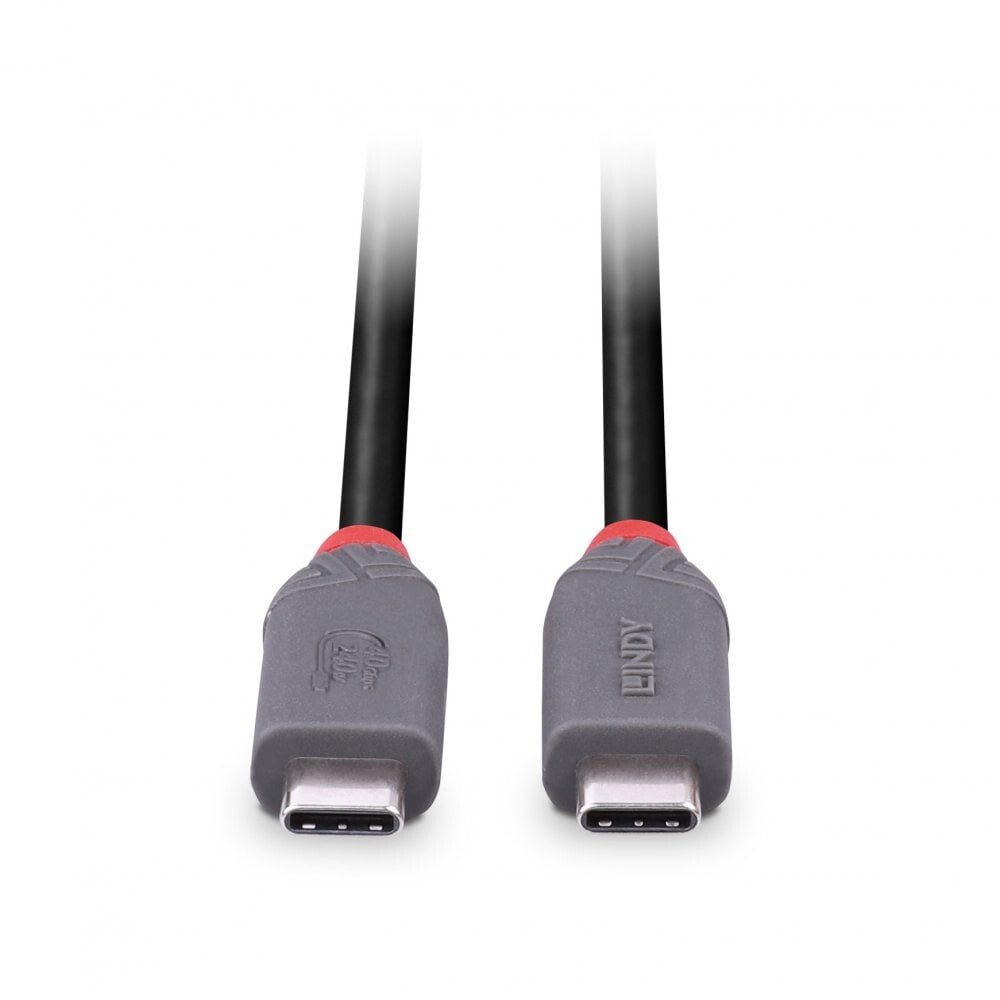

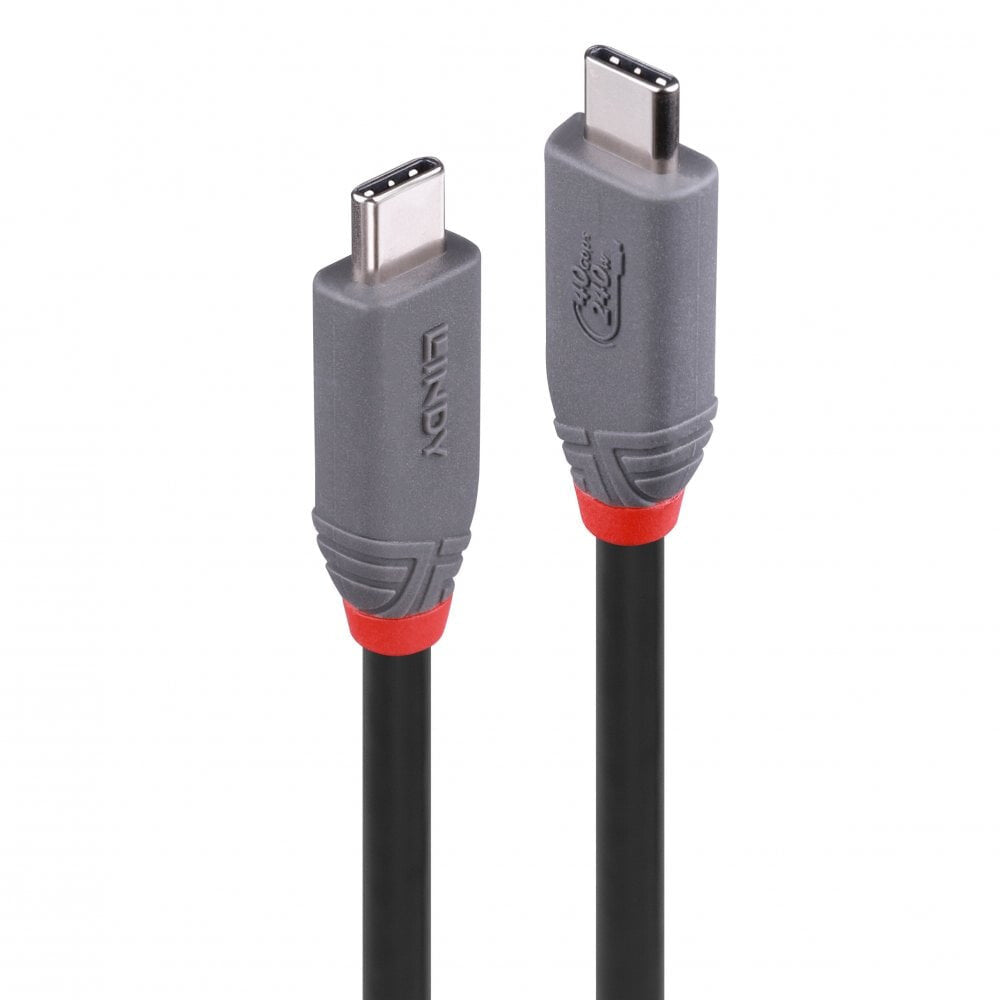

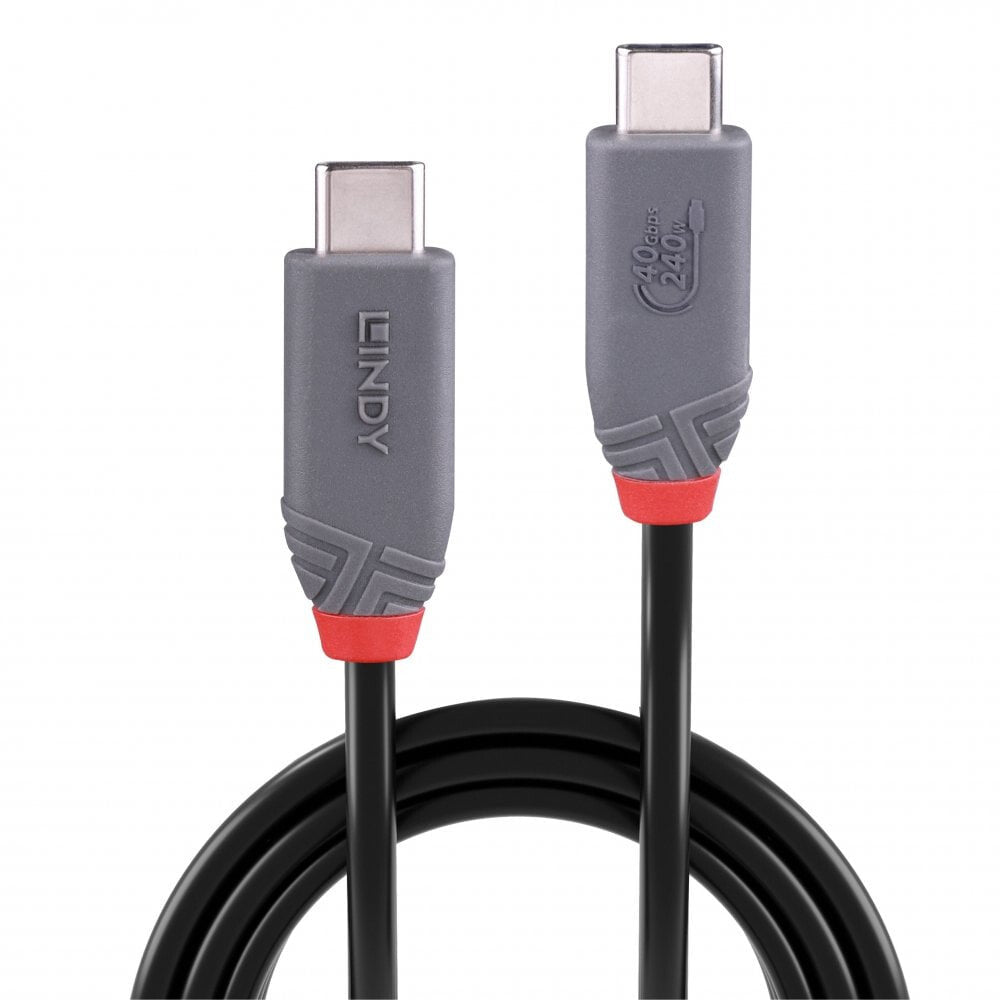

The fully-featured Anthra Line USB 4 Type C to C cable from Lindy's Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
| Features |
|---|
| Maximum resolution |
3840 x 2160 pixels |
| Maximum refresh rate |
60 Hz |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.1 |
| USB Power Delivery up to |
240 W |
| Plug and Play |
Yes |
| Cable type |
Round cable |
| Product colour |
Black |
| Maximum data transfer rate |
40 Gbit/s |
| Connector shielding |
Yes |
| Conductor material |
Copper |
| Connector shield material |
Copper |
| Cable jacket material |
Thermoplastic elastomer (TPE) |
| Connector contacts plating |
Gold |
| Connector material |
Nickel |
| AWG wire size |
23/30/34 |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
USB C |
| Connector 1 |
USB C |
| USB version |
USB4 Gen 3x2 |
| Weight & dimensions |
|---|
| Connector 2 dimensions (WxDxH) |
30 x 12.4 x 6.5 mm |
| Connector 1 dimensions (WxDxH) |
30 x 12.4 x 6.5 mm |
| Bend radius (min) |
2.88 cm |
| Cable diameter |
4.8 mm |
| Cable length |
2 m |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
UL ECOLOGO |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating temperature (T-T) |
-20 - 40 °C |
| Certificates |
|---|
| Certification |
RoHS, REACH, California Proposition 65 & UL |
| Compliance certificates |
REACH, RoHS |
| UN number |
` |
| Logistics data |
|---|
| Warranty period |
2 year(s) |
