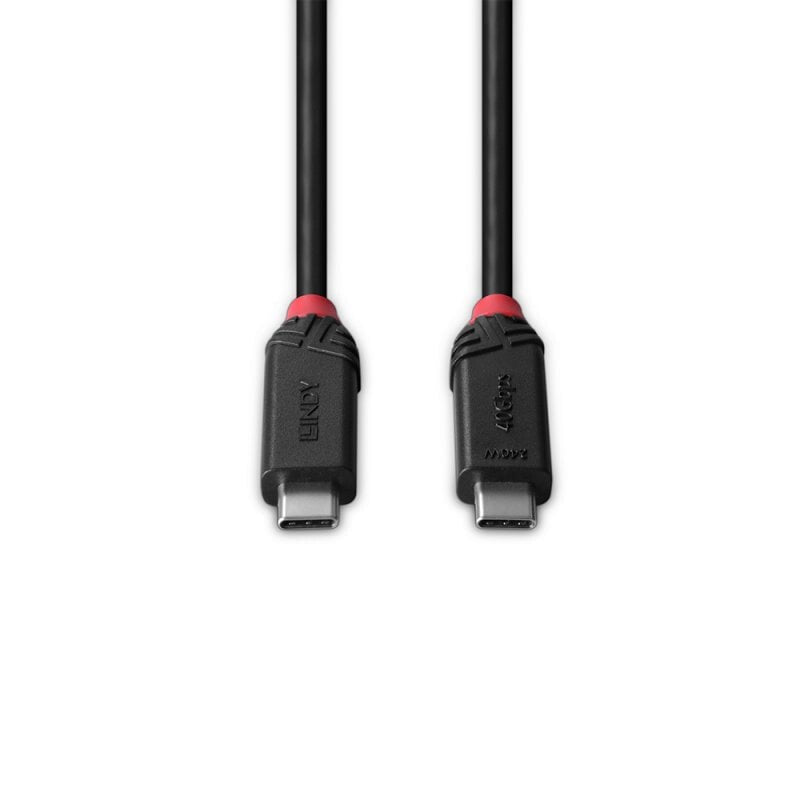

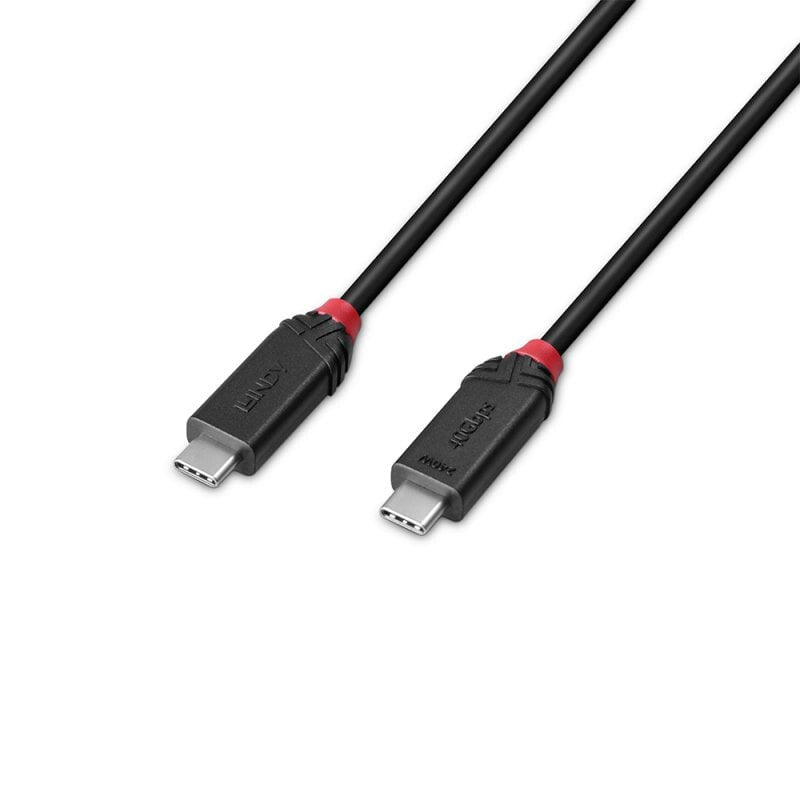

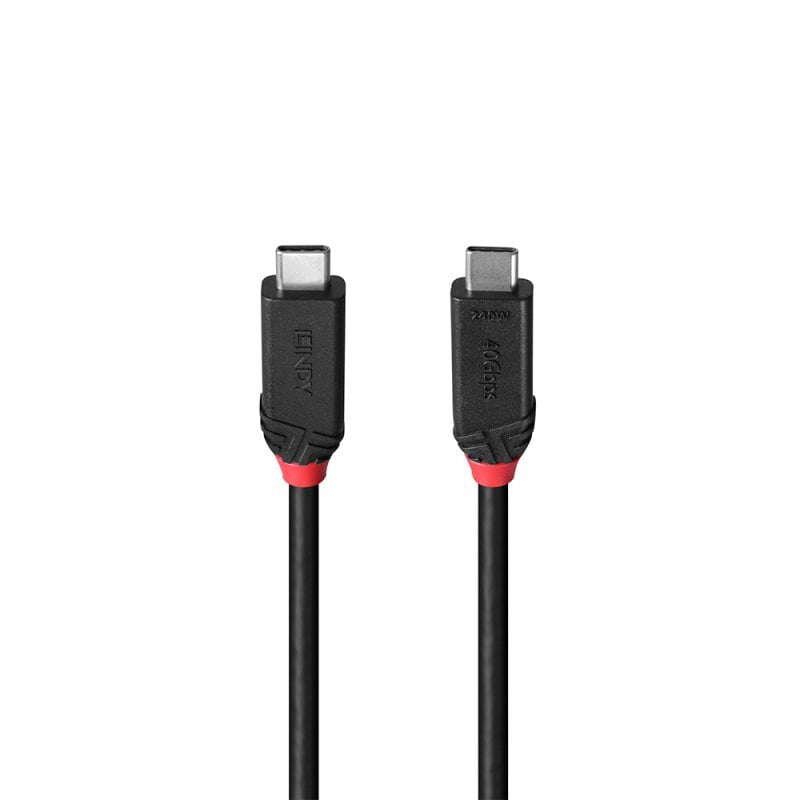

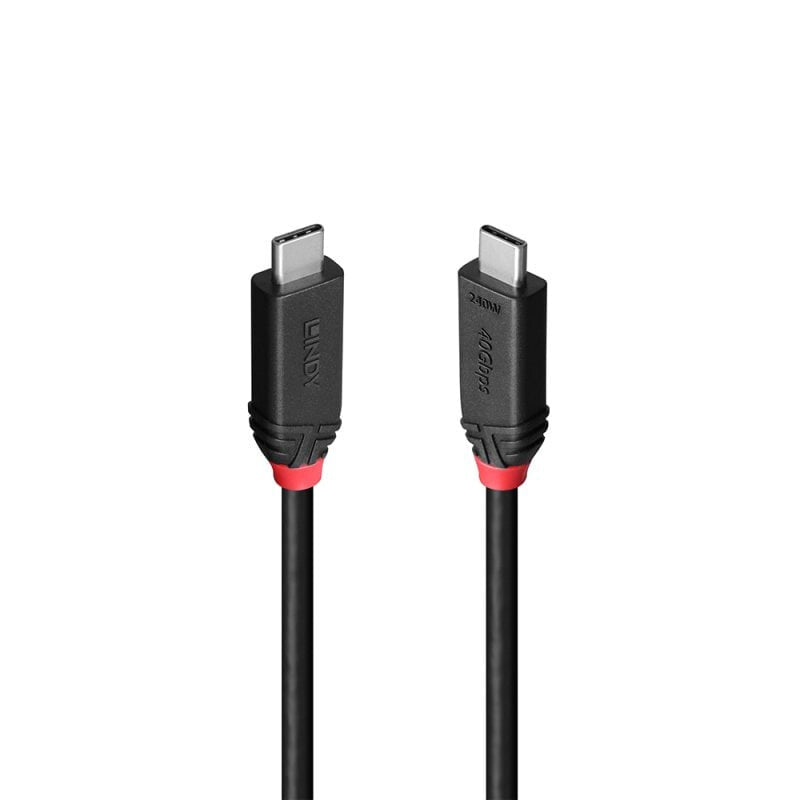

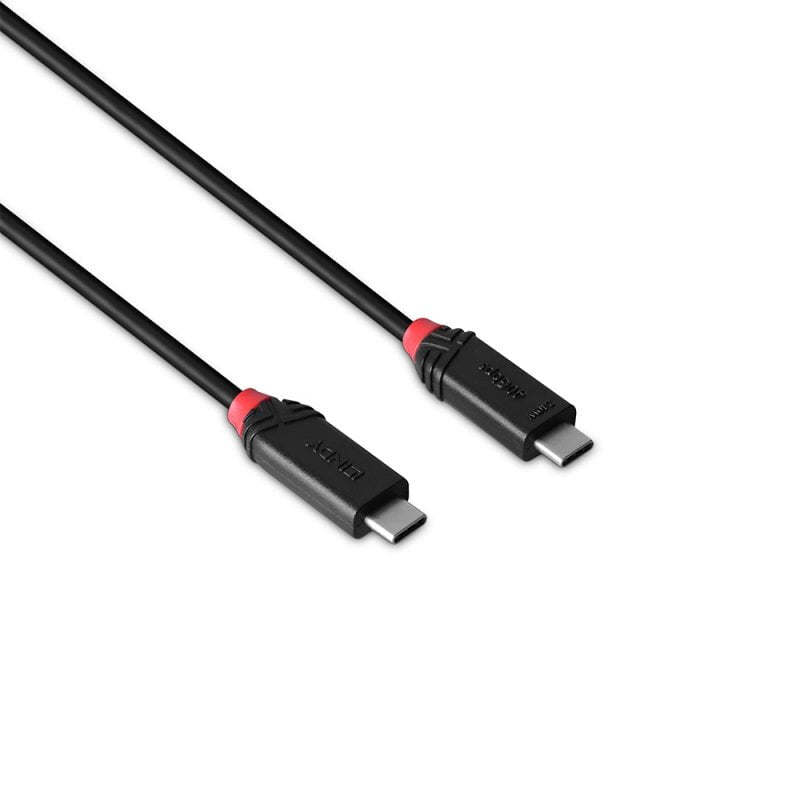

The Black Line USB4 Type C to C cables from Lindy's Cable Lines concept are perfect for home and small office use.
Black Line USB4 Type C to C cables feature triple shielded construction with copper conductors for premium performance and corrosion resistance. Nickel plated connectors and gold plated contacts maintain signal integrity and reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
| Features |
|---|
| Maximum resolution |
3840 x 2160 pixels |
| Maximum refresh rate |
60 Hz |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.1 |
| USB Power Delivery up to |
240 W |
| Plug and Play |
Yes |
| Cable type |
Round cable |
| Product colour |
Black |
| Maximum data transfer rate |
40 Gbit/s |
| Connector shielding |
Yes |
| Conductor material |
Copper |
| Connector shield material |
Copper |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Connector contacts plating |
Gold |
| Connector material |
Nickel |
| AWG wire size |
24/32 |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
USB C |
| Connector 1 |
USB C |
| USB version |
USB4 Gen 3x2 |
| Weight & dimensions |
|---|
| Connector 2 dimensions (WxDxH) |
34.8 x 12.7 x 7.4 mm |
| Connector 1 dimensions (WxDxH) |
34.8 x 12.7 x 7.4 mm |
| Bend radius (min) |
2 cm |
| Cable diameter |
4.8 mm |
| Cable length |
2 m |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
UL ECOLOGO |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
RoHS, REACH, California Proposition 65 |
| Compliance certificates |
REACH, RoHS |
| UN number |
` |
| Logistics data |
|---|
| Warranty period |
2 year(s) |
