SKU: 35403

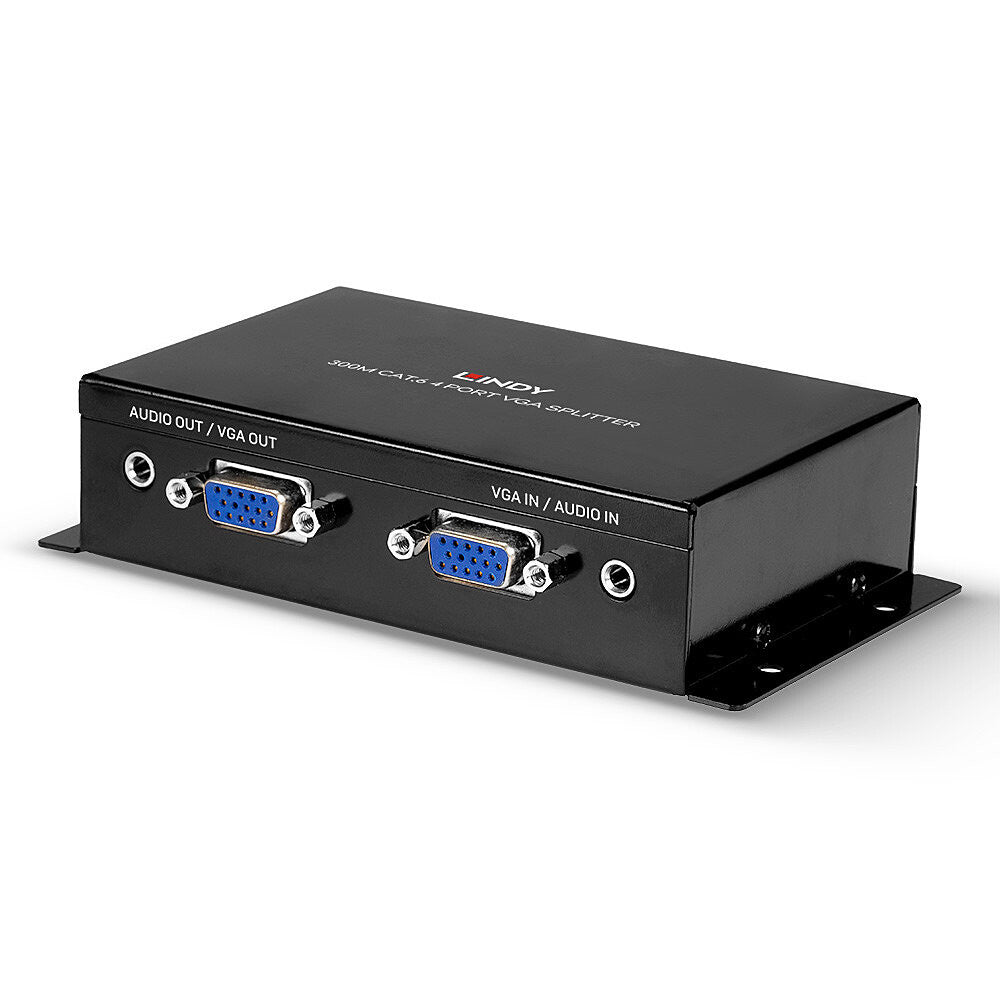

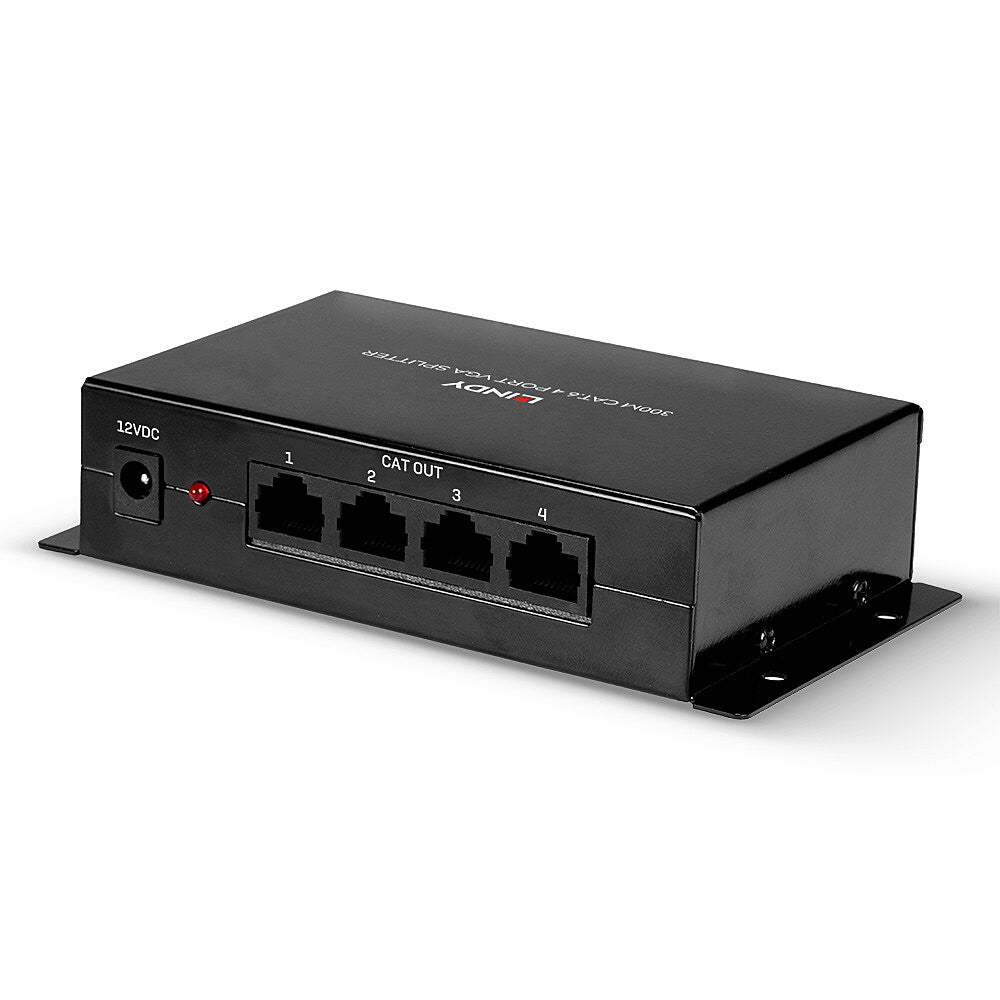

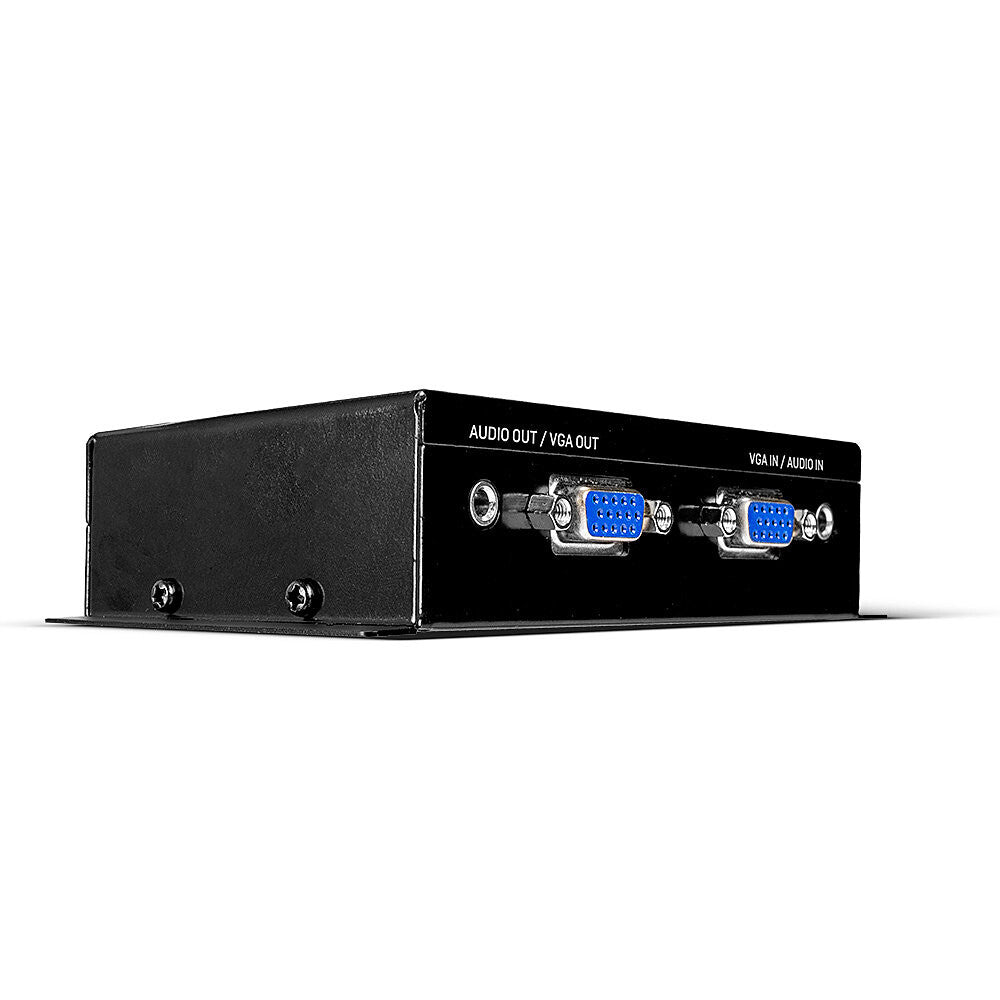

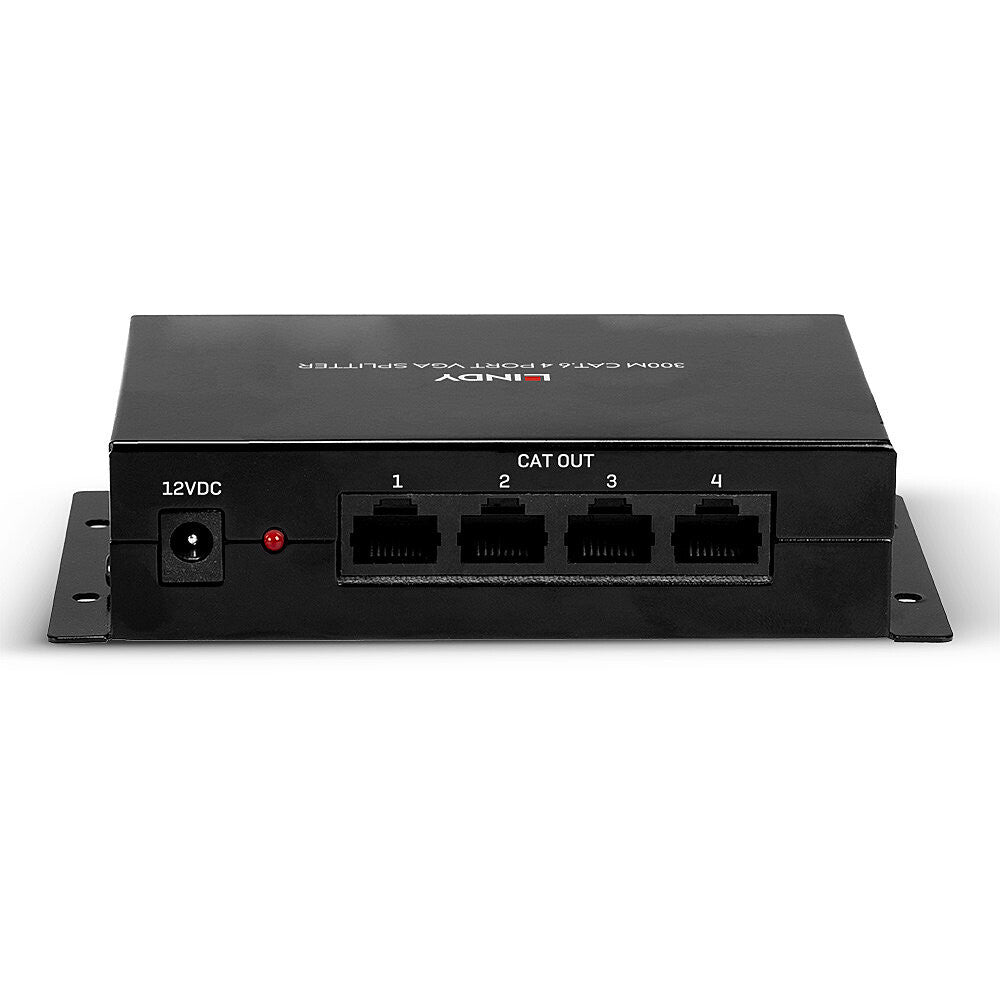

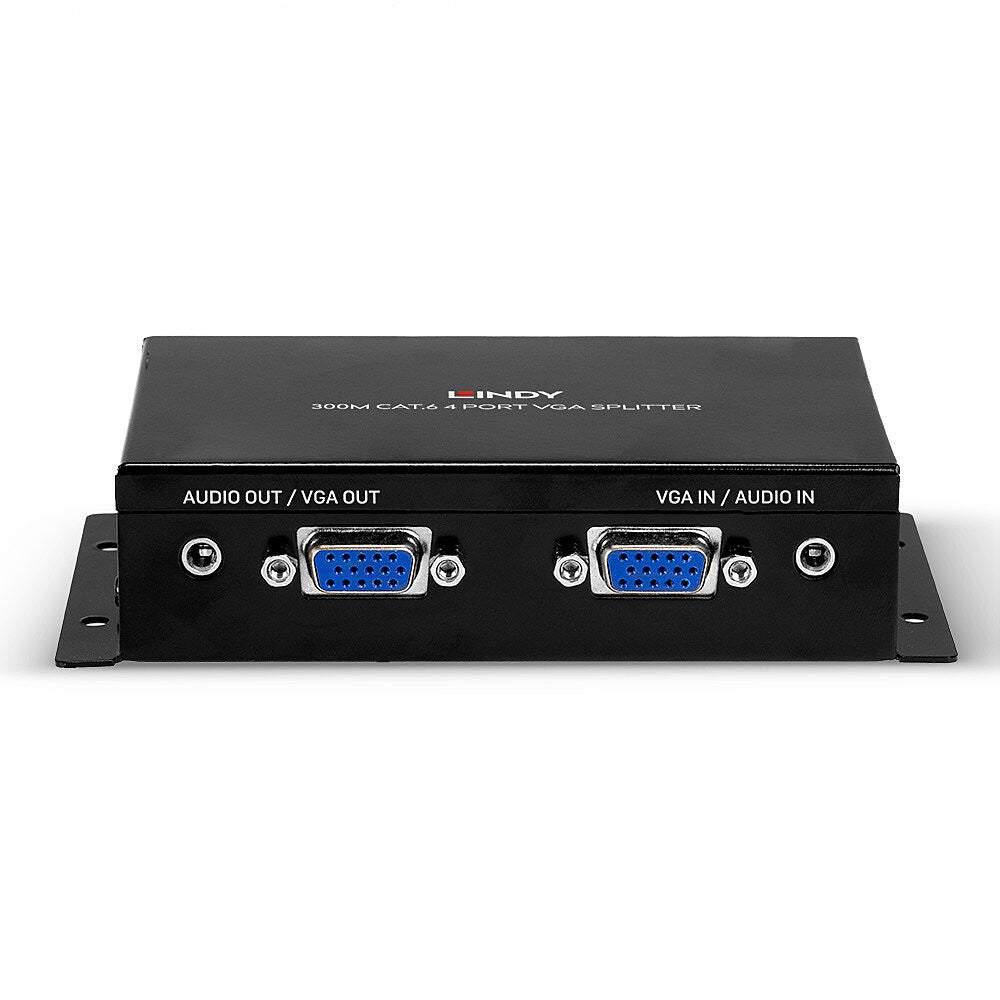

Lindy 300m Cat.6 4 Port VGA Splitter Extender Transmitter

Lindy
£147.94
  • Extends 4 x VGA signals simultaneously up to 300m with standard network cables
  • Combine with the compatible receiver (35404) to create a 4-zone extension solution
  • Supports resolutions up to 1920x1080, with dual mono audio embedding
  • Local VGA loop-out connection with dual mono audio extraction
  • 2 year warranty

VGA splitter extenders distribute analogue video content across longer distances into multiple locations, using standard network cabling.

The Lindy 300m Cat.6 4 Port VGA Splitter is a high-quality solution for extending 4 separate analogue VGA signals over long distances using standard network cables when combined with the compatible receiver unit (35404). Supporting resolutions up to 1920x1080, this extender splitter provides high quality video for up to 4 separate distribution zones, such as classrooms or in security facilities. A 3.5mm female port ensures source devices or embedded audio can be added within the connection.

The VGA loop-out allows for the connection of a local display, great for monitoring and control of the setup. Dual mono audio extraction also provides the possibility of connecting speakers to the local setup.

The transmitter has a robust metal housing with mounting brackets, providing additional protection against accidental damage, ideal for use in industrial installations.

Features
Certification CE, FCC, RoHS, REACH
Product colour Black
Supported graphics resolutions 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1920 x 1080 (HD 1080)
Material Metal
Bandwidth 350 MHz
Maximum transfer distance 300 m
Chipset EL4543IUZ
Cable types supported Cat5e, Cat6
Maximum resolution 1920 x 1080 pixels
Type AV transmitter
Ports & interfaces
DC-in jack Yes
Audio output 1
Audio input 1
VGA (D-Sub) input ports 1
VGA (D-Sub) output ports 1
RJ-45 output ports 4
Connectivity technology Wired
Power
Input current 1.2 A
Operating voltage 12 V
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 20 - 80%
Weight & dimensions
Weight 484 g
Height 31 mm
Depth 73 mm
Width 135.4 mm
Packaging data
Package weight 547 g
Package height 110 mm
Package depth 75 mm
Package width 177 mm
Quantity per pack 1 pc(s)
