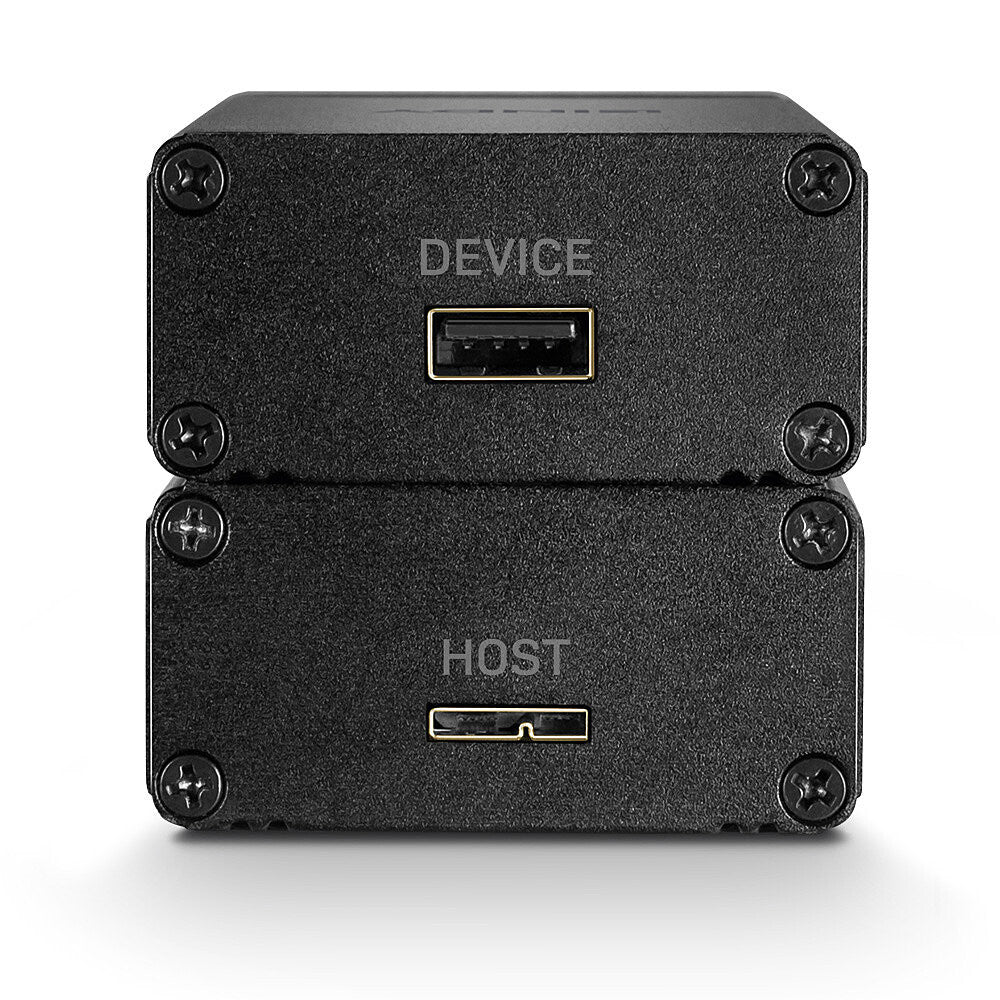

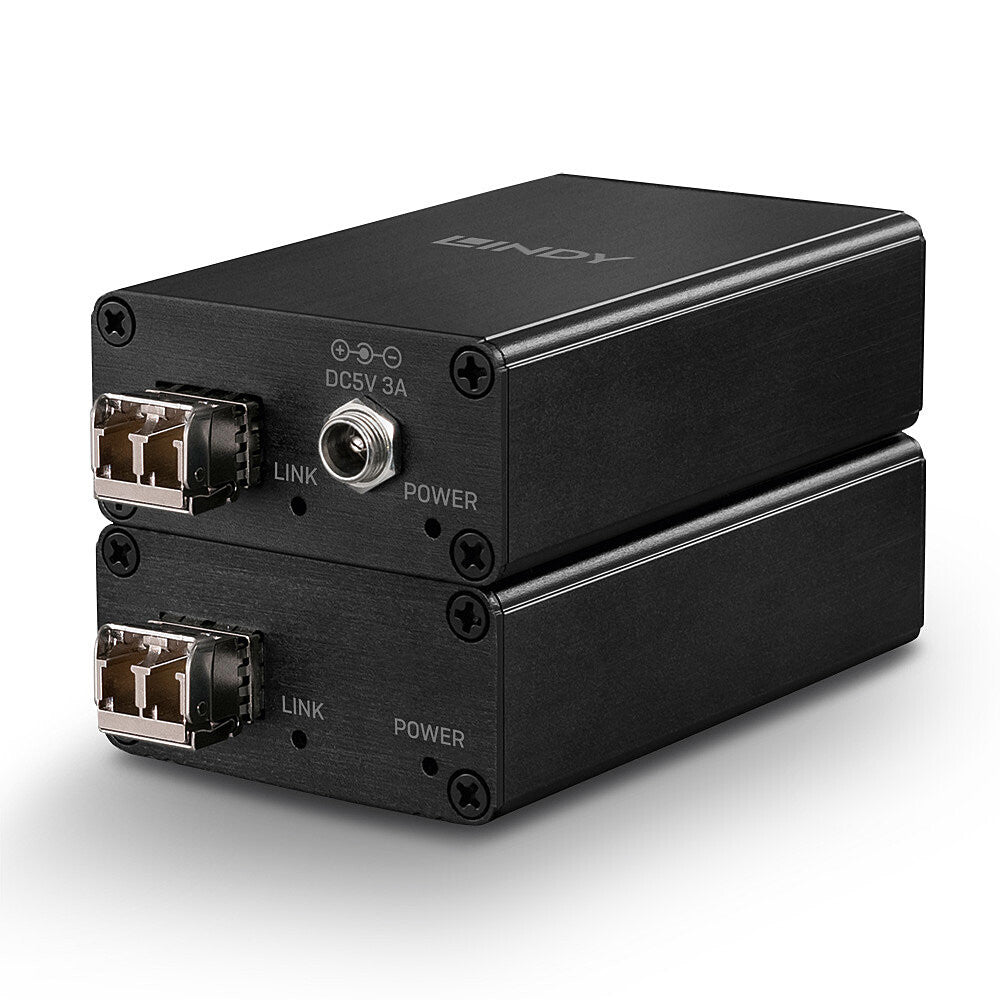

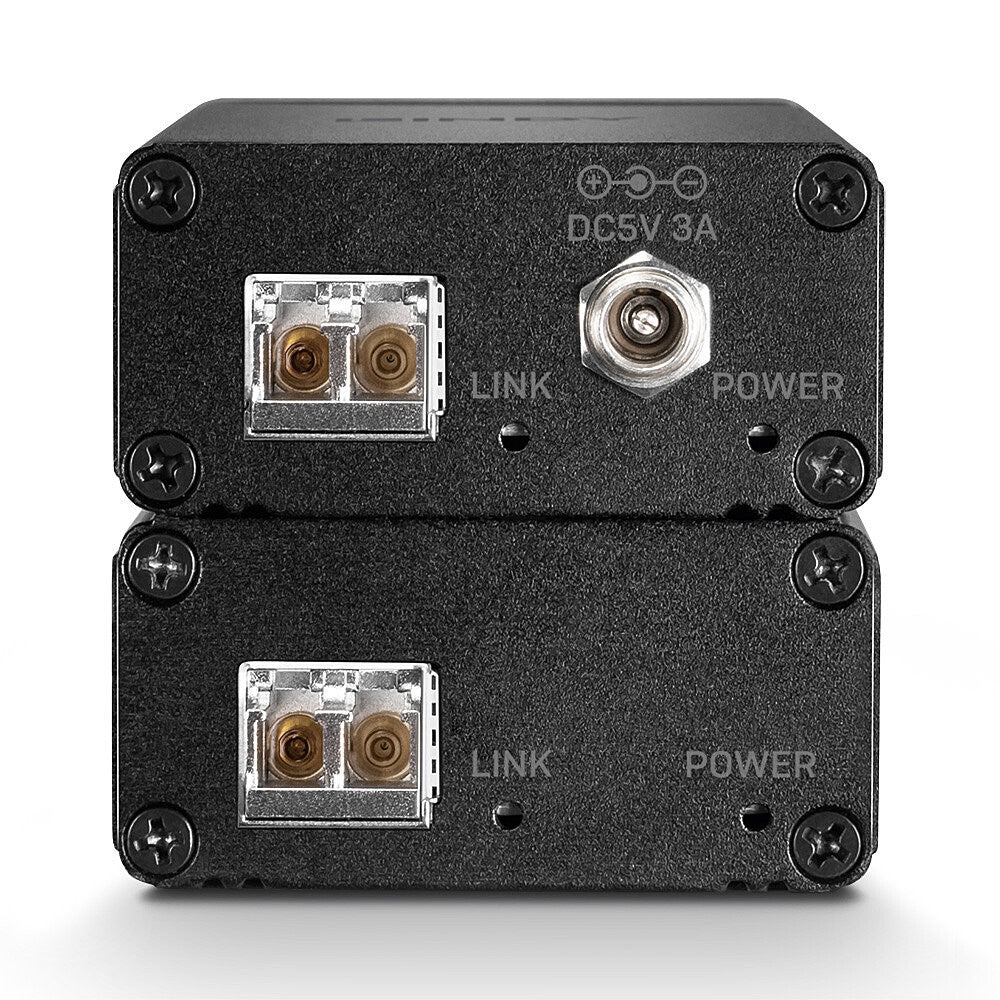

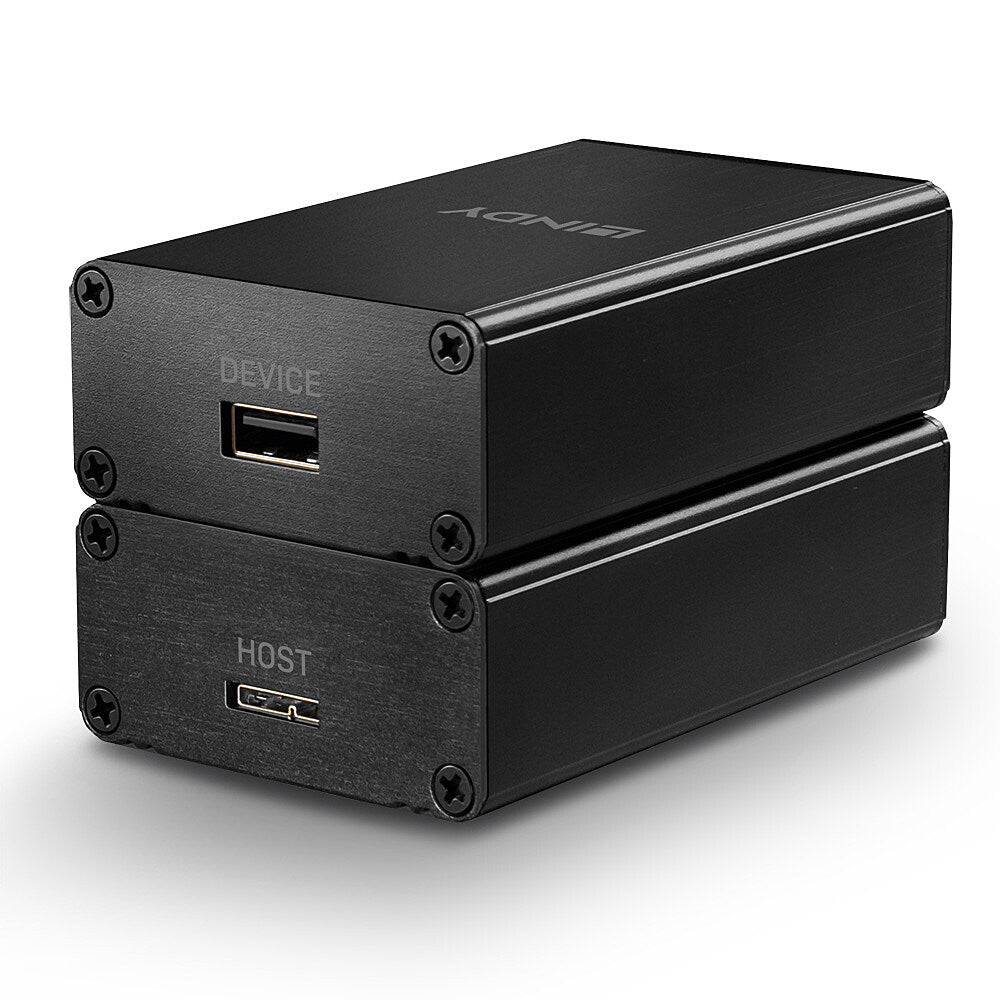

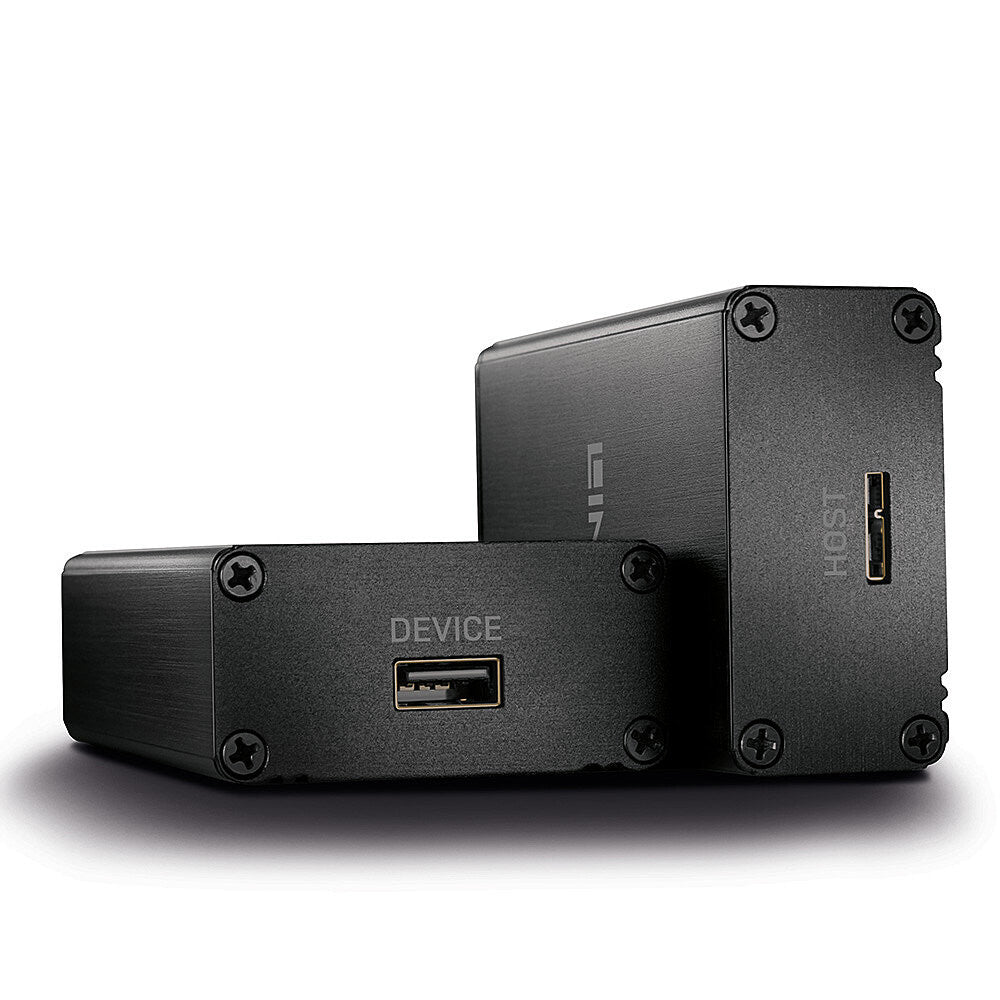

Fibre Optic USB extenders allow USB signals to be extended far beyond the limits of traditional copper cable solutions. The Lindy 350m Fibre Optic USB 3.0 Extender supports SuperSpeed transfer rates of up to 5Gbps. This Extender is a complete, two-part hardware solution comprising of a transmitter that connects directly to the user's computer and receiver that connects to the USB peripheral, using andldquo;off the shelfandrdquo; LC duplex fibre cabling.
The extender is ideal for long distance use with remote desktop links, industrial control systems, surveillance control rooms and external storage applications. Utilising fibre optic transmission, this extender provides high resistance to EMI and RFI, perfect for use in andldquo;noisyandrdquo; areas such as hospitals, large retail installations or industrial buildings.
Please note: that this Extender is not backwards compatible with USB 2.0.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Performance |
|---|
| Data transfer rate |
5000 Mbit/s |
| Maximum transfer distance |
350 m |
| Type |
Network transmitter & receiver |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Fiber optic connector |
LC |
| Fiber ports quantity |
2 |
| Design |
|---|
| Certification |
CE, FCC, REACH, California Proposition 65 |
| Product colour |
Black |
| Power |
|---|
| External power adapter |
Yes |
| Input current |
3 A |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Receiver weight |
129 g |
| Receiver height |
2.8 cm |
| Receiver depth |
9.3 cm |
| Receiver width |
5.7 cm |
| Transmitter weight |
125 g |
| Transmitter height |
2.8 cm |
| Transmitter depth |
9.3 cm |
| Transmitter width |
5.7 cm |
| Weight |
254 g |
| Packaging data |
|---|
| Package weight |
643 g |
| Package height |
115 mm |
| Package depth |
123 mm |
| Package width |
154 mm |
| Package type |
Box |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
