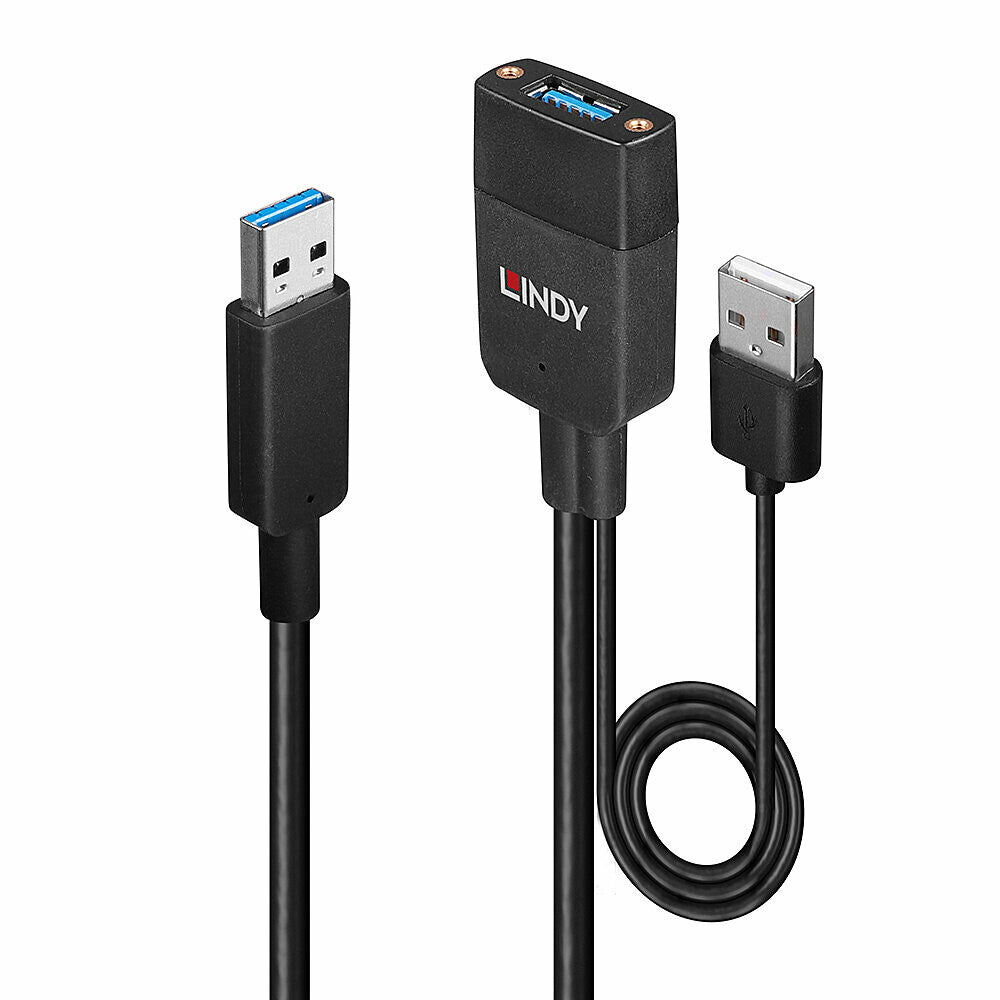

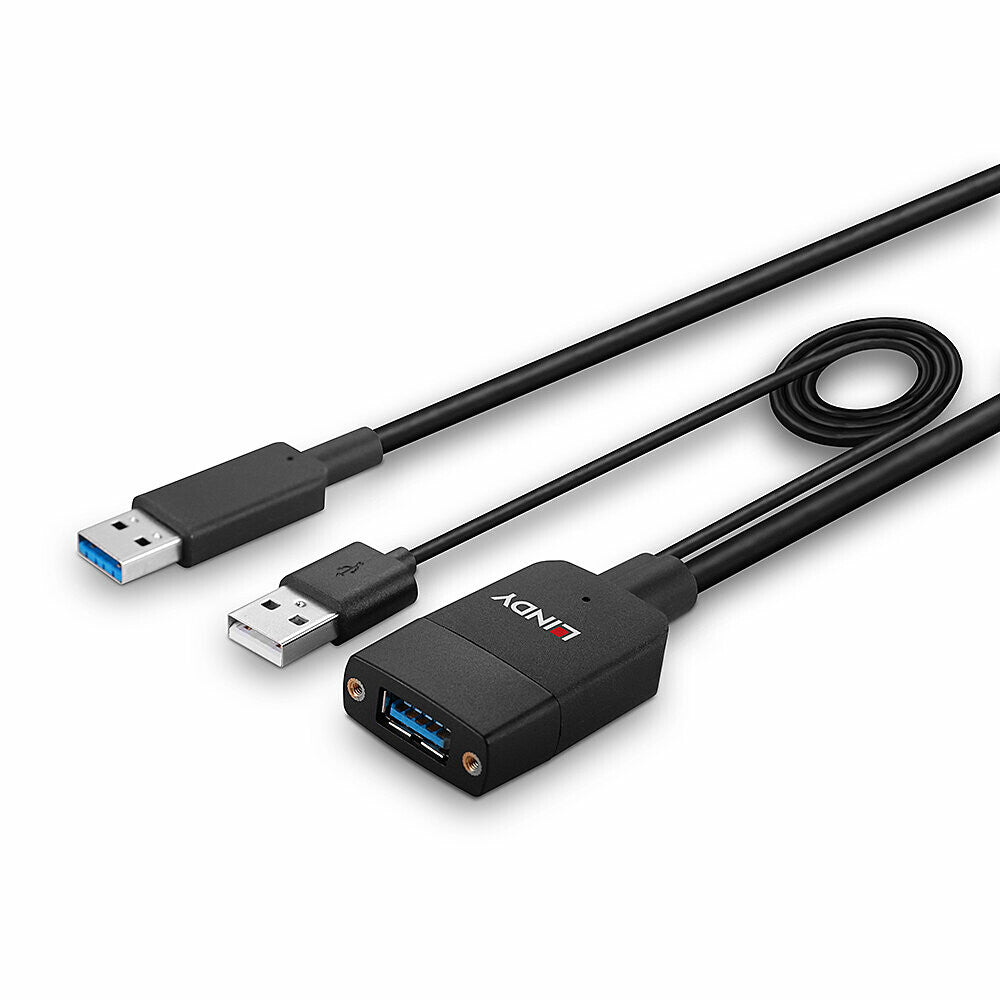

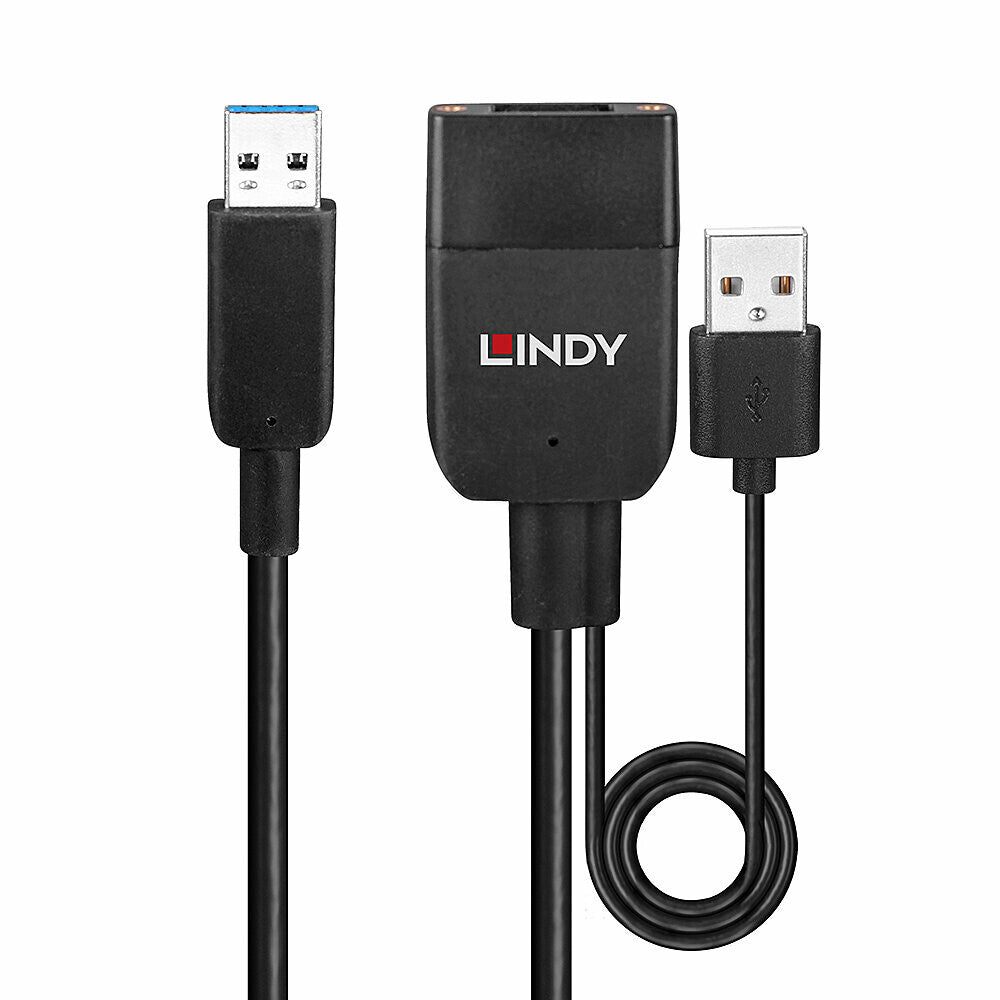

The Lindy Hybrid USB 3.2 Cable extends a USB port by 35m, far longer than is possible with standard or active copper cables, whilst retaining SuperSpeed transfer rates of up to 10Gbps (backwards compatible with USB 2.0 devices). A lighter and more flexible construction makes this cable simple to install with cable trays and through conduits, whilst low RFI/EMI ensures that the cable can be installed in the most sensitive of environments.
This Hybrid Cable supports a variety of USB devices like storage media or webcams. It is fully compatible with, and can be used to extend signals from, 4K USB 3.2/3.1 webcams and video conferencing systems.

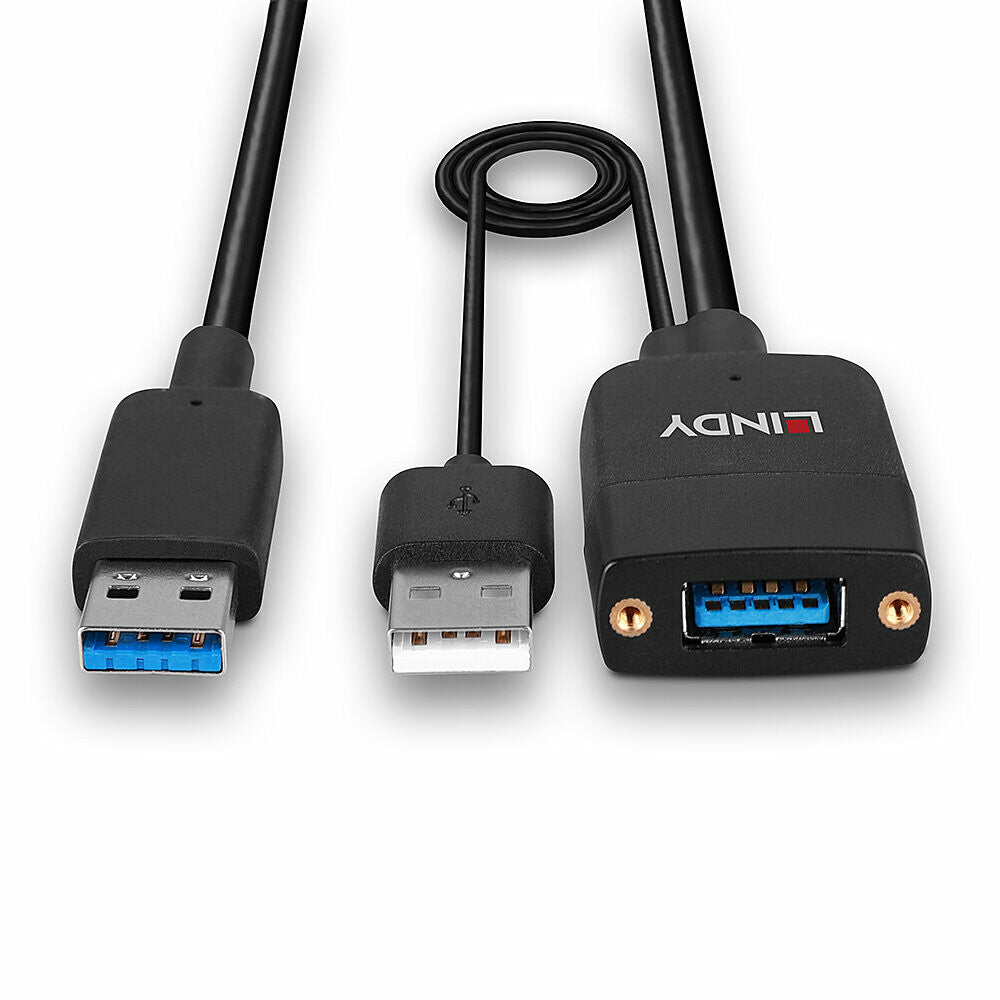

The screw-locking design of the USB Type A socket ensures a secure connection of the device.
For added convenience the Hybrid cable is bus-powered and features a USB Type A power cable, which can be attached to an external USB Power Supply (not included) should additional power be required.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Ports & interfaces |
|---|
| Hub interfaces |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| Ports quantity |
2 |
| Features |
|---|
| Certification |
CE, FCC, RoHS & REACH, CP 65 |
| Plug and Play |
Yes |
| Cable length |
35 m |
| AWG wire size |
22/26 |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Cable type |
Round cable |
| Plating material |
Nickel |
| Product colour |
Black |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |
| Data transfer rate |
100 Mbit/s |
| Power |
|---|
| Power supply type |
USB |
| Weight & dimensions |
|---|
| Connector 1 dimensions (WxDxH) |
42.85 x 16 x 8 mm |
| Connector 2 dimensions (WxDxH) |
43 x 28.4 x 7.12 mm |
| Weight |
1.35 kg |
| Packaging data |
|---|
| Package type |
Polybag |
| Package weight |
1.5 kg |
| Package height |
65 mm |
| Package depth |
240 mm |
| Package width |
240 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Manual |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-4 - 158 °F |
| Maximum operating temperature |
70 °C |
| Minimum operating temperature |
0 °C |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS |
