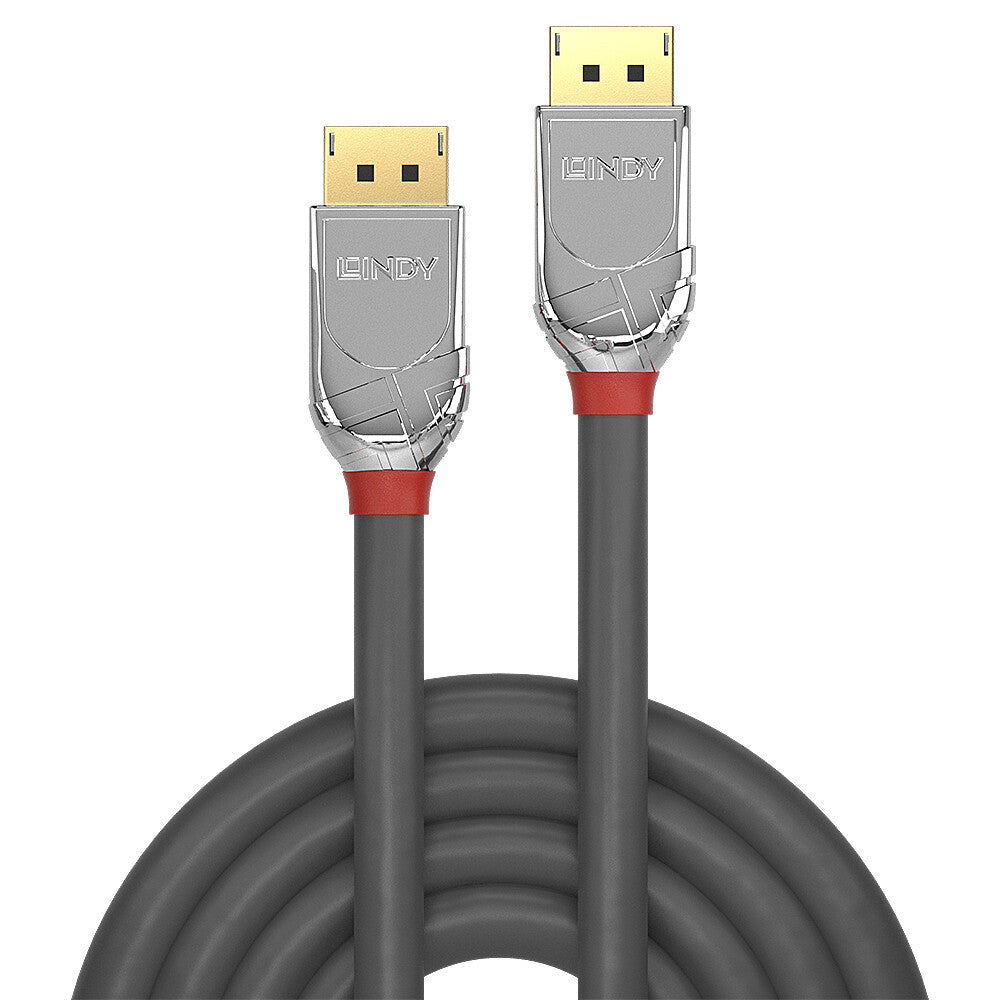

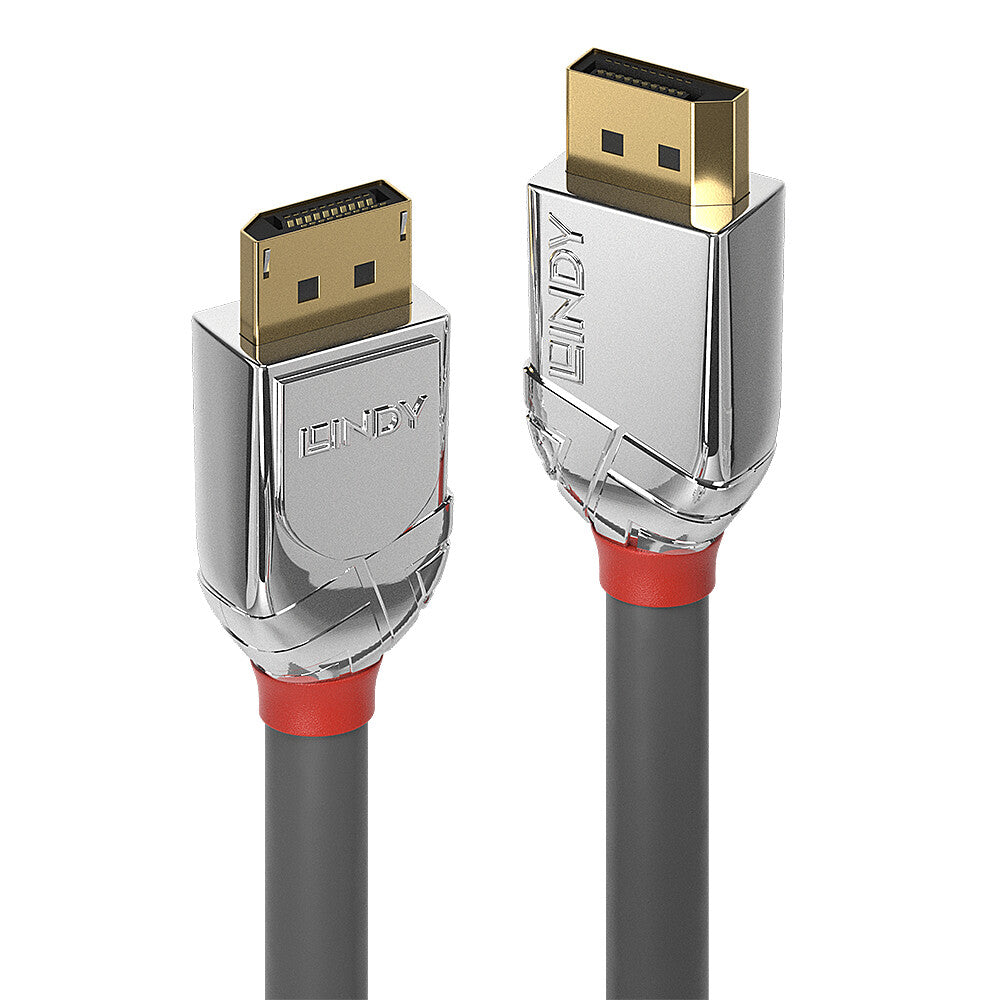

From the Lines cable connectivity concept developed by Lindy, Cromo Line DisplayPort cables are high performance, designer connections that combine premium construction materials with striking connector architecture.
Cromo Line DisplayPort Cables feature triple shielded construction with 28AWG conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit, including stereoscopic 3D, are supported. Cromo Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Cromo Line cables feature sleek chrome design ABS housing to complement the aesthetics of style focused commercial and home applications.
Cromo Line DisplayPort cables are available in lengths from 0.5m to 5m.
| Features |
|---|
| Nominal attenuation |
300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB |
| Colour sampling |
4:4:4 |
| Cable type |
Round cable |
| Contact material |
Phosphor bronze |
| Connector material |
Gold |
| Data transfer rate |
21.6 Gbit/s |
| AWG wire size |
28 |
| Connector housing material |
Acrylonitrile butadiene styrene (ABS) |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable shielding |
Copper |
| Cable material |
Tinned copper |
| Product colour |
Chrome, Grey |
| 3D |
Yes |
| Maximum refresh rate |
60 Hz |
| Supported video modes |
2160p |
| Maximum resolution |
4096 x 2160 pixels |
| DisplayPort version |
1.2 |
| Connector contacts plating |
Gold |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
DisplayPort |
| Connector 1 |
DisplayPort |
| Cable length |
3 m |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-25 - 85 °C |
| Operating temperature (T-T) |
-20 - 80 °C |
| Certificates |
|---|
| Certification |
RoHS, REACH, UL |
| Compliance certificates |
REACH, RoHS |
| Weight & dimensions |
|---|
| Bend radius (min) |
7.3 cm |
| Connector 2 dimensions (WxDxH) |
19.7 x 12 x 38.9 mm |
| Connector 1 dimensions (WxDxH) |
19.7 x 12 x 38.9 mm |
| Cable diameter |
7.3 mm |
| Packaging data |
|---|
| Package type |
Polybag |
| Packaging content |
|---|
| Manual |
Yes |
| Supplier features |
|---|
| Product or Article Information Sheet available? |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Pallet net height |
3.89 cm |
