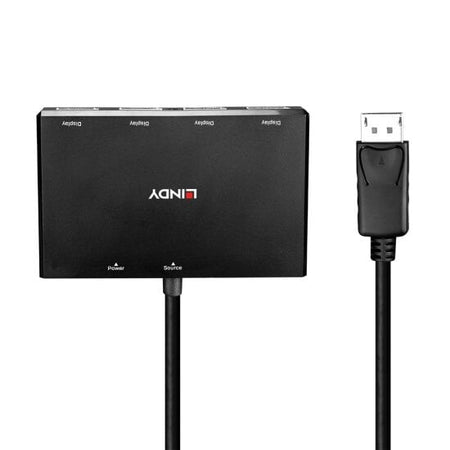

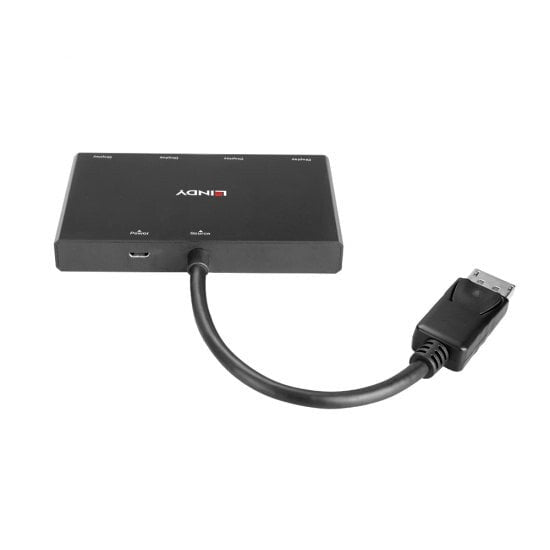

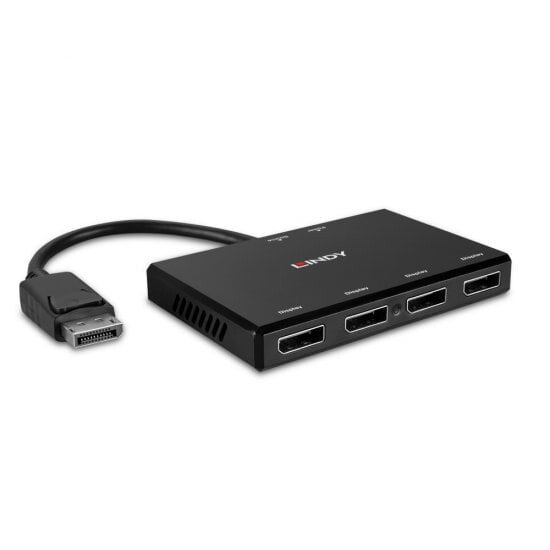

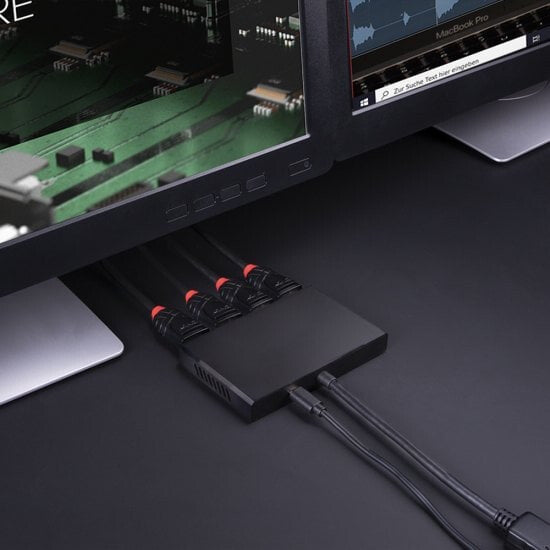

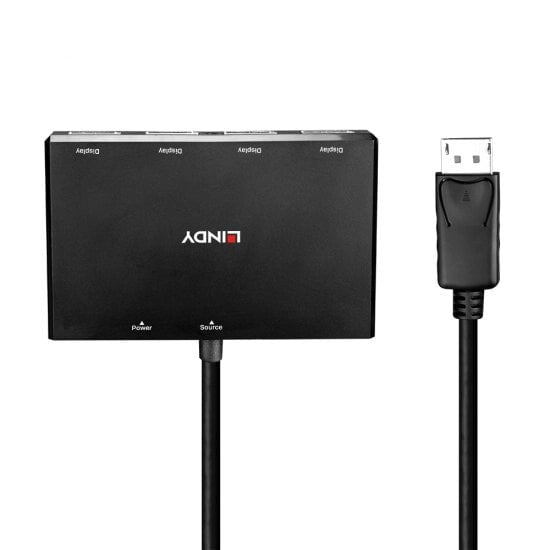

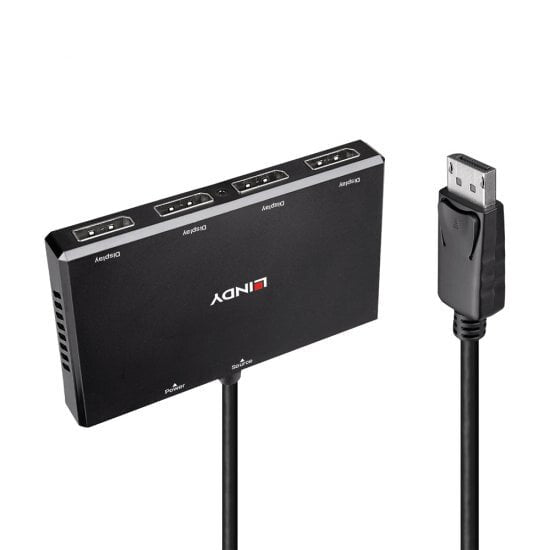

The Lindy 4 Port DP MST Hub is an ideal solution for expanding or duplicating DisplayPort signals across 4 DisplayPort monitors. MST hubs allow for the connection of a single DP source device including computers, laptops or notebooks to 4 separate DP displays, while also providing the ability to visualise content in multiple ways. Signals can be expanded across the displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail. Content can also be, independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on the displays for use in hospitality, retail or educational scenarios.
With support up to 3840x2160@30Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.
Please note: This hub is not compatible with Apple products
| Ports & interfaces |
|---|
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
4 |
| Hub interfaces |
DisplayPort |
| Host interface |
DisplayPort |
| Ports quantity |
4 |
| Features |
|---|
| Certification |
CE, UKCA, FCC, RoHS & REACH |
| Product colour |
Black |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 3840 x 2160 |
| Power |
|---|
| Input voltage |
5 V |
| Input current |
1 A |
| Power supply type |
USB |
| Weight & dimensions |
|---|
| Weight |
120 g |
| Height |
65 mm |
| Depth |
140 mm |
| Width |
105 mm |
| Packaging data |
|---|
| Package type |
Polybag |
| Package weight |
131 g |
| Package height |
20 mm |
| Package depth |
194 mm |
| Package width |
174 mm |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating temperature (T-T) |
-4 - 104 °F |
