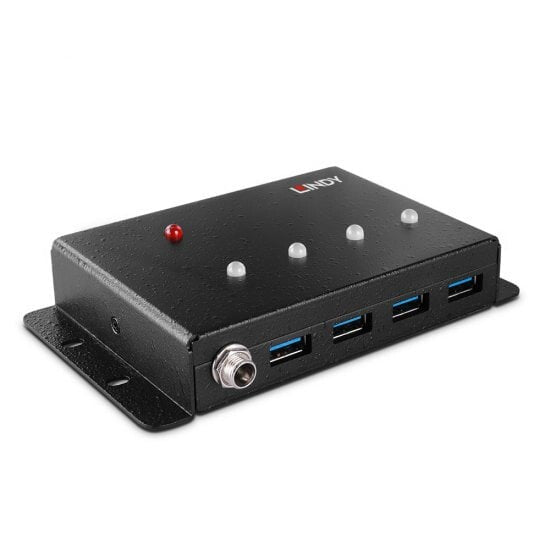

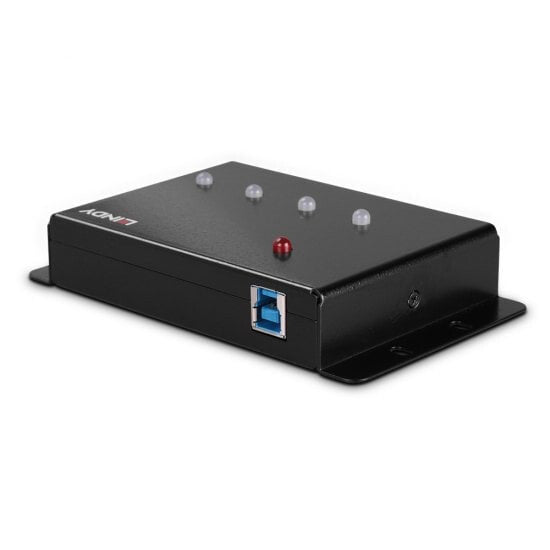

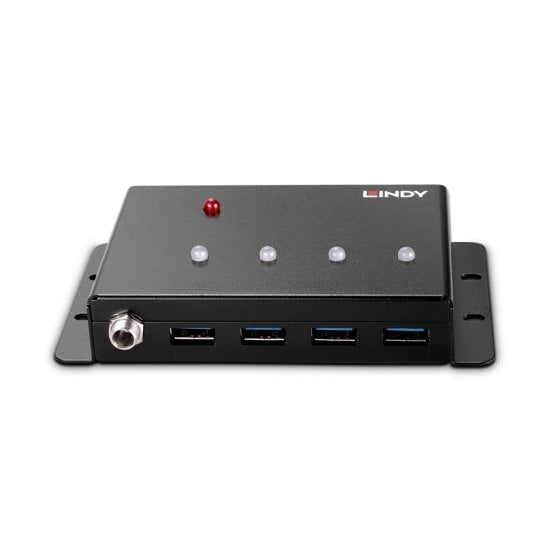

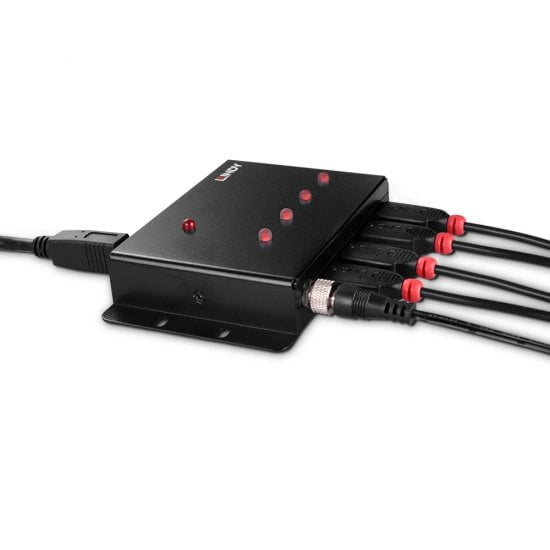

The Lindy 4 Port USB 3.0 Metal Hub has been designed to provide reliable performance in demanding operational environments. This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this Hub is the ideal solution for use in industrial environments.
Backwards compatibility with USB 2.0/1.1/1.0 means the hub can simultaneously support older USB peripherals or systems that lack USB 3.0 capabilities, extending their lifetime and giving a greater return on investment. The hub also supports MTT technology which guarantees highest possible throughput speed for USB 1.1 devices.

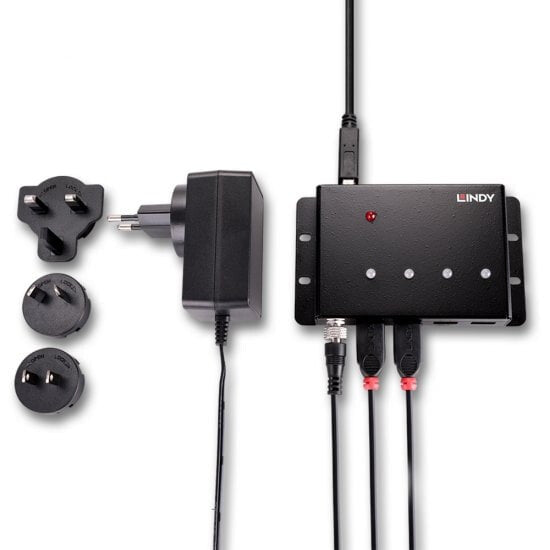

Each port features individual short circuit protection, while the included power supply ensures secure and uninterrupted electricity supply.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Hub interfaces |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Ports quantity |
4 |
| Features |
|---|
| Certification |
CE, UKCA, FCC, RoHS & REACH, California Proposition 65 |
| Cable length |
0.8 m |
| Cable type |
Round cable |
| LED indicators |
Yes |
| Product colour |
Black |
| Housing material |
Metal |
| Data transfer rate |
5000 Mbit/s |
| Power |
|---|
| Power supply type |
DC |
| Weight & dimensions |
|---|
| Weight |
256 g |
| Height |
22 mm |
| Depth |
74.6 mm |
| Width |
125 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
650 g |
| Package height |
70 mm |
| Package depth |
180 mm |
| Package width |
260 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Manual |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
-20 - 60 °F |
| Maximum operating temperature |
50 °C |
| Minimum operating temperature |
0 °C |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
