The Lindy USB4 NVMe M.2 SSD Enclosure allows the user to install a PCIe/NVMe based M.2 SSD as an external drive to USB4 or Thunderbolt 3/4 hosts like laptops or PCs. Support for the USB4 standard guarantees extremely fast data transfer rates up to 40Gbps.*

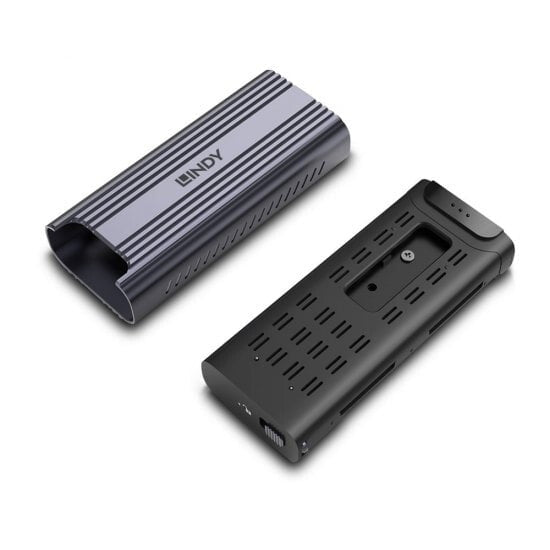

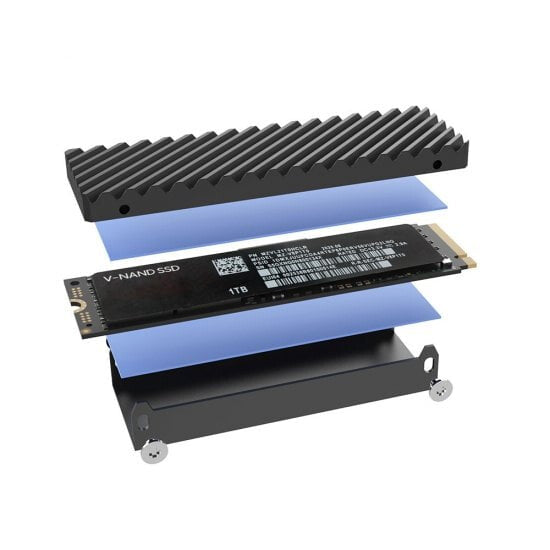

This Lindy enclosure is compatible with PCIe/NVMe based M.2 SSDs with M key or B + M key in 42, 60 and 80mm lengths. The Aluminium housing with Aluminium heatsink ensures excellent heat dissipation and a suitable operating temperature. The tool-free design makes installation very easy.
* Please note that 40Gbps full support is only possible with a USB4, Thunderbolt 3 or 4 host controller.
| Storage |
|---|
| Installed storage drive type |
SSD |
| Number of storage drives supported |
1 |
| Supported storage drive interfaces |
PCI Express |
| Storage drive size |
M.2 |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-C |
| USB connectivity |
Yes |
| Design |
|---|
| Certification |
CE, FCC, RoHS & REACH, CP65 |
| Material |
Aluminium |
| Product colour |
Grey |
| Product type |
SSD enclosure |
| Performance |
|---|
| Data transfer rate |
40 Gbit/s |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Package weight |
200 g |
| Package height |
30 mm |
| Package depth |
105 mm |
| Package width |
180 mm |
| Cable length |
0.15 m |
| Weight |
88 g |
| Height |
24 mm |
| Depth |
47 mm |
| Width |
107 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Screwdriver included |
Yes |
| Screws included |
Yes |
