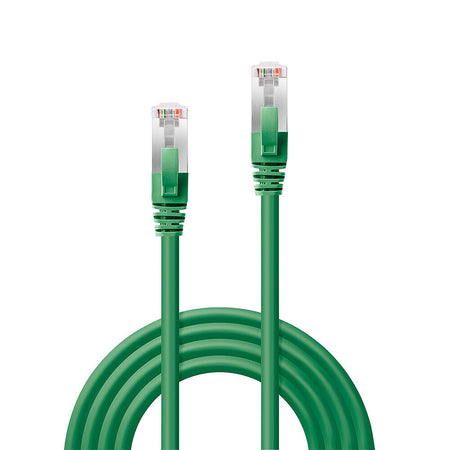

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions
| Features |
| Frequency |
500 MHz |
| AWG wire size |
27 |
| Cabling technology |
10GBase-T |
| Connector housing material |
Polycarbonate (PC) |
| Conductor material |
Copper |
| Cable shape |
Round |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Connector shield material |
Aluminium |
| Connector shielding |
Yes |
| Connector contacts plating |
Gold |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 2 |
RJ-45 |
| Connector 1 |
RJ-45 |
| Product colour |
Green |
| Cable shielding |
S/FTP (S-STP) |
| Cable standard |
Cat6a |
| Cable length |
0.3 m |
| Operational conditions |
| Storage temperature (T-T) |
-20 - 75 °C |
| Operating temperature (T-T) |
-10 - 60 °C |
| Sustainability |
| Doesn't contain |
Halogen |
| Certificates |
| Compliance certificates |
REACH, RoHS |
| Weight & dimensions |
| Outer diameter |
6 mm |
| Height |
8.3 mm |
| Depth |
21.5 mm |
| Width |
11.6 mm |
| Packaging data |
| Package type |
Polybag |
| Technical details |
| Sustainability compliance |
Yes |
