Easy to set up and install the compact Lindy LC Fibre Optic DVI-D Extender is the most cost effective, high quality solution on the market for sending DVI-D signals over incredible distances. Send DVI-D signals without compression or any degradation over standard LC duplex multimode (50/125µm) fibre cable up to 500m (not included).

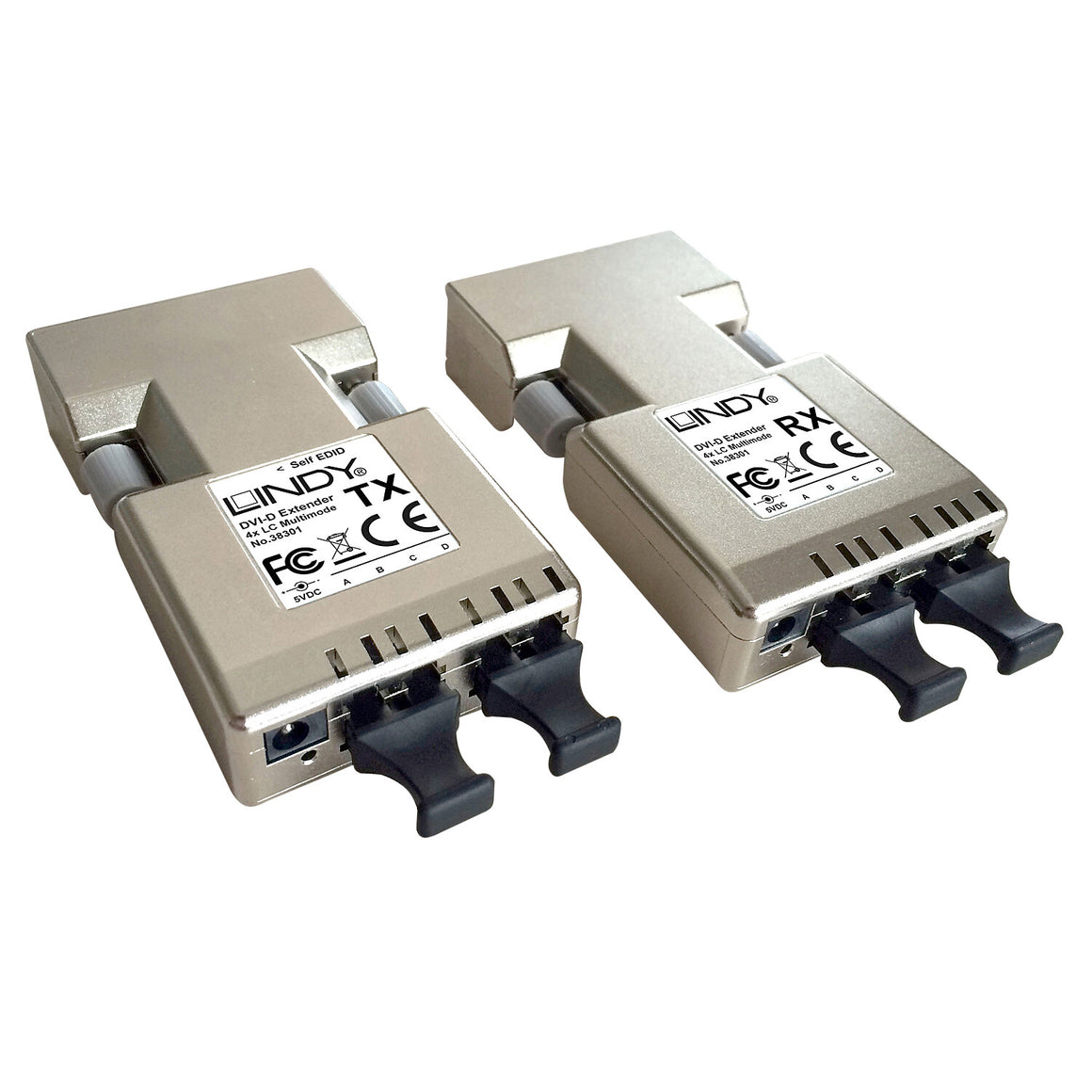

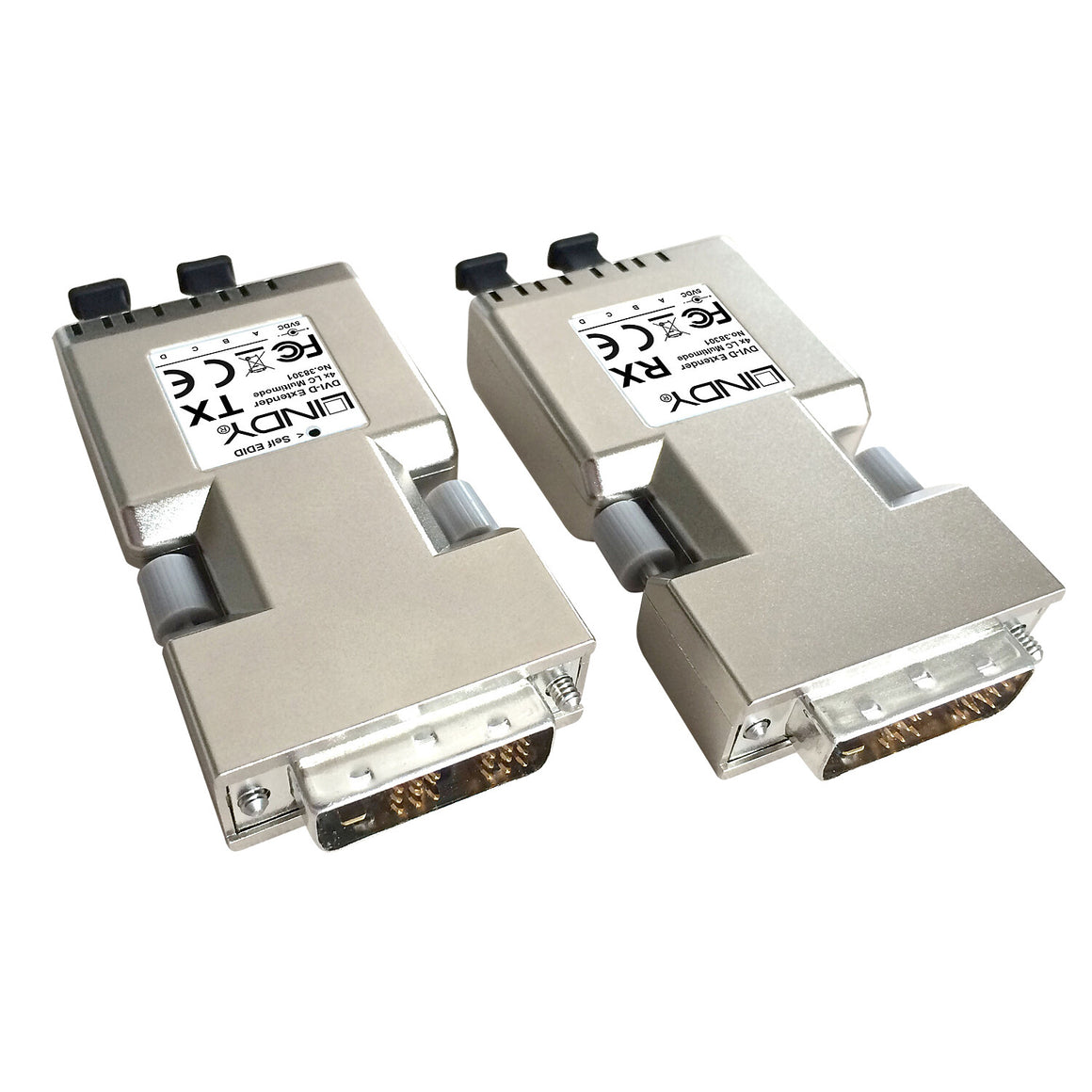

The extender system comprises two modules, a transmitter and a receiver, which are connected directly to both the DVI-D source and display. The modules are then connected together using two, standard 'off the shelf' LC Duplex Fibre cable fibre optic cables (not included).
| Features |
|---|
| Product colour |
Metallic |
| Material |
Metal |
| HDCP |
Yes |
| Maximum transfer distance |
500 m |
| Cable types supported |
Fiber |
| Maximum resolution |
1920 x 1200 pixels |
| Type |
AV transmitter & receiver |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| DVI input ports |
1 |
| DVI output ports |
1 |
| Weight & dimensions |
|---|
| Transmitter weight |
10 g |
| Transmitter dimensions (WxDxH) |
40 x 70 x 15 mm |
| Receiver weight |
10 g |
| Receiver dimensions (WxDxH) |
40 x 70 x 15 mm |
| Dimensions (WxDxH) |
40 x 70 x 15 mm |
| Packaging content |
|---|
| Cables included |
Fiber |
| Technical details |
|---|
| Connector 2 |
LC |
| Connector 1 |
LC |
