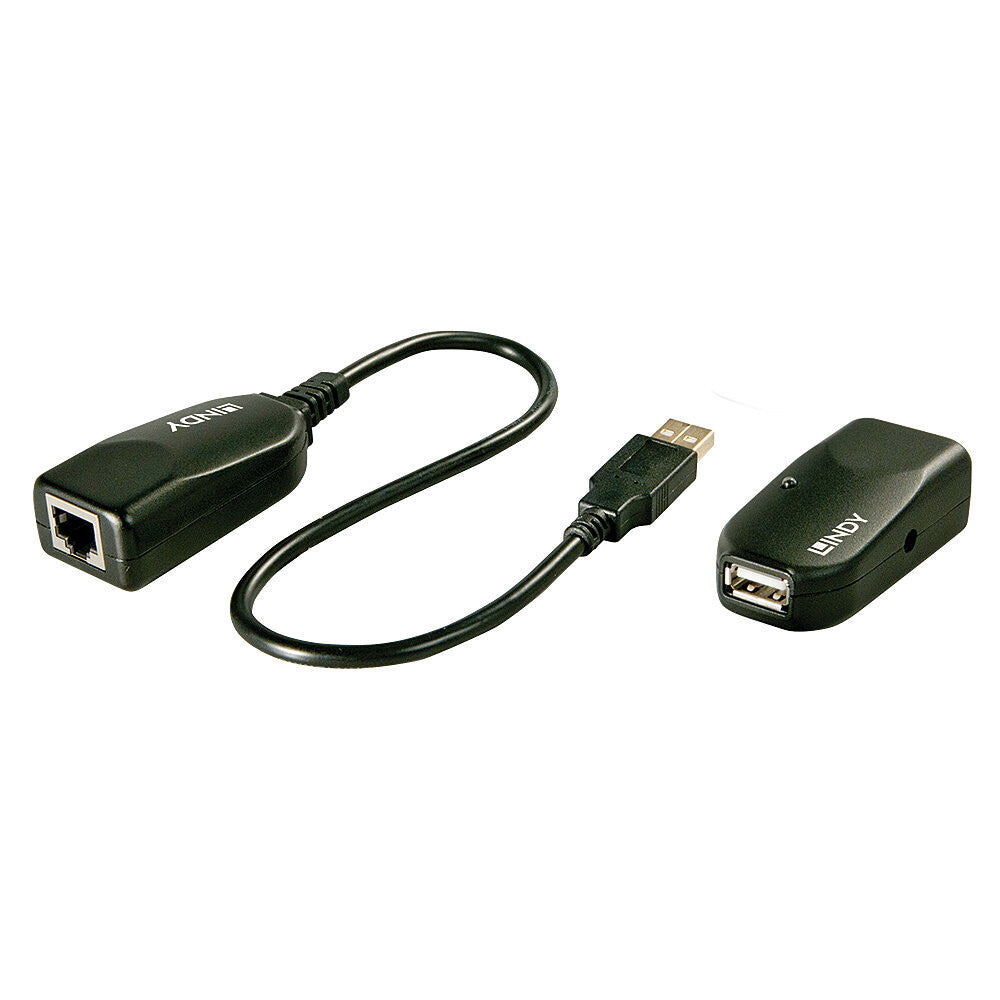

The Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m.

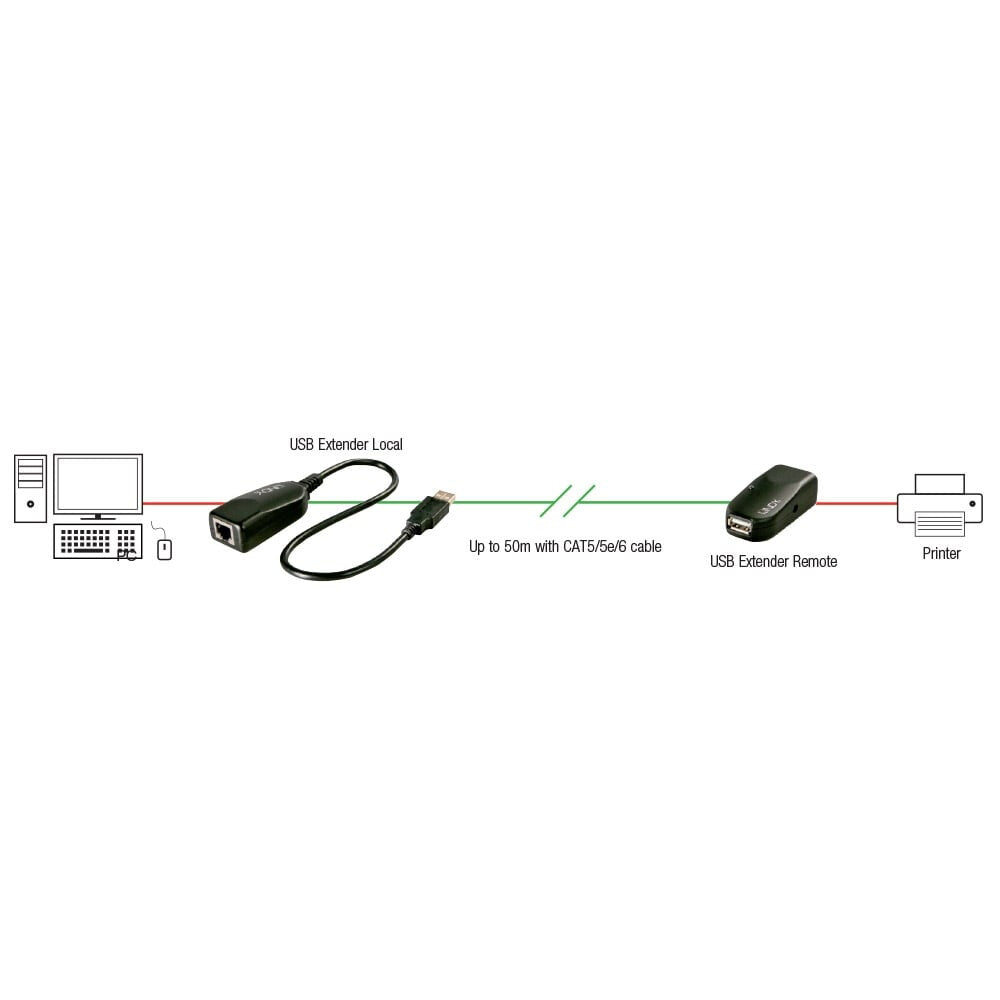

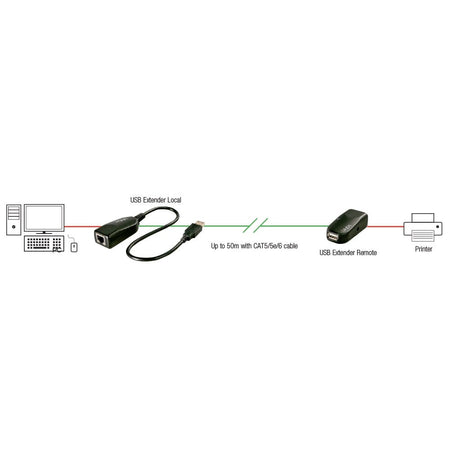

A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
| Performance |
|---|
| Plug and Play |
Yes |
| Chipset |
NS1021 |
| Cable types supported |
Cat5, Cat5e, Cat6 |
| Data transfer rate |
480 Mbit/s |
| Maximum transfer distance |
50 m |
| Type |
Network transmitter & receiver |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB 2.0 ports quantity |
2 |
| RJ-45 ports quantity (receiver) |
1 |
| RJ-45 ports quantity (transmitter) |
1 |
| Design |
|---|
| Certification |
CE, UKCA, FCC, RoHS, REACH |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Power |
|---|
| Included power plug types |
AU, EU, UK, US |
| Power note |
3.5/1.35mm DC |
| Power over Ethernet (PoE) |
Yes |
| Output current |
0.5 A |
| Output voltage |
24 V |
| Input current |
0.25 A |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 90% |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 80 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Receiver height |
2.3 cm |
| Receiver depth |
6.7 cm |
| Receiver width |
6 cm |
| Transmitter height |
2.3 cm |
| Transmitter depth |
6.7 cm |
| Transmitter width |
6 cm |
| Weight |
300 g |
| Packaging content |
|---|
| Cables included |
USB Type-A to USB Type-B |
| Manual |
Yes |
| Packaging data |
|---|
| Package weight |
400 g |
| Package height |
55 mm |
| Package depth |
140 mm |
| Package width |
185 mm |
| Package type |
Box |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
