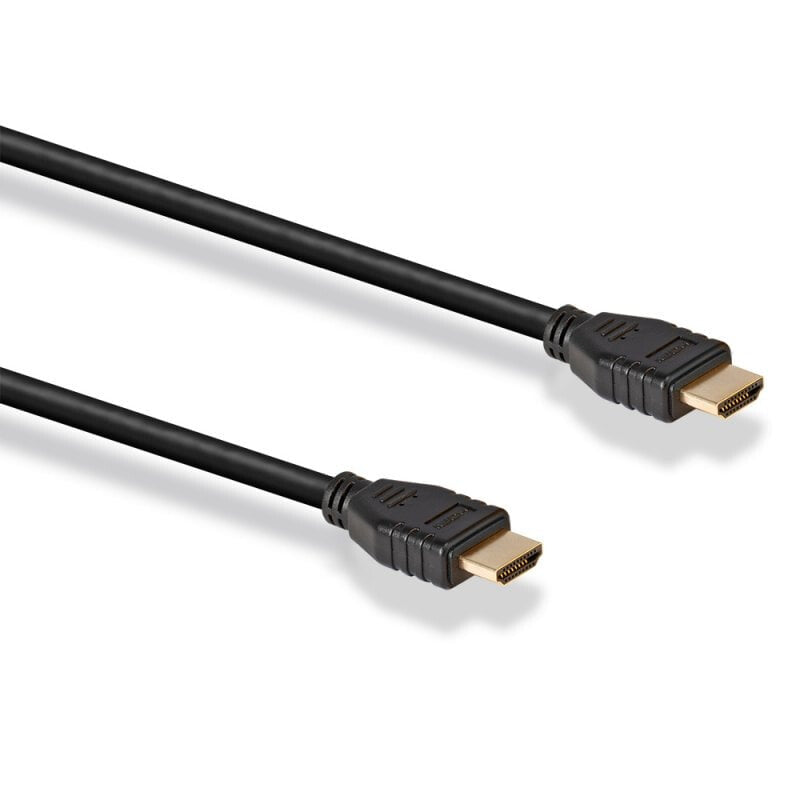

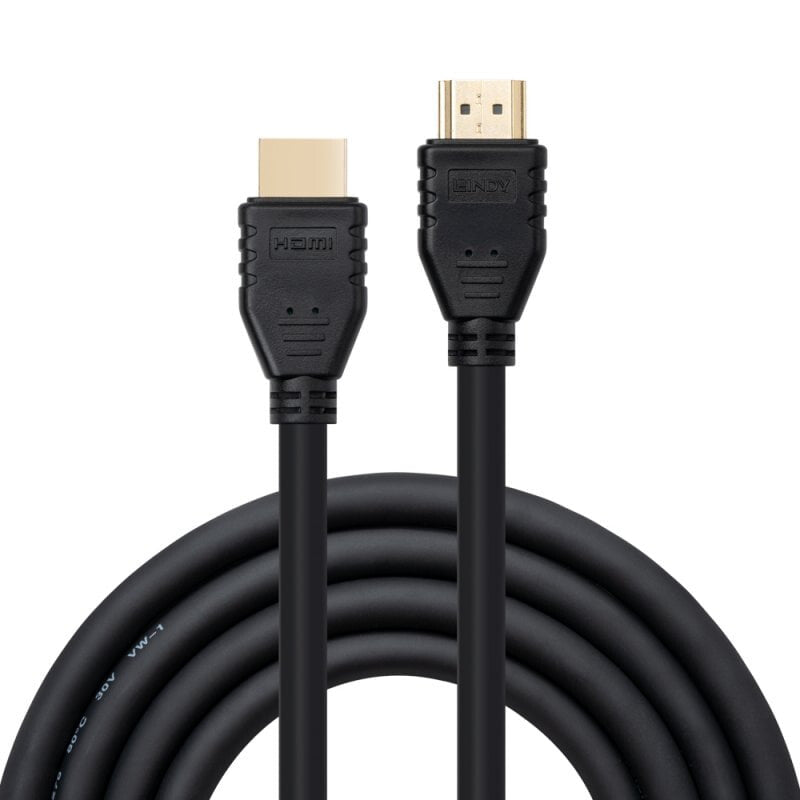

The Lindy flexible HDMI® cable uses a soft PVC Jacket allowing for tight and sharp turns where a conventional cable wouldn't. Whether your're working in cramped spaces behind TVs, inside media cabinets or professional AV set ups. This flexibility ensures quick and hassle-free installation even in the most confined areas without compromising signal integrity.

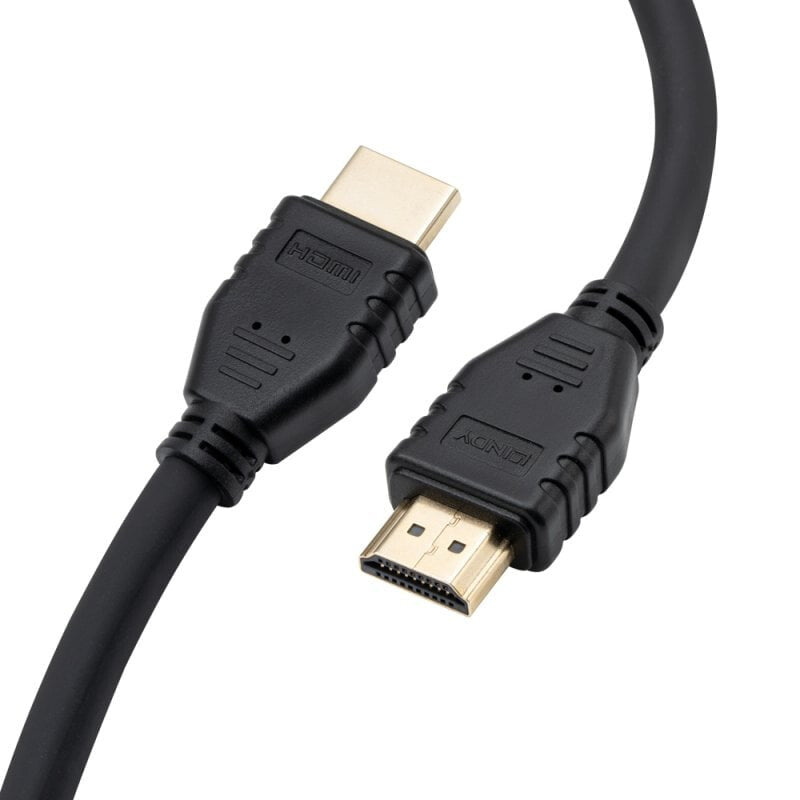

The cable features triple shielded construction with 28AWG bare copper for premium performance featuring gold connectors and gold flashed contacts to maintain signal integrity and reliability.
Supporting 18Gbps bandwidth the Lindy flexible HDMI® can support UHD resolutions up to 3840x2160@60Hz 4:4:4 8-bit. Whilst also transmitting up to 32 channel audio including Dolby® True HD & DTS-HD Master Audio.
The Lindy flexible HDMI® cable is available in lengths from 0.5 to 5m.
| Features |
|---|
| Nominal attenuation |
35GHz＞-5.5dB(HBR1), 7GHz＞-8.5dB(HBR2) |
| Colour sampling |
4:4:4 |
| Colour depth |
8 bit |
| Bending radius (min) |
7.8 cm |
| Shield material |
Aluminium |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Cable type |
Round cable |
| Cable material |
Copper-clad steel (CCS) |
| Connector housing material |
Polyvinyl chloride (PVC) |
| Connector material |
Gold |
| Connector contacts plating |
Gold |
| AWG wire size |
28 |
| Maximum refresh rate |
60 Hz |
| Data transfer rate |
18 Gbit/s |
| Dolby technologies |
DTS:X, Dolby Atmos |
| Supported graphics resolutions |
3840 x 2160 |
| HDMI version |
2.1 |
| Product colour |
Black |
| HDMI cable type |
High Speed HDMI cable |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 |
HDMI Type A (Standard) |
| Cable length |
5 m |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating temperature (T-T) |
-10 - 80 °C |
| Certificates |
|---|
| Certification |
RoHS & REACH UL |
| Compliance certificates |
REACH, RoHS |
| Weight & dimensions |
|---|
| Cable diameter |
7.8 mm |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package type |
Polybag |
| Package height |
10.5 mm |
| Package depth |
35.8 mm |
| Package width |
20.3 mm |
| Logistics data |
|---|
| Warranty period |
10 year(s) |
