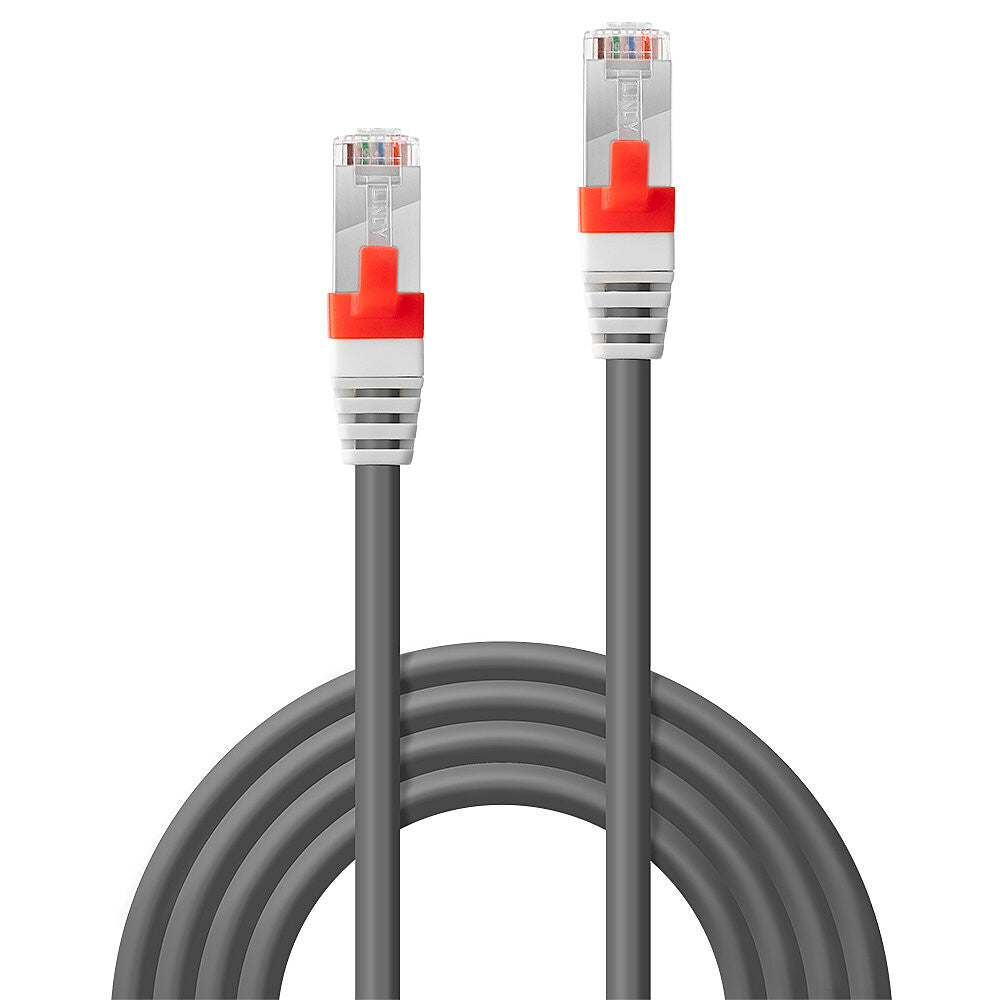

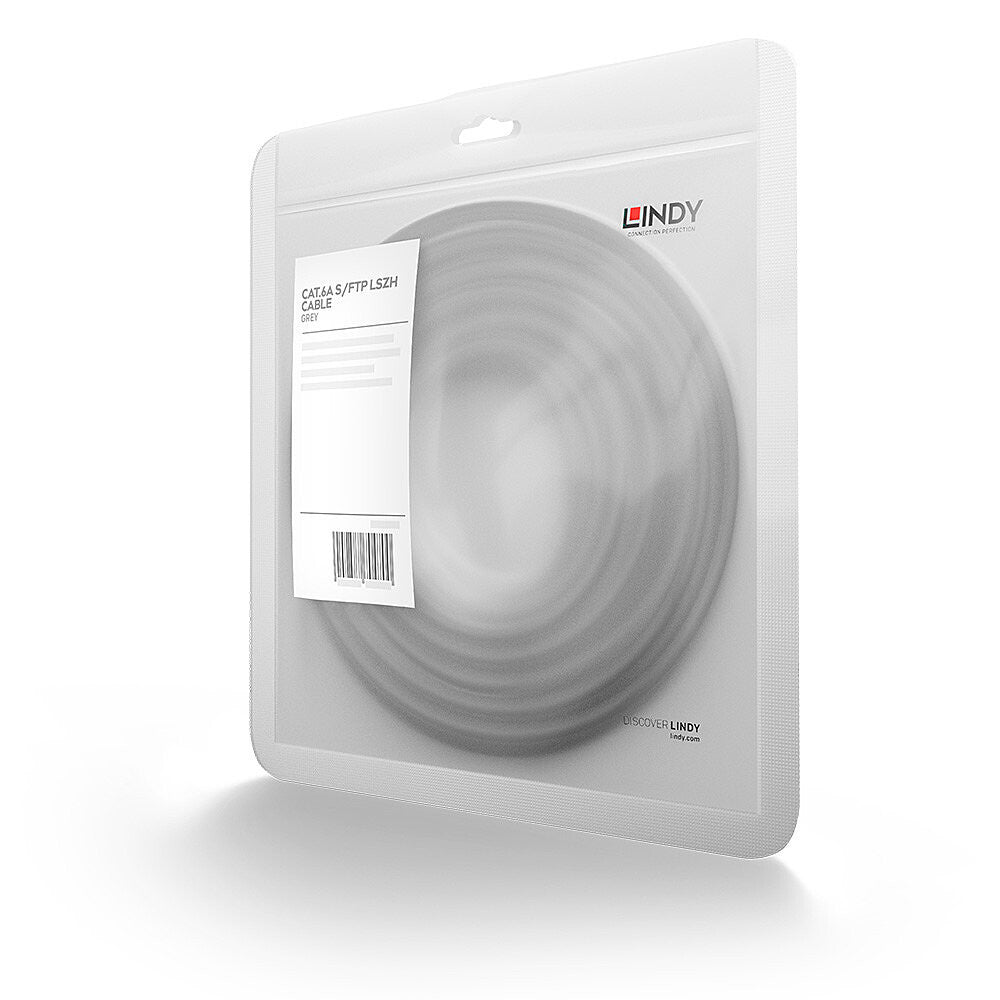

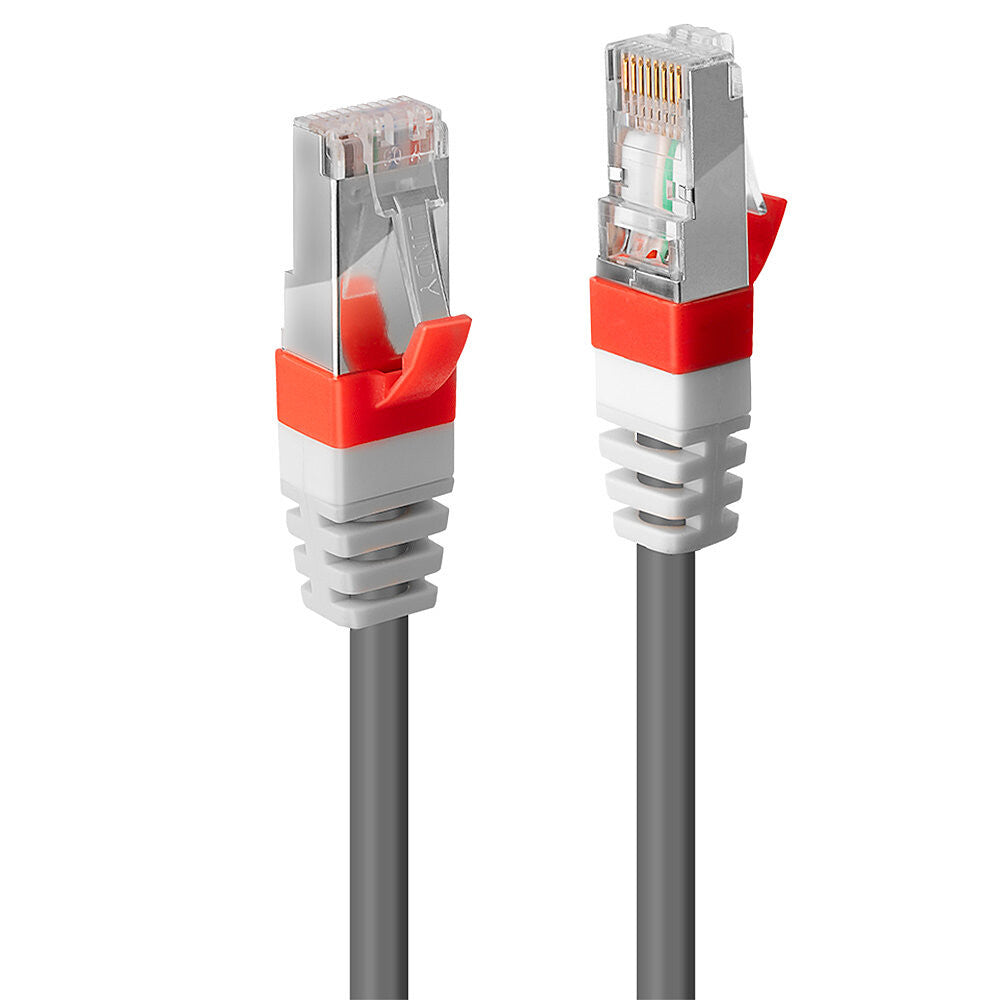

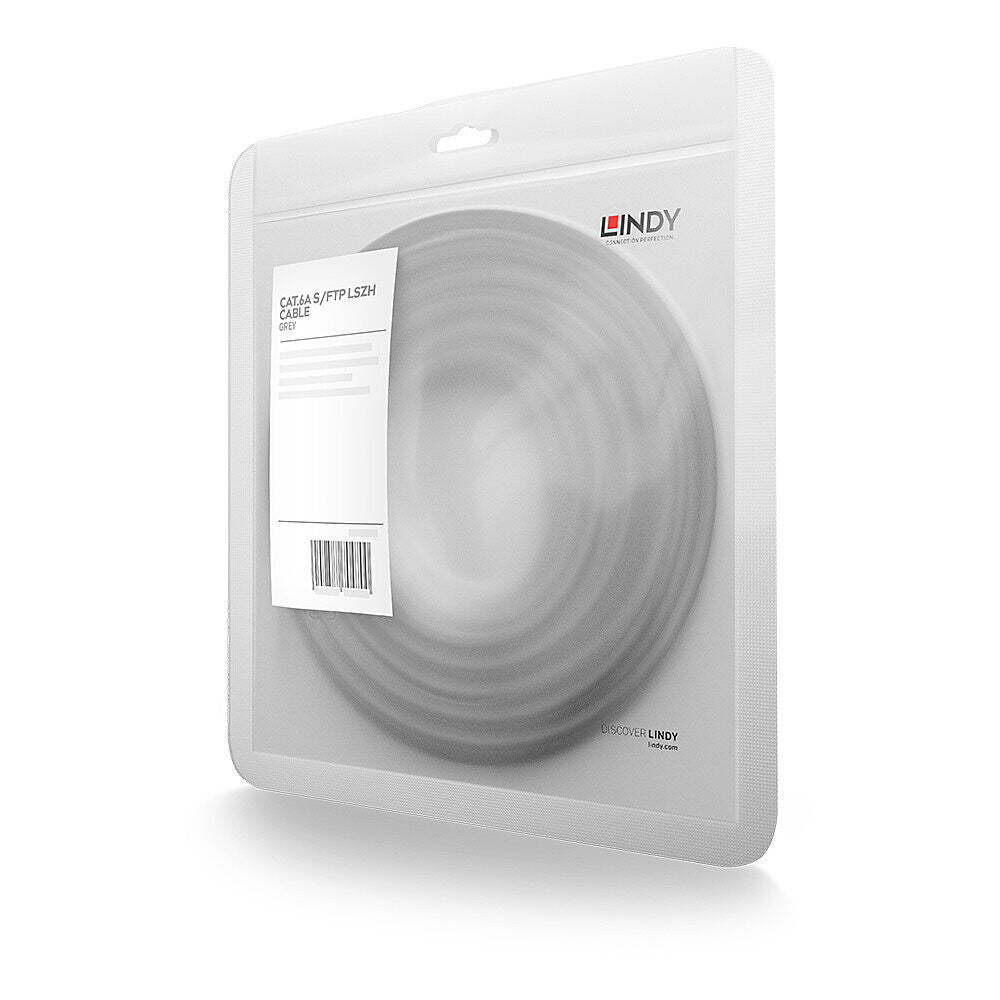

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
| Features |
| Nominal attenuation |
49.3dB/100m @ 500MHz |
| Plug and Play |
Yes |
| Bend radius (min) |
7.2 cm |
| Frequency |
500 MHz |
| Data transfer rate |
1000 Mbit/s |
| AWG wire size |
27 |
| Cabling technology |
10/100/1000Base-T(X) |
| Cable class |
Ea |
| Conductor material |
Copper |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Connector shield material |
Aluminium |
| Connector shielding |
Yes |
| Connector contacts plating |
Gold |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 2 |
RJ-45 |
| Connector 1 |
RJ-45 |
| Product colour |
Grey |
| Cable shielding |
S/FTP (S-STP) |
| Cable standard |
Cat6a |
| Cable length |
5 m |
| Operational conditions |
| Storage temperature (T-T) |
-20 - 75 °C |
| Operating temperature (T-T) |
-10 - 60 °C |
| Certificates |
| Certification |
RoHS, REACH, UL, California Proposition 65 |
| Weight & dimensions |
| Outer diameter |
6 mm |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Packaging data |
| Package type |
Polybag |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
