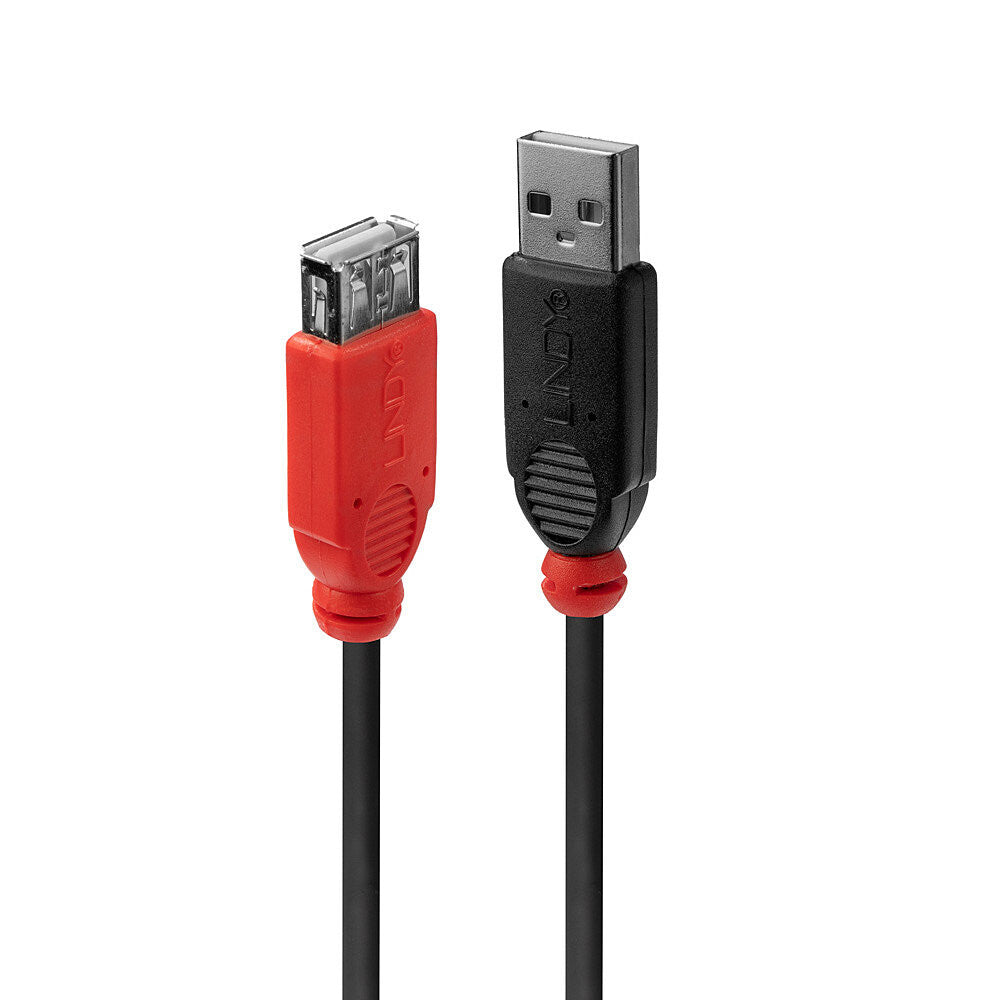

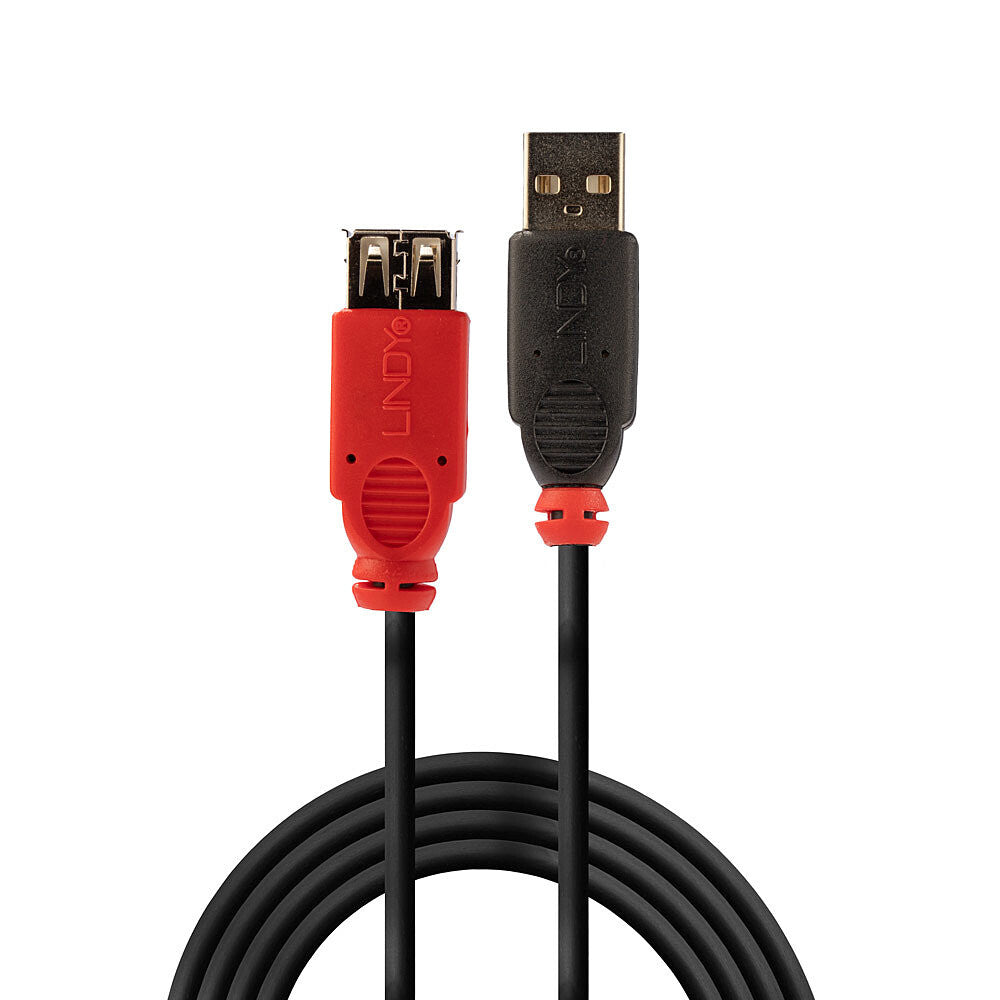

The Lindy USB 2.0 Active Extension Cable Slim uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 5m whilst continuing to support data transfer rates of up to 480Mbps.
With its USB A male and USB A female connector it allows Type A devices to be connected at longer distances and ensures flexible positioning. Up to 5 extension cables can be chained together to achieve a distance of 25m.
The cable's unique and slim design allows the active electronics to fit into a standard USB connector - an advantage over other active USB leads which use bulky connectors. Compatible with all USB Type A equipped computers.
| Features |
|---|
| Nominal attenuation |
24AWG: 93.25Ohm/km28AWG: 237.25Ohm/km |
| Transmission medium |
Twisted pair |
| Plug and Play |
Yes |
| Cable type |
Round cable |
| Product colour |
Black |
| Maximum data transfer rate |
0.48 Gbit/s |
| Connector housing material |
Plastic |
| Connector shielding |
Yes |
| Conductor material |
Tinned copper |
| Connector shield material |
Aluminium |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Connector contacts plating |
Gold |
| Contact material |
Brass |
| Connector material |
Nickel |
| AWG wire size |
24/28 |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Connector 2 |
USB A |
| Connector 1 |
USB A |
| USB version |
USB 2.0 |
| Weight & dimensions |
|---|
| Connector 2 dimensions (WxDxH) |
15 x 45 x 8 mm |
| Connector 1 dimensions (WxDxH) |
15 x 40 x 6 mm |
| Bend radius (min) |
4.8 cm |
| Weight |
180 g |
| Cable diameter |
4.8 mm |
| Cable length |
5 m |
| Packaging data |
|---|
| Package weight |
200 g |
| Package height |
38 mm |
| Package depth |
146 mm |
| Package width |
214 mm |
| Package type |
Blister |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Certificates |
|---|
| Certification |
CE, UKCA, FCC, RoHS & REACH |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
