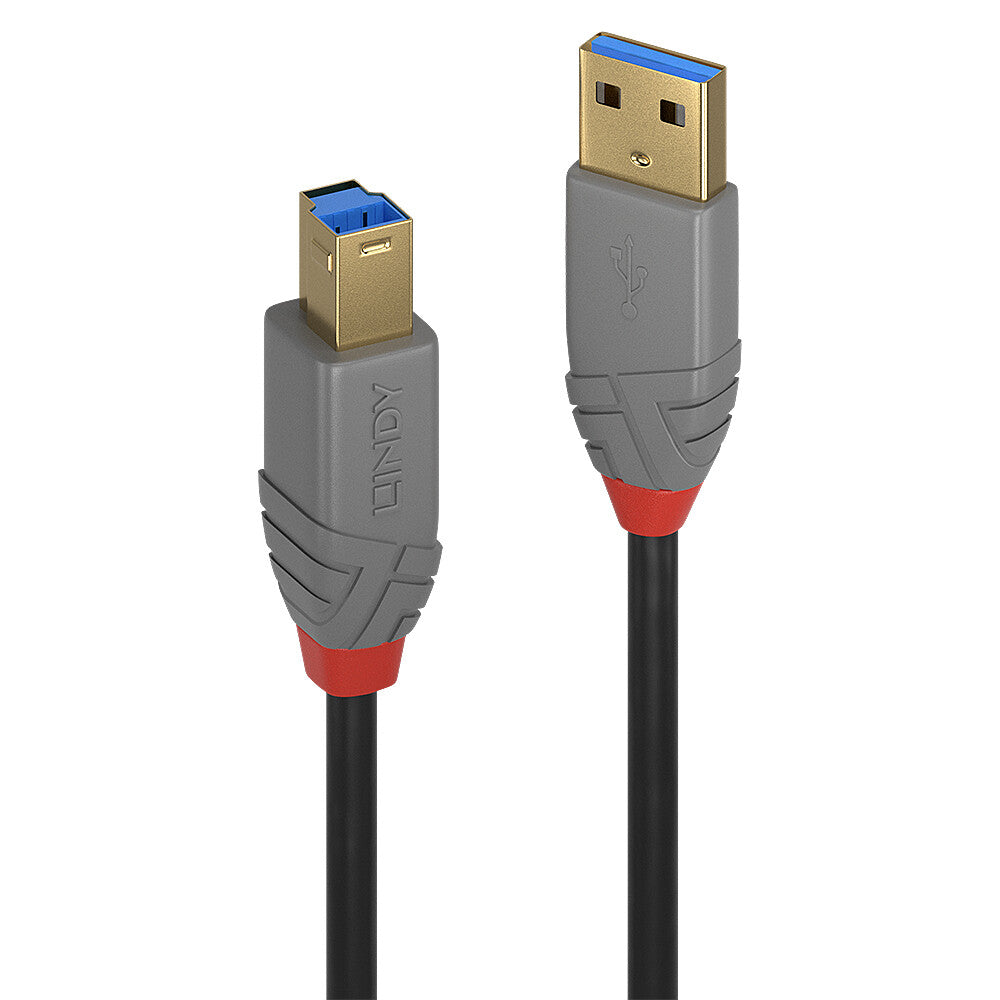

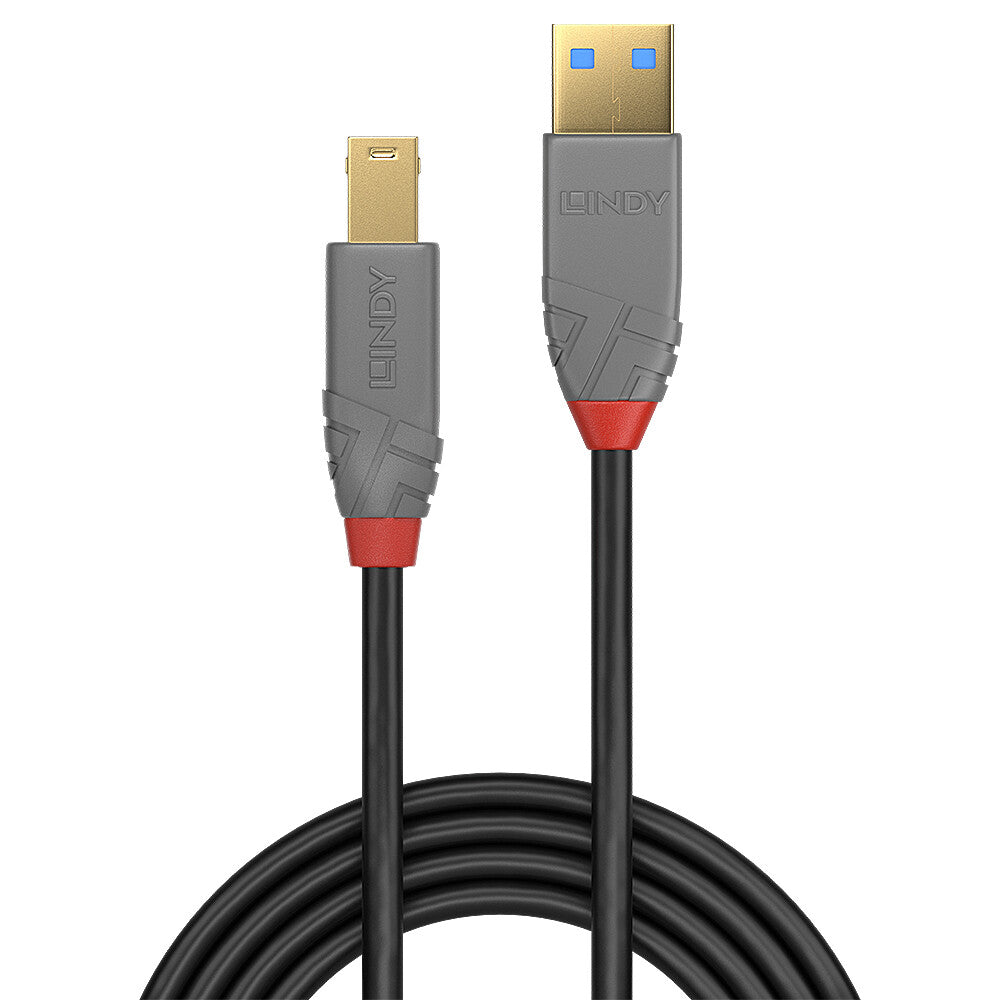

The Anthra Line USB 3.2 Type A to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.
Anthra Line USB 3.2 Type A to B cables are available in the following lengths: 0.5m, 1m, 2m, 3m and 5m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
| Features |
|---|
| Nominal attenuation |
0.5-5m: 0.5MHz-7.5GHz25DB |
| Cable type |
Round cable |
| Product colour |
Black |
| Maximum data transfer rate |
5 Gbit/s |
| Connector housing material |
Polyvinyl chloride (PVC) |
| Connector shielding |
Yes |
| Conductor material |
Tinned copper |
| Connector shield material |
Aluminium |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Connector contacts plating |
Gold |
| Contact material |
Copper |
| Connector material |
Gold |
| AWG wire size |
26/28 |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
USB B |
| Connector 1 |
USB A |
| USB version |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Weight & dimensions |
|---|
| Connector 2 dimensions (WxDxH) |
6.6 x 7.3 x 34.4 mm |
| Connector 1 dimensions (WxDxH) |
12 x 4.5 x 36 mm |
| Bend radius (min) |
4.8 cm |
| Cable diameter |
5.5 mm |
| Cable length |
5 m |
| Packaging data |
|---|
| Package type |
Polybag |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Storage temperature (T-T) |
0 - 60 °C |
| Operating temperature (T-T) |
0 - 60 °C |
| Certificates |
|---|
| Certification |
RoHS, REACH, UL |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
