SKU: 38300

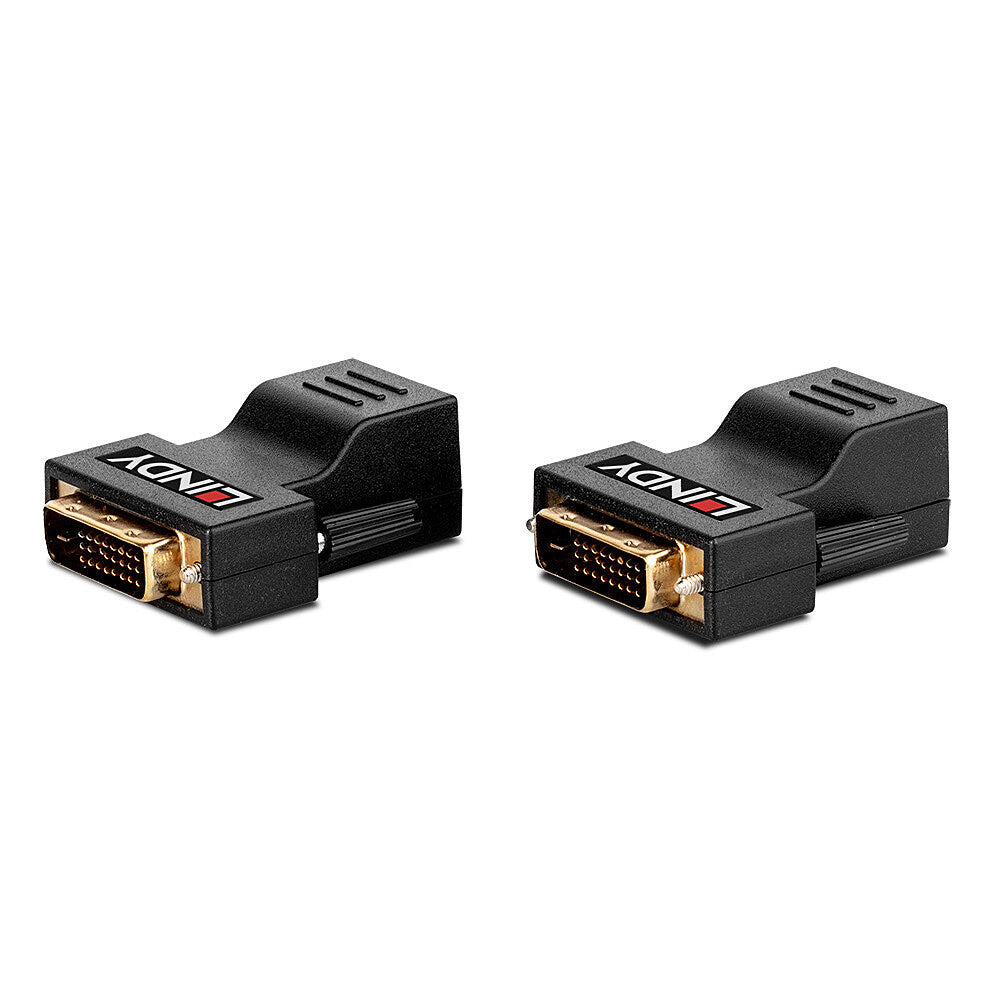

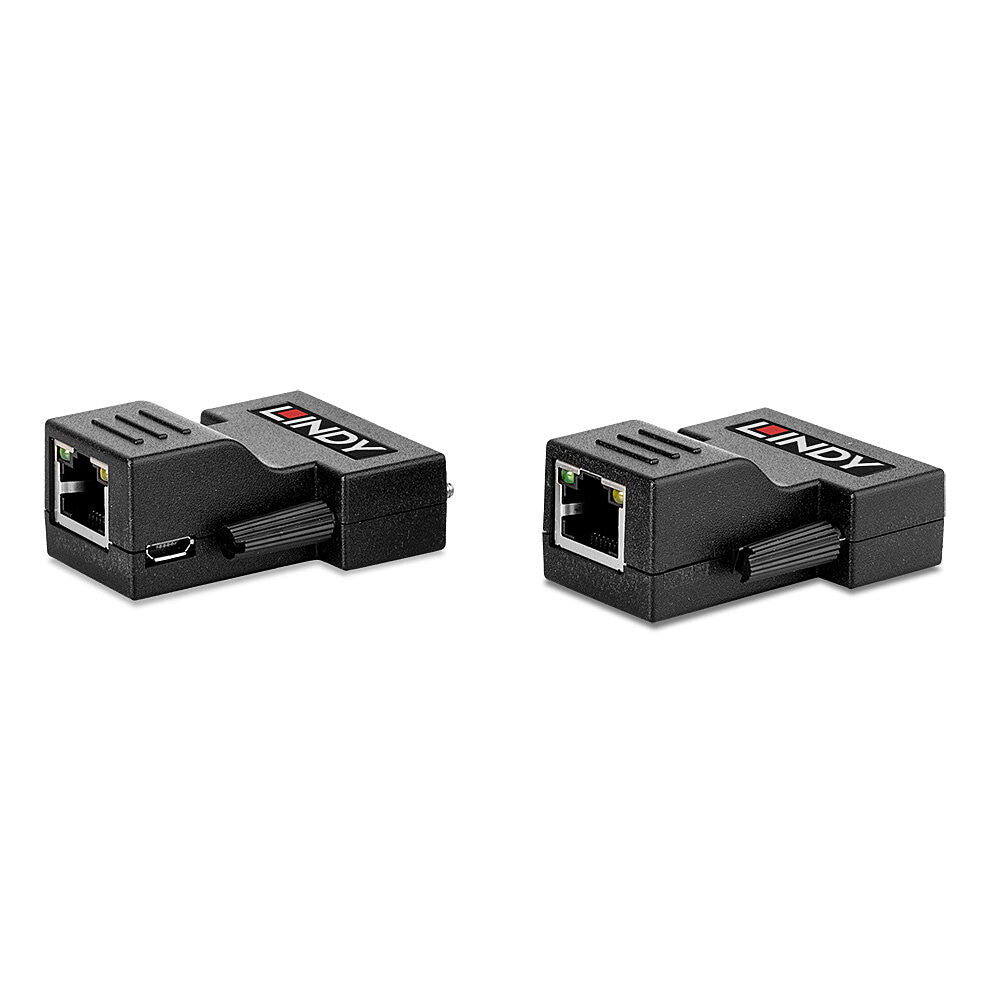

Lindy 70m Cat.6 DVI-D Single Link Extender

Lindy
£114.48
  • Extends DVI-D video signals up to 70m using low costandnbsp;CAT5e/6 Cableandnbsp;(not included)
  • Supports resolutions from 800x600 up to 1920x1200 including 1080p
  • The Extender supports the following resolutions/distance combinations:
  • 800x600 up to 70m
  • 1024x768 up to 65m
  • 1280x1024 to 1920x1200 up to 50m
  • HDCP not supported
  • 2 year warranty

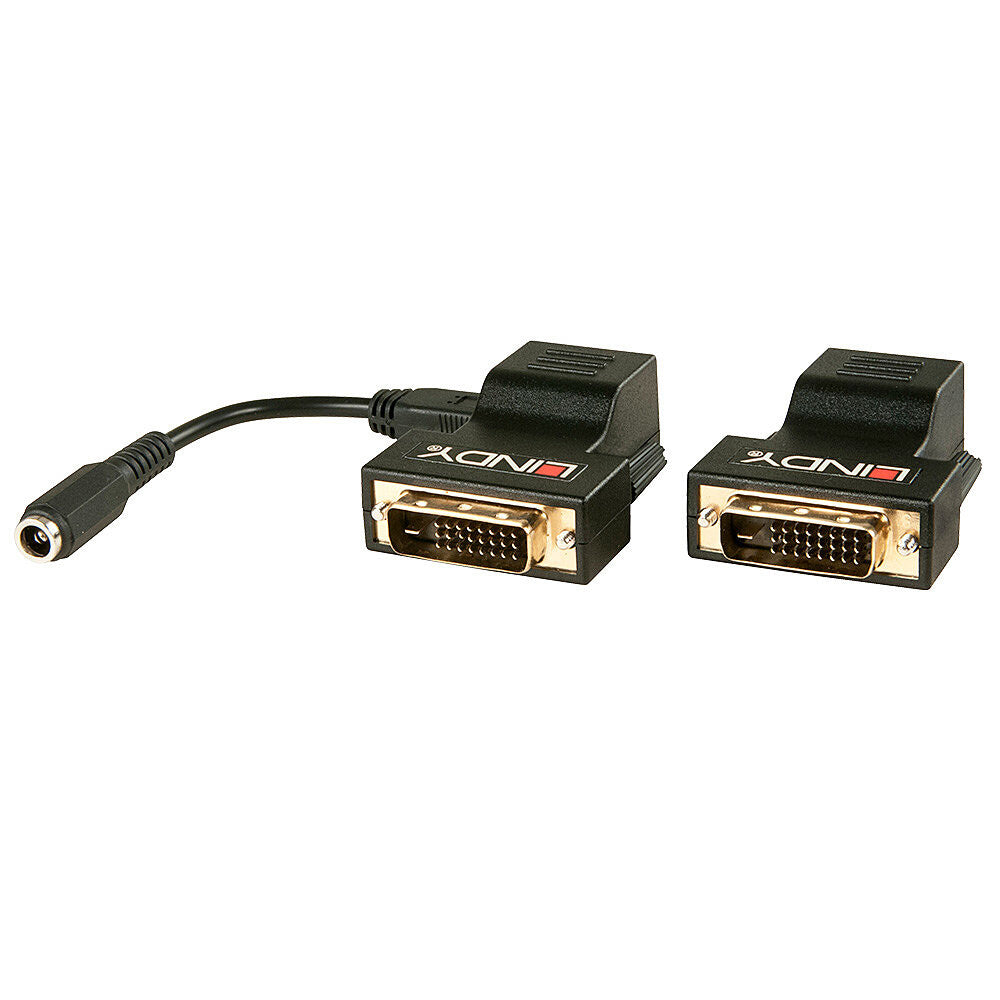

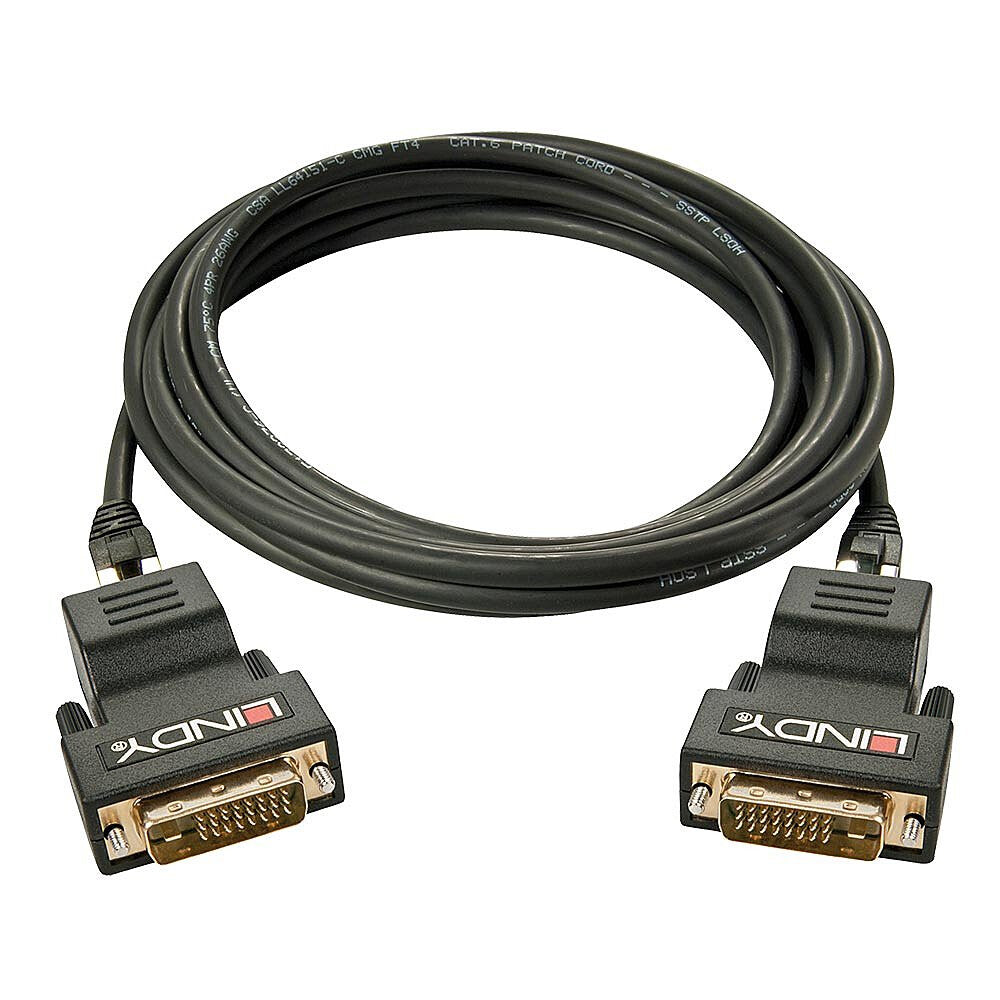

With this Extender you can use up to 70m of high quality inexpensive Cat.5e/6 cable to connect a DVI source to a DVI display device. The slim RJ45 connectors and Cat.6 cable (not included) allow greater flexibility not possible with larger DVI connectors and cables. Normal operation will not require external power; however the Transmitter unit allows external power to be attached in cases where the graphics card does not provide sufficient power, either using a USB Micro-B Cable or an external power supply connected to the supplied USB to DC cable. The Extender supports the following resolutions/distance combinations:



800x600 = 70m 1024x768 = 65m 1280x1024 up to 1920x1200 = 50m



Additional Requirements:

RJ-45 patch cable: 1 xCAT5e/6 UTP Cable

Features
Product colour Black
Cable length 70 m
Maximum resolution 1920 x 1200 pixels
Packaging data
Quantity per pack 2 pc(s)
Technical details
Connector 2 RJ-45
Connector 1 DVI-D
