Matrix Switches are premium solutions for distributing content from multiple source devices to multiple displays. The Lindy 8x8 HDMI 4K60 Matrix supports HDMI 2.0b 18G signals, allowing for the transmission of clear 4K Ultra HD 60Hz resolutions. Additional support for High Dynamic Range ensures video content is displayed with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for digital signage displays in retail, creating informational multi-display setups in education, or distributing content in commercial installations such as cinemas. HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players.

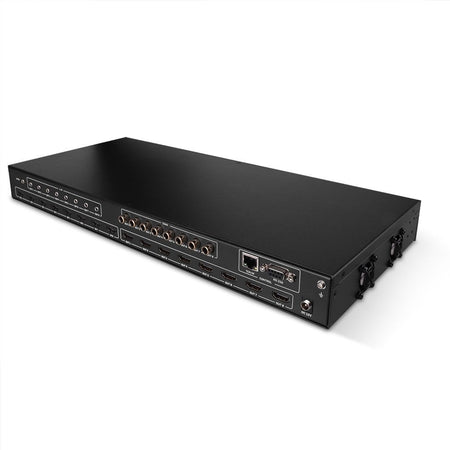

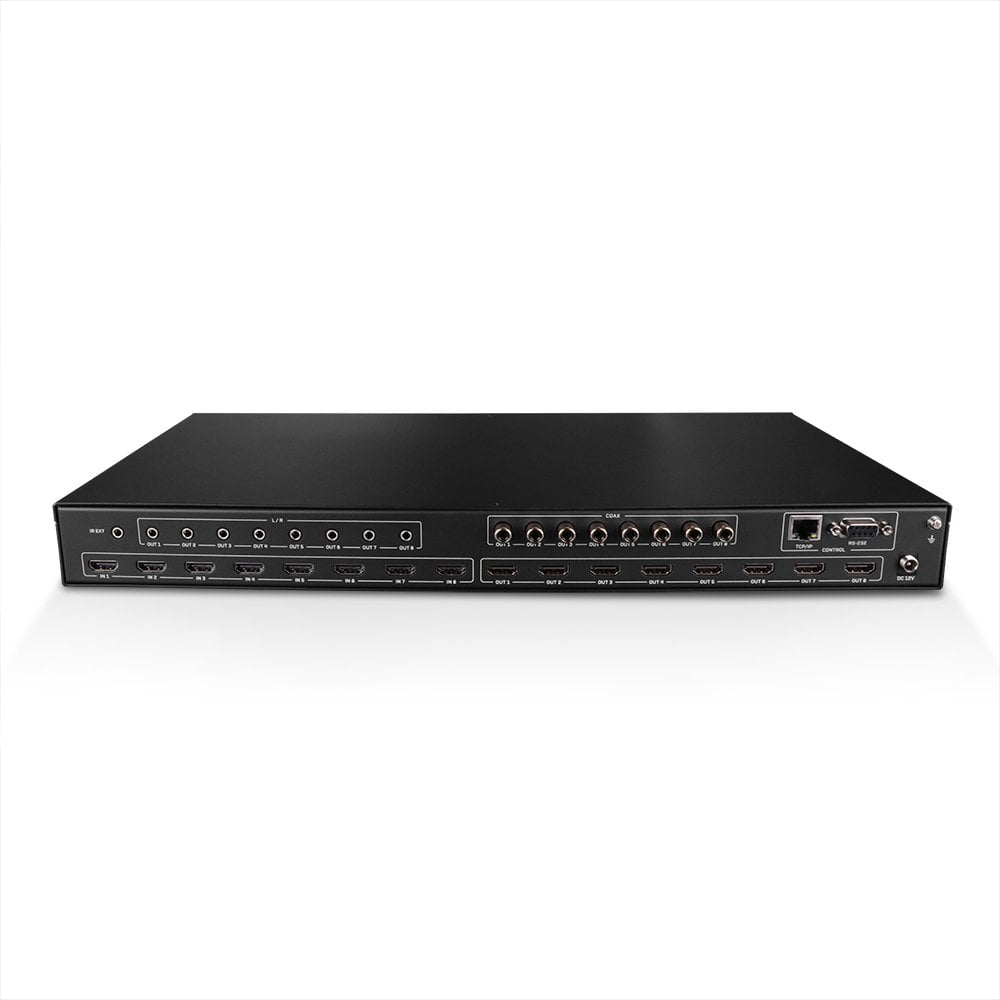

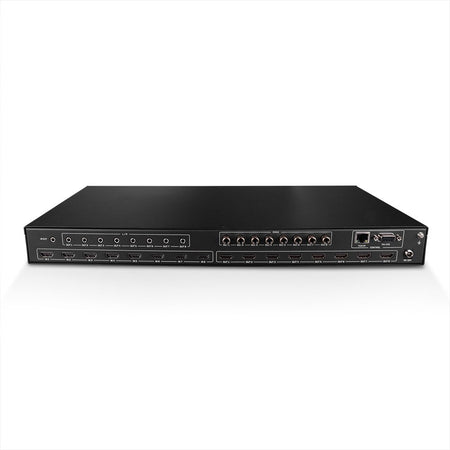

As well as HDMI audio pass-through, individual Coax and 3.5mm ports allow for a separate connection of digital speaker systems and amplifiers, creating immersive audio experiences to compliment the video content.The Audio Return Channel (ARC) feature allows audio to be sent from a TV to an audio system or soundbar over the same HDMI cable that is used to send video to the TV. This eliminates the need for a separate audio cable and simplifies the setup process.
The Matrix also features a downscale function for each output port from 4K to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.

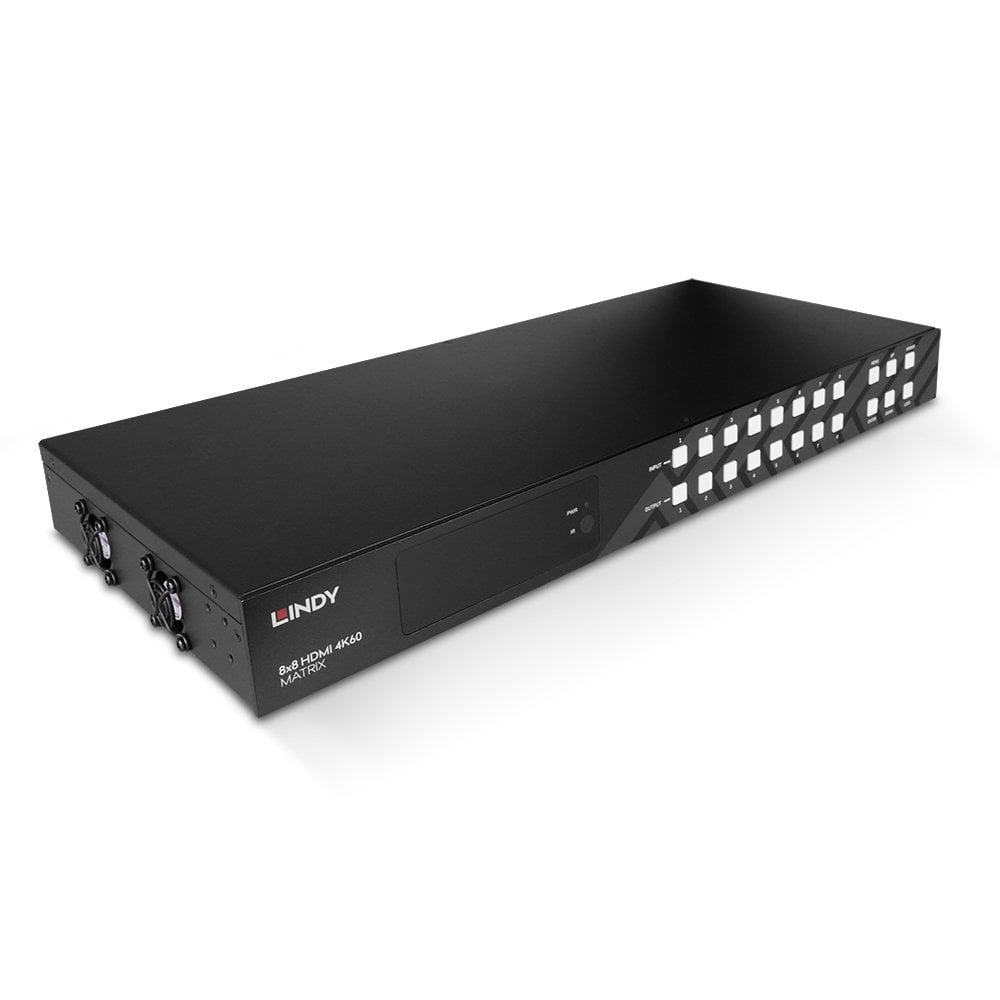

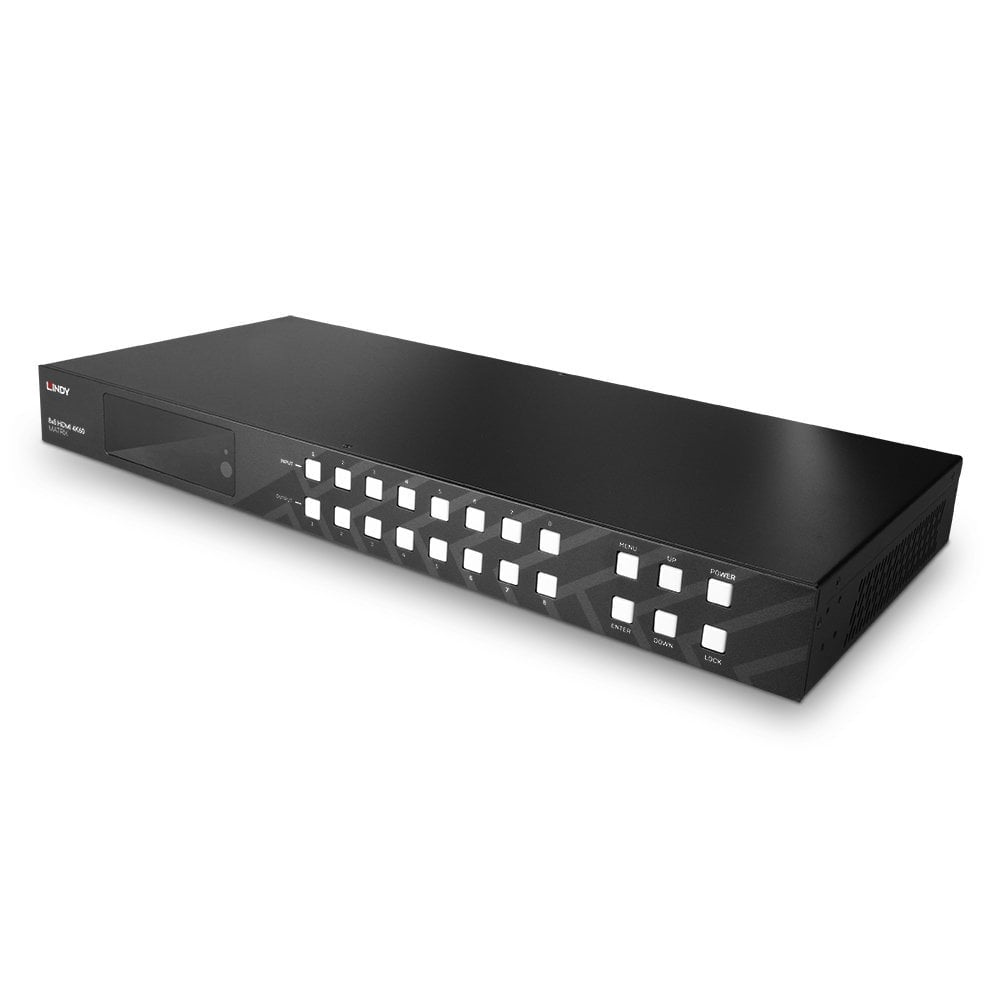

This Matrix can be easily controlled via push button switching on the unit, while the included remote control and IR extension also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
| Features |
|---|
| Audio formats supported |
DTS, LPCM |
| EDID management |
Yes |
| HDCP version |
2.2 |
| HDCP |
Yes |
| Bandwidth |
18 Gbit/s |
| Maximum resolution |
3840 x 2160 pixels |
| Product type |
AV matrix switcher |
| Design |
|---|
| Certification |
CP65 |
| Control type |
Buttons |
| Housing material |
Metal |
| Housing colour |
Black |
| Display |
|---|
| Display type |
OLED |
| Built-in display |
Yes |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Audio (L/R) out |
8 |
| RS-232 ports |
1 |
| RJ-45 input ports |
1 |
| HDMI version |
2.0b |
| HDMI output ports quantity |
8 |
| HDMI input ports quantity |
8 |
| Power |
|---|
| Output voltage |
12 V |
| Input current |
5 A |
| Power consumption (max) |
43 W |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
-10 - 45 °C |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Warranty period |
2 year(s) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Weight & dimensions |
|---|
| Package weight |
4.06 kg |
| Package height |
95 mm |
| Package depth |
328 mm |
| Package width |
510 mm |
| Package type |
Box |
| Weight |
2.83 kg |
| Height |
45 mm |
| Depth |
200 mm |
| Width |
440 mm |
