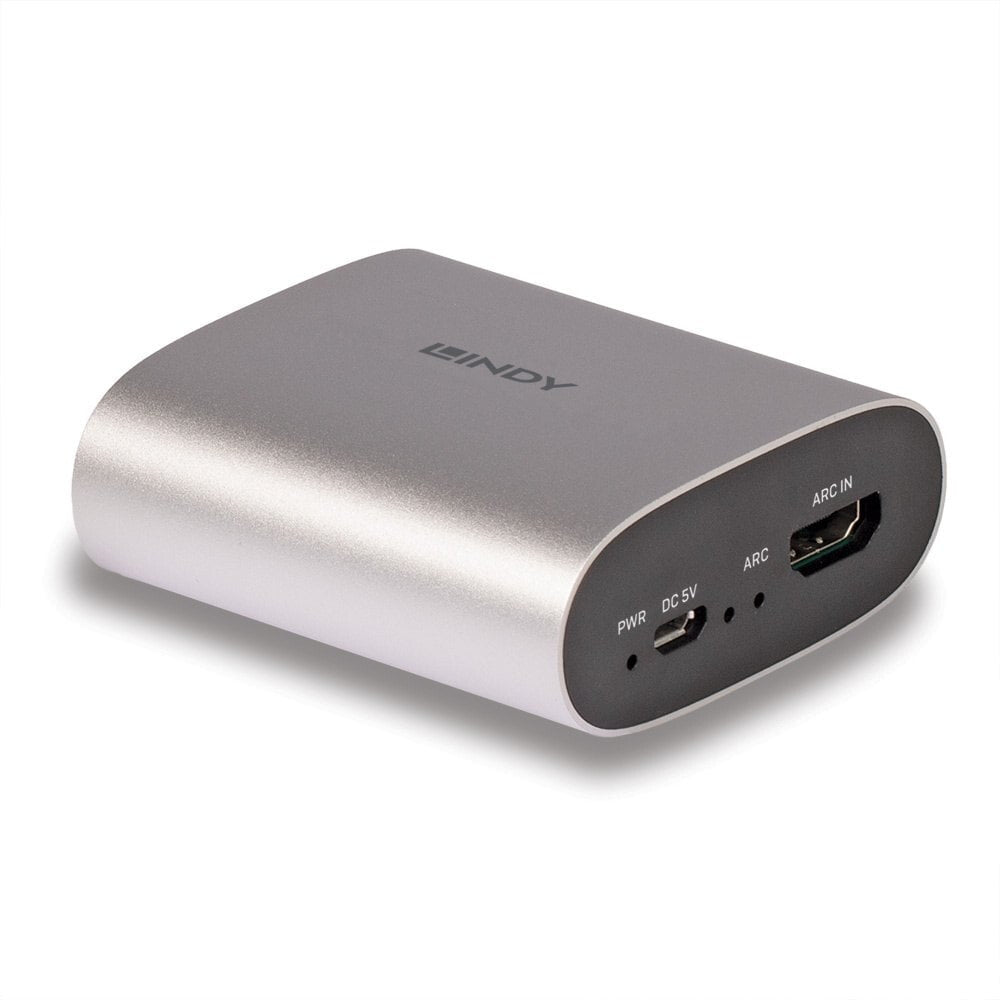

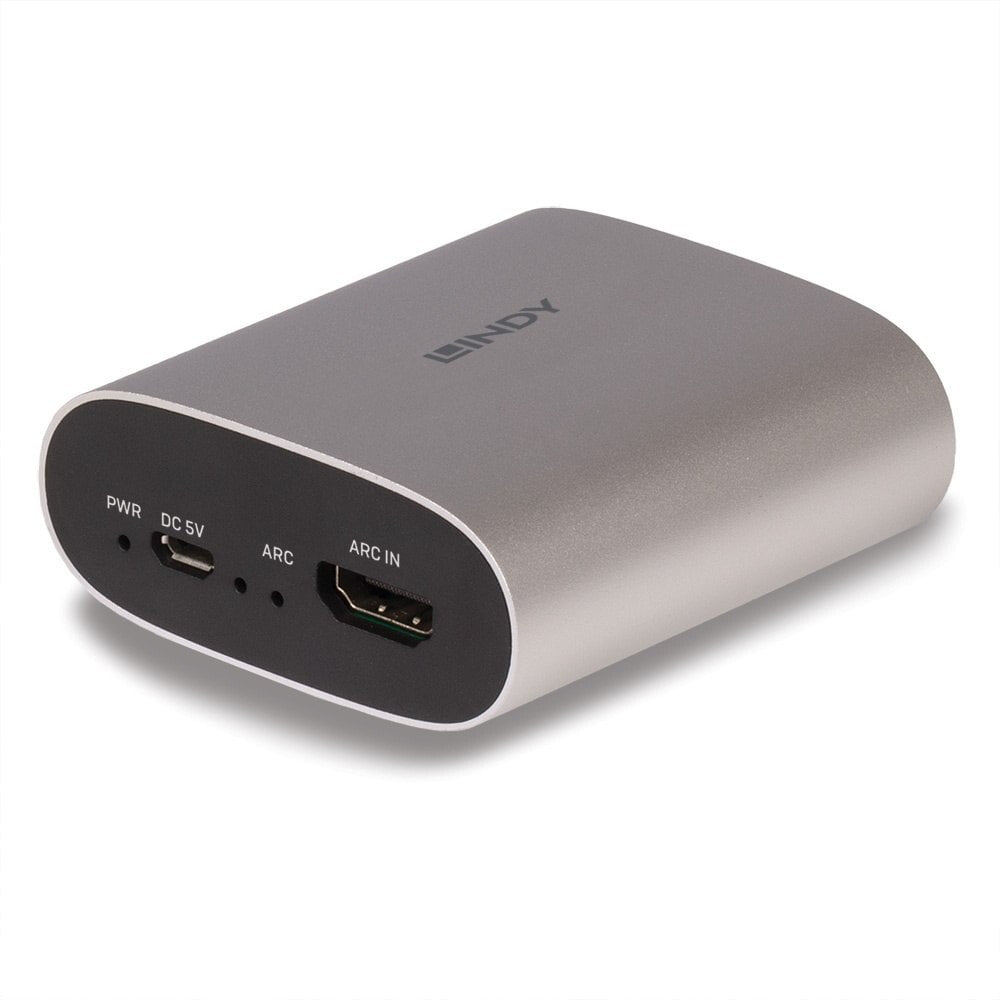

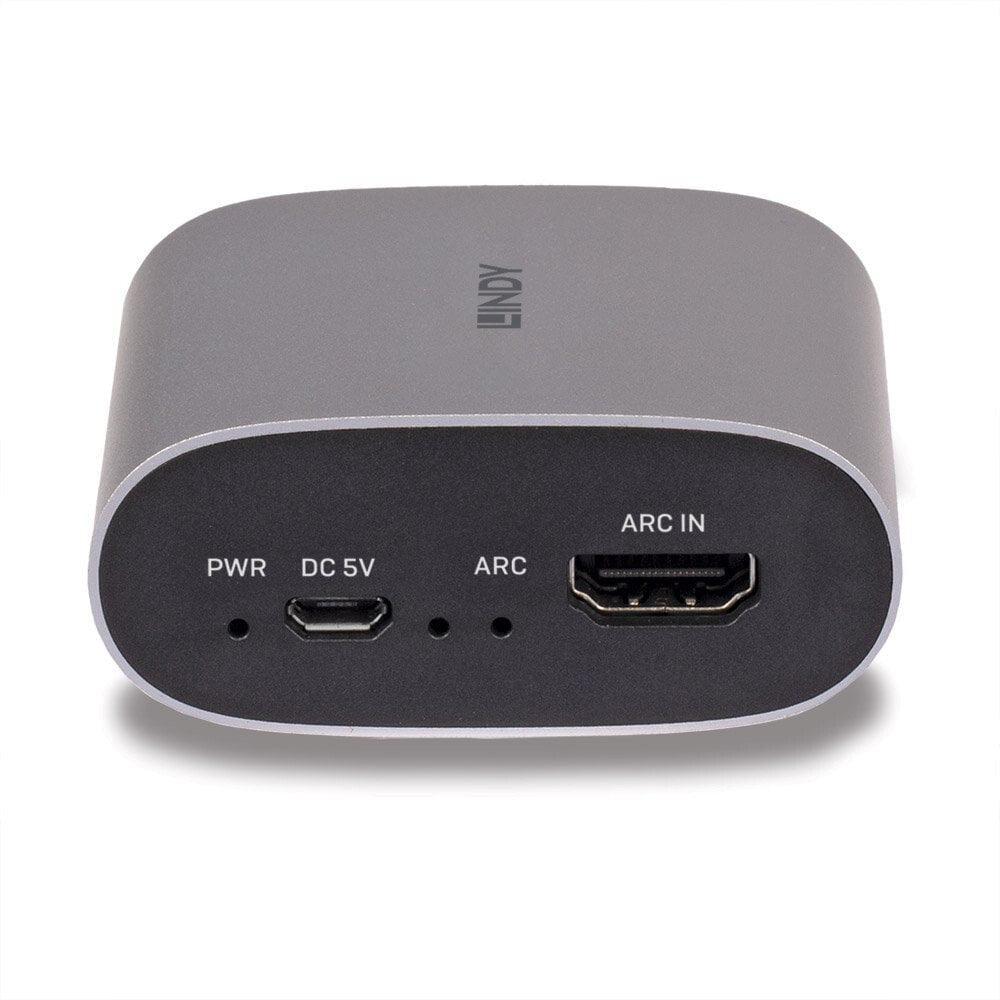

The Lindy HDMI ARC Audio Extractor is an effective solution for extracting audio from a HDMI display to analogue audio devices.
The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.

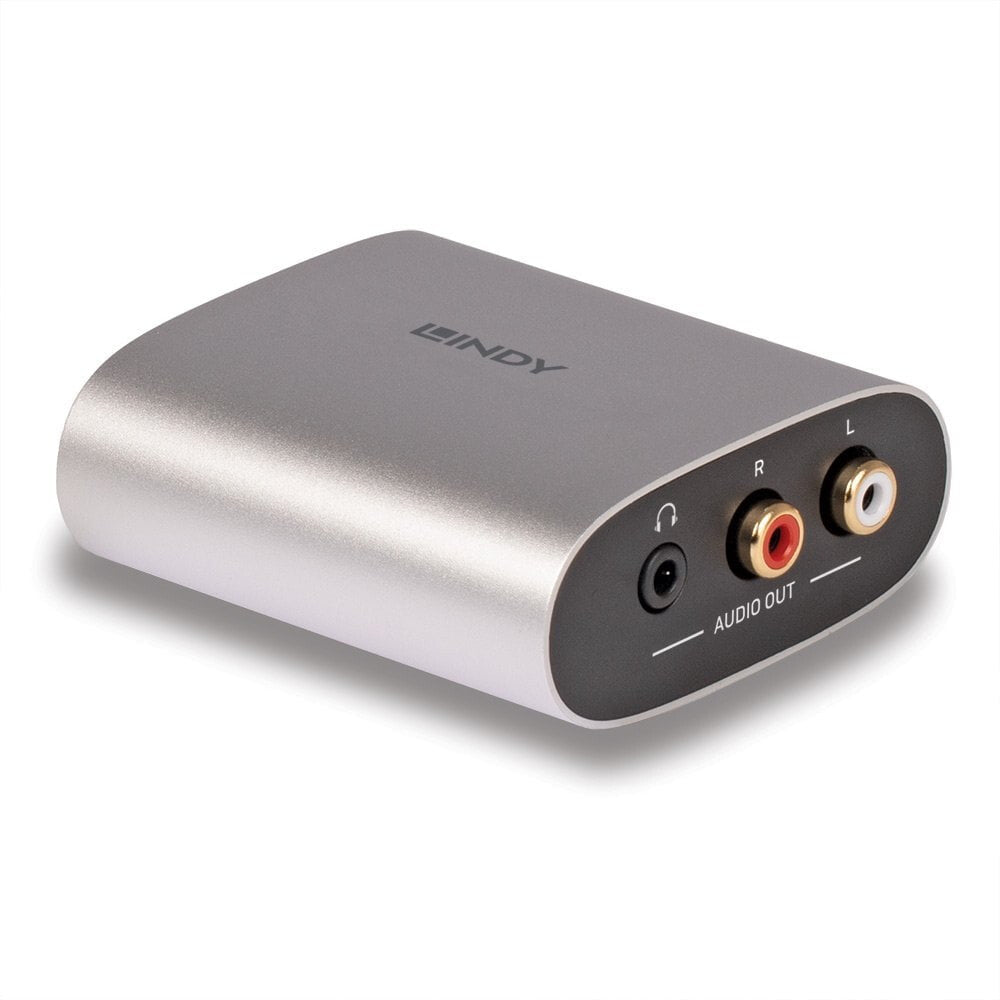

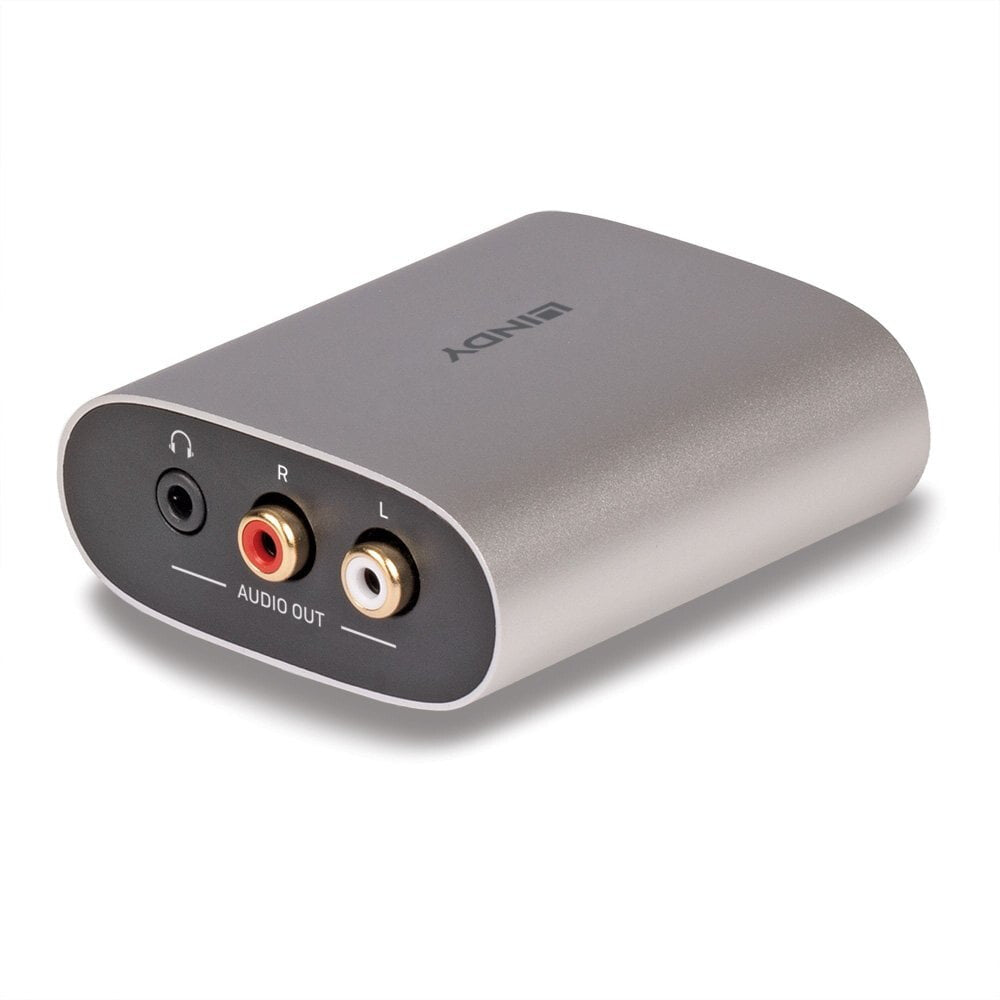

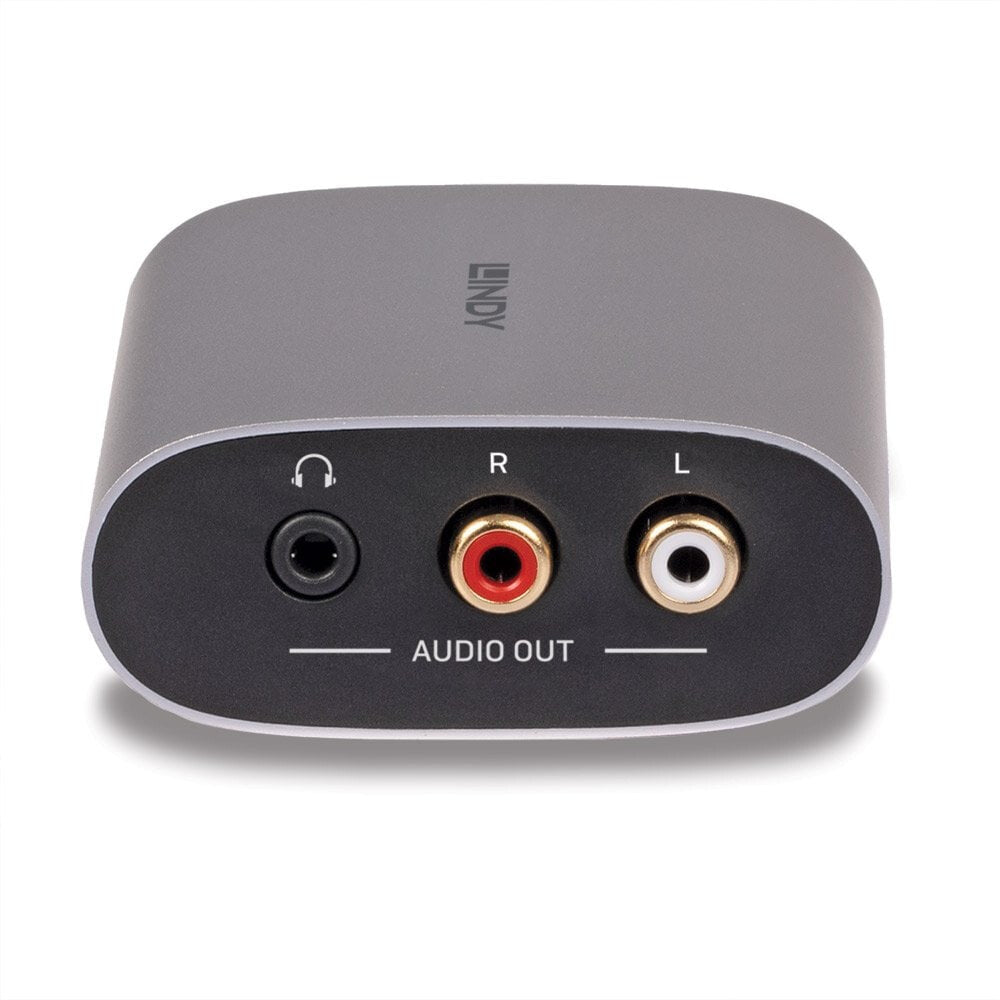

This audio extractor allows output to HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor, perfect for use with PC monitors which may require separate speakers.
| Inputs |
|---|
| HDMI in |
1 |
| USB connector type |
Micro-USB |
| Outputs |
|---|
| Headphone out |
Yes |
| Audio (L/R) out |
1 |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Certification |
California Proposition 65 |
| Warranty period |
2 year(s) |
| Signal-to-Noise Ratio (SNR) |
101 dB |
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS |
| Product colour |
Silver |
| Housing material |
Plastic |
| Supported sample rates |
192 kHz |
| Output impedance |
100 Ω |
| HDMI version |
1.4 |
| CEC pass-through |
Yes |
| Chipset |
SPHE8107S |
| Frequency range |
20 - 20000 Hz |
| Power |
|---|
| Power consumption |
500 mA |
| Input voltage |
5 V |
| Weight & dimensions |
|---|
| Weight |
81 g |
| Height |
27 mm |
| Depth |
65 mm |
| Width |
70 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
174 g |
| Package height |
65 mm |
| Package depth |
105 mm |
| Package width |
146 mm |
| Quantity |
1 |
| Cables included |
USB Type-A to Micro-USB Type-B |
| Manual |
Yes |
