Extends HDMI signals over a single powerline circuit
Transmit content to 3 compatible receivers, as well as to a local HDMI display
Supports resolutions up to Full HD 1920x1080@60Hz
Receive IR signals from the display side of the setup
2 year warranty
HDMI over Powerline extenders provide a useful solution for extending HDMI content to one or more displays within one electrical circuit.

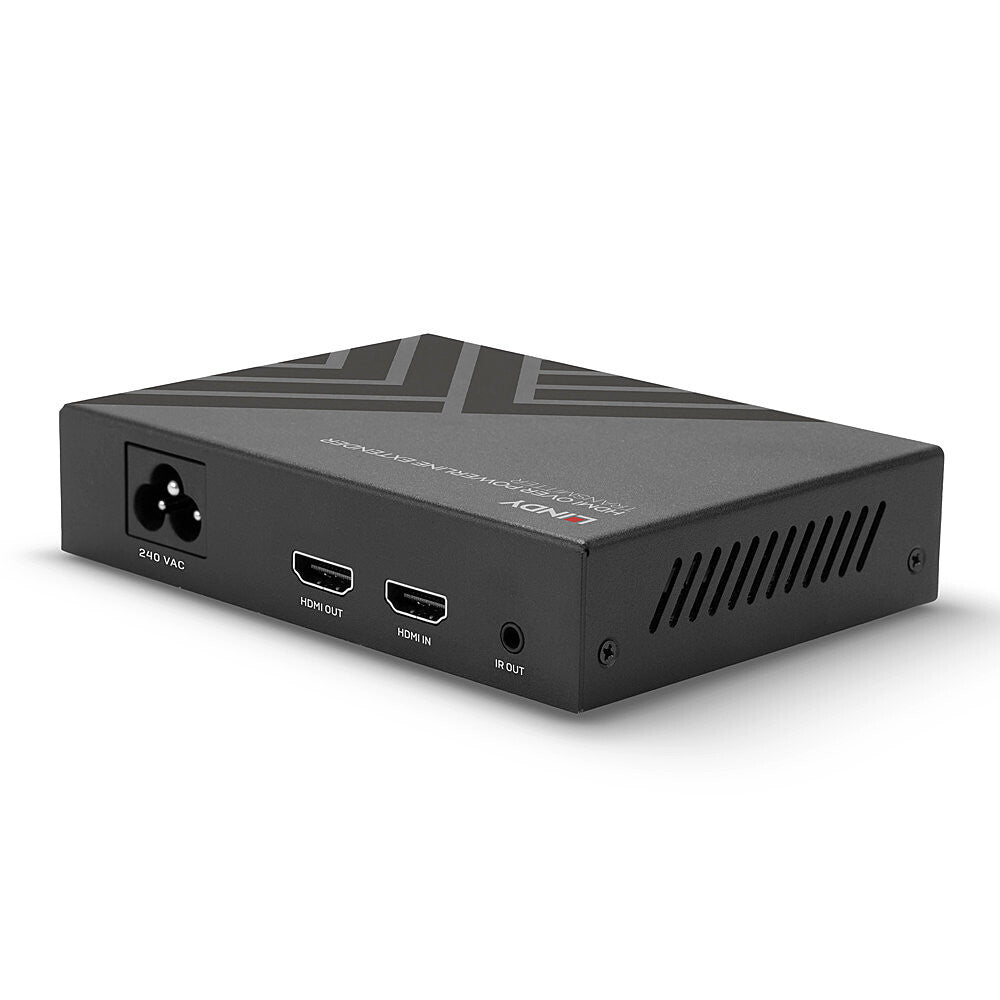

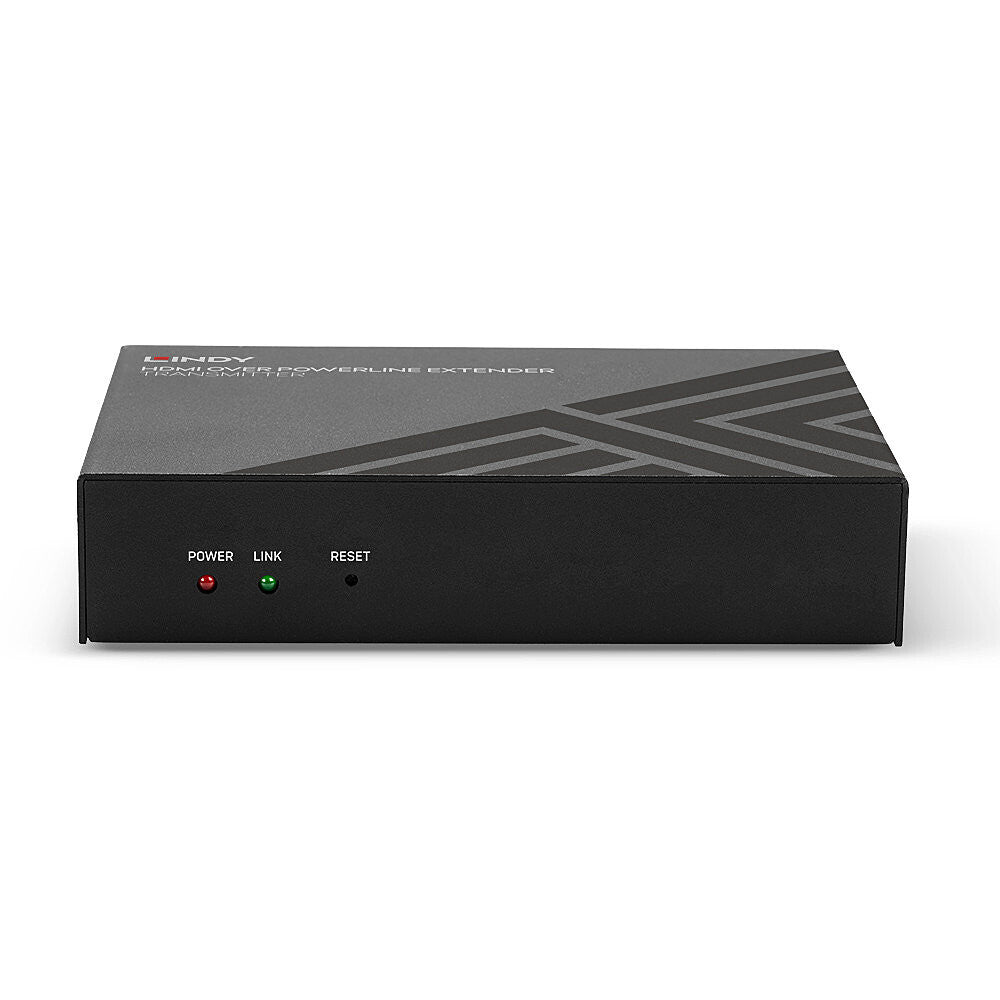

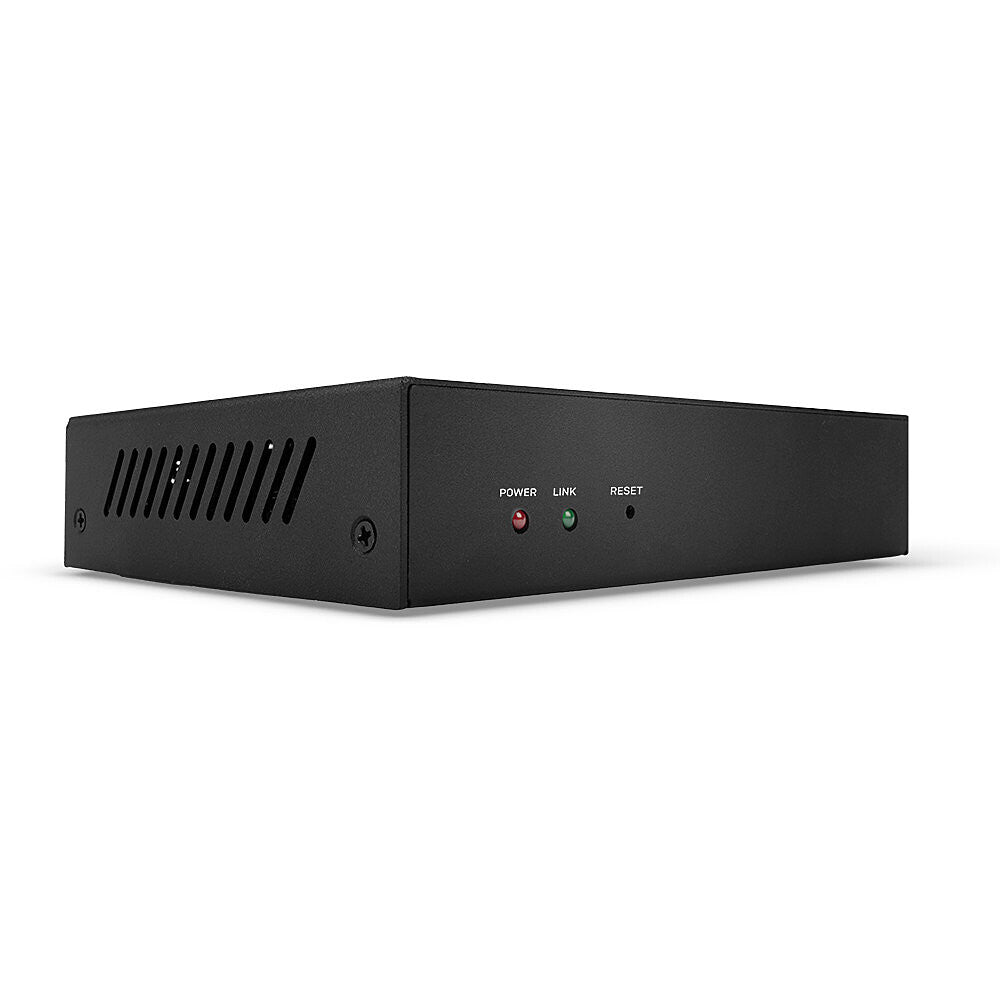

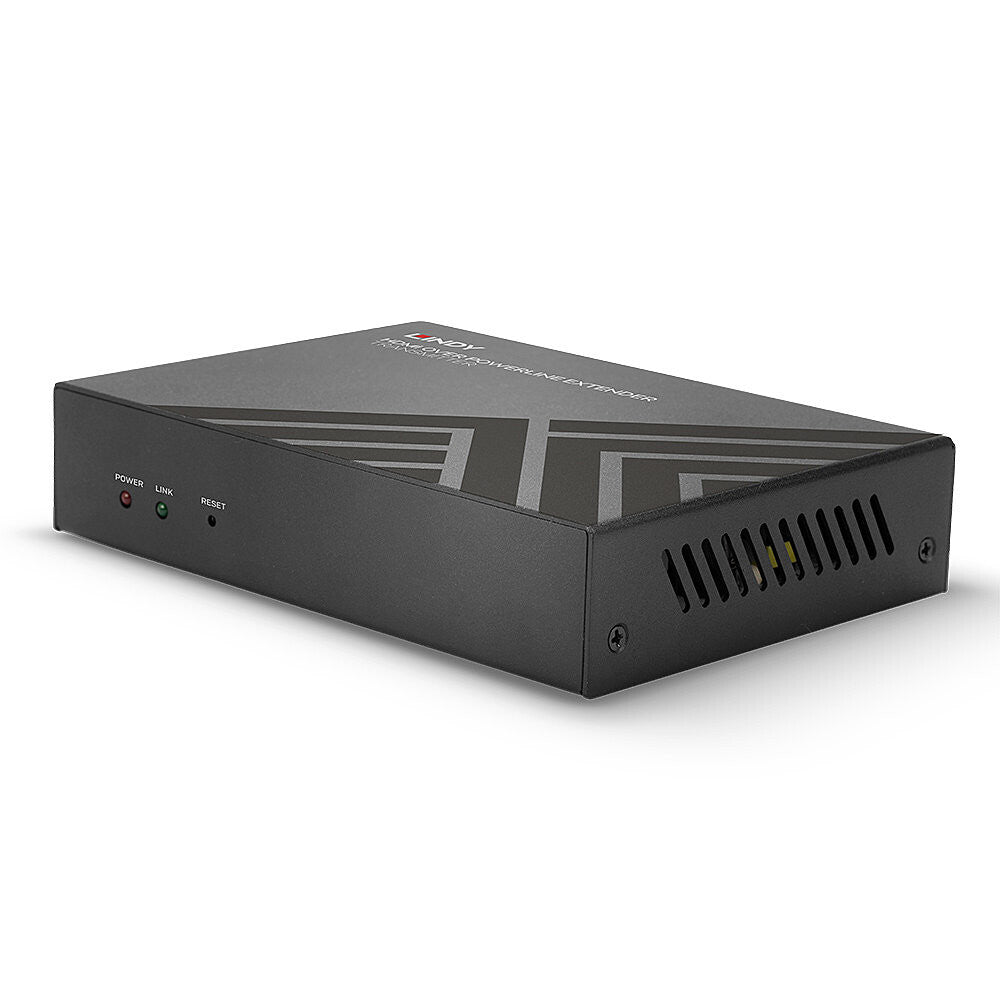

The Lindy HDMI over Powerline Transmitter is one part of a high-quality solution for extending HDMI content from a source device to a display using a single electrical power circuit. Combined with the compatible receiver unit, this extender provides simple, hassle-free content distribution within small office, store front or residential setups.
Supporting resolutions up to 1920x1080@60Hz ensuring excellent Full HD quality for the user. This device is ideal for sharing video and audio content into bedrooms, home offices or small-scale digital signage using pre-existing electrical wiring.

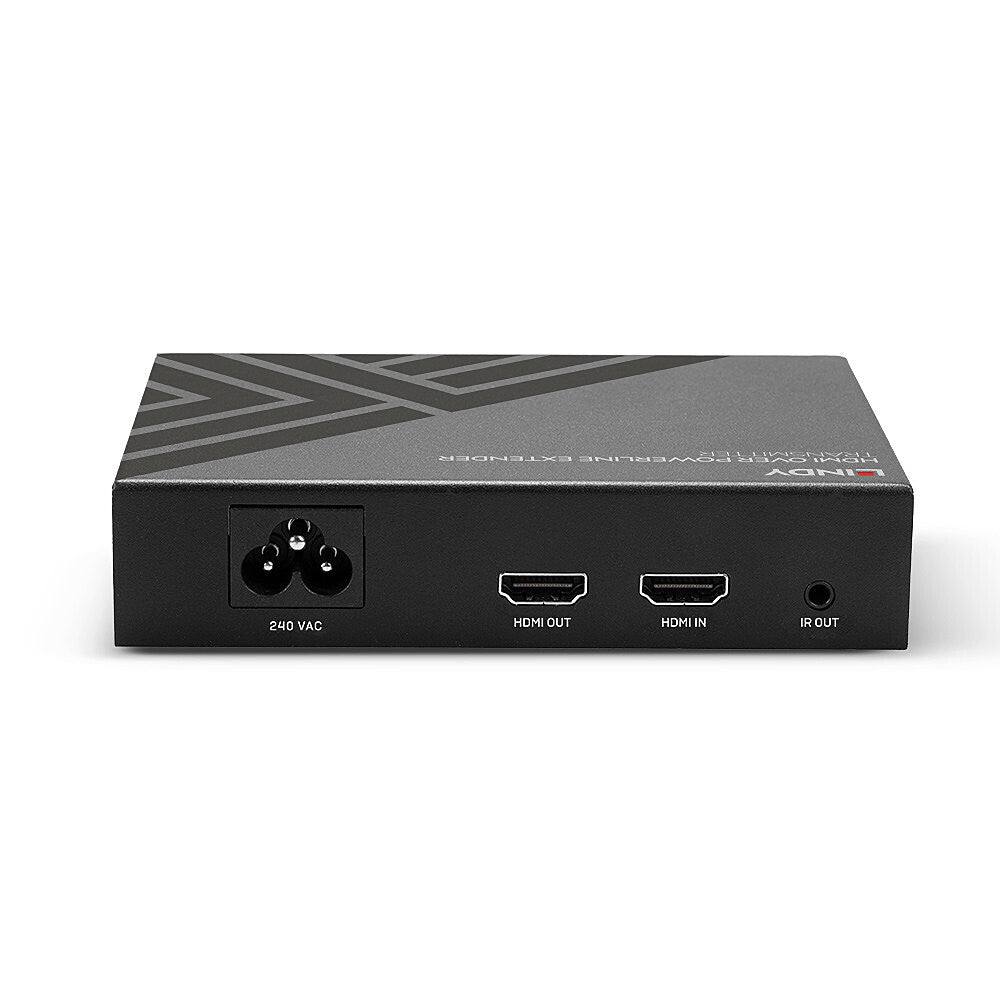

An HDMI loop-out allows for connection of a local HDMI display, while connection to 3 compatible receivers allows for larger scale distribution to multiple displays. A 3.5mm IR connection also allows for simple control from the display side of the setup.
| Features |
|---|
| Product colour |
Black |
| Material |
Metal |
| Audio formats supported |
LPCM |
| HDCP |
Yes |
| Bandwidth |
6.75 Gbit/s |
| HDCP version |
1.4 |
| Chipset |
ITE |
| Maximum resolution |
1920 x 1080 pixels |
| Type |
AV transmitter |
| Ports & interfaces |
|---|
| Remote (IR) output |
1 |
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| Connectivity technology |
Wired |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
32 - 104 °C |
| Storage temperature (T-T) |
-4 - 104 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Weight & dimensions |
|---|
| Weight |
1.05 kg |
| Height |
96.5 mm |
| Depth |
29 mm |
| Width |
135 mm |
| Packaging data |
|---|
| Package weight |
1.27 kg |
| Package height |
150 mm |
| Package depth |
80 mm |
| Package width |
262 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
AC |
| Technical details |
|---|
| Compliance certificates |
REACH, RoHS |
