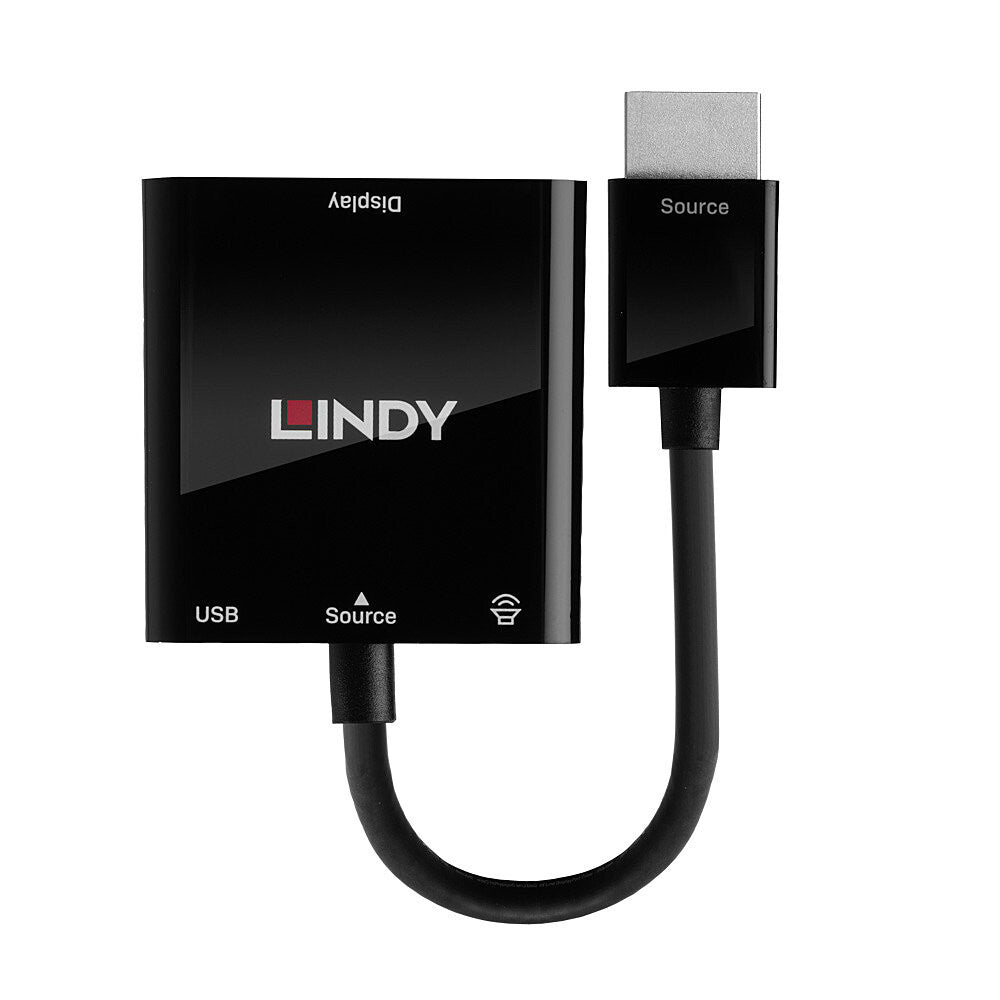

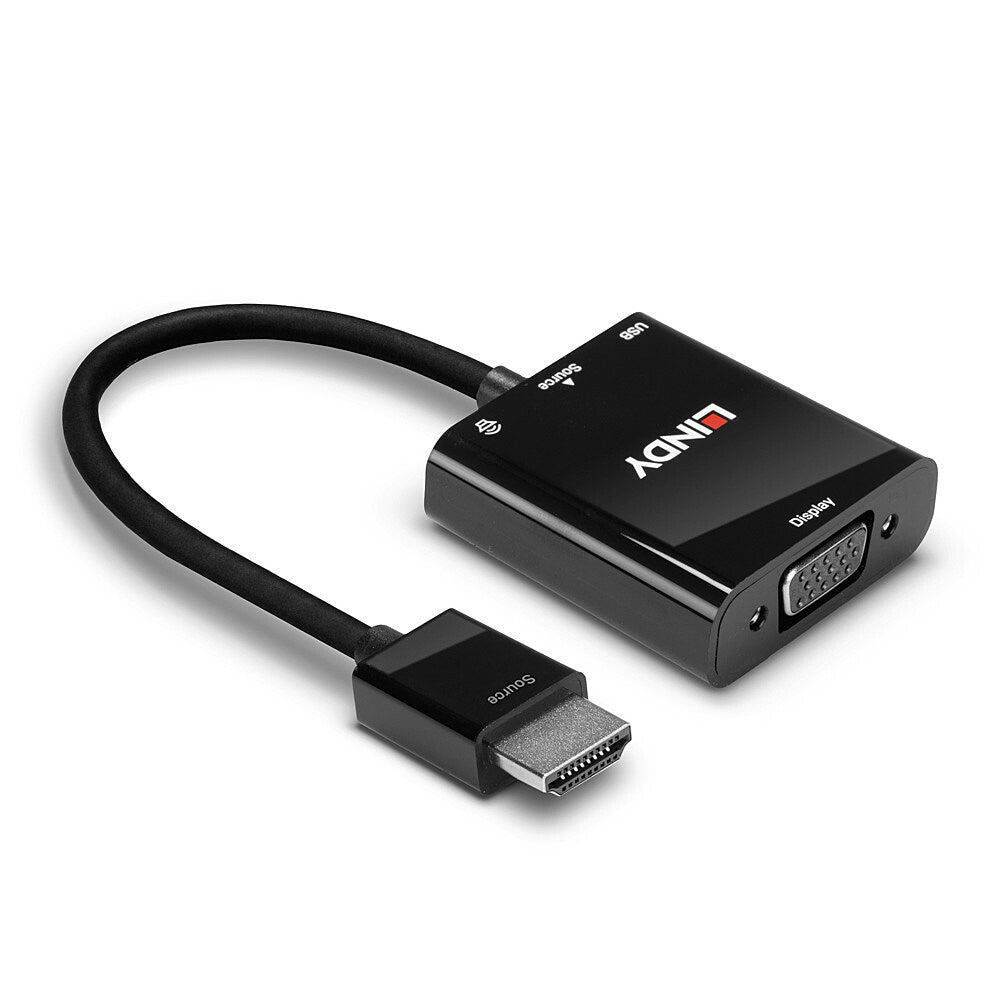

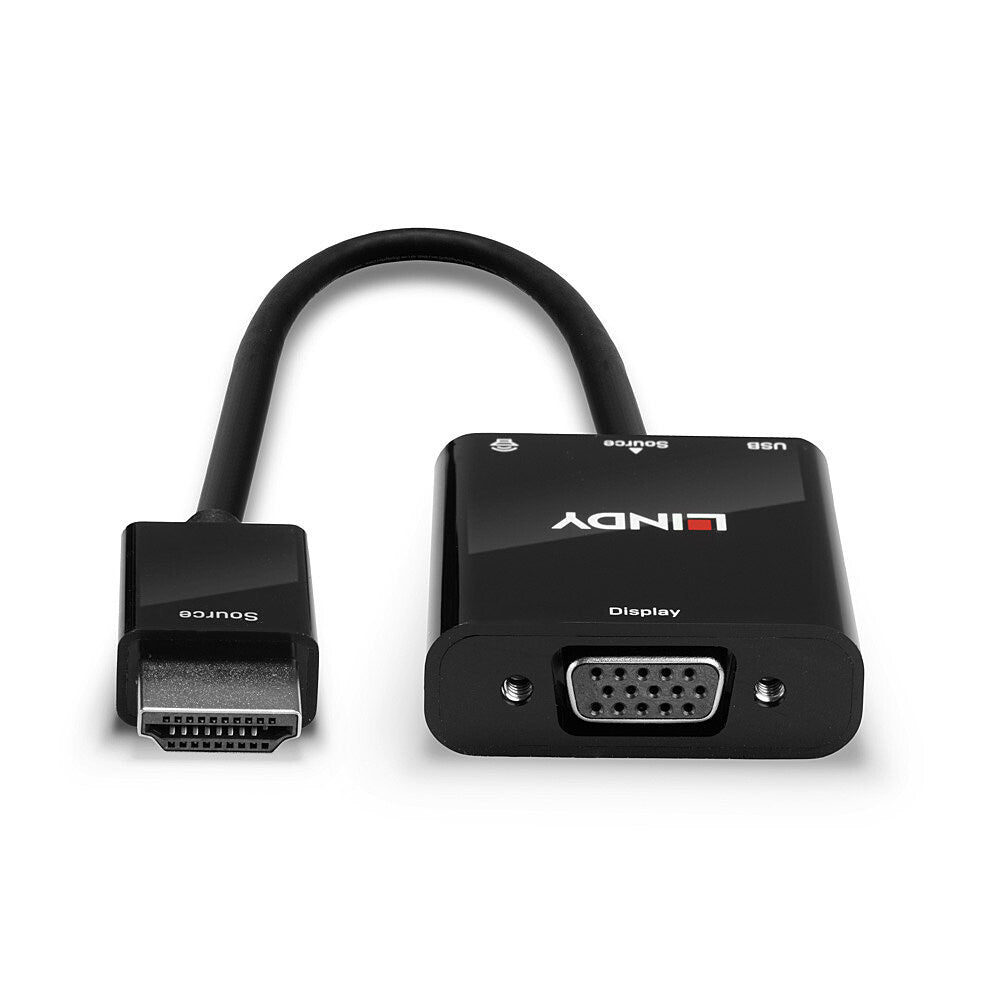

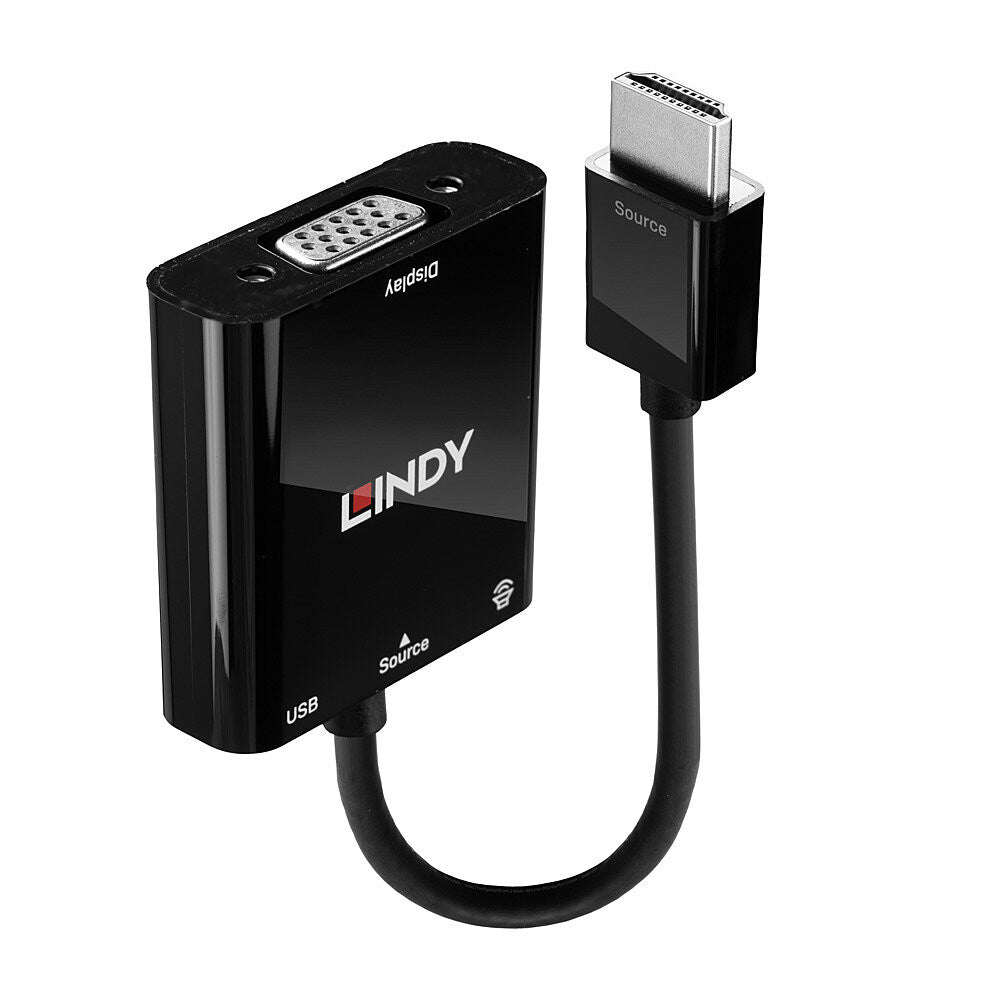

The Lindy HDMI 1.3 to VGA and Audio Converter is ideal for connecting HDMI equipped sources such as laptops, ultrabooks and PCs to VGA displays. It converts the HDMI signal (along with the associated digital audio stream) into an analogue VGA signal.
Full HD signals are supported, including 1080p for HDTV connections and up to 1920x1080 for PC VGA monitors.
No external power source is required, which makes this converter the perfect tool for flexible working in different environments, whether it's in the office, traveling to hold presentations or at home, as it also permits the use of older VGA monitors or projectors to display content.
| Features |
|---|
| Cable shielding |
Aluminium mylar foil |
| Colour depth |
12 bit |
| AWG wire size |
30 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable material |
Copper |
| Product colour |
Black |
| Data transfer rate |
4.95 Gbit/s |
| Maximum resolution |
1920 x 1200 pixels |
| HDMI version |
1.3 |
| Power source |
USB |
| Audio connector type |
3.5 mm (1/8") |
| Audio connector |
Yes |
| Connector contacts plating |
Nickel |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Connector 2 |
VGA (D-Sub) |
| Connector 1 |
HDMI Type A (Standard) |
| Cable length |
0.1 m |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Cable diameter |
4.8 mm |
| Packaging data |
|---|
| Package type |
Polybag |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
