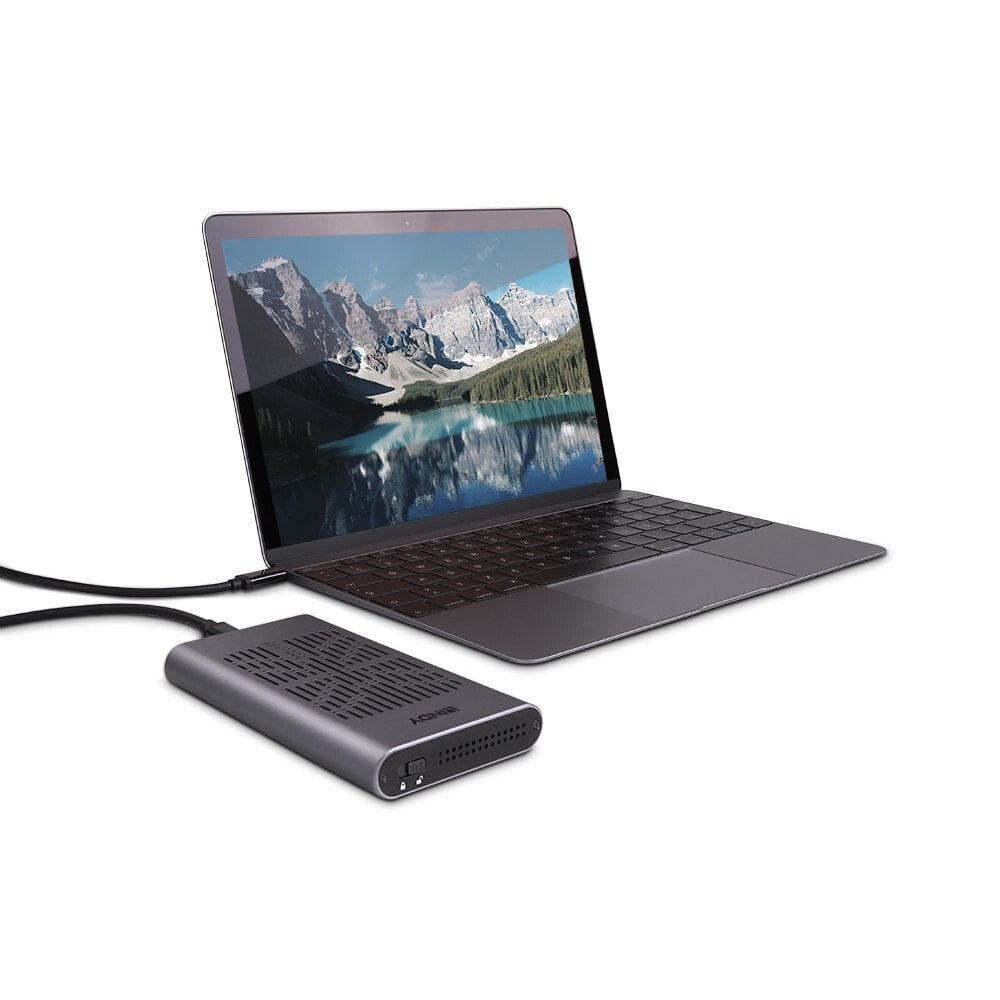

The Lindy USB 3.2 Dual M.2 NVMe SSD Enclosure allows the user to install two PCIe/NVMe based M.2 SSDs as an external drive to USB hosts like laptops or PCs. The additional Clone feature enables duplicating M.2 NVMe SSDs - even without connection to a computer ('offline cloning'). Support for the USB 3.2 Gen 2x2 standard guarantees SuperSpeed 20Gbps data transfer rates. UASP support also ensures faster speeds for UASP enabled computers.

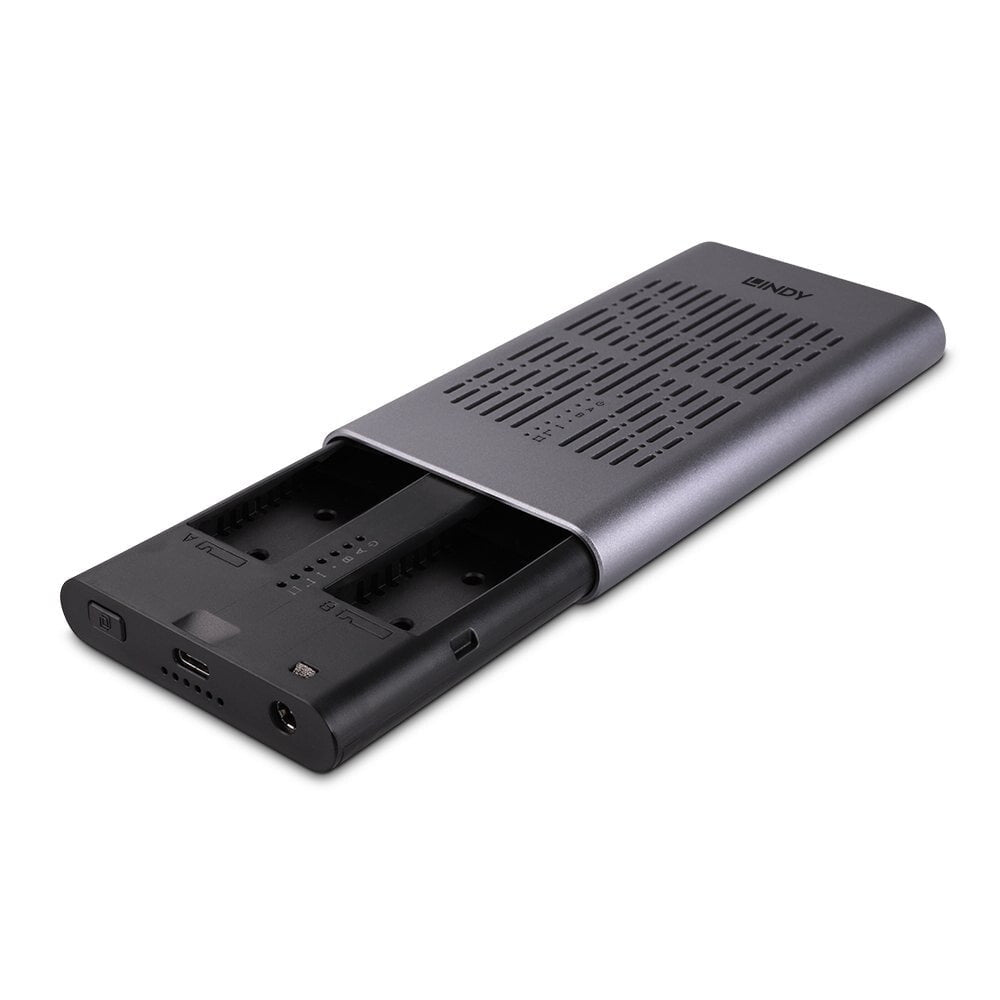

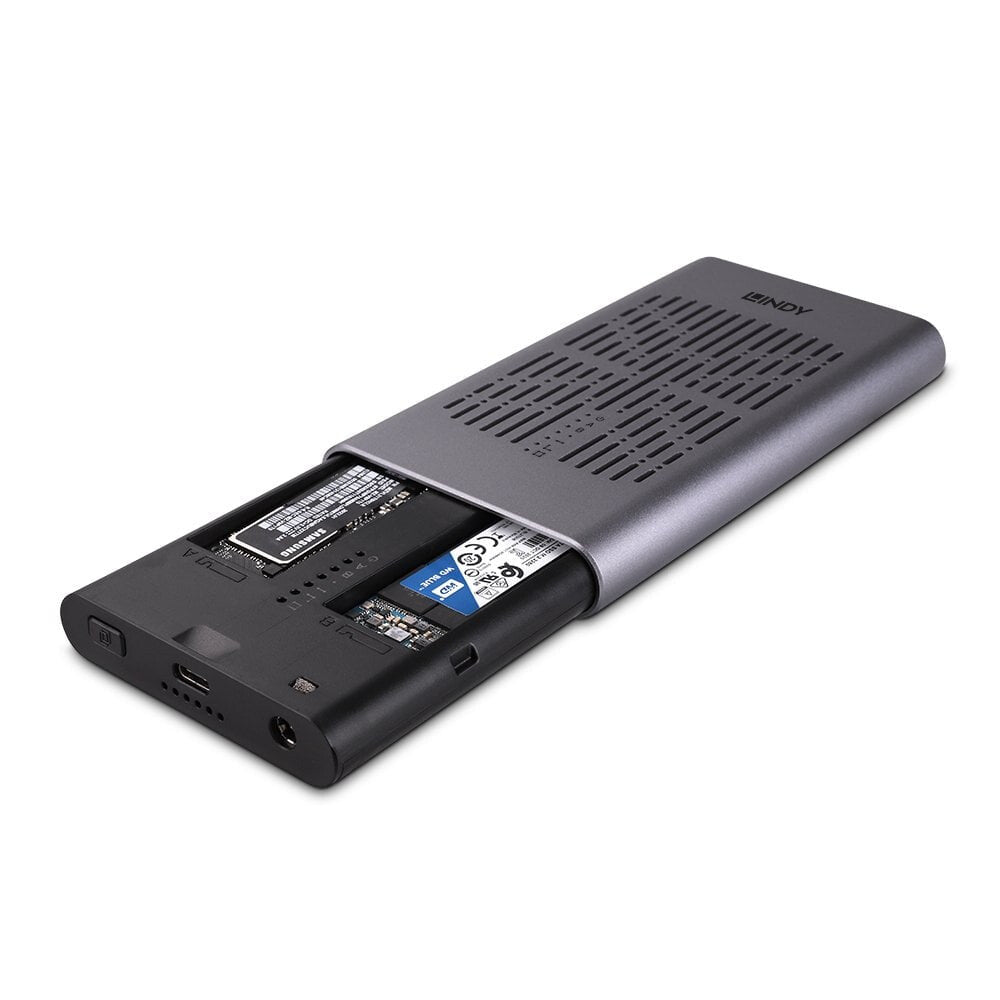

This Lindy enclosure is compatible with PCIe/NVMe based M.2 SSDs with M key in 42, 60 and 80mm lengths. The tool-free design makes installation very easy. An included external power adapter guarantees safe power supply.
* Please note that that 20Gbps full support is only possible with a USB 3.2 2x2 host controller.
| Storage |
|---|
| NVMe |
Yes |
| Supported storage drive lengths |
42,60,80 mm |
| Number of storage drives supported |
2 |
| Supported storage drive interfaces |
M.2, PCI Express 3.0 |
| Storage drive size |
M.2 |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB ports quantity |
1 |
| USB connector gender |
Female |
| USB connector type |
USB Type-C |
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| USB connectivity |
Yes |
| Design |
|---|
| Certification |
CP65 |
| LED indicators |
Yes |
| Material |
Acrylonitrile butadiene styrene (ABS), Aluminium |
| Product colour |
Silver |
| Product type |
SSD enclosure |
| Performance |
|---|
| TRIM support |
Yes |
| UASP support |
Yes |
| Chipset |
JMS586U |
| Power |
|---|
| Input voltage |
12 V |
| Power source type |
DC |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-10 - 90 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Weight & dimensions |
|---|
| Package weight |
450 g |
| Package height |
110 mm |
| Package depth |
100 mm |
| Package width |
160 mm |
| Cable length |
0.25 m |
| Weight |
174 g |
| Height |
17.5 mm |
| Depth |
77 mm |
| Width |
143 mm |
| Packaging content |
|---|
| Packaging content |
USB 3.2 Dual M.2 NVMe SSD Enclosure0.25m USB 3.2 Gen 2x2 Type C to C cableMulti-Country Power Supply 12VDC 2A with country adapters (EU, UK; US, AUS)2x thermal conductive pad2x thermal conductive plate4x M.2 rubber retainer Lindy Manual |
| Manual |
Yes |
| Cables included |
USB |
| Package type |
Box |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS |
| Warranty period |
2 year(s) |
