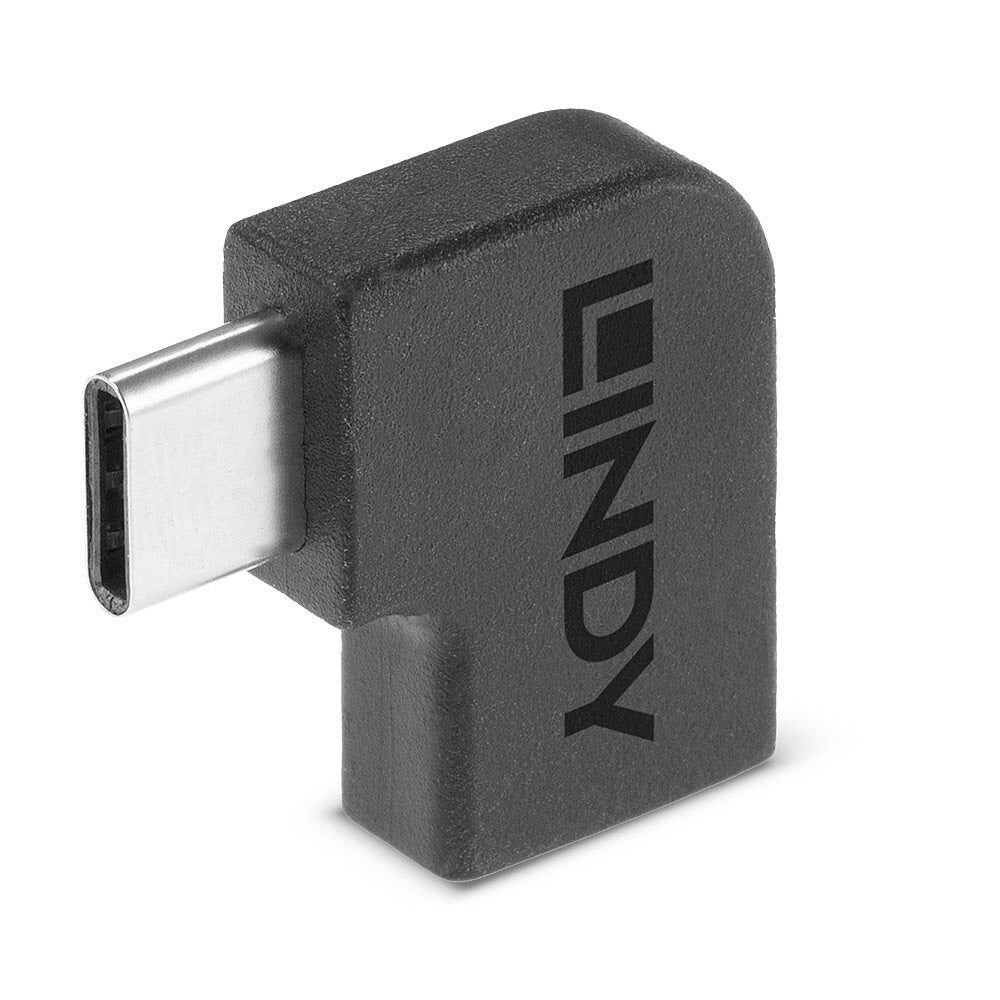

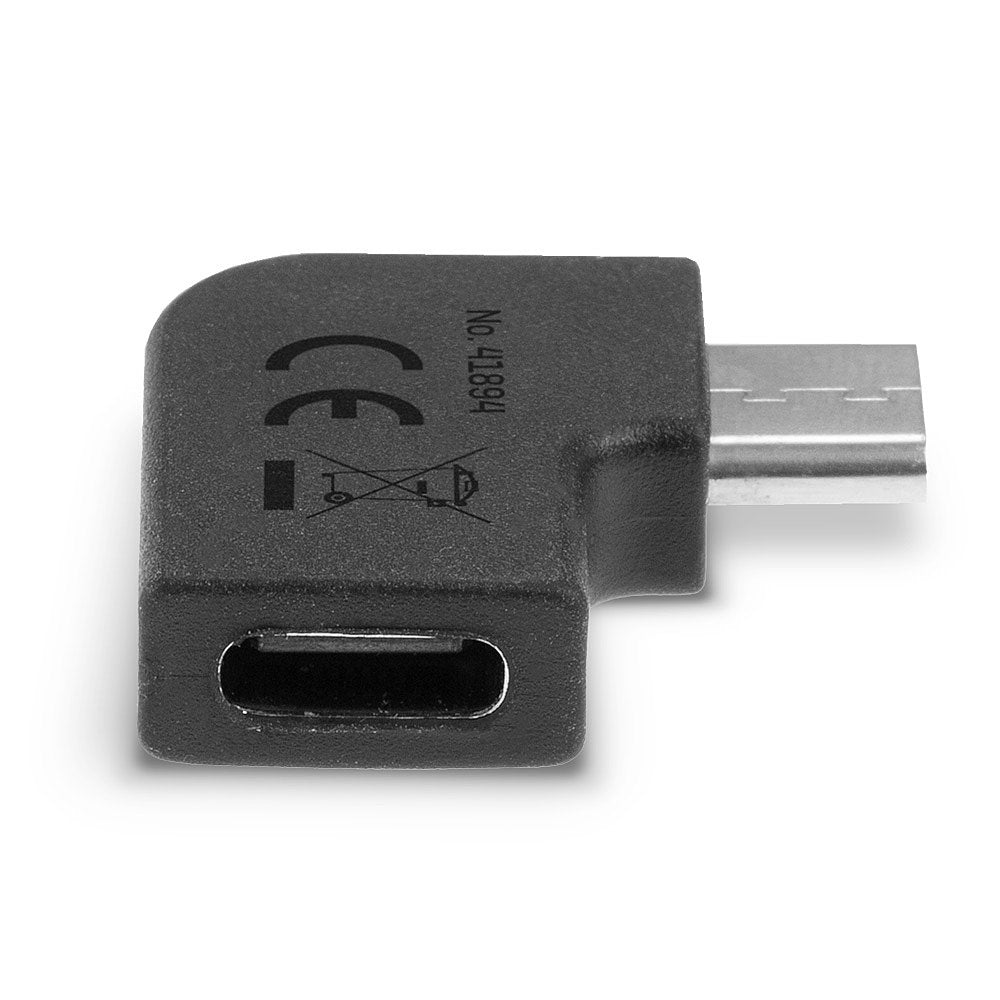

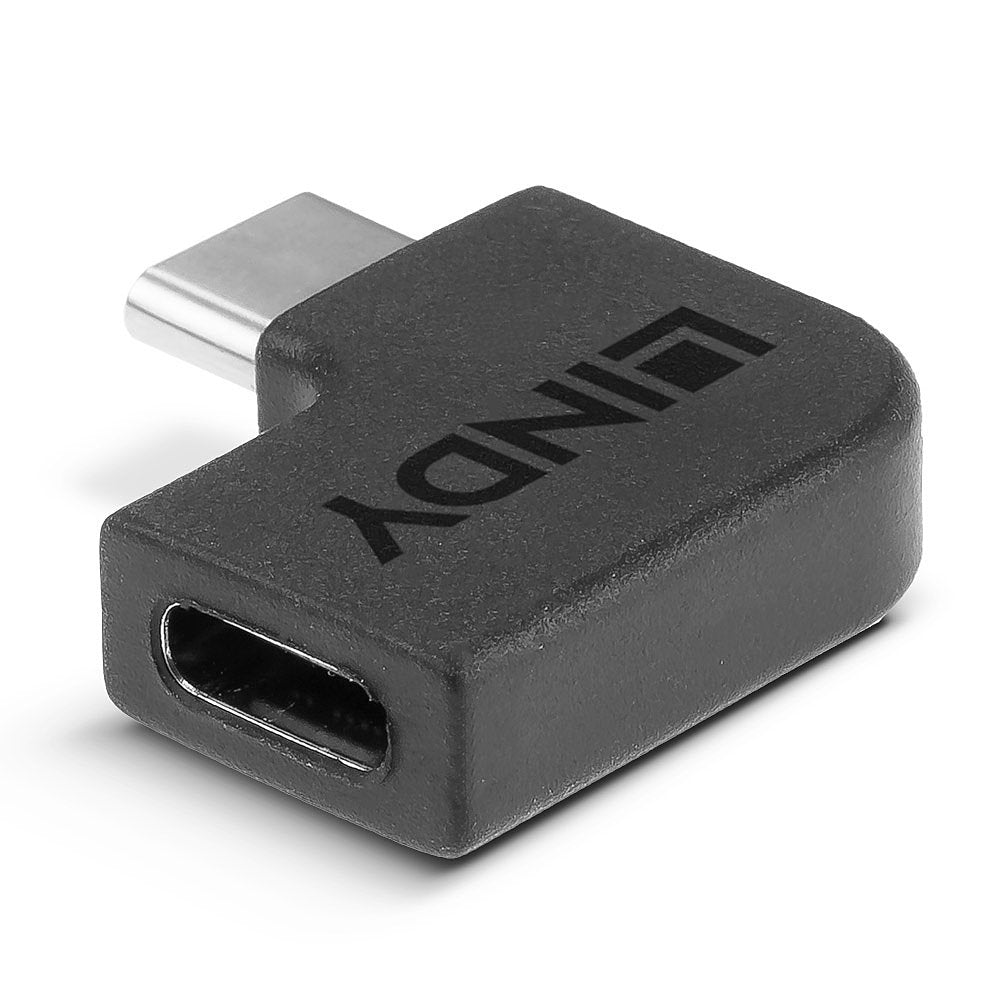

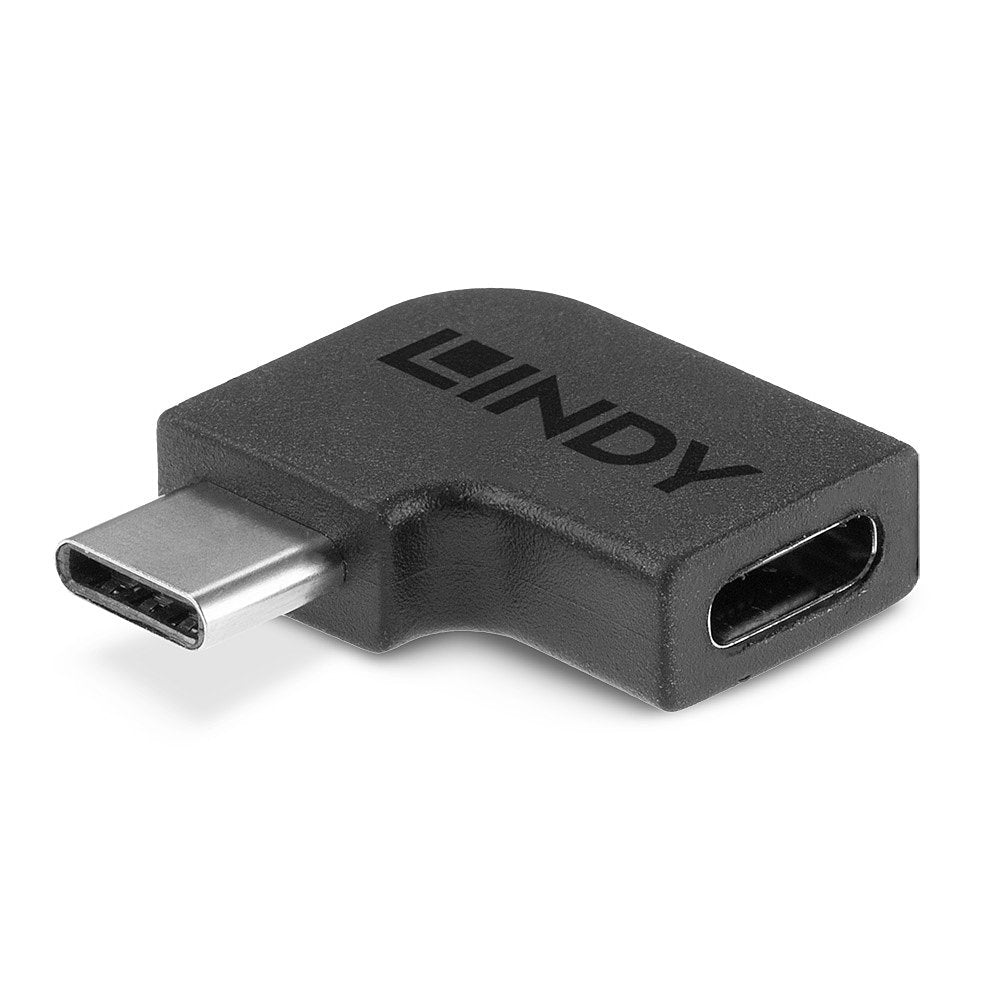

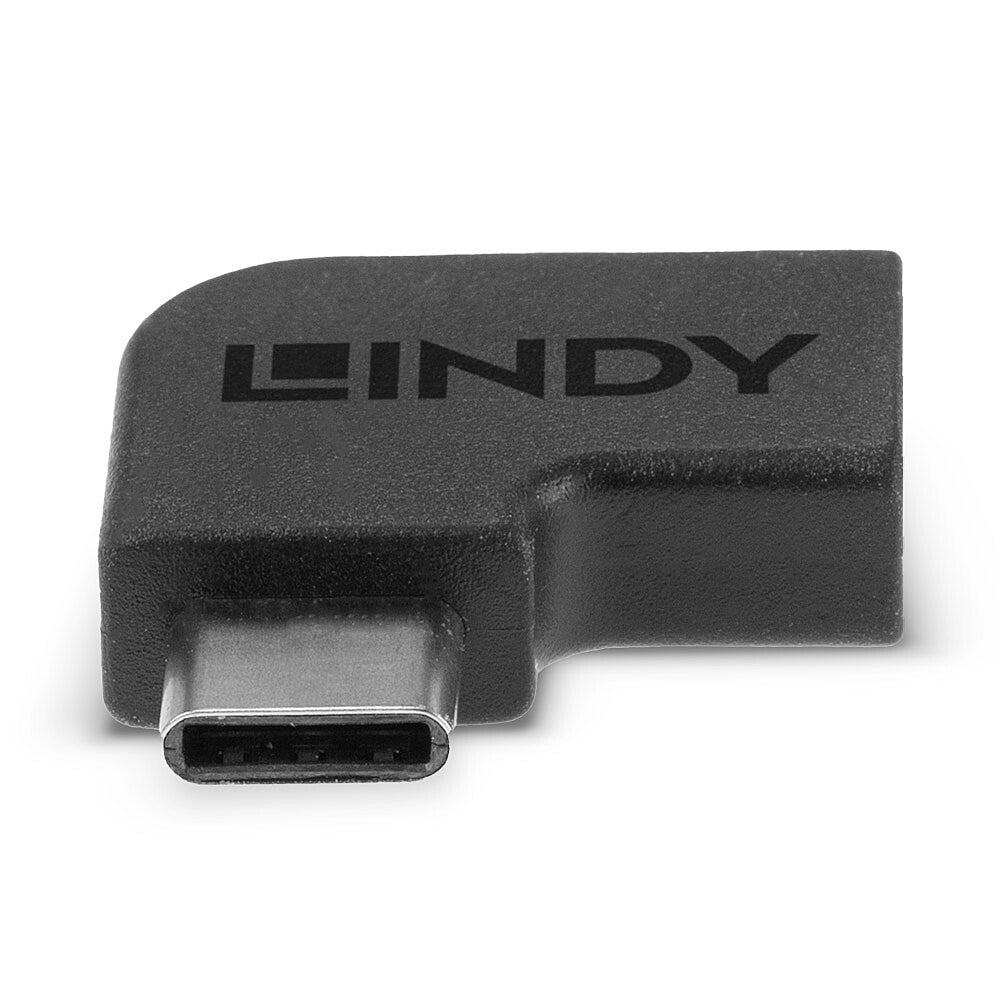

Lindy USB 3.2 Type C to C 90° Adapter

SKU: 41894

£17.18 inc. VAT

Connects a USB Type C cable to a USB Type C device with recessed ports or within limited spaces
Angled 90° left/right - can be used as a strain relief for chargers and USB-C converters
Robust PVC housing, nickel connectors and gold plated contacts
Supports data transfer speeds up to SuperSpeed USB 20Gbpsandnbsp; (USB 3.2 Gen 2x2)
10 year warranty

USB adapters allow users to connect different USB interfaces to a device that uses a differing USB port.

The Lindy USB 3.2 Type C to C 90° Adapter is a compact solution that allows users to connect a USB Type C cable to a USB Type C device with recessed or hard to reach ports. This adapter allows for a 90° connection to the left or right of the device. It is ideal to use as a strain relief for chargers and USB-C converters.

Data transfer speeds up to 20Gbps are supported for the quick and effortless transfer of large data volumes.

Ports & interfaces
Connector 2 shielding	Copper foil
Connector 1 shielding	Copper foil
Connector contacts plating	Nickel/Gold
Connector 1 form factor	Angled
Connector 2 form factor	Straight
Connector 1 gender	Male
Connector 2 gender	Female
Connector 2	USB 3.2 Type C
Connector 1	USB 3.2 Type C

Operational conditions
Operating temperature (T-T)	-10 - 80 °C
Storage temperature (T-T)	-20 - 85 °C

Certificates
Compliance certificates	REACH, RoHS

Weight & dimensions
Height	6.3 mm
Depth	23 mm
Width	24.6 mm

Packaging data
Package type	Polybag
