The purchase of a one year Logitech extended warranty along with the purchase of Rally Bar Mini adds one additional year to the original Logitech manufacturer's two year limited hardware warranty and is intended to ensure that your Logitech hardware is free from defects in material and workmanship. This extended warranty helps to protect your investment, maximize its value, and ensure optimal performance of your Logitech conference room hardware for a total of three years. This is right in line with the typical depreciation and replacement cycle of most conference room equipment.
| Performance |
|---|
| PTZ control |
Yes |
| Tilt angle range |
-15 - 15° |
| Pan range |
-25 - 25° |
| Product colour |
Graphite |
| Product type |
Group video conferencing system |
| Video |
|---|
| Maximum frame rate |
30 fps |
| Supported video modes |
576p, 720p, 900p, 1440p, 2160p |
| HD type |
4K Ultra HD |
| Audio |
|---|
| Sample rates |
0 - 48 kHz |
| Noise reduction |
Yes |
| Echo cancellation |
Yes |
| RMS rated power |
8 W |
| Microphone pick-up range |
4.5 m |
| Audio beamforming |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Line-out impedance |
4 Ω |
| Output level |
92/99 dB |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
|---|
| Microphone in |
Yes |
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB connector type |
USB Type-A, USB Type-C |
| HDMI output ports quantity |
2 |
| HDMI input ports quantity |
1 |
| HDMI ports quantity |
3 |
| Network |
|---|
| Security algorithms |
128-bit AES |
| Supported network protocols |
IPv4, IPv6 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Camera |
|---|
| Remote control interface |
Bluetooth |
| Diagonal field of view |
120° |
| Vertical field of view |
80.7° |
| Horizontal field of view |
113° |
| Digital zoom |
4x |
| Zoom capability |
Yes |
| Microphone |
|---|
| Number of microphones |
6 |
| Sound pressure level (max) |
90 dB |
| Microphone direction type |
Omnidirectional |
| Microphone frequency |
90 - 16000 Hz |
| Microphone sensitivity |
-36 dB |
| Battery |
|---|
| Battery capacity |
0.675 Wh |
| Logistics data |
|---|
| Master (outer) case gross weight |
6.29 kg |
| Master (outer) case length |
804 mm |
| Master (outer) case width |
200 mm |
| Master (outer) case height |
212 mm |
| Harmonized System (HS) code |
85176990 |
| Computer system |
|---|
| Mac operating systems supported |
MacOS |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Heat dissipation |
64 BTU/h |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Power |
|---|
| Power plug type |
Type G |
| Battery technology |
Lithium |
| Battery capacity |
220 mAh |
| Number of batteries supported |
1 |
| DC input voltage |
19 V |
| Current |
4.754 A |
| AC input voltage |
100 - 240 V |
| Power source type |
AC |
| Weight & dimensions |
|---|
| Package weight |
5.8 kg |
| Package height |
199 mm |
| Package depth |
789 mm |
| Package width |
191 mm |
| Weight |
4.03 kg |
| Height |
91.4 mm |
| Depth |
101 mm |
| Width |
719 mm |
| Packaging content |
|---|
| Packaging content |

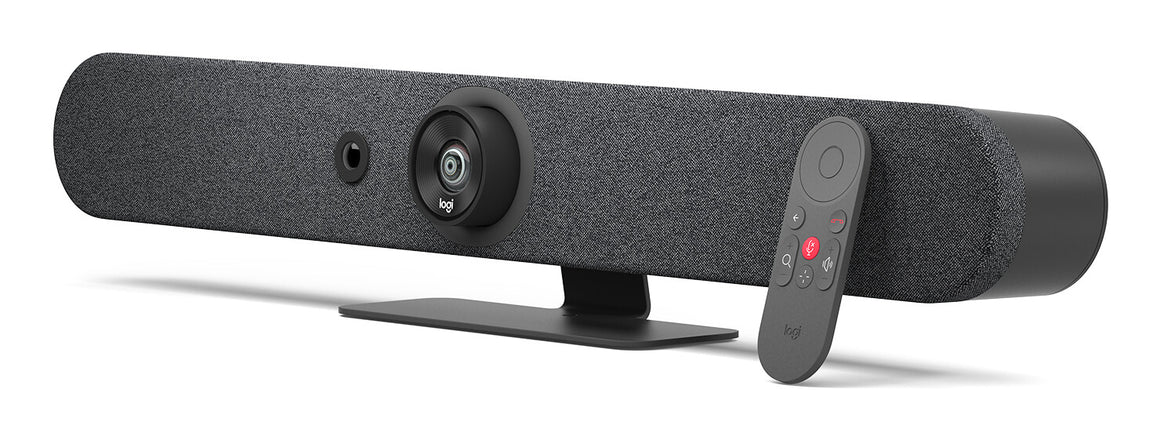

Rally Bar MiniPower supplyAC power cordHDMI cableUSB cableRemote controlLens caps for main lens and AI ViewfinderUser documentation |
| Remote control included |
Yes |
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| HDMI cable length |
2 m |
| Power cable length |
2.5 m |
| Cables included |
AC, DC, HDMI, USB Type-A to USB Type-C |
